Description

Waveshare 7inch DSI Capacitive Touch Display, 1280×720 Pixels, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch, Anti-Fingerprint Process

The 7-inch DSI Capacitive Touch Display offers a high-resolution 1280×720 pixel output with a vivid IPS panel for excellent color reproduction and wide viewing angles. Built with optical bonding technology and a toughened glass panel, it ensures enhanced durability and visibility in various environments. The 10-point capacitive touch provides smooth and accurate touch interaction, while the anti-fingerprint coating keeps the screen clean and clear during extended use. This display is ideal for industrial, embedded, and interactive applications requiring reliable performance and a premium user experience.

Features

• 7inch DSI touch screen, ten-point capacitive touch control
• IPS display panel with hardware resolution of 1280×720
• Toughened glass capacitive touch panel, hardness up to 6H
• Optical bonding toughened glass panel, clearer picture quality
• Using AF anti-fingerprint process, not easy to get fingerprints and easy to clean
• Support Pi5/CM5/4B/CM4/3B+/3A+/3B/CM3+/CM3
• Directly drive the LCD by the DSI interface on the Raspberry Pi, with up to 60Hz refreshing rate
• When used with Raspberry Pi, it supports Bookworm/Bullseye/Buster systems
• Supports software control of backlight brightness

Specifications

• Display Size: 7 inches
• Resolution: 1280 × 720 pixels
• Panel Type: IPS
• Touch Type: 10-point capacitive touch
• Interface: DSI (Display Serial Interface)
• Touch Panel: Toughened glass with optical bonding
• Surface Treatment: Anti-fingerprint coating
• Viewing Angle: 178° (horizontal and vertical)
• Backlight: LED
• Aspect Ratio: 16:9

Package Includes

• 7inch DSI LCD (H) x1
• MIPI-DSI-Cable-12cm x1
• MX 1.25 2PIN to 2.54 3PIN cable x1
• FFC 22PIN cable ~200mm (opposite sides) x2
• Screws pack x1

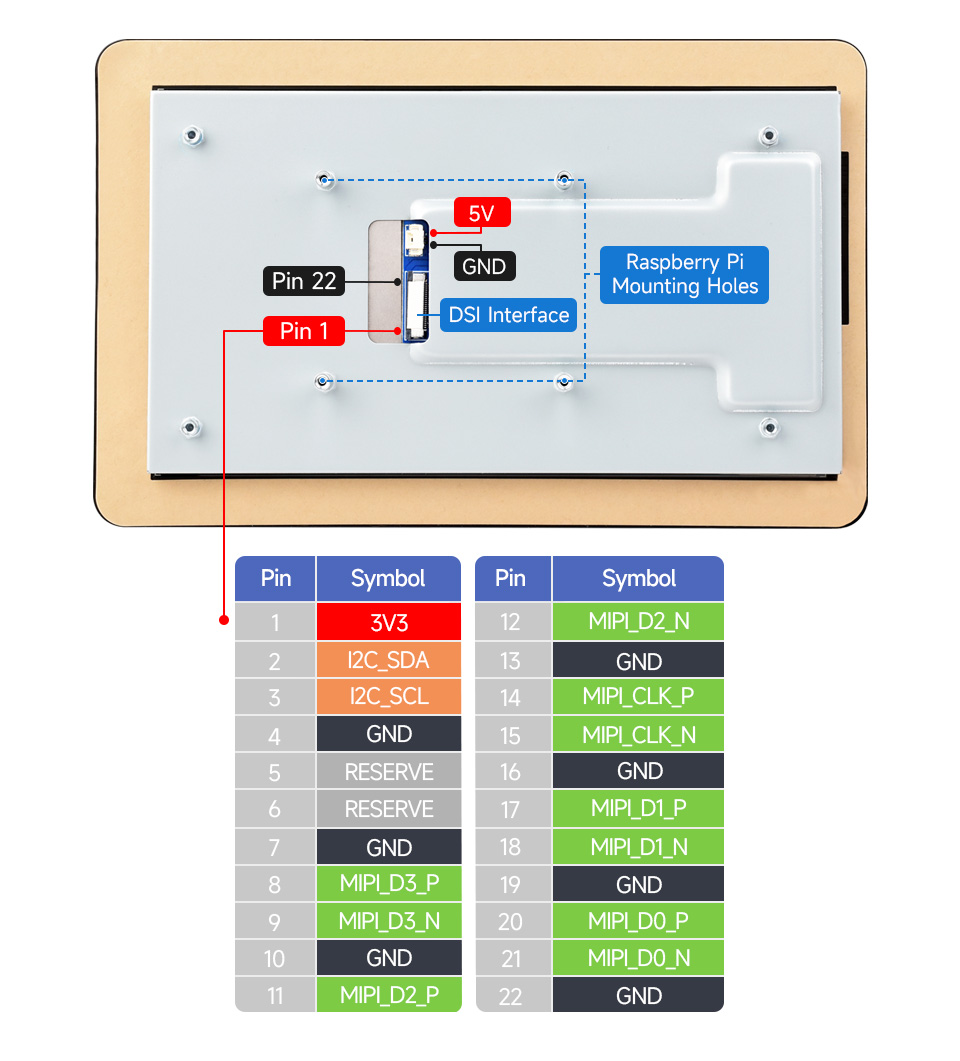

Interface definition:

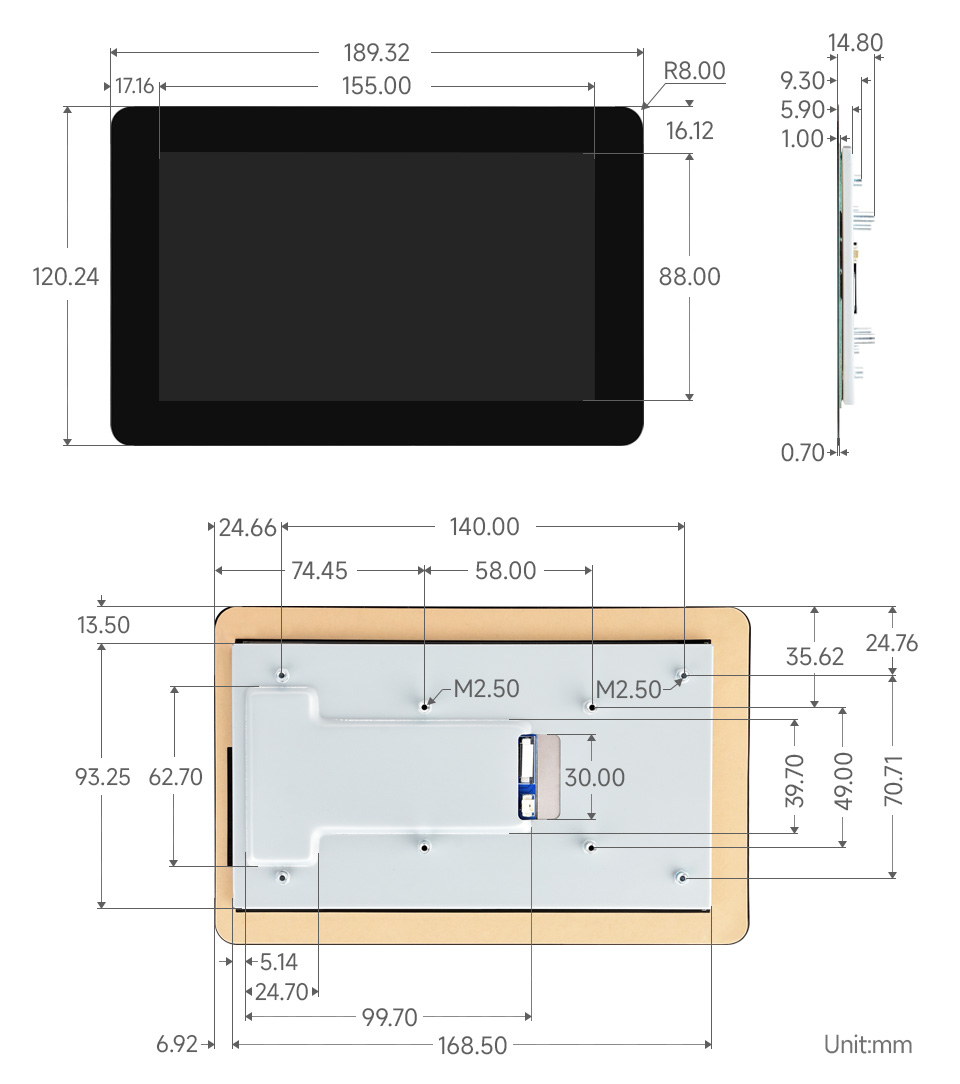

Dimensions:
