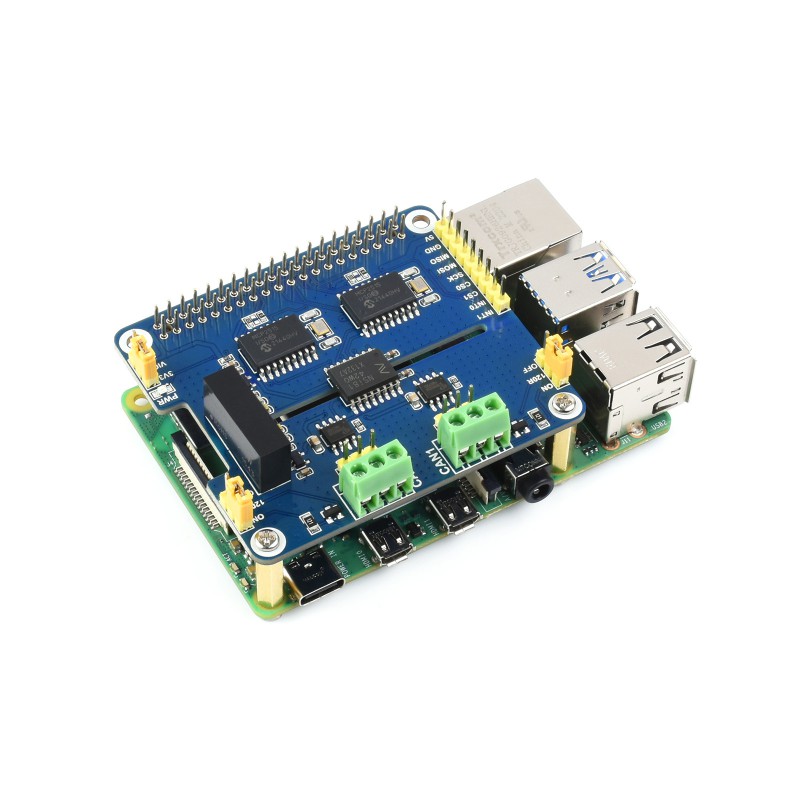

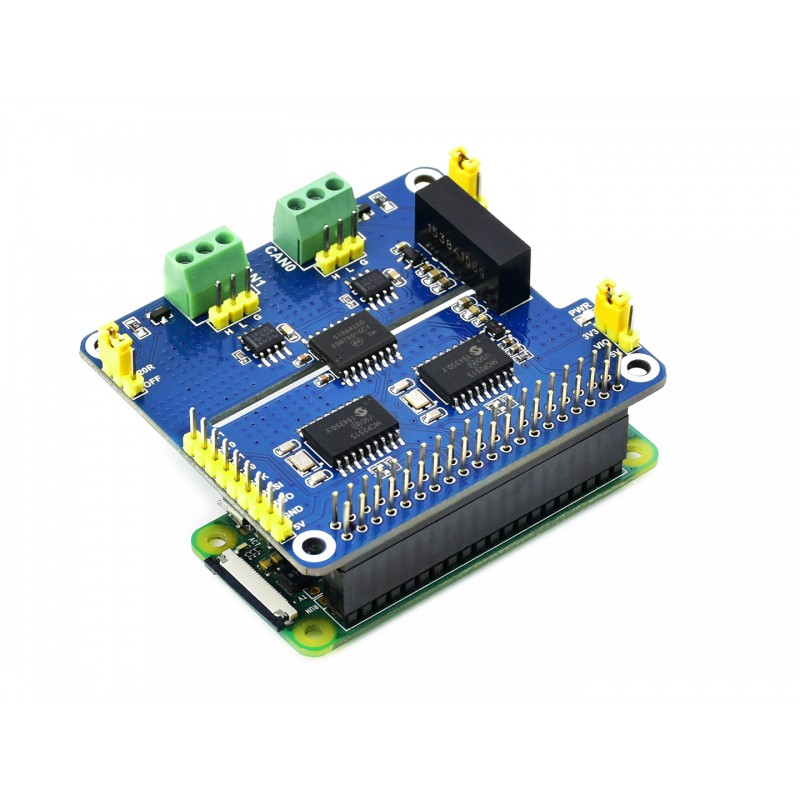

aveshare 2-Channel Isolated CAN HAT for Raspberry Pi- 17912
₹2,196
Out of stock

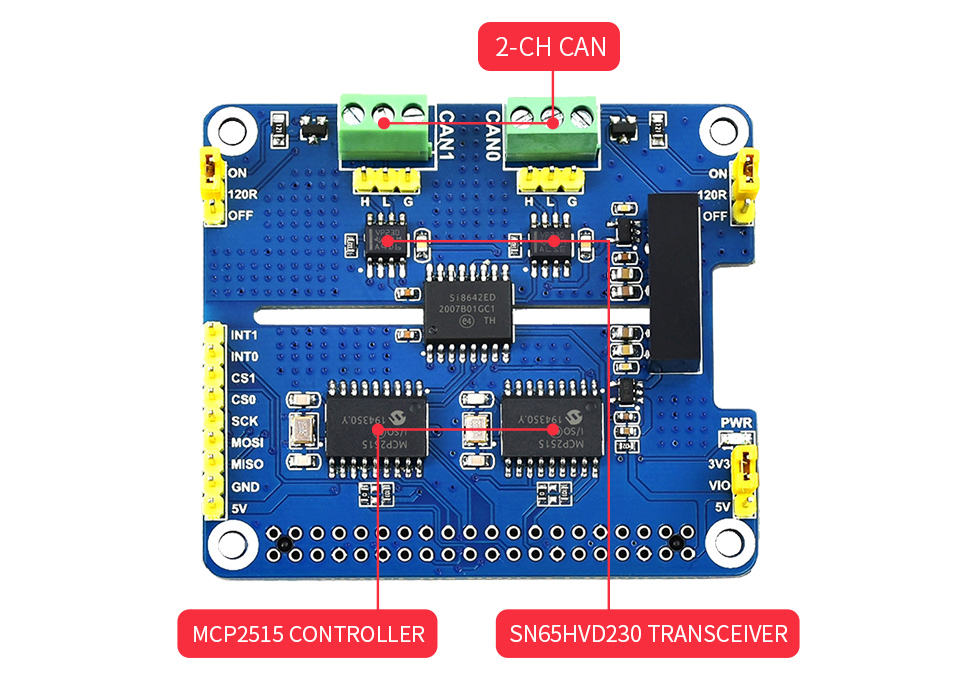

- Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication

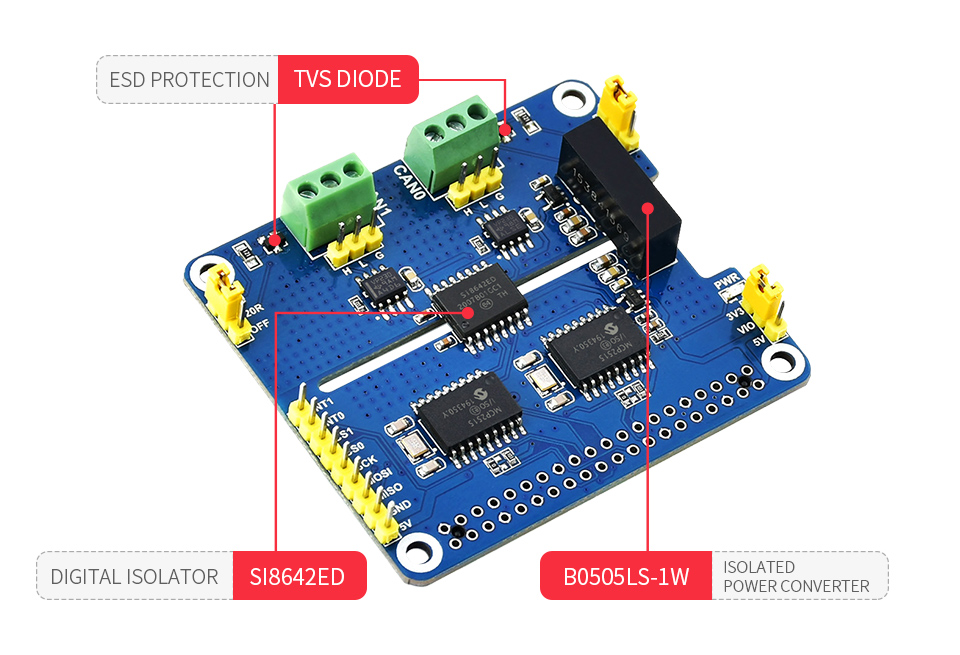

- Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
- Onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference
- Onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection

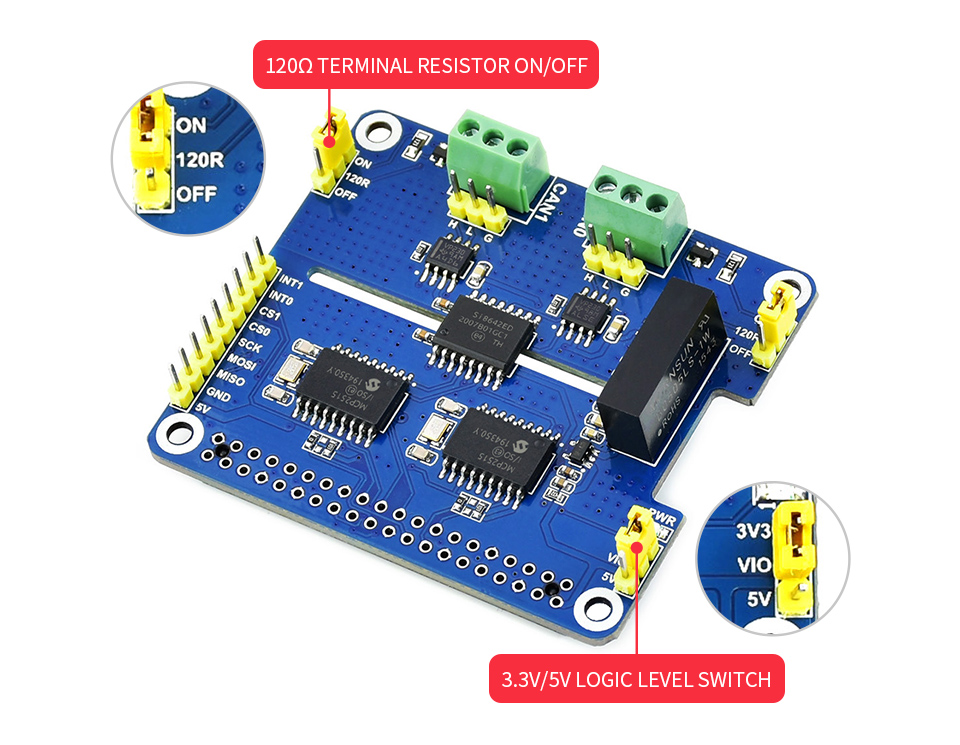

- Onboard voltage translator, select 3.3V/5V operating voltage by jumper
- Onboard 120Ω terminal resistor, configured by jumper

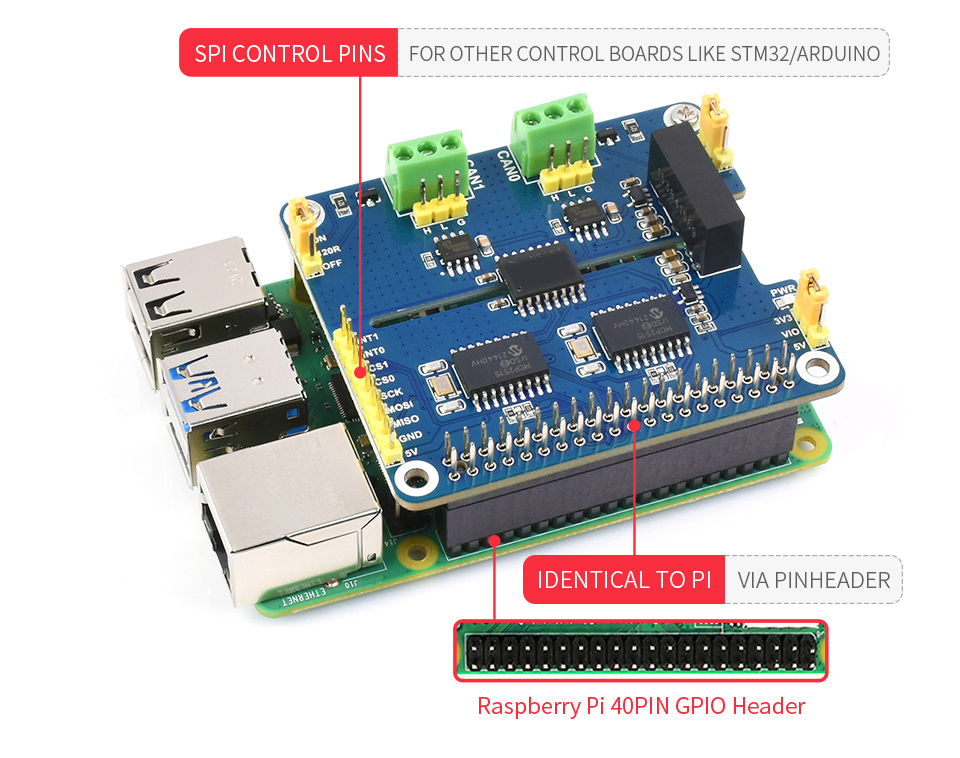

- Breakout SPI control pins, for connecting with host control boards like STM32/Arduino
Description
Integrate reliable, high-speed industrial CAN bus networks into your Raspberry Pi projects with the Waveshare 2-Channel Isolated CAN Expansion HAT (Dual Chips Solution). Designed for automotive diagnostics, robotics fieldbuses, industrial control systems, and smart machinery, this expansion board allows your Raspberry Pi to communicate over two separate CAN networks simultaneously.
Using a robust dual-chip architecture—featuring two MCP2515 CAN controllers and two SN65HVD230 CAN transceivers—the board interfaces via the Raspberry Pi’s SPI bus, bypassing host CPU bottlenecks. Both channels are engineered with unibody power isolation and high-voltage optocoupler signal isolation, preventing ground loops, electrical noise, and high-voltage spikes on the CAN bus from damaging your host Raspberry Pi board.
Technical Specifications
| Parameter | Specification |
| Brand | Waveshare |
| CAN Controller IC | Dual MCP2515 (Independent Controllers for Channel 1 & 2) |
| CAN Transceiver IC | Dual SN65HVD230 |

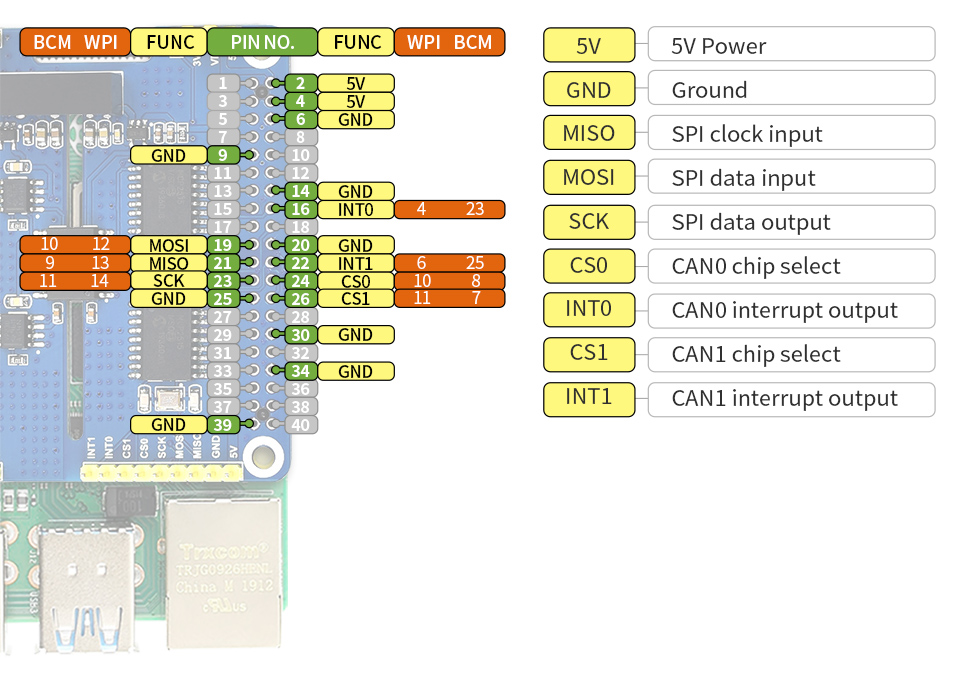

| Interface | SPI Bus (Uses Raspberry Pi SPI Interface with dual CS lines) |
| CAN Protocol Support | CAN 2.0B (Standard and Extended Data/Remote Frames) |
| Communication Speed | Up to 1 Mbps |
| Operating Voltage | 3.3V / 5V DC (Powered via Raspberry Pi GPIO Header) |
| Isolation Architecture | Integrated Power Isolation & Optocoupler Signal Isolation |
| Circuit Protection | TVS (Transient Voltage Suppressor) Diodes, ESD Protection, Over-current Protection |
| Terminal Connectors | 3.5mm Pitch Industrial Screw Terminal Blocks (CANH, CANL, GND per channel) |
| Terminal Resistors | Onboard 120$\Omega$ Matching Resistors (Selectable via Onboard Jumpers) |
| Compatibility | Raspberry Pi 5, 4B, 3B+, Zero Series, Jetson Nano |
| Dimensions | Standard Raspberry Pi HAT Size (~65mm × 56mm) |
Key Features & Highlights
-
Dual Independent CAN Channels: Communicate across two isolated CAN buses simultaneously for complex multi-node network bridging and monitoring.
-
SPI-Driven Architecture: Driven via the SPI interface using independent Chip Select (CS) lines, avoiding resource conflicts with the Raspberry Pi’s UART pins.
-
Galvanic Power & Signal Isolation: High-voltage isolation protects your host single-board computer against high voltage surges, EMI noise, and ground potential differences.
-
TVS Surge Protection: Onboard Transient Voltage Suppressor (TVS) diodes effectively suppress bus surge voltages and static electricity discharge (ESD).
-
Onboard 120$\Omega$ Terminal Jumpers: Easily configure or disable the $120\Omega$ terminal matching resistors on each channel depending on your network topology.
-
Status LED Indicators: Clear power and status LEDs allow for easy visual feedback during network debugging and data transmission.
What’s Included in the Box
-
1 × Waveshare 2-Channel Isolated CAN Expansion HAT
-
1 × RPi Screws & Standoffs Pack (2×20 Standoffs & Screws)
Why Buy From Aryabot?
-
100% Genuine Products: Sourced directly from Waveshare to guarantee original, high-reliability industrial hardware.
-
Bench-Tested Quality: Thoroughly inspected for pin alignment and hardware component integrity prior to dispatch.
-
GST Invoice Available: Complete tax-compliant invoicing provided for B2B procurement, industrial clients, and research labs.
-
Pan-India Express Delivery: Swift order processing and dispatch directly from our Noida fulfillment warehouse.
Additional information
| Weight | 0.049 kg |
|---|---|
| Dimensions | 8 × 7.2 × 2.8 cm |
