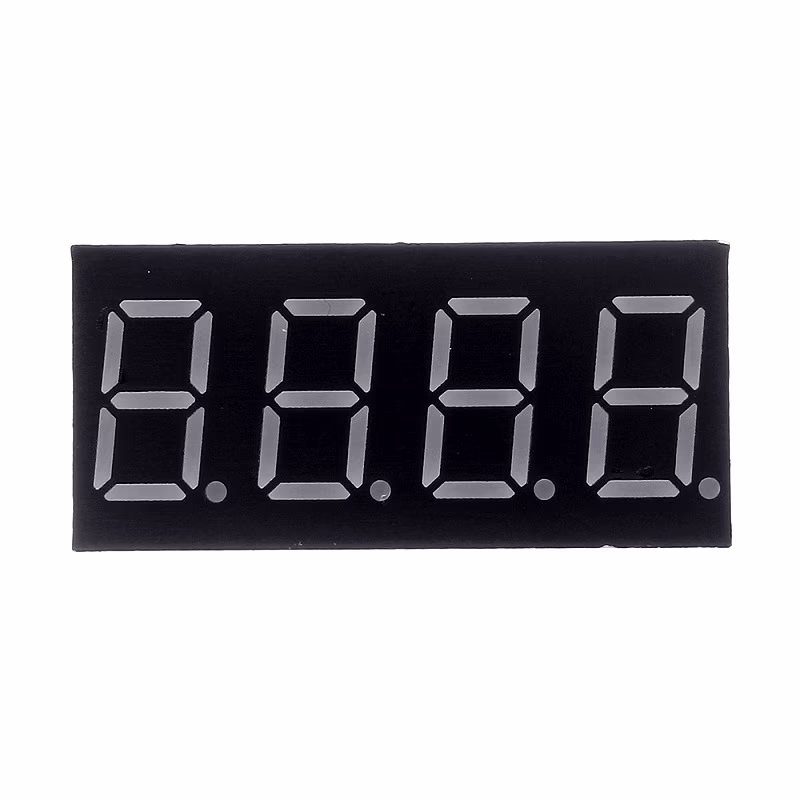

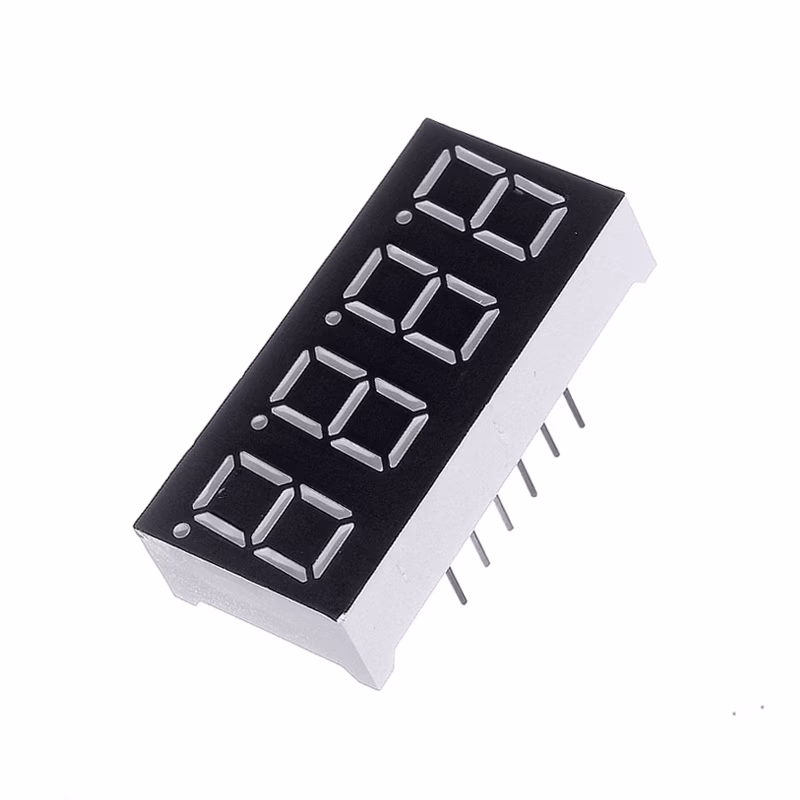

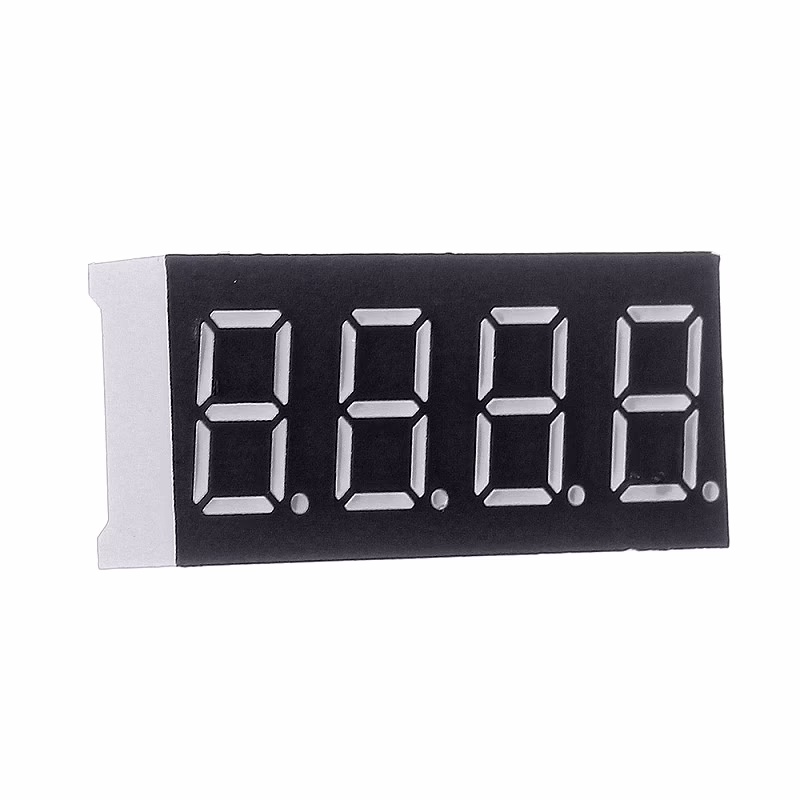

Digit 7-Segment LED Display CC 0.56″ 12-Pin
₹63
In stock
- The 4-Digit 7-Segment LED Display (0.56 Inch, Common Cathode) is a high-visibility, 12-pin numeric module designed for digital clocks, counters, panel meters, and microcontroller projects. Featuring ultra-bright red LED segments and multiplexed pinouts, it easily interfaces with Arduino, Raspberry Pi, ESP32, and 8051 controllers using standard display drivers or direct GPIO multiplexing.
Description
Add clear, bright numeric readouts to your electronic hardware projects with the 4-Digit 7-Segment LED Display Common Cathode (0.56 Inch). Engineered for high reliability and low power consumption, this 12-pin component displays numbers from 0000 to 9999 along with decimal points for precision measurements.
In this Common Cathode (CC) configuration, all negative terminals of the individual segment LEDs in each digit are tied to common digit cathode pins. By multiplexing the 4 digit cathode pins and 8 segment anode pins, you can control all 32 segments using just 12 physical pins on your breadboard or custom PCB.
Technical Specifications
| Parameter | Specification |
| Display Configuration | 4-Digit 7-Segment + Decimal Points (DP) |
| Polarity Type | Common Cathode (CC) |
| Digit Height | 0.56 Inch (14.2 mm) |
| Pin Count | 12 Pins (DIP / Through-Hole Pitch) |
| Emitting Color | Ultra-Bright Red |
| Forward Voltage ($V_F$) | 1.8V – 2.2V DC per segment |
| Forward Current ($I_F$) | 15mA – 20mA per segment |
| Luminous Intensity | 30 – 45 mcd |
| Operating Temperature | -20°C to +80°C |
| Compatibility | Arduino, Raspberry Pi, ESP32, MAX7219, TM1637, 74HC595, 8051 |
Pinout Arrangement (Standard 12-Pin DIP)
-
Digit Select Pins (Cathodes): Pins 12, 9, 8, 6 (Control Digits 1, 2, 3, 4 respectively)
-
Segment Pins (Anodes): Pins 11 (A), 7 (B), 4 (C), 2 (D), 1 (E), 10 (F), 5 (G), 3 (DP)
Key Features & Highlights
-

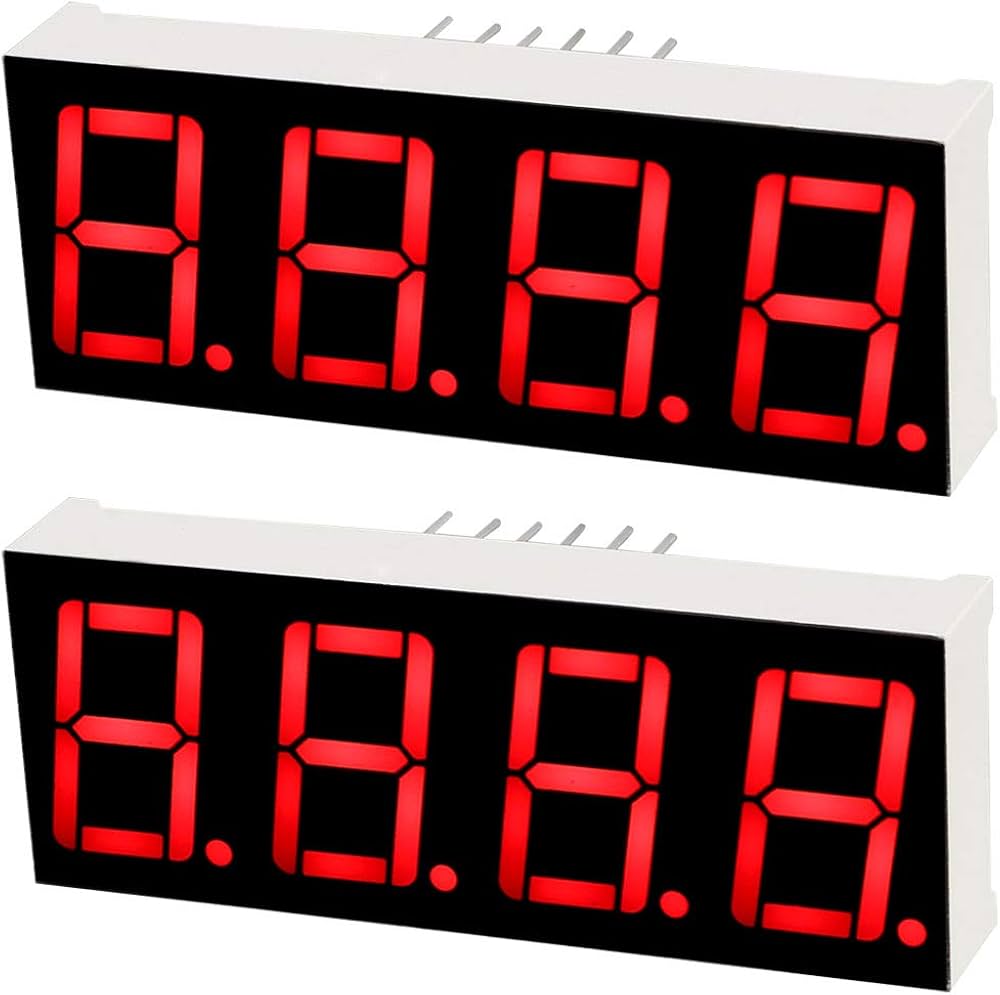

High Contrast 0.56″ Digit Height: Large, crisp red numeric characters ensure easy reading even from a distance or through dark tinted panels.
-
Multiplexed 12-Pin Design: Reduces pin footprint on PCBs; easily paired with shift registers like 74HC595 or driver ICs like MAX7219 to save microcontroller IOs.
-
Low Power & High Efficiency: Runs efficiently on low forward voltage (1.8V–2.2V), making it suitable for battery-operated embedded systems.
-

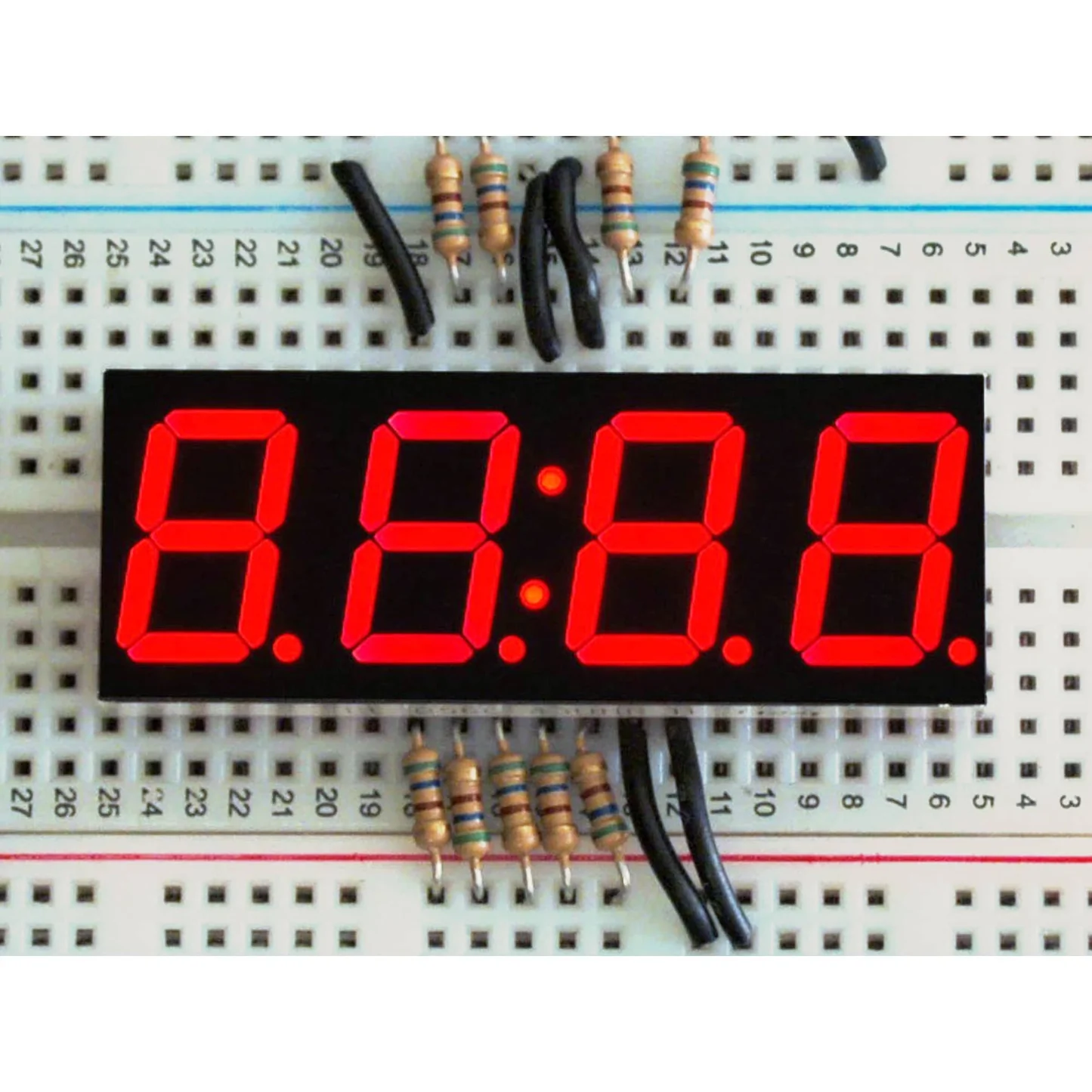

Standard Breadboard Spacing: Dual In-line Package (DIP) lead spacing fits seamlessly onto standard breadboards and 2.54mm pitch universal prototype boards.
What’s Included in the Box
-
1 × 4-Digit 7-Segment LED Display Common Cathode (CC) 12-Pin 0.56 Inch (Red)
Why Buy From Aryabot?
-
100% Genuine Components: Direct sourcing guarantees authentic, high-quality optoelectronic components for your workbench.
-
Bench-Tested Quality: Every display segment is verified for uniform brightness and pin continuity prior to dispatch.
-
GST Invoice Available: Tax-compliant invoices provided for corporate buyers, engineering colleges, and research labs.
-
Pan-India Express Delivery: Prompt order processing and dispatch directly from our Noida fulfillment warehouse.
