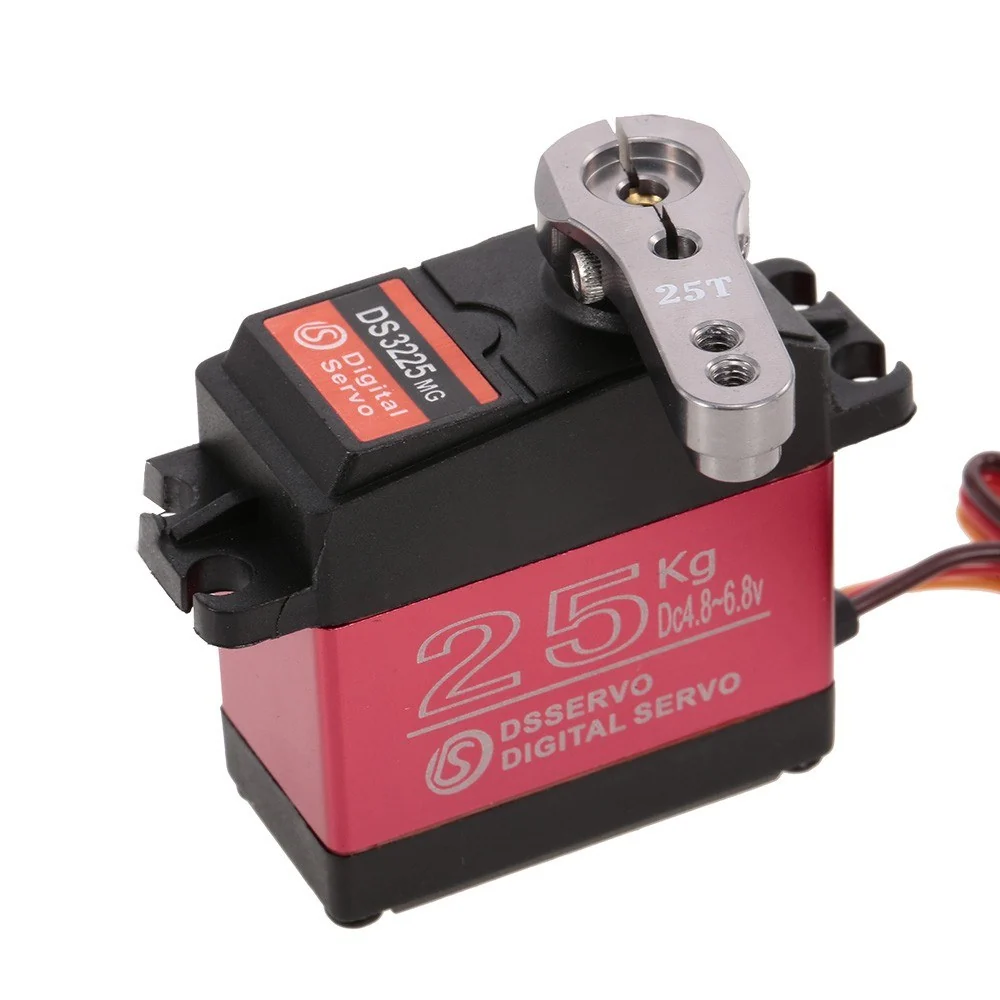

DS3225 25kg.cm High-Torque Metal Gear Digital Servo Motor (180 Degree) - Waterproof IP66 for Robotics & RC

DS3225 25kg.cm High-Torque Metal Gear Digital Servo Motor (180 Degree) – Waterproof IP66 for Robotics & RC

₹1,501

  • High-Torque Performance: Delivers up to 24.5 kg.cm torque at 6.8V, providing powerful holding force for heavy mechanical loads.

  • Full-Metal Gear Train: Built with precision stainless steel and aluminum gears to prevent gear stripping under sudden load shifts.

  • IP66 Waterproof Design: Sealed with waterproof rubber gaskets and an aluminum mid-case for durable indoor and outdoor operation.

  • 180° Precise Digital Control: Responsive PWM control (500–2500 µs) ensures accurate positional feedback and minimal backlash.

  • Universal Compatibility: Standard 3-pin connector interfaces directly with Arduino, ESP32, Raspberry Pi, and RC receivers.

In stock

  • (GST Bill) Enter your GST number at checkout
  • Free shipping on eligible prepaid orders
  • Secure payments via Razorpay and Paytm
  • Dispatch in 24 Hours from Noida warehouse!
SKU: A60046 Category: Brand:

Description

The DS3225 25kg.cm Digital Servo Motor is a high-torque, industrial-grade actuator built for heavy-duty electronic applications. Featuring precision-cut metal gears (stainless steel and aluminum), double ball bearings, and an IP66 water-resistant CNC aluminum middle shell, this standard-sized servo delivers reliable positioning and rapid response under high mechanical loads. It is an ideal drop-in solution for multi-DOF robotic arms, 1/8 and 1/10 scale RC crawlers, and custom automated mechanisms controlled via PWM.

Technical Specifications

Parameter Value / Details
Model DS3225 (Standard Digital Servo)
Control Signal PWM (Pulse Width Modulation, 500–2500 µsec)
Operating Voltage 4.8V – 6.8V DC
Stall Torque (5.0V) 21 kg.cm (291.5 oz/in)
Stall Torque (6.8V) 24.5 kg.cm (340.1 oz/in)
Operating Speed (5.0V) 0.15 sec / 60°
Operating Speed (6.8V) 0.13 sec / 60°
Rotation Angle 180° (Mechanical & Electrical limit)
Gear Material Stainless Steel & Aluminum Metal Gears
Ingress Protection IP66 Waterproof Gaskets
Dead Band Width 3 µsec
Dimensions 40 x 20 x 40.5 mm
Weight ~60 g

Key Features

  • High Mechanical Output: Delivers up to 24.5+ kg.cm holding torque at 6.8V to prevent stalling under heavy structural loads.

  • Wear-Resistant Gear Train: Internal metal gearing reduces back driving slop and prevents gear stripping compared to standard plastic alternatives.

  • Thermal Management: The CNC-machined aluminum mid-case serves as a passive heat sink to maintain consistent motor efficiency under continuous operation.

  • Universal Microcontroller Support: Standard 3-pin JR connector interfaces directly with Arduino, ESP32, Raspberry Pi (via PCA9685/drivers), and standard RC receivers.

Common Applications

  • Multi-axis robotic arms, bipedal walkers, and hexapod chassis

  • Steering actuators for 1/8 and 1/10 scale RC trucks and rock crawlers

  • Heavy-duty pan-tilt camera gimbals and solar trackers

  • Automated valves, grippers, and industrial prototyping

Package Includes

  • 1 x DS3225 25kg Digital Servo Motor (180 Degree)

  • 1 x Accessory Set (Plastic Horns, 25T Metal Servo Horn, & Mounting Screws)
