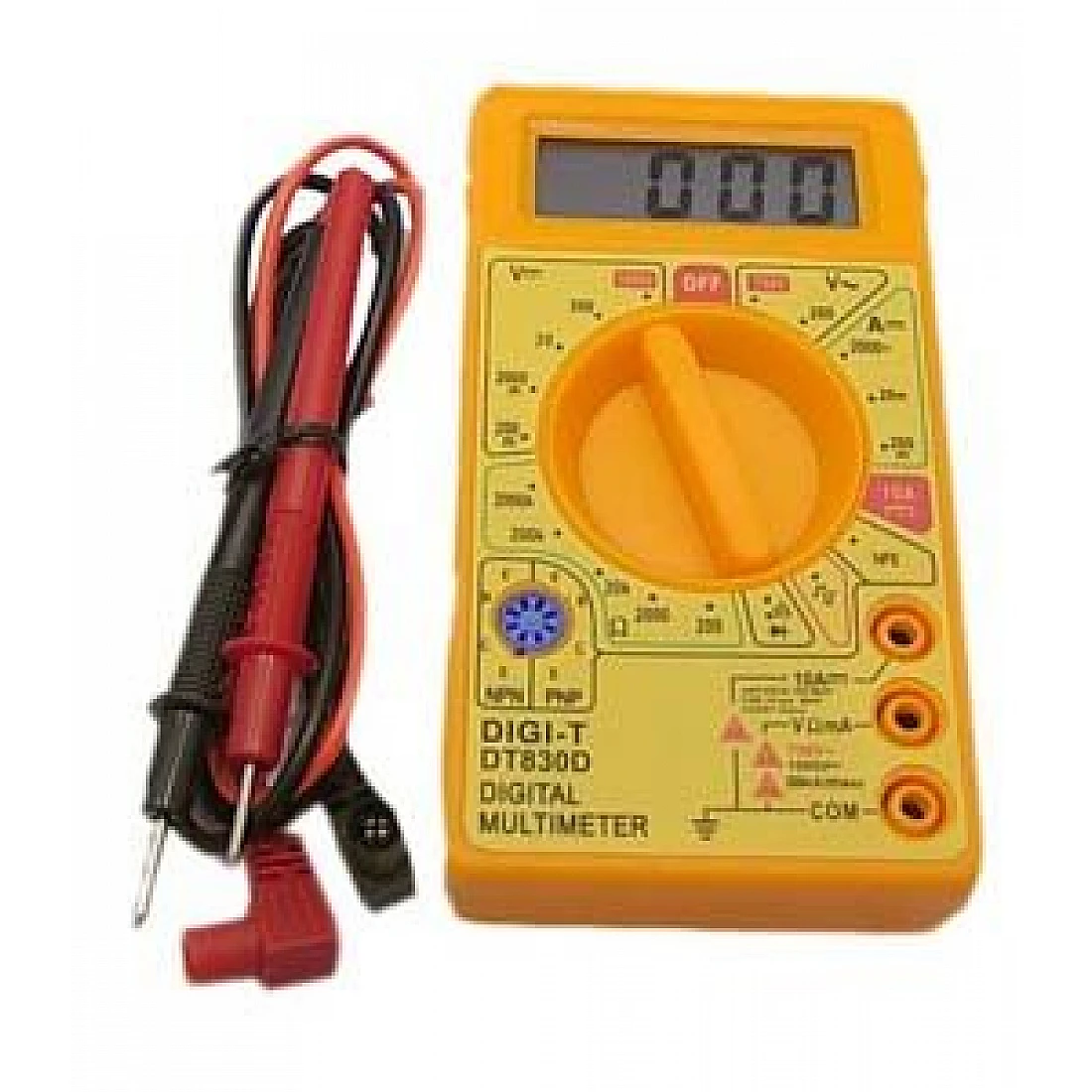

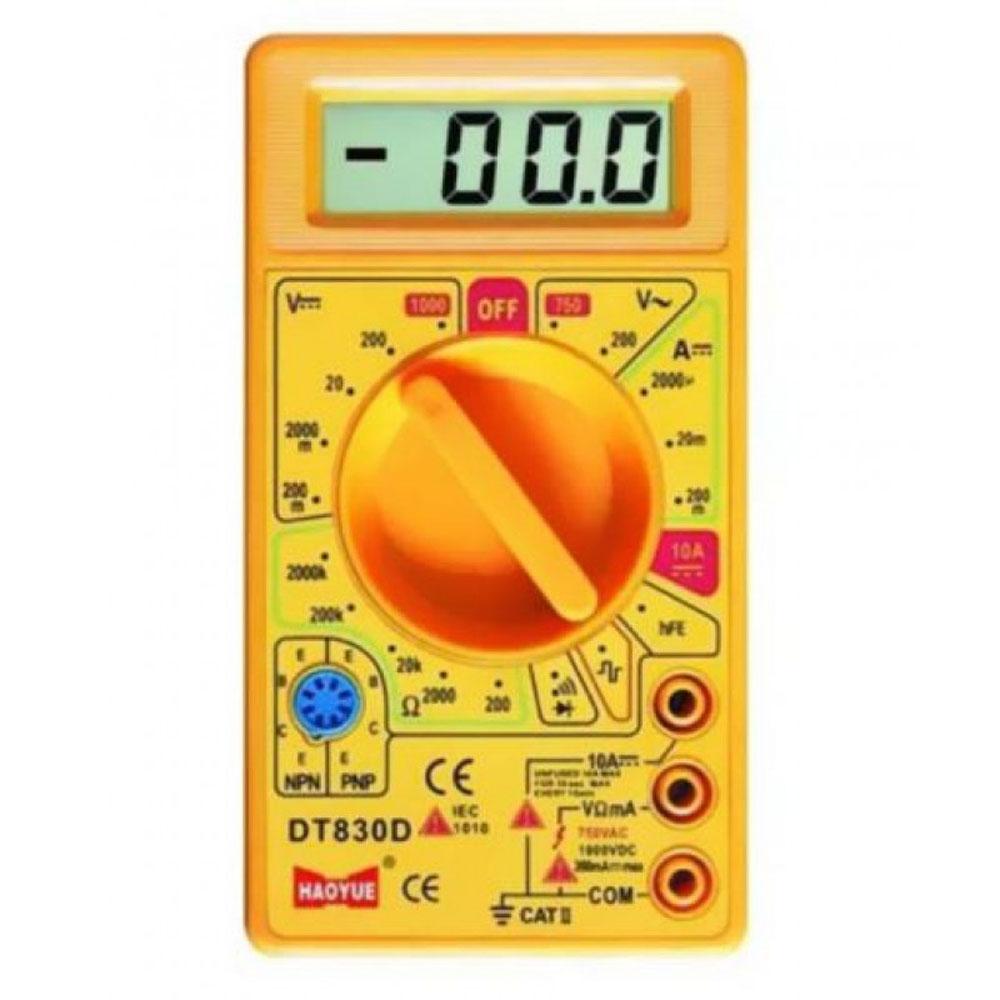

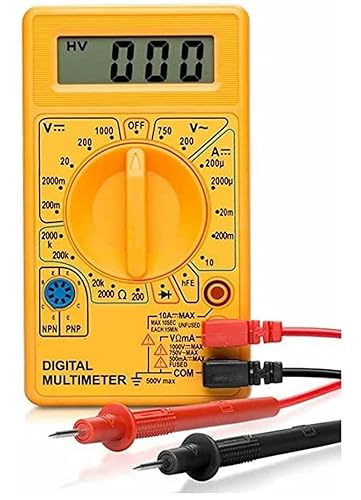

DT830D Digital Multimeter with Buzzer

Original price was: ₹299.Current price is: ₹199.

In stock

  • (GST Bill) Enter your GST number at checkout
  • Free shipping on eligible prepaid orders
  • Secure payments via Razorpay and Paytm
  • Dispatch in 24 Hours from Noida warehouse!

Key Features

  • Audible Continuity Buzzer: Instant audio confirmation for tracing wires and checking PCB tracks.

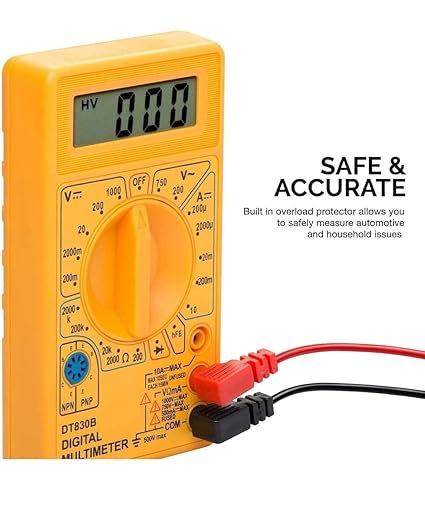

  • Overload Protection: Built-in fuse protection on low-current ranges for safe operation.

  • Transistor & Diode Tester: Dedicated socket for measuring $h_{FE}$ parameters of NPN and PNP BJT transistors.

  • Compact & Portable: Pocket-sized design ideal for laboratory benches, field repair, and DIY project setups.

SKU: IN1002 Category:

Description

The DT830D Digital Multimeter is a standard, compact, budget-friendly diagnostic tool widely used by students, hobbyists, and technicians for basic electrical and electronics troubleshooting. Unlike the basic DT830B model, the DT830D variant includes an audible continuity buzzer for rapid wire tracing.

Key Specifications

  • DC Voltage: 200mV to 1000V (5 ranges)
  • AC Voltage: 200V to 750V (2 ranges)
  • DC Current: 200µA to 10A (Note: Does not measure AC current)
  • Resistance: 200Ω to 2000kΩ (2MΩ)
  • Display: 3.5-digit LCD (Maximum reading: 1999)

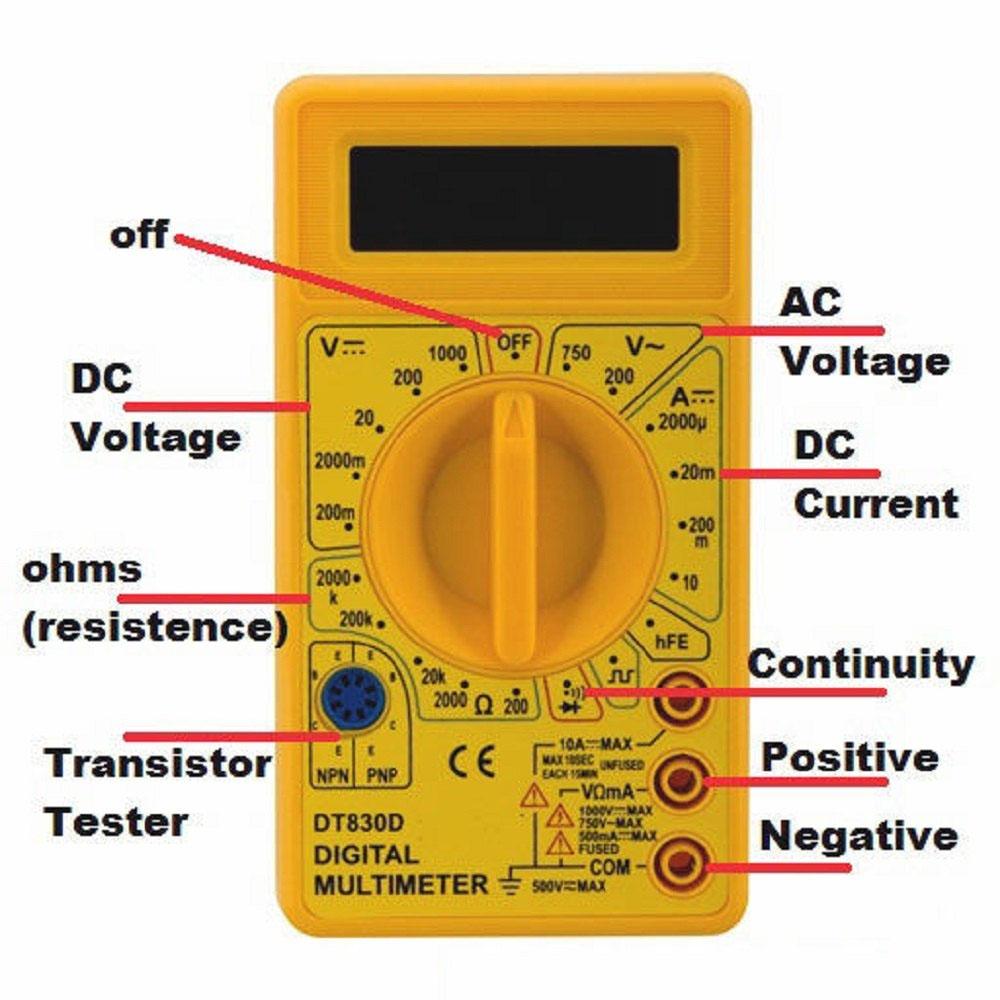

  • Additional Functions: Audible Continuity Buzzer, Diode Testing, Transistor (hFE) Testing, and Overload Protection.
  • Power Source: 9V Battery (typically 6F22).

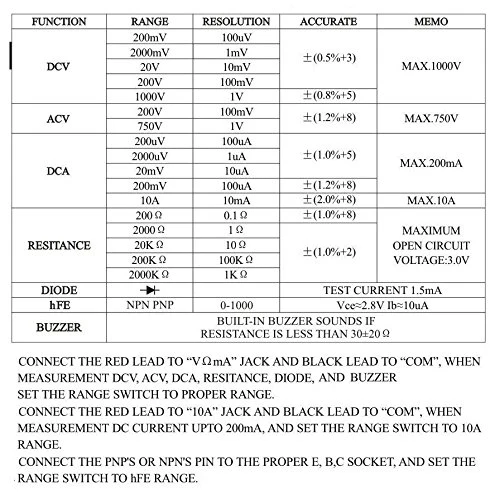

Technical Specifications

Parameter Measurement Range
DC Voltage 200 mV / 2000 mV / 20 V / 200 V / 1000 V
AC Voltage 200 V / 750 V
DC Current 200 µA / 2000 µA / 20 mA / 200 mA / 10 A
Resistance 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 2000 kΩ
Display 3.5-digit LCD (Max reading: 1999)
Power Supply 9V Battery (6F22)



Key Product Uses

  • Breadboard and circuit testing for robotics and IoT projects.

  • Voltage checking for batteries and power adapters.

  • Testing resistors, diodes, and wire connectivity.

Package Includes

  • 1 × DT830D Digital Multimeter

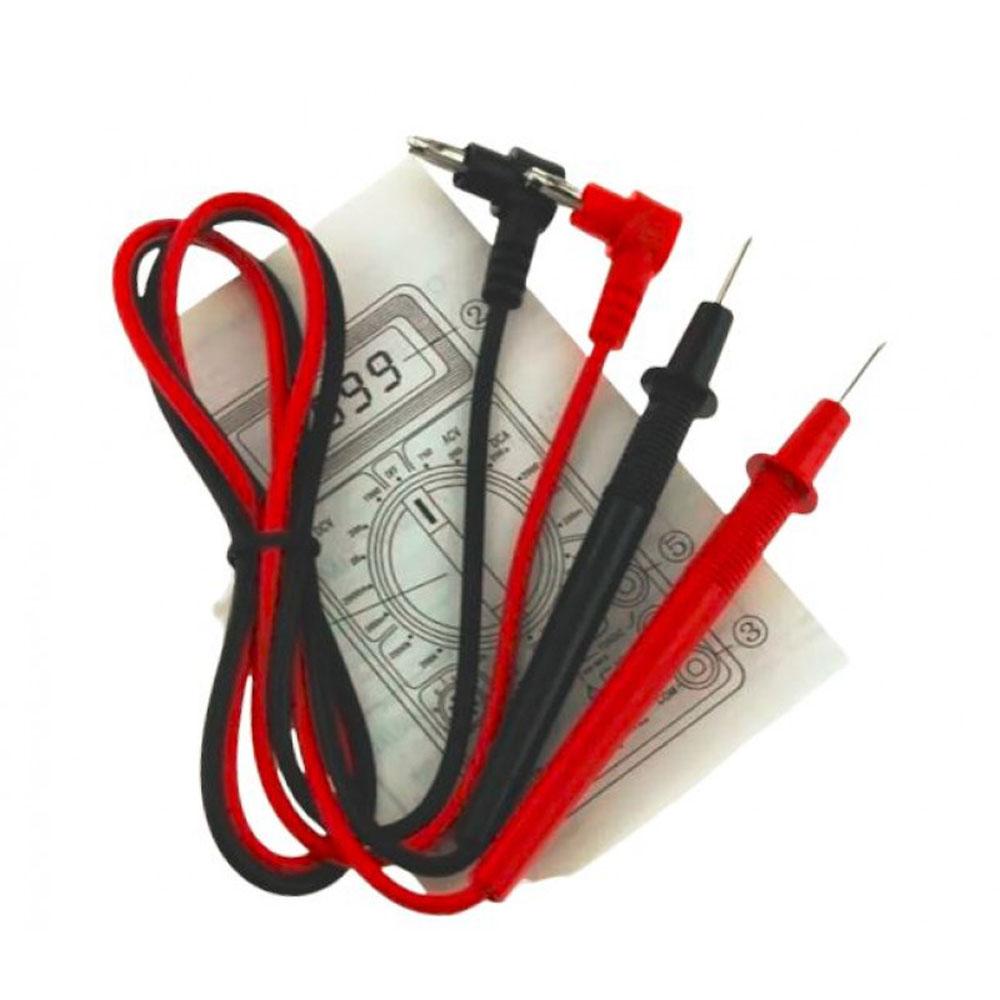

  • 1 × Pair of Red & Black Probe Leads

  • 1 × User Manual.
