DWIN 1.3 Inch Circular Screen DMG24240C013_03WTC
₹2,497
Out of stock
Features:
- Based on T5L0, running DGUS II system, commercial grade.
- 1.3-inch, 240*240 pixels resolution, 262K colors, IPS-TFT-LCD, wide viewing angle.
- Circular LCD screen
- 10Pin_1.0mm socket for power supply and serial communication
- Backlight Service Life: >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)
- Use DWIN DGUSII V7.6 GUIs software development.
Description

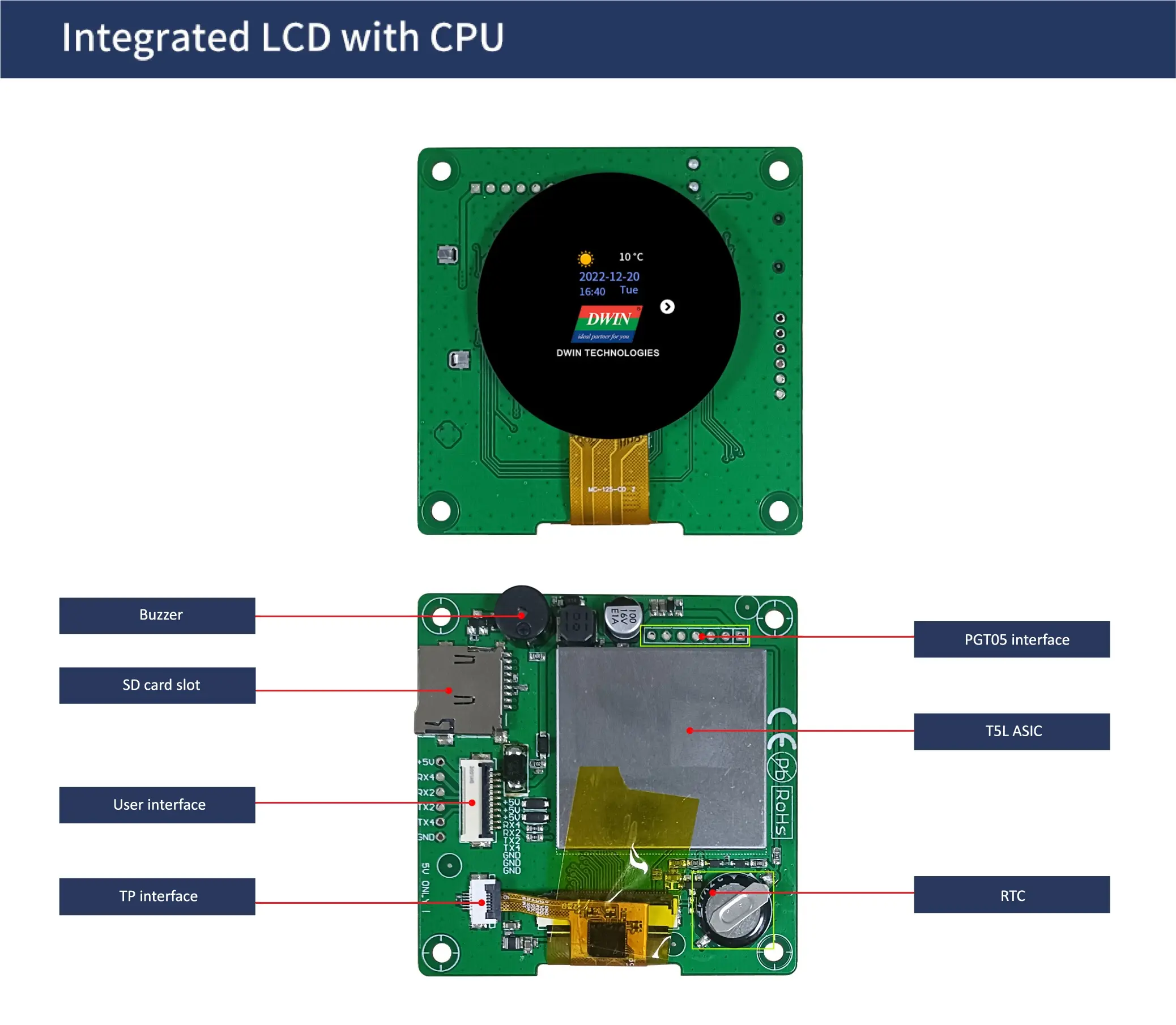

| LCM interface | FPC40_0.5mm, 3SPI+18Bit_RGB interface |
| TP interface | Capacitive touch: FPC6_0.5mm, IIC interface |
| User interface | 10Pin_1.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Buzzer | 3V passive buzzer. Power: <1W |
| RTC | Super-capacitor for power supply. Accuracy: ±20ppm@25℃. It can work normally for 7 days after power failure |
| SD card interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
| LCD Type | IPS, TFT LCD |
| Viewing Angle | Wide viewing angle, 85°/85°/85°/85° (L/R/U/D) |
| Resolution | 240×240 pixels (support 0°/90°/180°/270°) |
| Color | 18-bit 6R6G6B |
| Active Area (A.A.) | D=32.4mm |
| Backlight Mode | LED |
| Backlight Service Life | >20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness) |
| Brightness | DMG24240C013_03WTC: 150nit |
| DMG24240C013_03WN: 200nit | |
| Brightness Control | 0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range) |
