DWIN 18.5 Inch 2K HD Commercial Grade Smart Screen DMG19108C185_05WTC
₹23,435
Out of stock
Features:

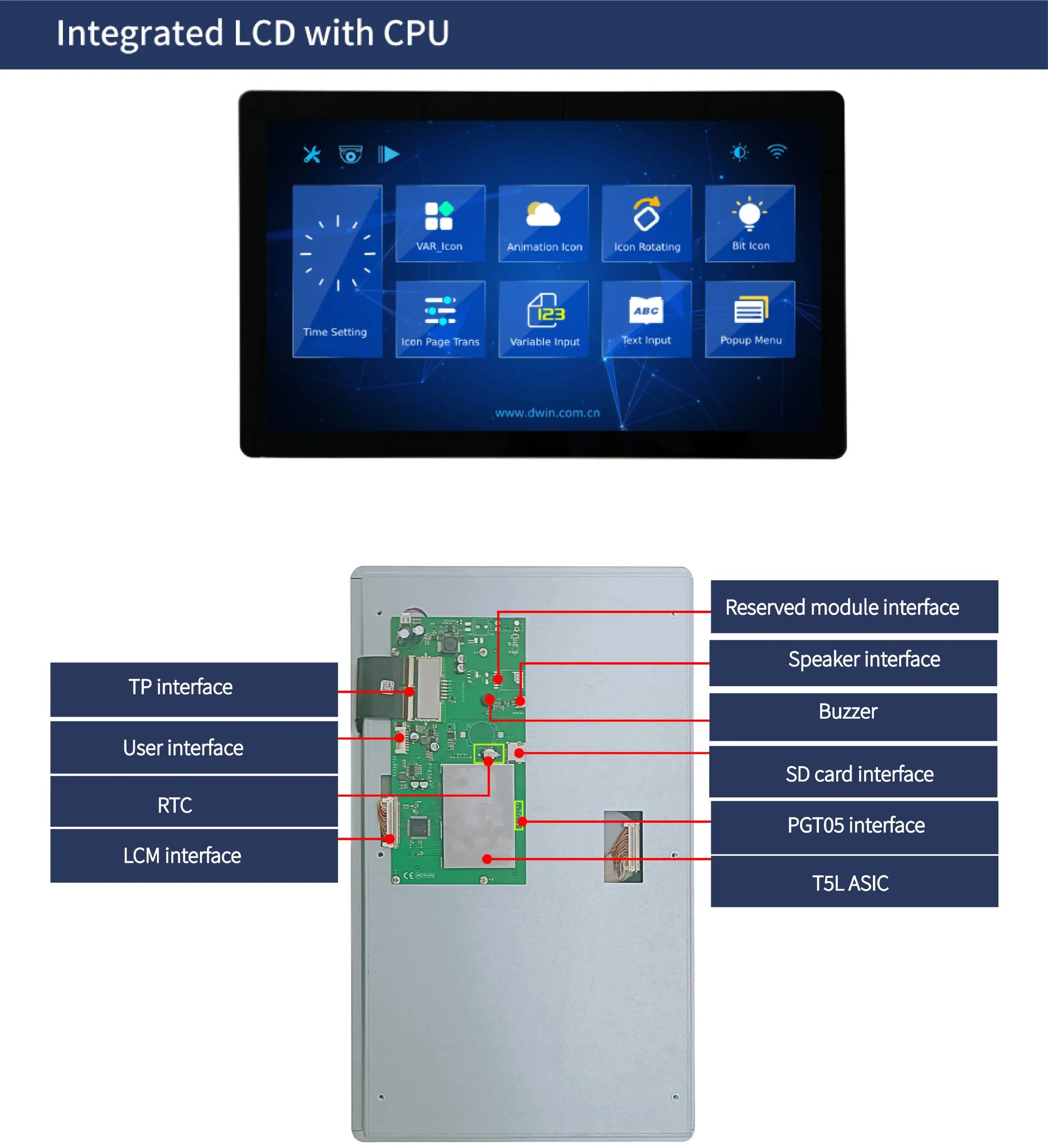

- Based on T5L2 chip, running DGUS II system, commercial grade
- With onboard buzzer, RTC and speaker interface
- 18.5-inch, 1920*1080 pixels, IPS wide viewing angle, 2K HD smart screen
- UART2: ON=TTL/CMOS; OFF=RS232
- Support FSK camera function (Without FSK camera interface at the factory, only reserved its circuit, need to customize to add FSK camera interface)
- Support audio and video playback.
Description
Specification
| Color | 24-bit 8R8G8B |
| LCD Type | IPS-TFT-LCD |
| Viewing Angle | Wide viewing angle, 85°/85°/85°/85°(L/R/U/D) |
| Display Area（A.A） |
410.0mm (W)×231.0mm (H)
|
| Resolution | 1920×1080 |
| Backlight | LED |
| Brightness | DMG19108C185_05WTC： 200nit DMG19108C185_05WN： 250nit |
| Type | CTP (Capacitive touch panel) |
| Structure | G+FF structure with surface cover of tempered glass |
| Touch Mode | Support point touch and drag |
| Surface Hardness | 6H |
| Light Transmittance | Over 90% |
| Life | Over 1,000,000 times touch |
