DWIN 2.8 Inch COF Touch screen Model:DMG32240F028_02W
₹1,204
Out of stock

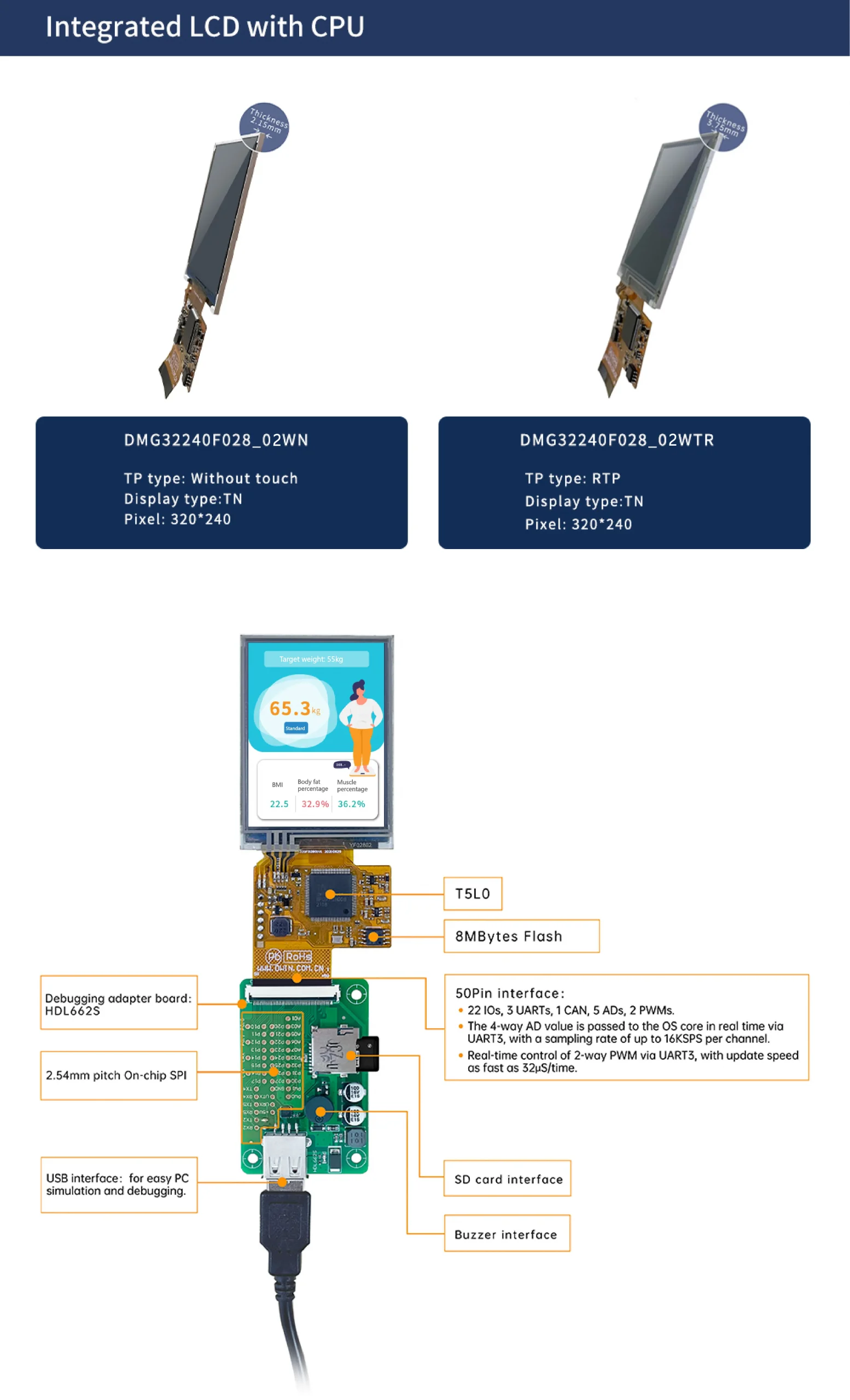

Features:
- Based on T5L0, running DGUS II system.
- COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light● 2.8 inch, 240*320 pixels resolution, 262K colors, TN-TFT-LCD, normal viewing angle.
- LCD and TP air bonding process. and thin structure, low cost and easy production.
- 50 pins, including IO, UART, CAN, AD and PWM from user CPU core for easy secondary development.
Description
Specification
| T5L0 ASIC | T5L0 ASIC is a low-power, cost-effective, GUI and application highly integrated single-chip dual-core ASIC designed by DWIN Technology for small-size LCD and mass produced in 2020. | ||
| Color | 262K colors | ||
| LCD Type | TN, TFT LCD | ||
| Viewing Angle | Normal viewing angle, typical value of 70°/70°/40°/30°(L/R/U/D) | ||
| Display Area（A.A） | 43.2mm(W)×57.6mm(H) | ||
| Resolution | 240*320 | ||
| Backlight | LED | ||
| Brightness | DMG32240F028_02WTR:300nit DMG32240F028_02WN:350nit |
||
