Description

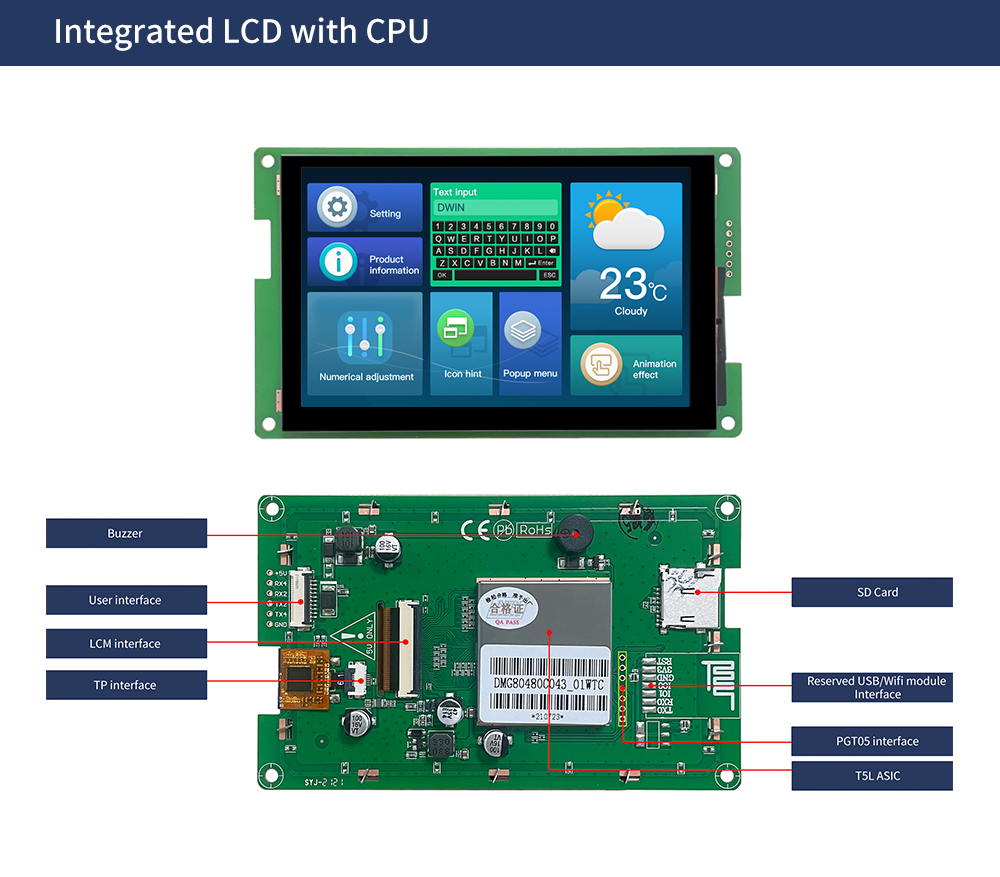

The DMG80480C043_01WTC – 4.3inch 480×800 IPS Industrial HMI UART LCD Display Capacitive Touch, 16MB Flash Buzzer SD interface is developed by DWIN. The NOR Flash memory in the display is available to store the user database.

The LCD is integrated with a running DGUS II system, a GUI (Graphical User Interface) development software. The pre-installed UI user interface development software can be used to develop your own design and customised features like buttons, text display, graph and slider etc. The T5L1 DWIN development software is a human-machine interface dedicated to ASIC designed by DWIN Technology for AIoT application applications. This software is based on a T5L chip that is a low-power, cost-effective dual-core 8051 processor.

• T5L1 ASIC , 16.7M Colors running DGUS II system, commercial grade
• 4.3-inch 480×800 Pixels resolution, 24bit Colors
• Capacitive touch screen
• 10Pin1.0mm FCC connection wire,TTL Interface uart communication
• Easy to design powerful DWIN design software tools HMI Intelligent Display
• High standard TFT LCD module IPS screen
• DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51


  Technical Specifications

  Brand: DWIN

  Display Size: 4.3 inch

  Resolution: 800×480
  Display Panel: IPS
  Touch Type: Capacitive
  View Angle: Wide viewing angle, 85/85/85/85 degrees (L/R/U/D)
  Color: 24-bit 8R8G8B
  Display Area: 93.6mm (H)x56.16mm (W)
  Power Supply: 5V 1A DC
  LCM interface: FPC40_0.5mm, RGB interface
  Memory: 16MB
  Buzzer: 3V passive buzzer
  SD Interface: FAT32
  PGT05 Interface: When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
  Brightness: 270nit
  Reserved WiFi Interface: connect to the cloud platform to update remotely
  Reserved USB Interface: download files by USB flash disk
  RTC: None
  User Interface: 10Pin_1.0mm latching socket for power supply and serial communication
  Interface: TTL
  Weight: 125g
