DWIN 4.3inch COF Structure Touch Screen Model: DMG48270F043_01WTC
₹1,874
Out of stock
Display
- Color : 262K colors
- LCD Type : TN-TFT-LCD
- Viewing Angle : Normal viewing angle, typical value of 70°/70°/30°/40°(L/R/U/D)
- Display Area（A.A）: 95.04mm (W)×53.86mm (H)
- Resolution : 480×272
- Backlight : LED
- Brightness : 200nit
Description
DWIN 4.3inch SMART Capacitive Touch , TN TFT 480×272 200nit COF Structure Touch Screen Model, COF Series, DMG48270F043_01WTC
This is a DWIN DWIN 4.3inch SMART Touch panel, TN TFT 480×272 200nit COF Structure Touch Screen Model, COF Series, DMG48270F043_01WTC. The 4.3inch Touch Panel Based on T5L0, running DGUS II system, Which Comes 4.3 inch, 480*800 pixels resolution, 262K colors, TN TFT display.
Features
- Based on T5L0, running DGUS II system.
- 4.3 inch, 480*800 pixels resolution, 262K colors, TN TFT display.
- LCD and TP frame lamination process.
- TP appearance of black.

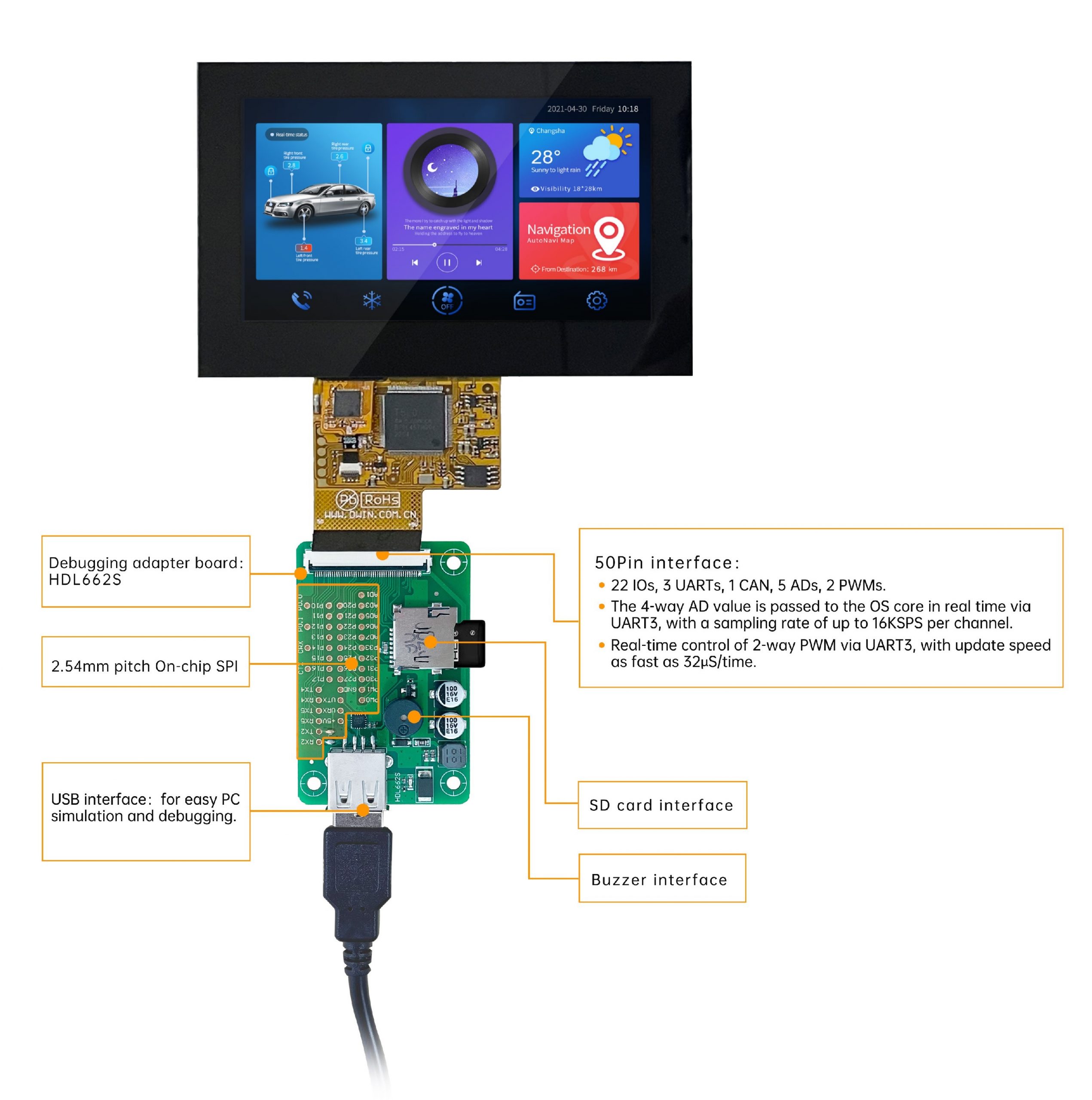

- COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.
- 50 pins, including IO, UART, CAN, AD and PWM from user CPU core for easy secondary development.Interface
- User interface : 50Pin_0.5mm FPC
- Baudrate : 3150~3225600bps
- Output Voltage : Output 1;3.0~3.3 V / Output 0;0~0.3 V
- Input Voltage（RXD）: Input 1；3.3V / Input 0；0~0.5V
- Interface : UART2: TTL; / UART4: TTL;（ Only available after OS configuration） /UART5: TTL;（Only available after OS configuration
- Data Format : UART2: N81; / UART4: N81/E81/O81/N82;4 modes (OS configuration) / UART5: N81/E81/O81/N82;4 modes (OS configuration)Voltage & Current
- Power Voltage : 3.6~5.5V, typical value of 5V
- Operation Current : 190mA, VCC=5V, max backlight / 80mA, VCC=5V, backlight off
