DWIN 4.3inch HMI SMART Serial LCD, Resistive Touch, IPS TFT 480x800 250nit LCD Display, DMG80480C043_02WTR
DWIN 4.3inch HMI SMART Serial LCD, Resistive Touch, IPS TFT 480x800 250nit LCD Display, DMG80480C043_02WTR - Image 2

DWIN 4.3inch HMI SMART Serial LCD, Resistive Touch, IPS TFT 480×800 250nit LCD Display, DMG80480C043_02WTR

₹2,404

Out of stock

Features

  • Based on self-designed T5L1 ASIC, 16.7M Color, 24bit, 480*800 Pixel TFT LCD
  • TTL Interface,10Pin1.0mm FCC connection wire
  • Download via SD card or on-line serial port
  • Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required
  • Dual Development System: DGUS II/ TA(Instruction set)
  • IPS View Angle: 85/85/85/85 (L/R/U/D)
SKU: A54887 Category: Brand:

Description

DWIN 4.3inch HMI SMART Serial LCD, Resistive Touch, IPS TFT 480×800 250nit LCD Display, DMG80480C043_02WTR

This is an DWIN 4.3inch HMI SMART Serial LCD, Resistive Touch, IPS TFT 480×800 250nit LCD Display, DMG80480C043_02WTR. The Dwin 4.3inch Smart TFT LCD Based on self-designed T5L1 ASIC, 16.7M Color, 24bit, 480*800 Pixel.

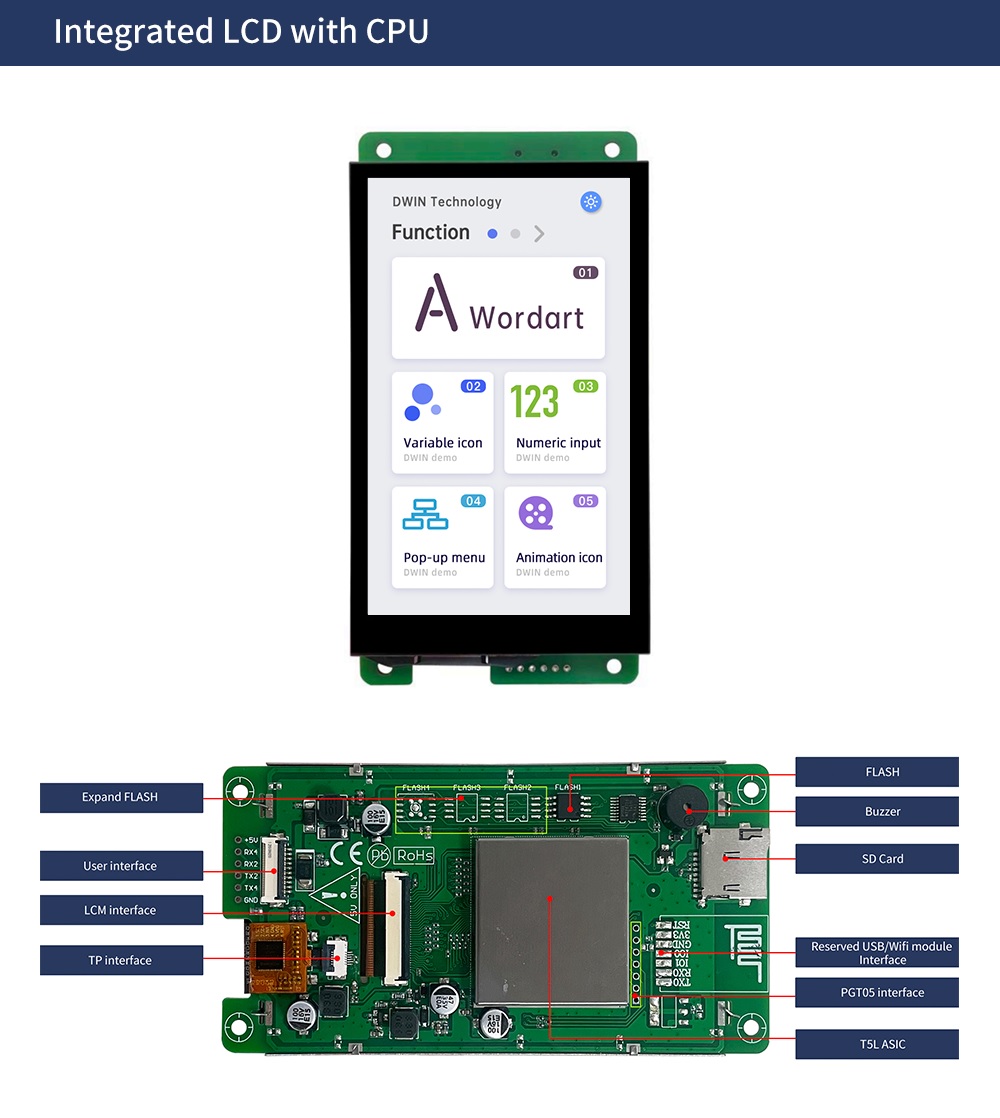

Interface

  • Interface : UART2: N81 / UART4: N81/E81/O81/N82 4 modes (OS configuration)
  • User Interface : 10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s
  • Flash : 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
  • Buzzer : 3V passive buzzer. Power: <1W
  • SD interface : FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
  • Reserved module interface : Wi-Fi module: connect to the cloud platform to update remotely / USB module download files by USB flash disk
  • PGT05 interface : When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Reliability Test

  • Working Temperature  : -20℃~70℃
  • Storage Temperature  : -30℃~80℃
  • Working Humidity : 10%~90%RH

Specifications

Model DMG80480C043_02WTC
LCD Type IPS, TFT LCD
Touch Panel Capacitive
Resolution 480*800
Display Size 4.3 inch
Brightness 250 nits
Interface UART
Colour 24-bit 8R8G8B
Viewing Angle IPS View Angle: 85/85/85/85 (L/R/U/D)
Dimensions 56.16mm x 93.6mm



DMG80480C043 02WTC
