DWIN 7.0 Inch LCD Display DMG10600T070_09WTR
₹6,044
Out of stock
Features:
- Based on T5L2 ASIC, 7.0 Inch,1024xRGBx600,16.7M Colors, IPS screen;
- High brightness No Touch/Capacitive touch/Resistive touch
- TTL/RS232 interface; 8Pin_2.0mm FCC connection cable;
- The finished project will be downloaded by SD card or uart port;
- Easy-to-use DWIN DGUS V7.6 GUIs Development tool. No coding skills required;
- Dual Development System:DGUSⅡ/TA(Instruction set);
- IPS View Angle:85/85/85/85(L/R/U/D);
- With GUI&OS dual-core, GUI with functional controls, DWIN OS kernel is open to the user for the second-development, via DWIN OS language or C51.
Description
Specification

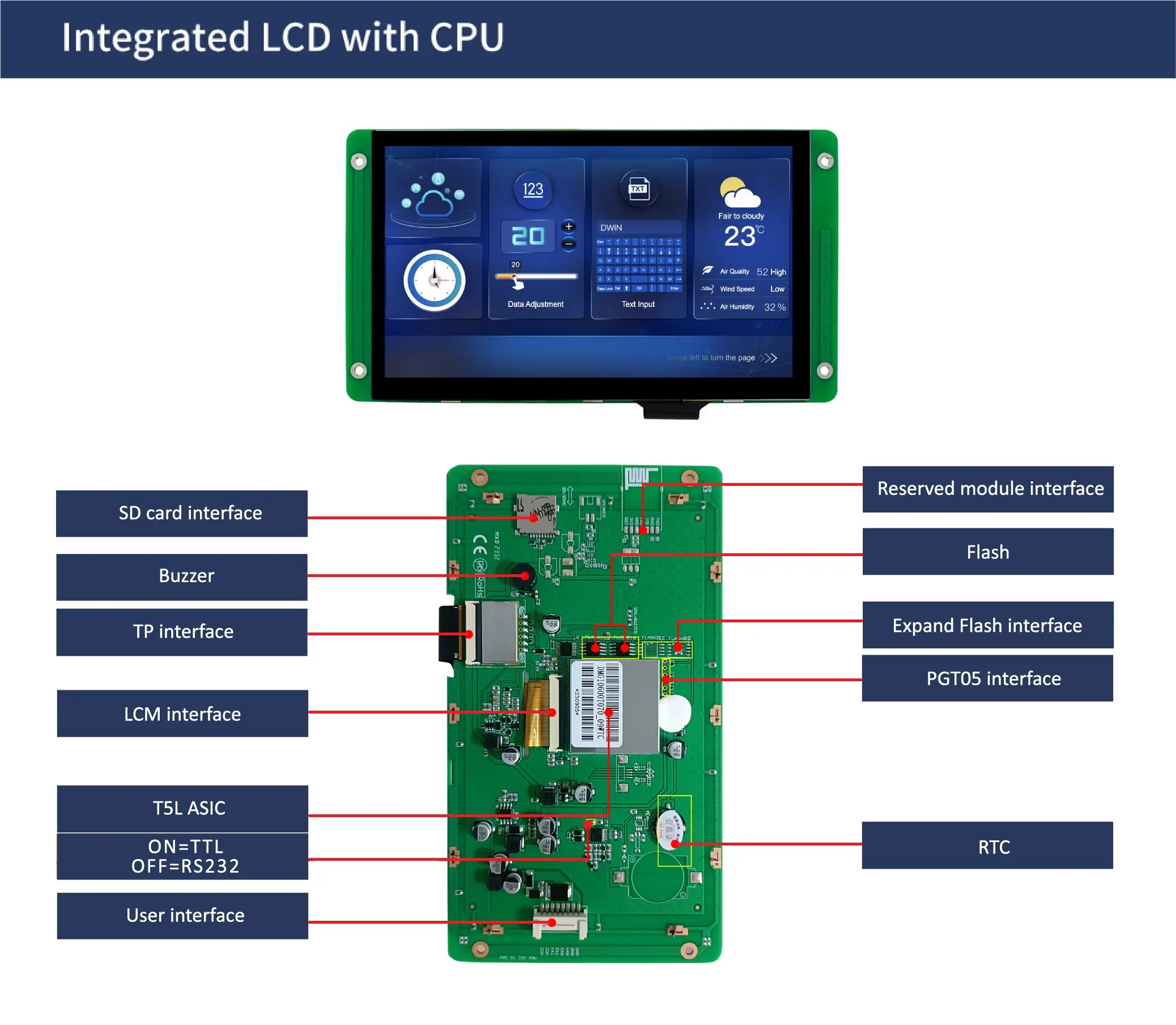

| LCM interface | FPC50_0.5mm, TTL interface |
| TP interface | Capacitive touch: COB structure, IIC interface |
| Resistive touch: FPC4_1.0mm | |
| User interface | 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 32MBytes NOR Flash (2*16MBytes), for fonts, pictures and audio files. Rewrite cycle: over 100,000 times |
| Expand Flash pads | Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash. |
| Buzzer | 3V passive buzzer. Power: <1W |
| RTC | Super-capacitor for power supply. Accuracy: ±20ppm @25℃. It can work normally for 7 days after power failure |
| SD card interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| Reserved module interface | Wi-Fi module: connect to the cloud platform to update remotely; USB module: download files by USB flash disk |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
