Official Raspberry Pi IQaudio DAC Pro SC2077
₹3,126
Out of stock
PCM5122 DAC
24-bit depth 192kHz (Full HD) audio
Standard 40-pin header
Two Phono / RCA connectors
Integrated volume control (ALSA)
Description
Elevate your Raspberry Pi into a studio-grade, high-fidelity music streamer with the Official Raspberry Pi IQaudio DAC Pro (SC2077). As Raspberry Pi’s highest-performing audio expansion HAT, the DAC Pro upgrades your sound path by routing digital signals over the high-speed I2S bus, bypassing host CPU rendering to eliminate jitter, background hum, and electrical interference.

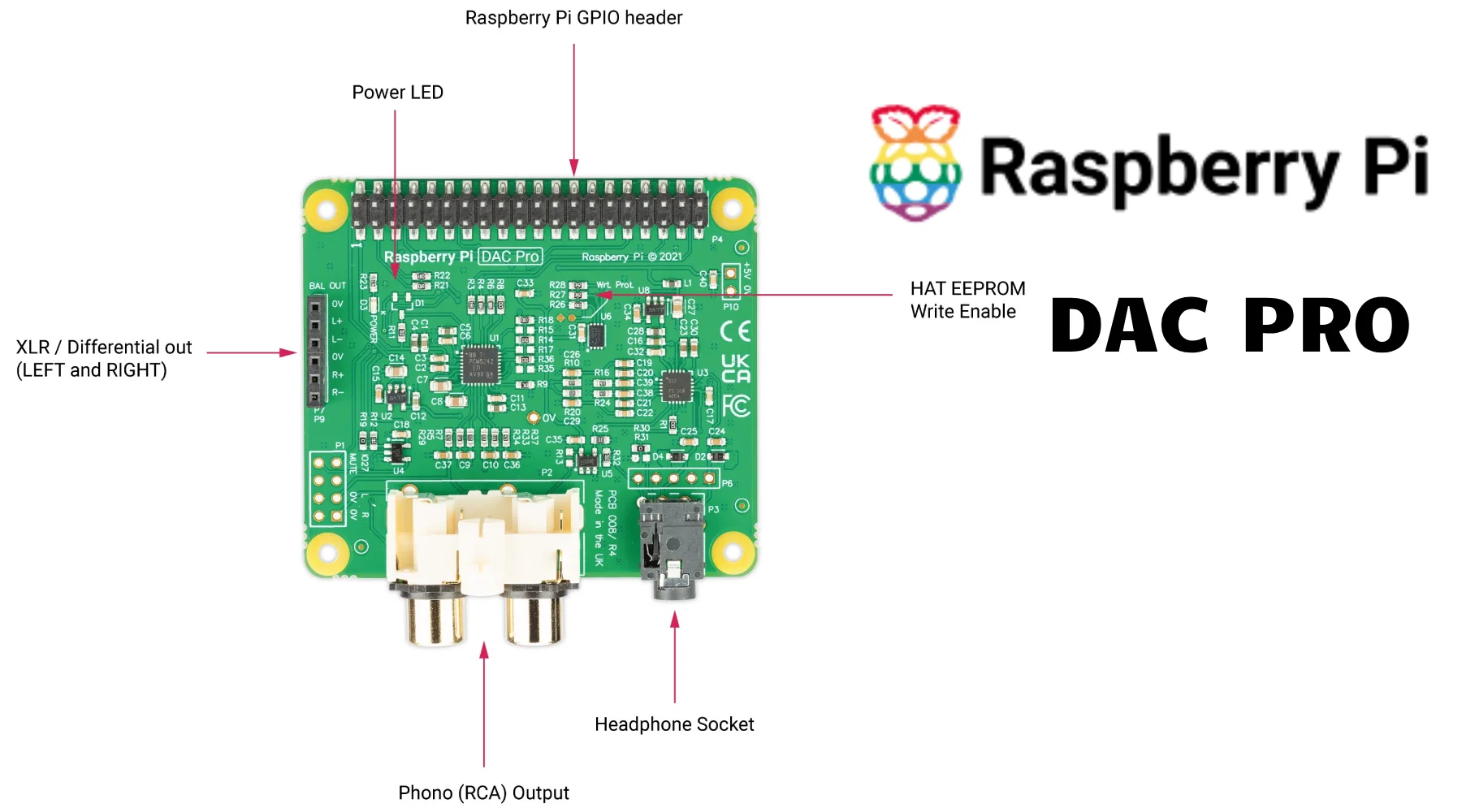

At the center of the DAC Pro SC2077 is the advanced Texas Instruments PCM5242 DAC IC. Beyond standard line-level phono RCA outputs and a dedicated 3.5mm headphone amplifier (TI TPA6133A), the DAC Pro breaks out differential/balanced signal headers (P7/P9). This allows audio enthusiasts and sound engineers to connect balanced XLR lines to drive long cable runs to professional studio equipment, mixers, or powered PA speakers without noise degradation. Native HAT EEPROM integration allows instant plug-and-play setup with popular Linux audio distributions like Volumio, Moode Audio, OSMC, and Raspberry Pi OS.
Technical Specifications
| Parameter | Specification |
| Model Code / Part Number | SC2077 |
| DAC Architecture | Texas Instruments PCM5242 (Burr-Brown 32-Bit / 384kHz Core) |
| Supported Audio Resolution | Up to 24-Bit / 192kHz High-Resolution Playback |
| Signal-to-Noise Ratio (SNR) | Outstanding 114 dB |
| Total Harmonic Distortion (THD) | -94 dB |
| Headphone Amp IC | Integrated Texas Instruments TPA6133A |
| Unbalanced Line Outputs | Panel-Mounted Stereo Phono (RCA Jacks, 0–2V RMS) |
| Headphone Output | 3.5mm Panel-Mounted Audio Jack |
| Balanced Line Outputs | Pin Headers (P7 / P9) for optional XLR breakout connections (0–4V RMS) |
| Bus Interface | Digital I2S via standard 40-Pin GPIO Header |
| Hardware Volume Control | Native hardware volume scaling via ALSA mixers |
| Power Supply | Powered directly through the 40-pin GPIO header (No external power required) |
| Compatibility | Raspberry Pi 5, 4B, 3B+, 3A+, 2B, Zero, Zero 2 W |
| Dimensions | 58mm × 65mm (Standard HAT Form Factor) |
Key Features & Highlights
-
Top-Tier TI PCM5242 Silicon: Superior signal processing with ultra-low noise floor and wider dynamic range compared to standard DAC HATs.
-
Balanced/Differential XLR Ready: Onboard JST pin headers allow parallel balanced line output for professional audio hardware, active studio monitors, and long cable runs.
-
Integrated Headphone Amplifier: Built-in TI TPA6133A amp directly powers high-impedance headphones via the 3.5mm jack.
-
Direct I2S Data Bus: Draws pure digital audio straight from the SoC, completely bypassing noisy internal analog circuits.
-
Automatic Linux Driver Setup: Onboard pre-programmed HAT EEPROM ensures instant recognition by Raspberry Pi OS and audiophile platforms like Volumio, Moode, and RuneAudio.

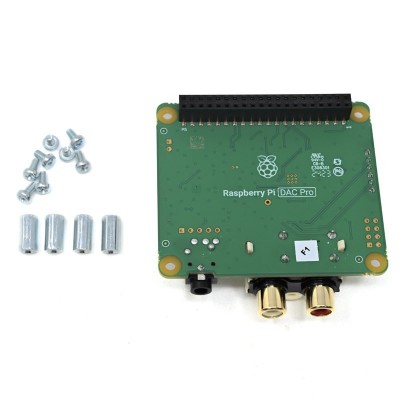

What’s Included in the Box
-
1 × Official Raspberry Pi IQaudio DAC Pro Board (SC2077)
-
1 × Set of PCB Standoffs, Screws, and Mounting Hardware
Why Buy From Aryabot?
-
100% Original Hardware: Sourced directly through official Raspberry Pi distribution channels to guarantee authentic products.
-
Quality Assured: Bench-tested for component integrity, header pin alignment, and audio jack soldering prior to dispatch.
-
GST Invoice Available: Full tax-compliant invoices provided for commercial deployments, media installations, and university audio labs.
-
Pan-India Express Delivery: Swift order processing and dispatch directly from our Noida fulfillment warehouse.
Additional information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 6 × 5 × 2 cm |
