Official Raspberry Pi PoE+ HAT SC1022
₹2,772
Out of stock
Specification
- Standard:Â IEEE 802.3at-2009 PoE
- Input voltage:Â 37-57 V DC, Class 4 device
- Output power:Â 5 V DC/4 A
- Cooling: 25 mm × 25 mm brushless fan delivering 2.2 CFM for processor cooling
- Features:Â fully isolated switched-mode power supply; fan control
- Operating temperature: 0 °C to +50 °C
Description

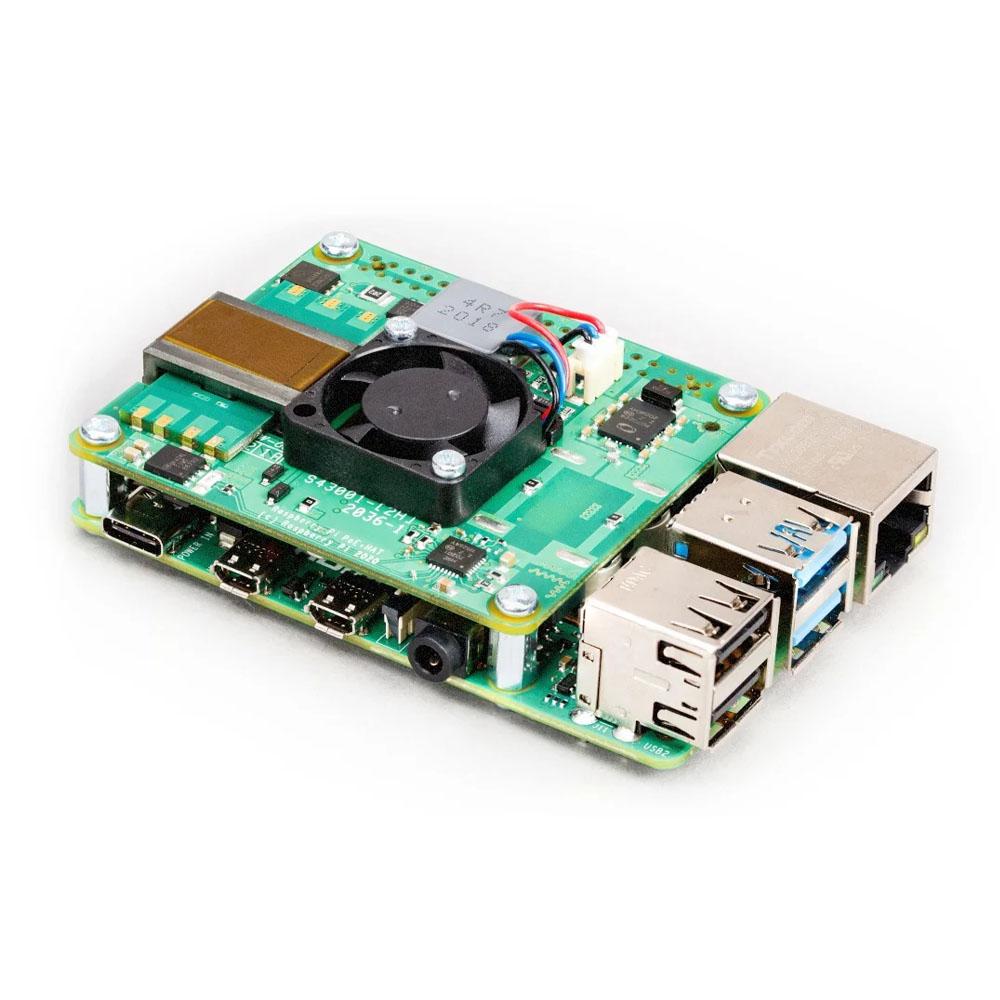

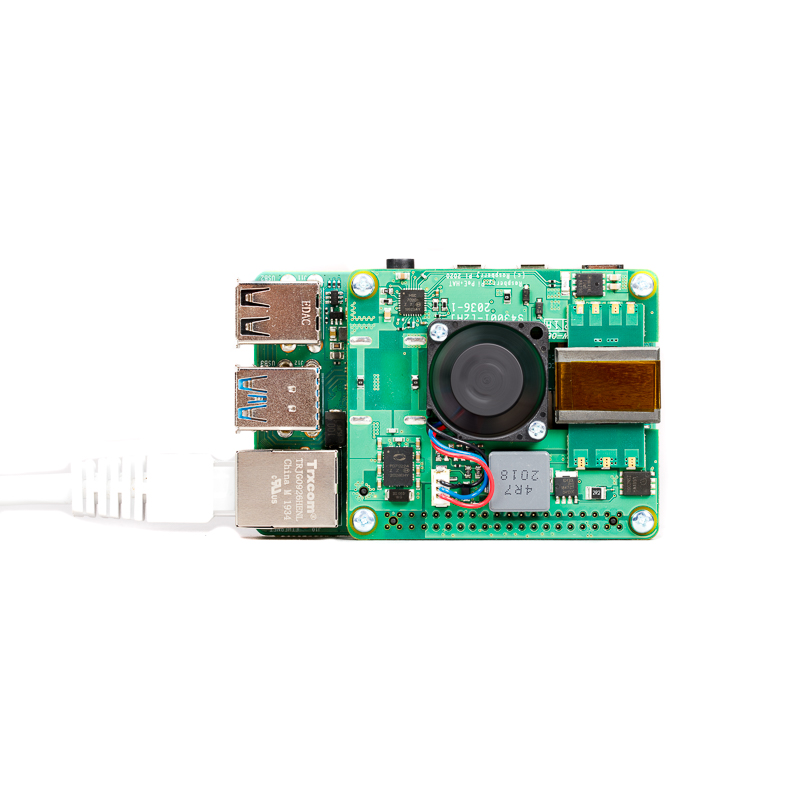

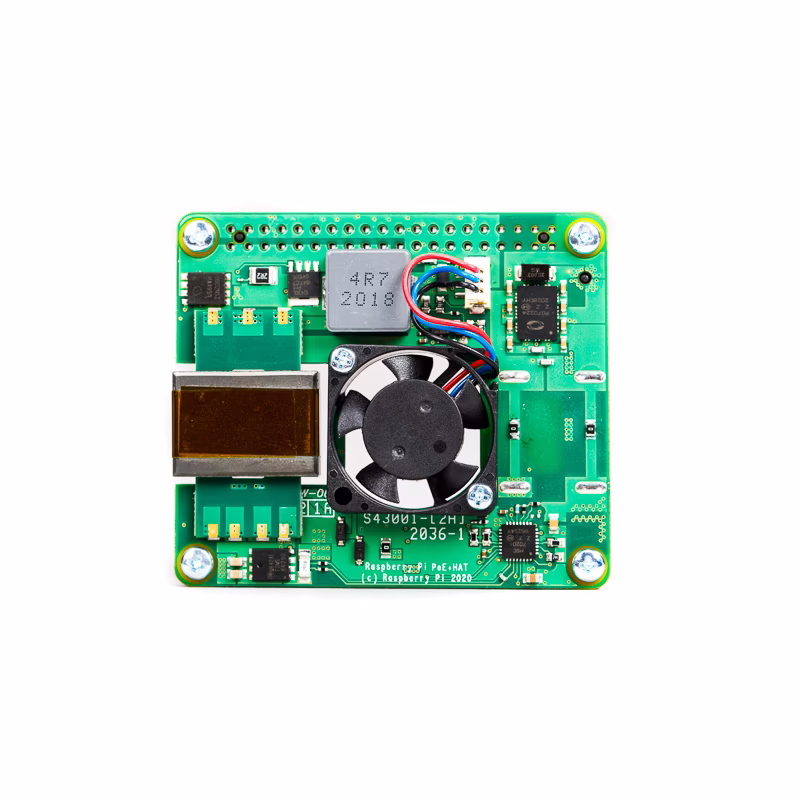

Eliminate cable clutter and separate AC power adapters with the Official Raspberry Pi PoE+ HAT (SC1022). Designed specifically for the 4-pin PoE header on the Raspberry Pi 3B+ and Raspberry Pi 4 Model B, this HAT enables simultaneous high-speed Gigabit Ethernet data transmission and DC power delivery over a single standard Cat5e or Cat6 network cable.
Upgraded to support the IEEE 802.3at-2009 (PoE+) standard, the SC1022 model supplies up to 25.5W of DC power—a massive leap over older 15W 802.3af models. This extra power capacity ensures rock-solid stability even when driving power-hungry USB peripherals, solid-state drives (SSDs), or high-frame-rate camera modules. It features a fully isolated switch-mode power supply (SMPS) and an onboard 25mm × 25mm brushless cooling fan dynamically managed by Raspberry Pi OS software.
Technical Specifications
| Parameter | Specification |
| Model Code / Part Number | SC1022 |
| PoE Standards Supported | IEEE 802.3at-2009 (PoE+) & IEEE 802.3af (PoE) |
| Input Voltage Range | 37V – 57V DC (Class 4 device) |
| Output Voltage / Current | 5V DC / 5A (Delivers up to 25.5W continuous output) |
| Power Supply Type | Fully Isolated Switch-Mode Power Supply (SMPS) |
| Onboard Cooling | 25mm × 25mm Brushless PWM Temperature-Controlled Fan |
| Fan Airflow Capacity | 2.2 CFM (Cubic Feet per Minute) for direct CPU cooling |
| Compatibility | Raspberry Pi 4 Model B, Raspberry Pi 3B+ (Requires PoE-enabled switch or power injector) |
| Board Dimensions | ~56.5mm × 65mm |

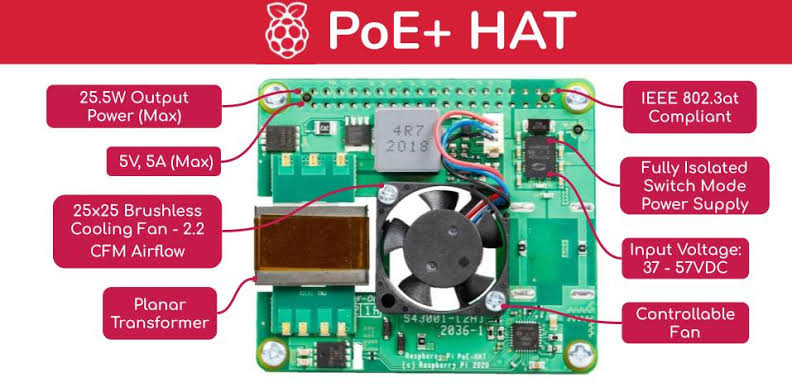

Key Features & Highlights
-
High Output Power (25.5W Max): Supplies up to 5V/5A directly to the board, effortlessly meeting the high power requirements of attached HATs, USB 3.0 drives, and full-load CPU performance.
-
Single-Cable Deployment: Streamlines remote installations and cluster setups by combining power delivery and high-speed network connectivity in a single RJ45 cable.
-

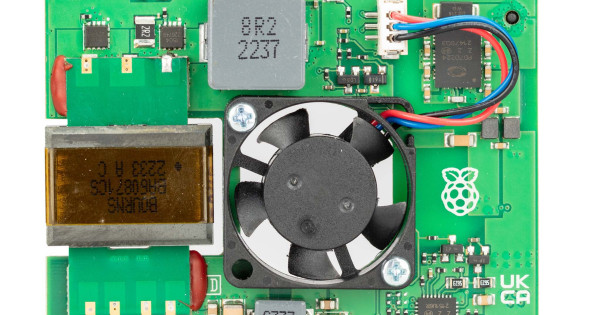

Active Temperature Management: Onboard PWM-controlled cooling fan automatically adjusts speed based on CPU temperature readouts to prevent thermal throttling.
-
Fully Isolated Architecture: Keeps high-voltage PoE lines isolated from sensitive low-voltage microcontrollers and GPIO logic.
-
Plug-and-Play Mounting: Drops onto the 4-pin PoE header and standard 40-pin GPIO header of compatible Raspberry Pi boards.
What’s Included in the Box
-
1 × Official Raspberry Pi PoE+ HAT (SC1022)
-
1 × Set of Mounting Standoffs and Screws
Why Buy From Aryabot?
-
100% Original Hardware: Sourced directly through official Raspberry Pi distribution channels to guarantee authentic products.
-
Quality Assured: Bench-tested for pin alignment and transformer insulation prior to dispatch.
-
GST Invoice Available: Full tax-compliant invoices provided for enterprise deployments, university labs, and corporate procurement.
-
Pan-India Express Delivery: Prompt order processing and dispatch directly from our Noida fulfillment facility.
Additional information
| Weight | 0.04 kg |
|---|---|
| Dimensions | 6 × 6 × 3 cm |
