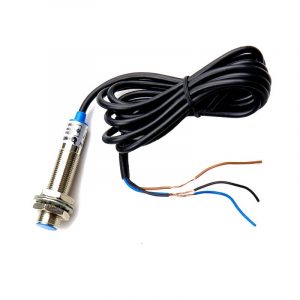

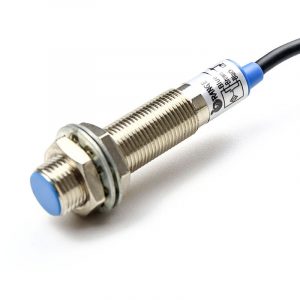

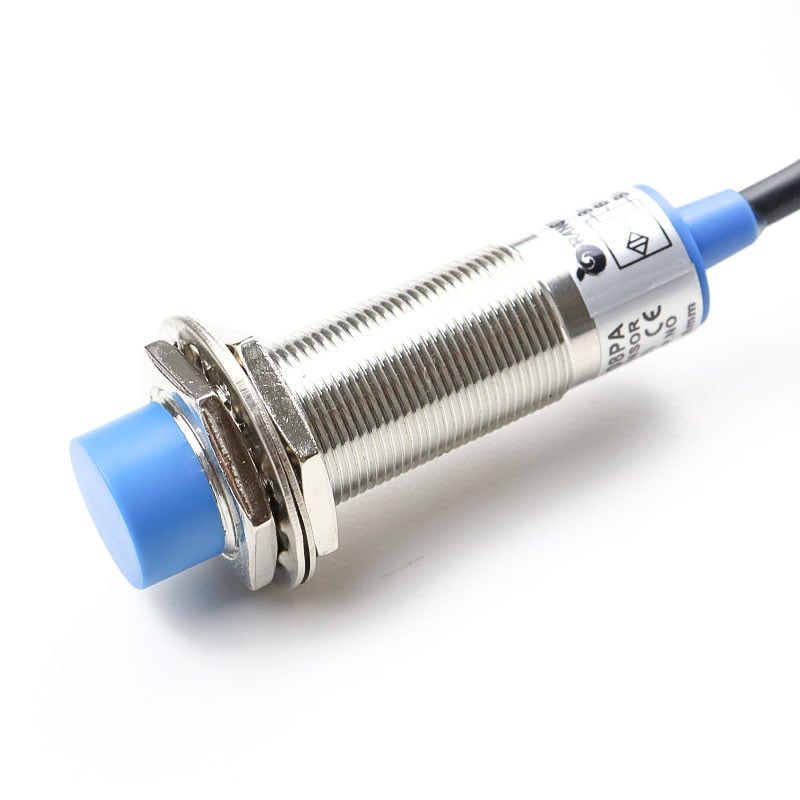

Orange 5mm PNP Inductive Proximity Sensor RM18 DC6~36V (Shielded)

₹306

Operating Voltage (VDC): 6 ~ 36.
Detection Distance (mm): 5.
Outer Thread Size: M18.
Object Type: Inductive.
Output Type: PNP Normally Open Three-line.
Installation Type: Flush (Shielded).
Max Output Current: 200 mA.
Setting Distance (mm): 0 ~ 3.5.

Out of stock

SKU: A11972 Category: Orange Proximity Sensor

Description

Orange 5mm PNP Inductive Proximity Sensor RM18 DC6~36V (Shielded) is a brand new inductive proximity sensor that detects a metal object. Flush-style sensors actually have a shield that restricts the magnetic field so that it only radiates out of the face of the sensor.
This M18 indicates a cylinder type whose diameter is 18mm. The operating voltage range is VDC 6~36V, but the nominal voltage is 30V with detecting distance of 5mm. The sensor has 3 wire NO (Normally open) type output with RED LED indicator.
The Inductive Proximity Sensor application:

Mine metallurgy.
Plastics, textile and Chemical Industry.
Light industry, tobacco, electric power, railway, and war industry.

Features:

IP67 protection structure (IEC standard).
Compact volume.
High precision of repeated location.
Diversified exterior.
Good performance of anti-interference.
Many output forms.
High on-off frequency.
Wide voltage range.
Dustproof, vibration proof, waterproof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life.

Package Includes:
1 x Orange 5mm PNP Inductive Proximity Sensor RM18 DC6~36V (Shielded).
