Description

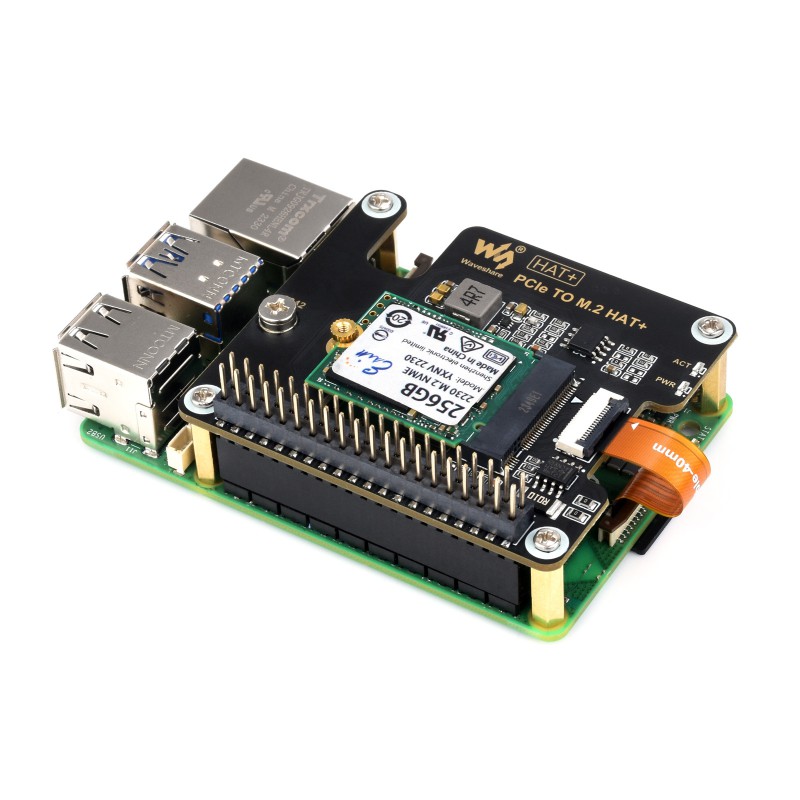

The PCIe to M.2 M key adapter board is specifically crafted for Raspberry Pi 5, enabling compatibility with NVMe protocol M.2 solid-state drives in 2230/2242 sizes. Supporting PCIe ×1 Gen2 or Gen3 modes, it ensures high-speed data transfer. With onboard indicator lights and an EEPROM chip, it offers enhanced functionality and clear operating status. Additionally, it includes a power monitoring chip and airflow vent for optimal SSD temperature control.

---

Key Features & Specifications

• Native OS Direct Boot Support: Completely bypasses the need for an underlying microSD card. Configure your board to mount and execute the entire Linux root directory directly from the connected M.2 solid-state drive.

• Multi-Size Component Mounting Grids: Pre-drilled with multiple mounting standoff anchors to tightly secure varying physical card profiles from ultra-compact 2230 units up to full-length 2280 desktop storage bars.

• Dual Power Routing Architecture: Engineered with flexible power supply options, drawing balanced power seamlessly through the primary 16-pin ribbon interface or an auxiliary external connector lines.

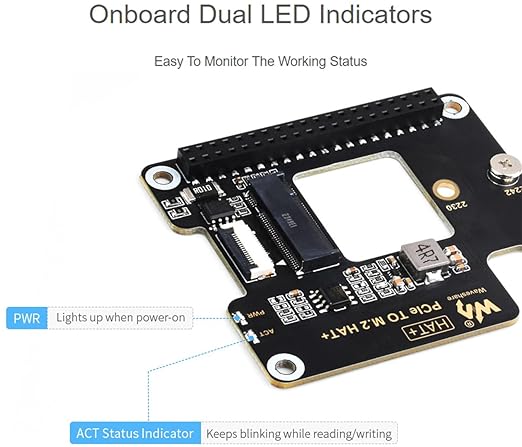

• Onboard Operational Status LEDs: Outfitted with clear, diagnostic LED status indicators that provide real-time visual feedback on system power state and active drive read/write cycles.

Parameter	Technical Specification
Product Category	PCIe to M.2 NVMe Extension HAT Converter Board
Host System Interface	Native 16-Pin PCIe Connector Link (Raspberry Pi 5 Specific)
Storage Protocol Fit	M.2 NVMe M-Key Protocol / Solid-State Drive Standard
Drive Size Compatibility	2230, 2242, 2260, and 2280 Physical Form Factors Supported
Peak Data Bandwidth	Up to 8 Gbps High-Speed Bus Synchronization
Surface Coating Matrix	High-Quality Anti-Oxidation Immersion Gold Trace Layers
System Compatibility	Designed Exclusively for the Raspberry Pi 5 Single-Board Ecosystem

Why Buy From Aryabot?

When implementing high-bandwidth PCIe accessories, cheap unvetted clone boards often feature sub-par tracing routes that create extreme electromagnetic noise, leading to critical system crashes and data loss.

• 100% Performance-Tested Infrastructure: Aryabot sources only high-quality, precision-engineered adapter layouts featuring optimized circuit pathways to ensure error-free data transfer under heavy workloads.

• Stable Current Regulation: Features onboard filtering capacitors that deliver clean, stable voltage levels directly to your storage hardware, protecting against sudden low-voltage dropouts.

• Fast Logistics Hub Dispatch: Packed carefully in anti-static safety wraps and shipped directly from our central facility in Noida, Uttar Pradesh. We offer quick tracking updates across India alongside clean corporate GST tax invoices.

Common Applications

• High-Performance Edge Servers: Perfect for building compact network-attached storage (NAS) blocks, web servers, or media centers that require lightning-fast data processing.

• Edge AI & Large Database Logging: Provides the massive read/write speed overhead necessary to run localized machine learning weights, data mining scripts, and live sensor registries.

• Ultra-Fast Python Compilation Benches: Drastically cuts compilation bottlenecks, system updates, and software build times when managing deep virtual workspace directories.

• Industrial Monitoring Hubs: Acts as a highly rugged, fanless solid-state drive setup for field deployment nodes exposed to frequent mechanical workspace motion.

---

Package Includes:

• 1 x PCIe to M.2 NVMe Adapter Board for Raspberry Pi 5

• 1 x 16-Pin Impedance-Matched Flexible Ribbon Interface Cable

• 1 x Dedicated Copper Standoff and Screw Mounting Pack.
