Description

Official Raspberry Pi 5 Case with Integrated Cooling Fan – Signature Red & White Enclosure

Provide absolute physical protection and optimized airflow to your development board with the Official Raspberry Pi 5 Case with Integrated Cooling Fan. Sporting the iconic Raspberry Pi red-and-white signature color layout, this heavy-duty ABS enclosure is engineered specifically for advanced computing arrays and continuous industrial workloads. Rather than acting as a standard static shell, this premium enclosure acts as a dynamic temperature manager, driving heat away from high-performance silicon paths during processing spikes.

As an official authorized distributor, Aryabot.in supplies 100% genuine, factory-fresh hardware sourced directly through the official supply chain. When your applications push the Broadcom BCM2712 processor to its absolute peak limits, utilizing the Official Raspberry Pi 5 Case with Integrated Cooling Fan is essential for ensuring safer functioning, safeguarding downstream current peripherals, and maintaining pristine system stability.

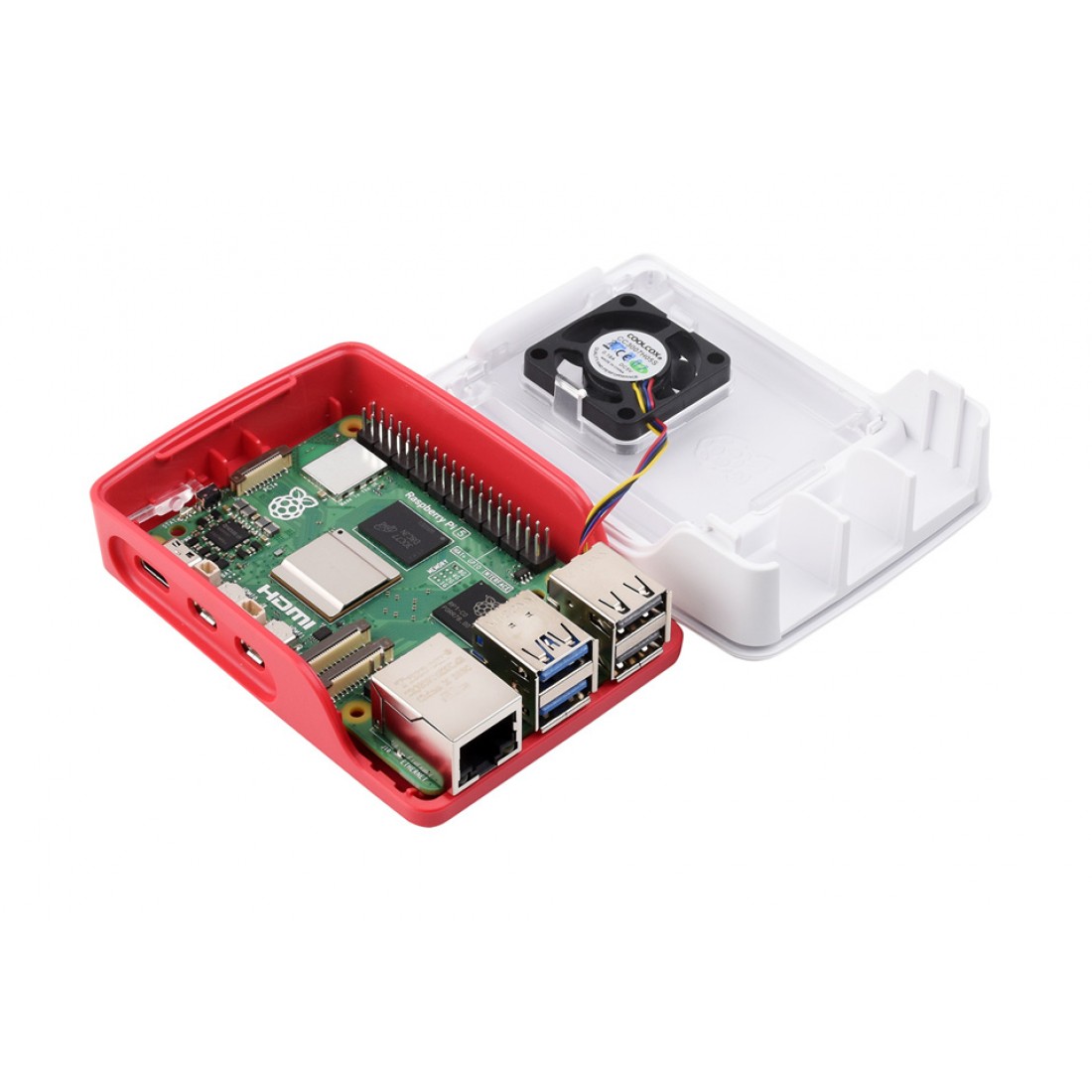

🏭 The Industrial Deployment Standard: Built as a four-part clip-together assembly, this case features an internal Pulse Width Modulation (PWM) blower fan that connects directly to the dedicated 4-pin fan header on the Pi 5 PCB. The system firmware regulates the speed intelligently—running completely silent under 50°C and ramping up to a powerful 8000 RPM as core calculations demand.

Technical Specifications & Features

The Official Raspberry Pi 5 Case with Integrated Cooling Fan offers a tool-free, snap-together design while providing uncompromising, precise cutouts for every updated I/O interface.

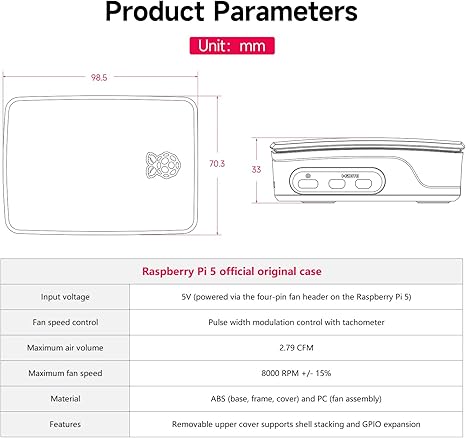

Feature	Specification
Official Color Profile	Signature Raspberry Pi Red and White
Material Composition	High-durability ABS (base, frame, lid) + Polycarbonate (fan surround)
Cooling Mechanism	Built-in internal blower fan
Input Power Requirements	5V DC delivered via native 4-pin fan header
Airflow Performance	Peak rating of 2.79 CFM for immediate thermal relief
Maximum Fan Velocity	8000 RPM ± 15% with hardware tachometer tracking

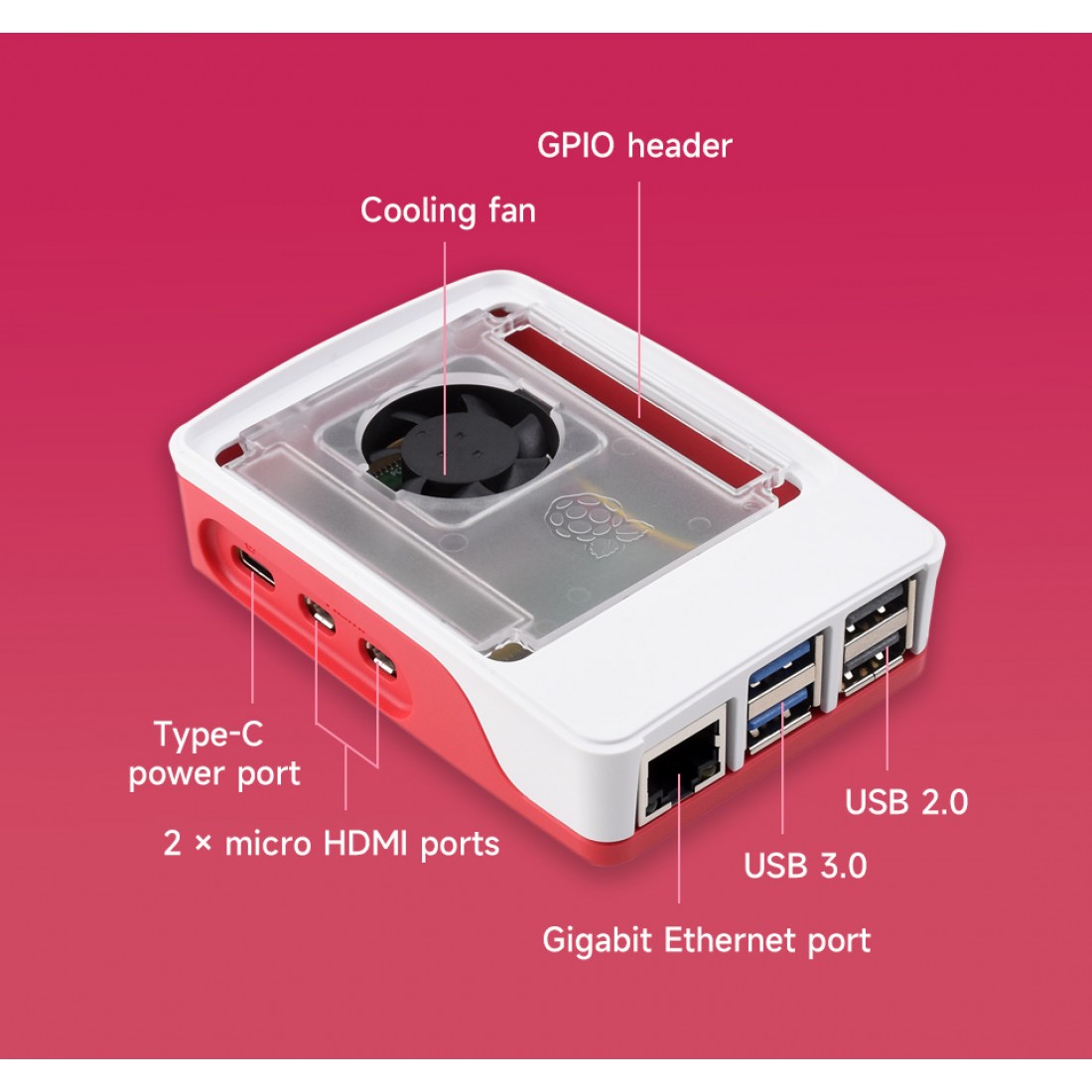

Access Openings	True Gigabit Ethernet, Dual Micro-HDMI, USB 3.0, Type-C Power, and microSD

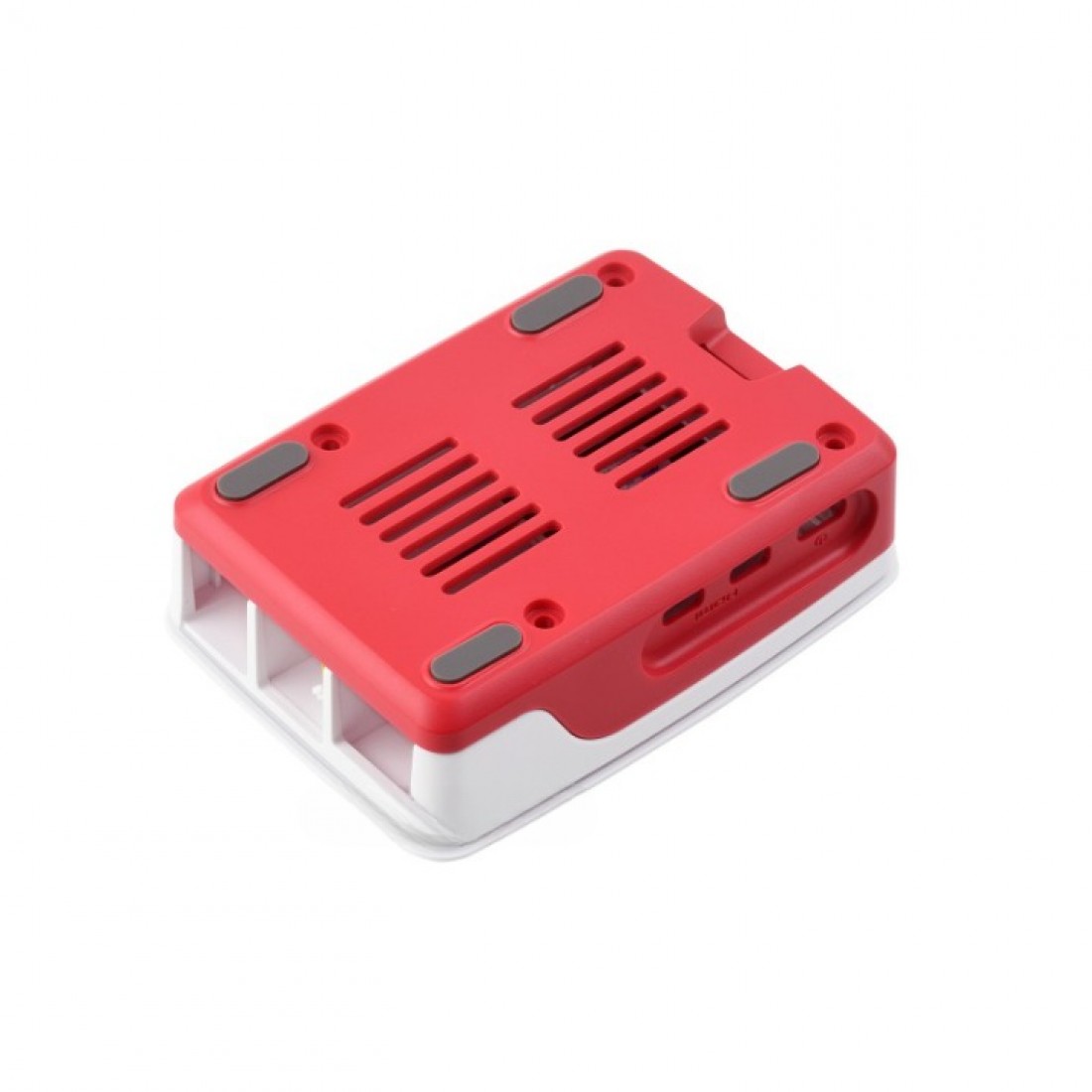

Base Support	Four integrated silicone rubber feet for desk grip and anti-vibration stability

Why the Official Multi-Part Assembly Outperforms Third-Party Shells

⚡ Firmware-Controlled PWM Blower Fan

Cheap third-party enclosures often rely on simple 2-wire fans that run at maximum volume 100% of the time, leading to early mechanical failure and bearing wear. This official case integrates seamlessly with the Raspberry Pi OS cooling matrix, stepping its velocity across precise profiles (0% below 50°C up to 100% at 75°C) to protect your workspace from unnecessary ambient noise.

🔌 Fully Removable Lid for Project Expansion

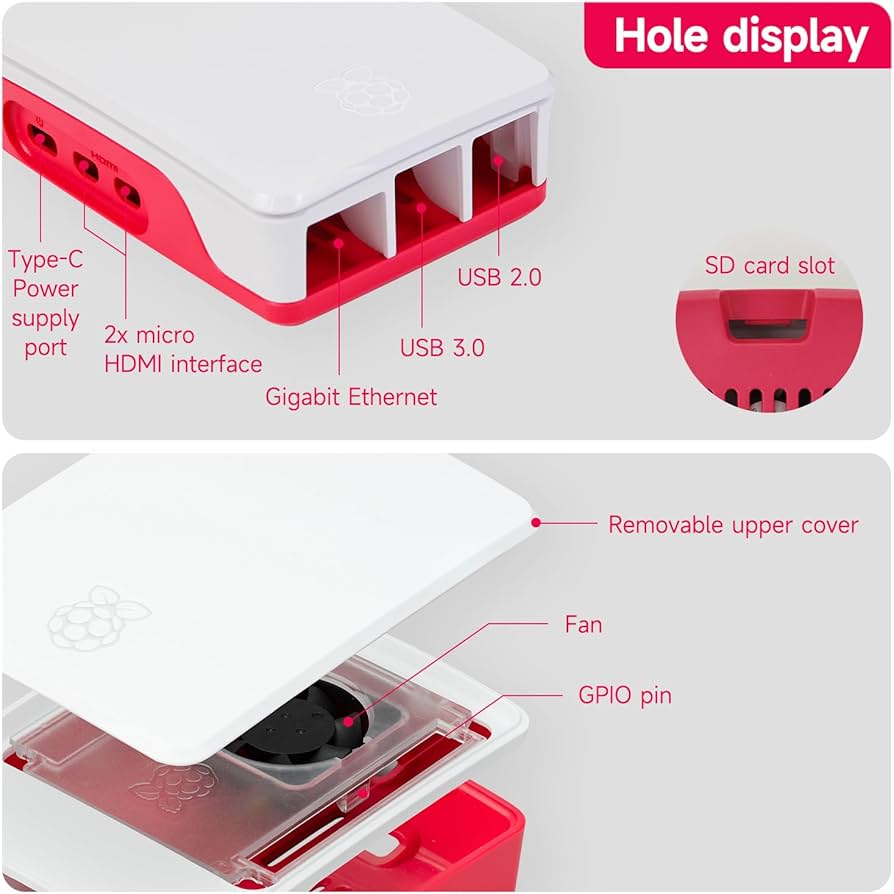

You never have to compromise protection for prototyping flexibility. The white top lid can be completely unclipped while leaving the internal fan assembly running safely beneath it. This exposes a dedicated breakout slot for routing custom GPIO ribbon cables, camera links, or display lines while maintaining continuous active airflow directly over the processor core.

🛡️ Built-In Stacking and HAT Support

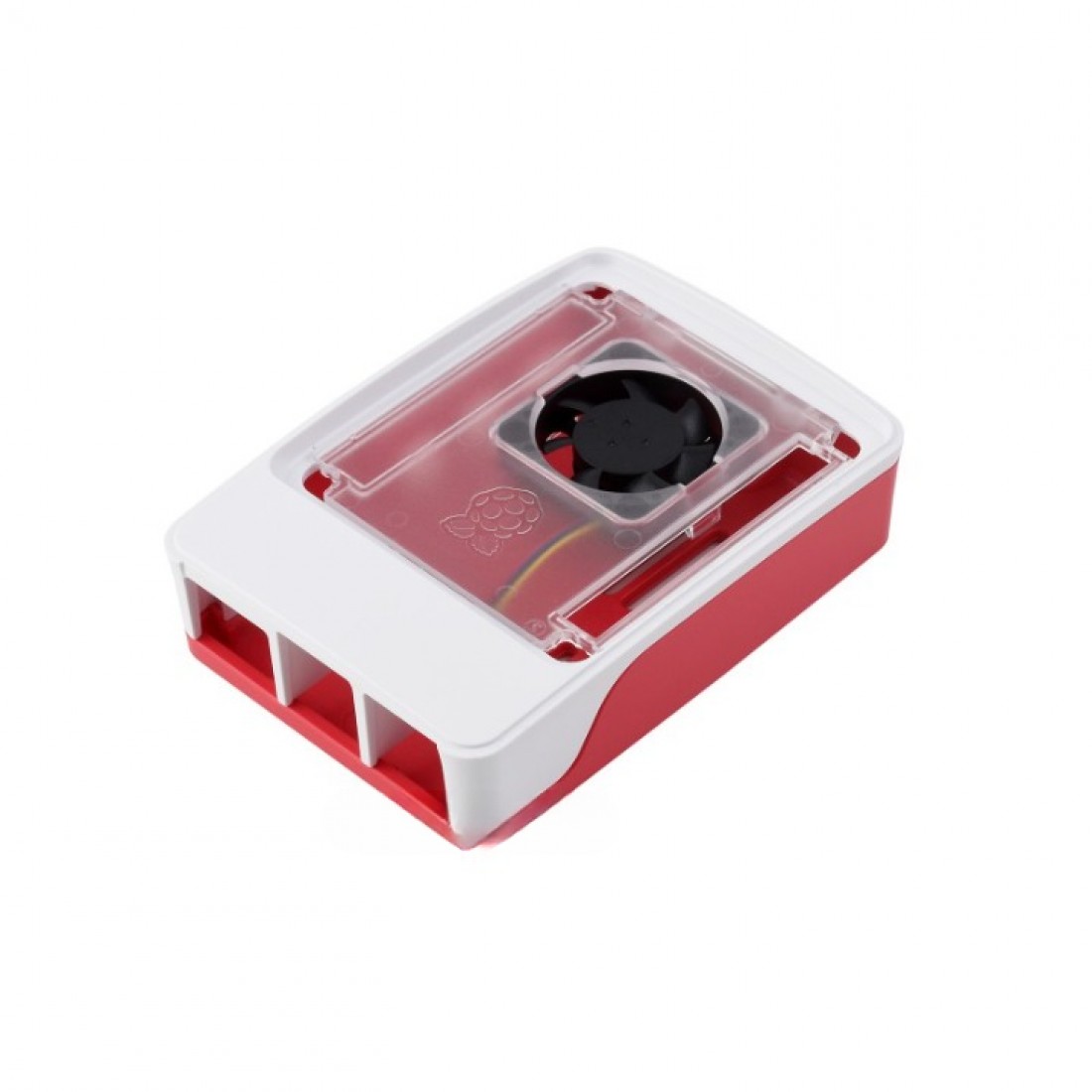

Engineered with modularity in mind, the transparent fan frame insert includes factory-located mounting holes. By using standard standoff extensions, you can mount complex hardware expansion shields (HATs) directly to the exterior of the enclosure. The underside of the red ABS base is also designed to allow multiple units to lock cleanly together for dense computing clusters.

Primary Professional Applications

• Compact Server Clusters: Layer multiple bare-board nodes in stacking arrays while utilizing active cross-ventilation for localized web servers or database arrays.

• Industrial Monitoring Gateways: Protect critical tracking boards from airborne debris inside manufacturing facilities while maintaining safer internal temperatures.

• Continuous Machine Learning Nodes: Maintain stable frame rates on connected camera arrays during localized edge AI execution without experiencing thermal processing limits.

• 24/7 Desktop Replacement Hubs: Keep dual-4K output crisp and fully operational during extensive programming sessions or heavy code compilation.

Buy Verified Components from Aryabot.in

Avoid clones or unverified marketplace listings that fail to align precisely with the updated layout of the newest generation board. Aryabot.in is an authorized distributor and India’s choice for pristine engineering components, robotics equipment, and official ecosystem accessories.

• 100% Original Guarantees: Rest easy knowing you are receiving the verified, factory-packaged Official Raspberry Pi 5 Case with Integrated Cooling Fan complete with pre-packaged heatsinks and thermal aids.

• Streamlined Prototyping Bundles: Instantly pair this case with authentic Official Raspberry Pi 5 27W USB-C Power Supplies and developmental microcomputers under a single transaction.

• Rapid Pan-India Dispatch: Every package is handled using anti-static procedures and robust packaging materials to ensure your project timelines are fully honored.



---

Package Includes:

1 x Official Raspberry Pi 5 Case Red-White
