Description

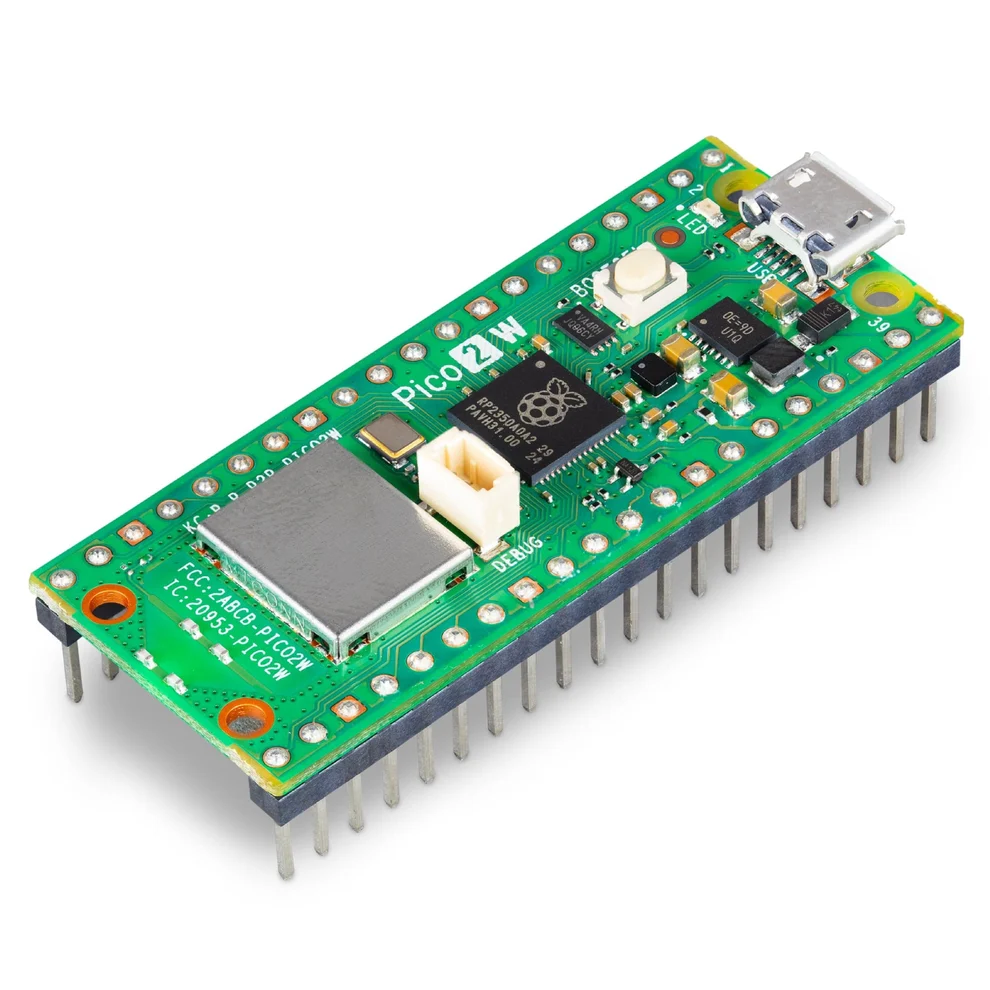

The Raspberry Pi Pico 2 W with Header is a compact yet powerful microcontroller board built around the new RP2350 microcontroller. It features dual‑core processing — either dual Arm Cortex‑M33 or dual open‑hardware Hazard3 RISC‑V cores — running at up to 150 MHz Onboard you get 520 KB of SRAM and 4 MB of QSPI flash, giving ample memory for code, data, and wireless firmware. The board brings 2.4 GHz 802.11n Wi‑Fi and Bluetooth 5.2 via its integrated wireless modem and antenna, enabling networked and IoT applications out of the box.

With 26 multifunction 3.3 V GPIO pins (a few of which support ADC), plus support for UART, SPI, I2C, PWM, PIO, and USB 1.1 (host and device), the Pico 2 W offers broad interfacing flexibility for sensors, displays, and peripherals. Supplied with pre‑soldered headers, it’s breadboard‑ and prototype‑ready. Security features — including Arm Trust Zone, boot signing (OTP key storage), SHA‑256 acceleration, and hardware mitigations — make it suitable for professional and embedded use. The board also retains full hardware and software compatibility with the earlier Pico series.

---

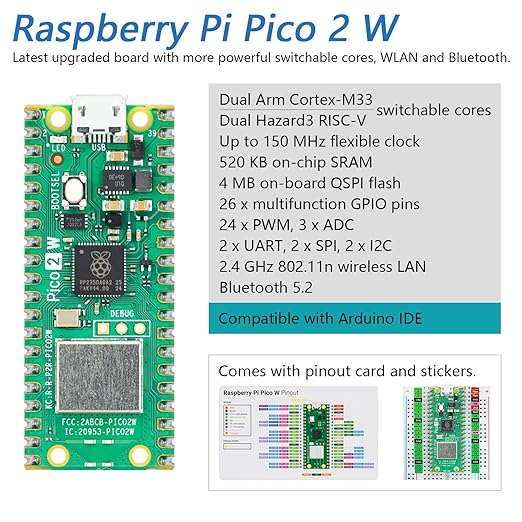

Technical Specifications:

Parameter	Specification
Microcontroller Chip	RP2350 Designed by Raspberry Pi
Processor Cores	Dual Arm Cortex-M33 OR Dual Hazard3 RISC-V @ 150MHz
On-Chip SRAM	520 KB SRAM
Onboard Flash Memory	4 MB QSPI Flash Memory
Wireless Connectivity	Single-band 2.4GHz Wi-Fi (802.11n) & Bluetooth 5.2 / BLE
Wireless Chipset	Infineon CYW43439
Header Configuration	Pre-Soldered Standard 40-Pin 0.1″ Pitch Male Headers + 3-Pin Debug Header
GPIO Pinout	26 Multi-Function 3.3V GPIO Pins
Analog Inputs	3 × 12-Bit ADC Channels
Hardware Peripherals	2 × UART, 2 × SPI, 2 × I2C, 24 × PWM Channels
Programmable I/O (PIO)	12 × State Machines (across 3 PIO blocks)
Hardware Security	Arm TrustZone, OTP Key Storage, Hardware SHA-256 Accelerator, TRNG
USB Interface	Micro-USB (USB 1.1 Host/Device)
Supply Input Voltage	1.8V to 5.5V DC (Built-in switching power supply)
Programming Language	C/C++ SDK, MicroPython, CircuitPython



---

Features:

1. Dual-core RP2350 microcontroller supporting either Arm Cortex‑M33 or RISC-V Hazard3 cores at up to 150 MHz
2. 520 KB on-chip SRAM and 4 MB onboard QSPI Flash for code, firmware, and data storage.
3. Integrated 2.4 GHz 802.11n Wi‑Fi and Bluetooth 5.2 with on-board antenna for wireless connectivity.
4. Up to 26 multifunction 3.3 V GPIO pins (some ADC-capable), 2 UART, 2 SPI, 2 I²C, 24 PWM channels, USB 1.1 (host + device), and 12 programmable I/O (PIO) state machines.
5. Compatible with multiple programming environments: C, C++, Micro Python, Circuit Python; supports USB drag-and-drop programming.
6. Enhanced security: secure boot, hardware encryption, Arm Trust Zone, OTP storage, SHA-256 acceleration, and fault-injection protection.

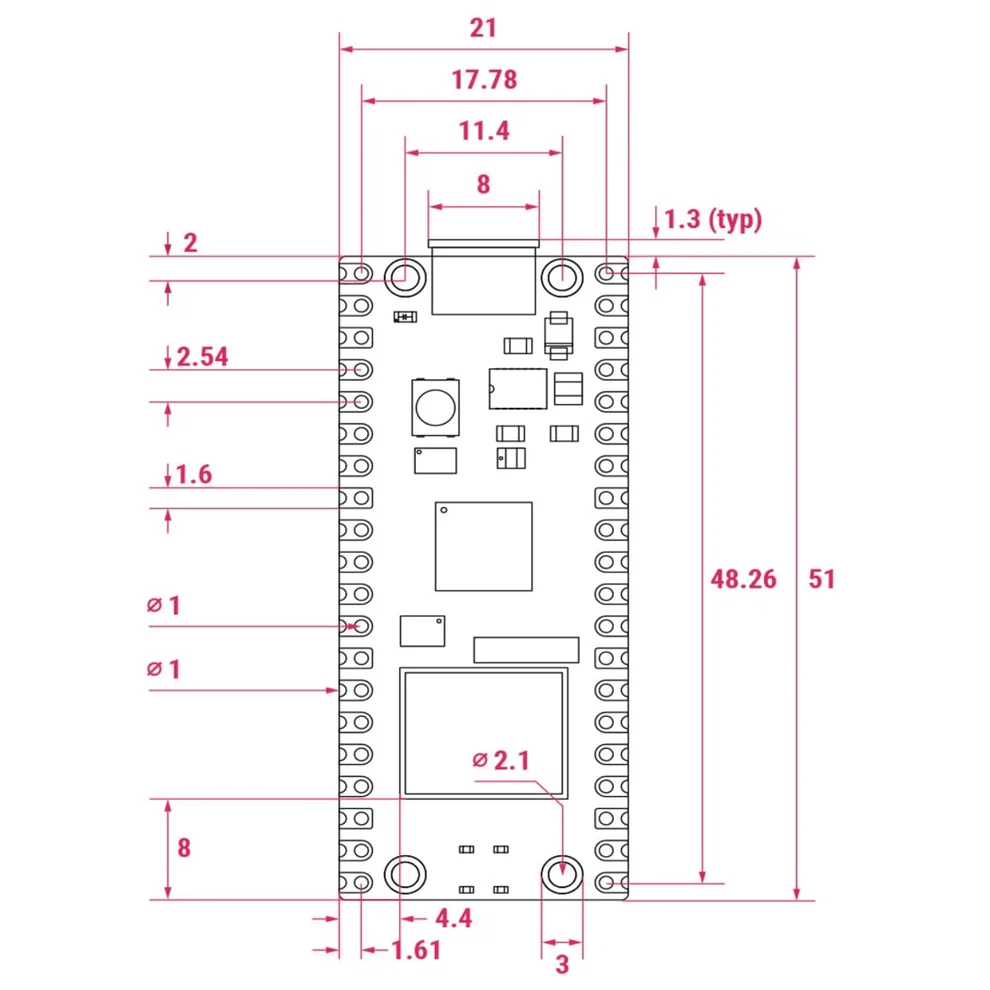

7. Compact 21 mm × 51 mm form factor with pre-soldered header, breadboard- and PCB-ready for prototyping.



---

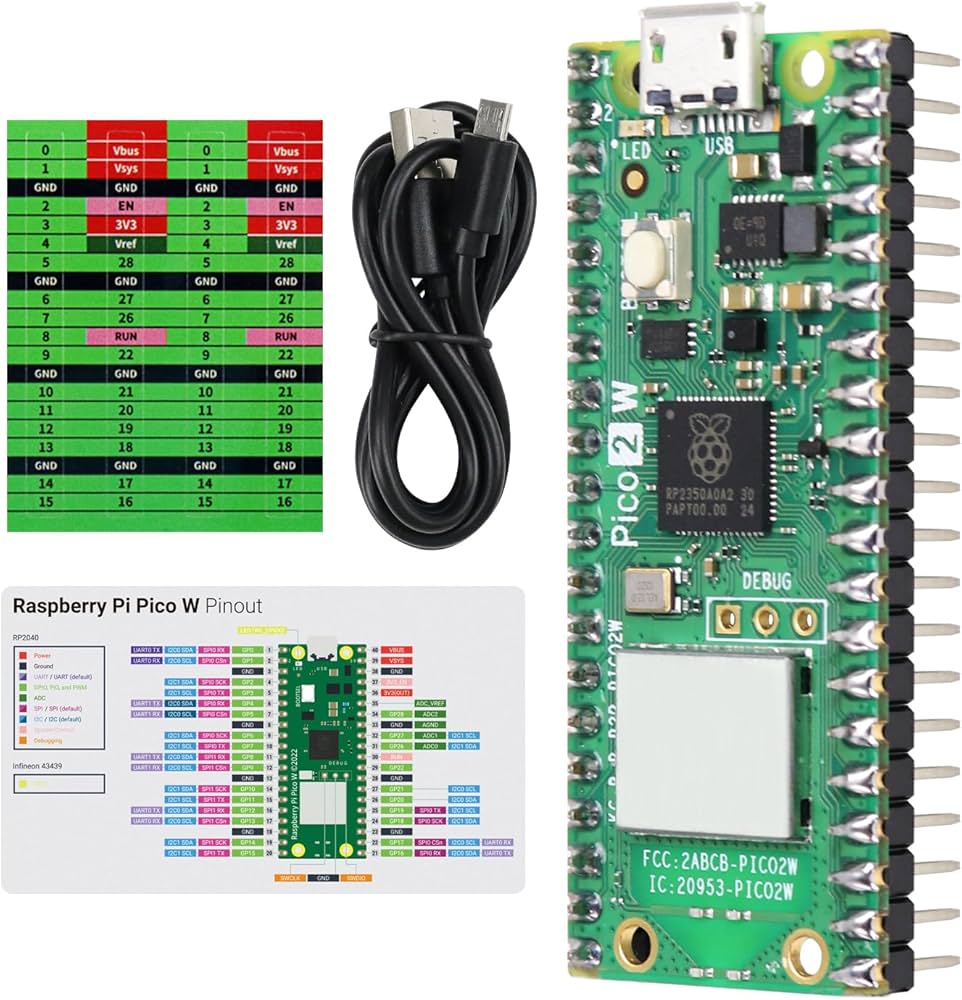

What’s Included in the Box

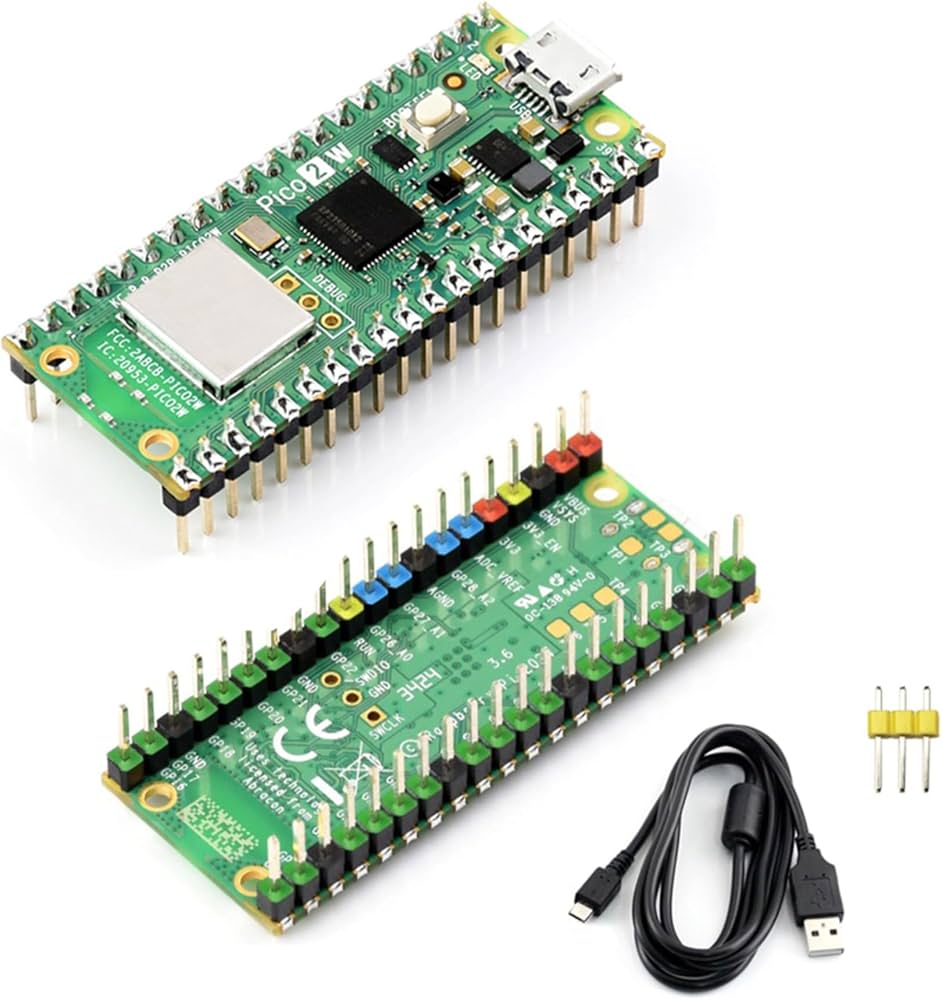

• 1 × Official Raspberry Pi Pico 2 W Board (with Pre-Soldered GPIO Headers)

---

Why Buy From Aryabot?

• 100% Genuine Raspberry Pi Product: Sourced through official distribution channels to guarantee authentic, high-grade silicon.

• Bench-Tested Quality: Inspected for physical solder joint integrity and header alignment prior to dispatch.

• GST Invoice Available: Full tax-compliant invoices provided for B2B procurement, university labs, and corporate projects.

• Pan-India Express Delivery: Fast processing and dispatch directly from our Noida fulfillment facility.



---

Package Includes:

1 x Raspberry Pi Pico 2 W with Header.
