SIM800L GSM GPRS Module Core Board
₹361
The SIM800L Micro GPRS GSM Module Core Board is an ultra-compact cellular communication board designed for IoT automation, remote telemetry, and embedded systems. Featuring quad-band network compatibility (850/900/1800/1900MHz) and a standard TTL serial interface, it enables microcontrollers like Arduino, ESP32, and Raspberry Pi to send SMS messages, make voice calls, and transmit data over GPRS networks.
In stock
Description
Add cellular connectivity to your embedded engineering projects with the ultra-compact SIM800L GPRS GSM Module Core Board. Ideal for remote data logging, smart vehicle tracking, home automation, and SMS alarm systems, this core board packages complete GSM/GPRS functionality into a miniature, breadboard-friendly footprint.
Operating on quad-band frequencies (850/900/1800/1900MHz), the SIM800L module connects to standard 2G cellular networks worldwide (and compatible 2G fall-back networks). It communicates with host microcontrollers via a simple TTL level UART serial port, allowing easy control using standard AT commands. The board includes an onboard micro-SIM card slot and comes with helical and PCB antenna options to ensure stable signal reception.
 Technical Specifications
| Parameter | Specification |
| GSM Chipset | SIMCom SIM800L |
| Frequency Bands | Quad-Band 850 / 900 / 1800 / 1900 MHz |
| Supply Voltage ($V_{CC}$) | 3.7V – 4.2V DC (Requires high-current power source; 2A peak) |
| Logic Interface Level | 3.3V / 5V TTL Compatible (UART Serial) |
| SIM Card Slot | Micro-SIM Slot (Push-Push Type) |
| Network Support | Voice Calls, SMS Texting, GPRS Multi-slot Class 12/10 |
| Baud Rate | Auto-Baud Detection (Default: 9600 bps) |
| Antenna Interface | IPX / U.FL Antenna Connector + Onboard Soldering Pad |
| Status LED | Onboard LED indicator for network searching & registration |
| Operating Temperature | -40°C to +85°C |
| Module Dimensions | ~25mm × 23mm |
| Microcontroller Compatibility | Arduino (UNO, Mega, Nano), Raspberry Pi, ESP8266, ESP32, STM32 |
 Pinout Configuration
-

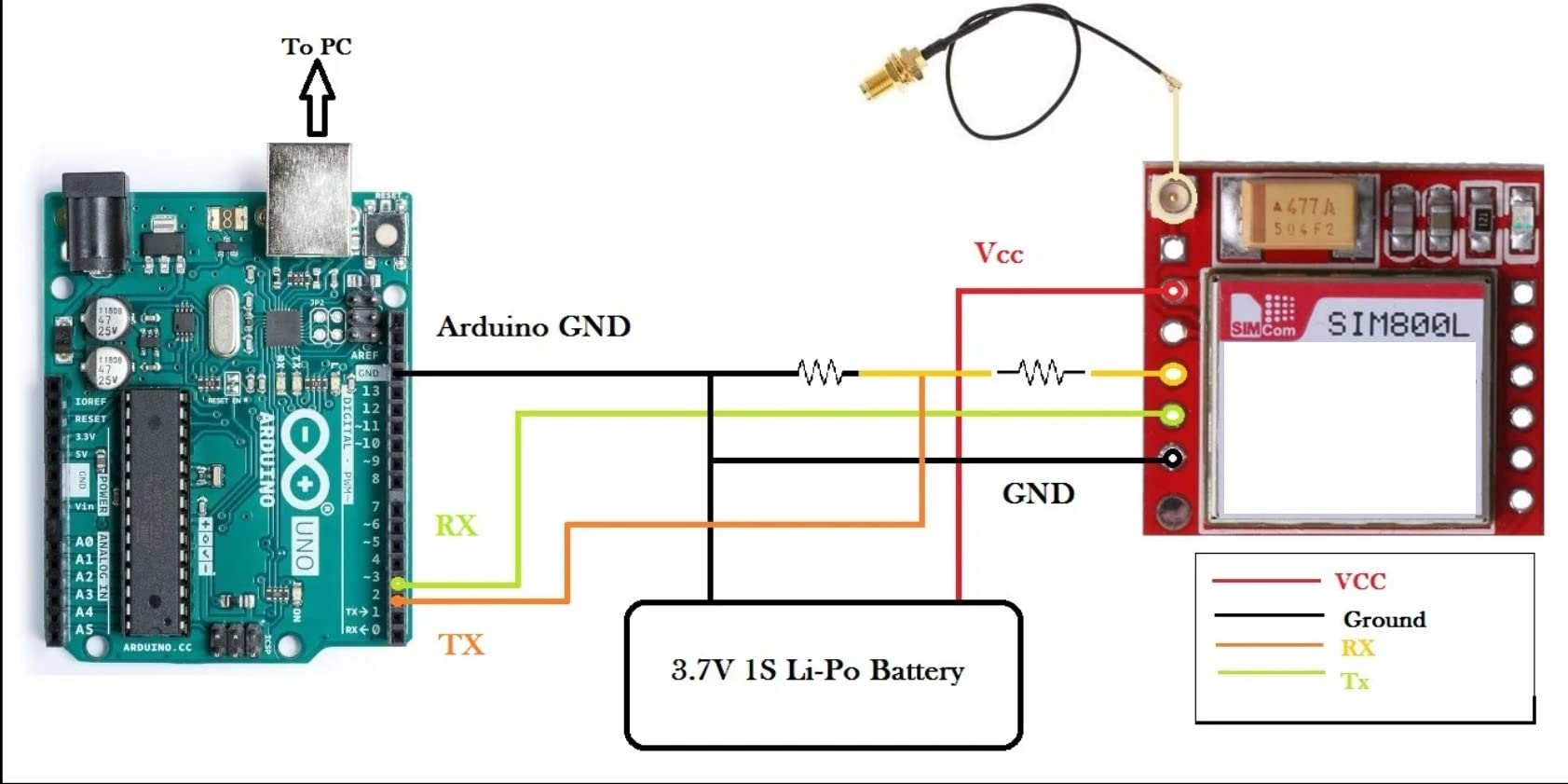

VCC: 3.7V to 4.2V DC Power Input (Note: Requires a stable power source capable of supplying up to 2A peak current during network transmission)
-
GND: Power & Logic Ground
-
RST: Module Reset Pin (Active Low)
-
RXD: Serial Receive Pin (TTL Level)
-
TXD: Serial Transmit Pin (TTL Level)
-
RING: Ring Indicator (Outputs pulse on incoming calls/SMS)
-
DTR: Data Terminal Ready (Sleep mode wake-up control)
Key Features & Highlights
-
Ultra-Compact Form Factor: Designed for space-constrained projects, portable wearables, and mini IoT enclosures.
-
Full Cellular Functionality: Send and receive SMS, initiate/answer voice calls, and transfer IP data via GPRS.
-
Simple AT Command Set: Controlled through standard Hayes AT command protocols via standard UART pins.
-
Onboard Micro-SIM Socket: Secure push-push slot for quick micro-SIM installation.
-
Dual Antenna Options: Includes both a compact spring/helical antenna and an IPX connector for external high-gain antennas.
  What’s Included in the Box
-

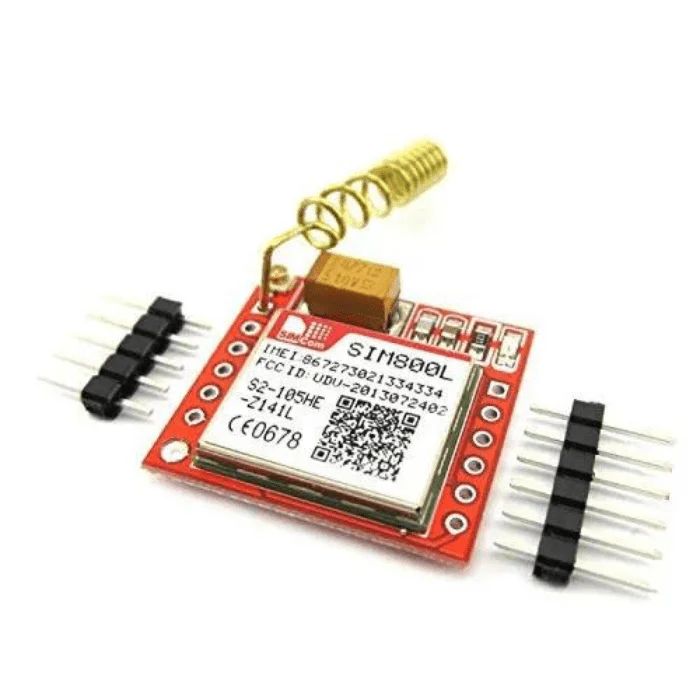

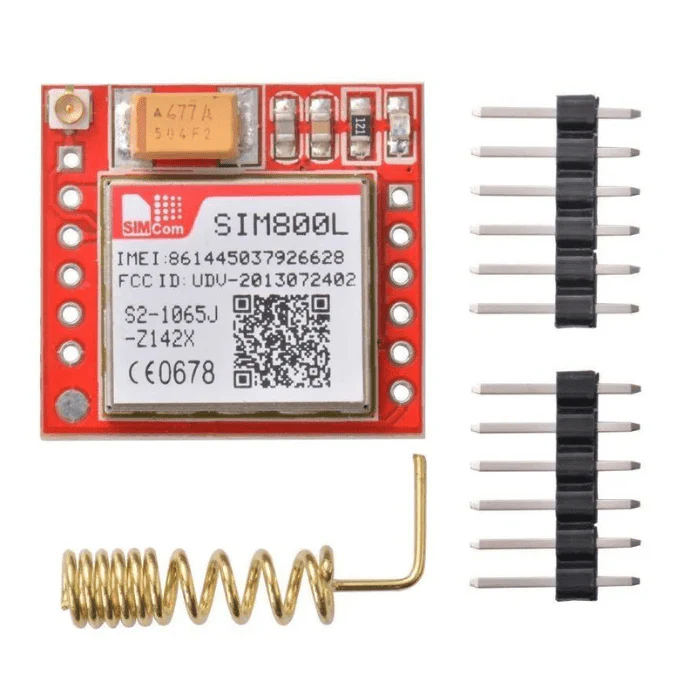

1 × SIM800L Micro GPRS GSM Module Core Board
-
1 × Helical Spring Antenna
-
1 × Unsoldered Header Pin Set
  Why Buy From Aryabot?
-
100% Genuine Components: Direct sourcing guarantees authentic, original SIMCom module chips for high connectivity reliability.
-
Bench-Tested Quality: Every module is inspected for hardware continuity and pin integrity prior to dispatch.
-
GST Invoice Available: Tax-compliant invoicing provided for corporate buyers, engineering colleges, and research labs.
-
Pan-India Express Delivery: Prompt order processing and dispatch directly from our Noida fulfillment warehouse.
Additional information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 9 × 6 × 3 cm |
