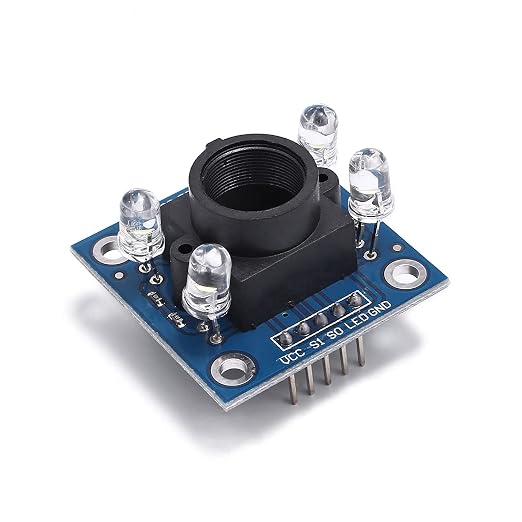

Description

The GY-31 TCS3200 Color Sensor Module is an optical identifier engineered for microcontrollers and single-board computers. Unlike basic light-dependent resistors (LDRs) that measure overall ambient brightness, the GY-31 module isolates individual primary wavelengths to distinguish distinct colors with high accuracy.

The module incorporates an array of 64 photodiodes partitioned into four filter sets: 16 photodiodes for Red light, 16 for Green light, 16 for Blue light, and 16 Clear without filters. By toggling control logic pins (S2 and S3), microcontrollers select which color channel to read. The internal CMOS circuitry generates a 50% duty-cycle square wave whose frequency is directly proportional to the light intensity of the active filter channel.

Technical Specifications

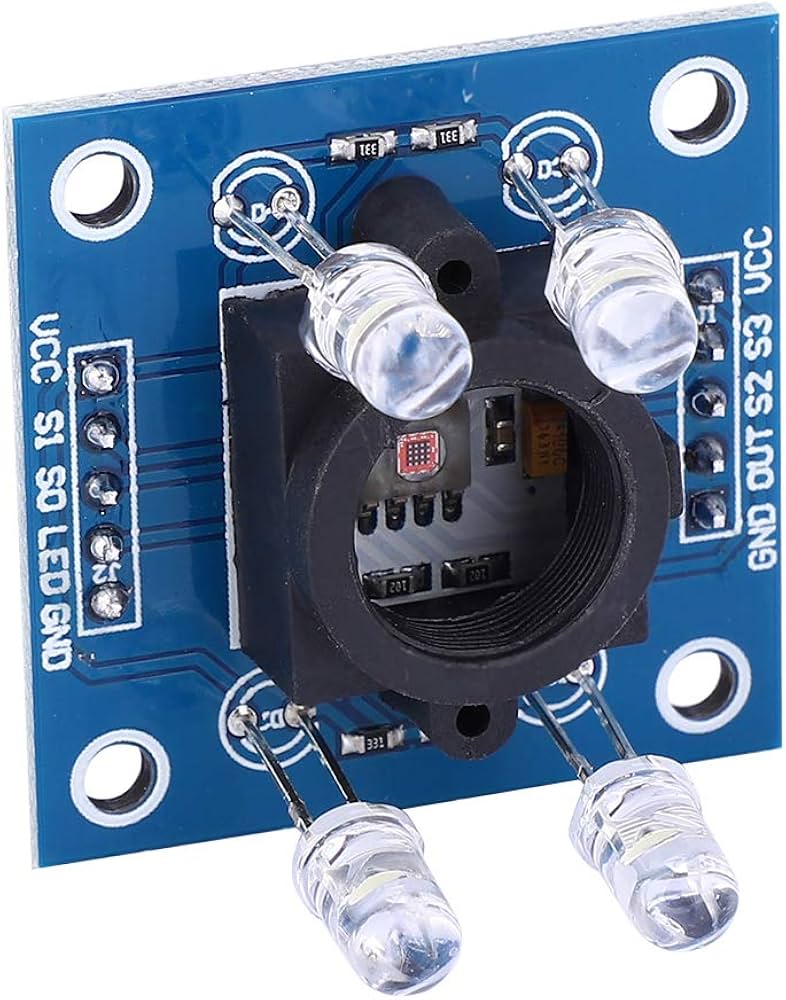

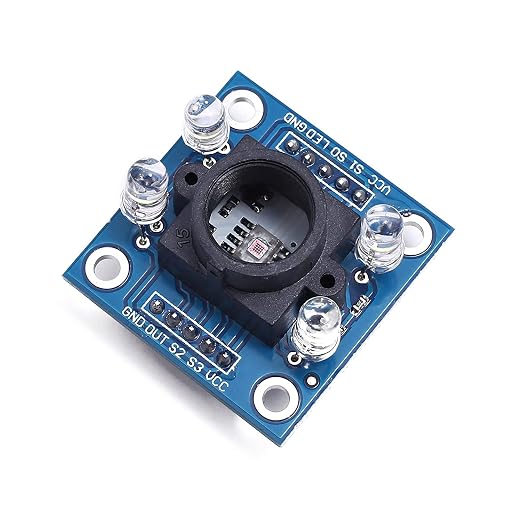

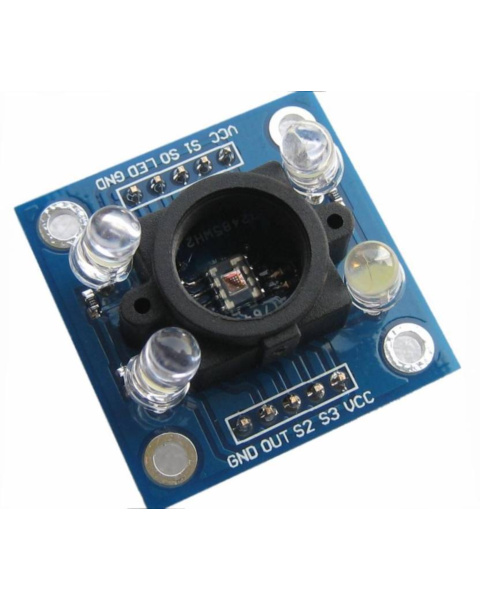

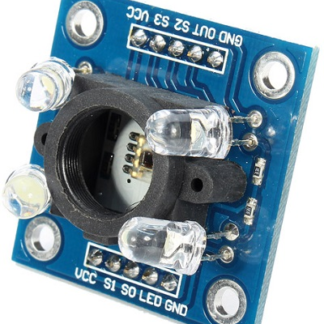

Board Pinout & Logic Control Matrix

              +------------------------------------+
              | [S0]  (o)     (o) [S3]             |
              | [S1]  (o)     (o) [S2]             |
              | [OE]  (o)     (o) [OUT]            |
              | [GND] (o)     (o) [VCC]            |
              |                                    |
              |        [ GY-31 PCB Layout ]        |
              |      [ TCS3200 IC + 4x LEDs ]      |
              +------------------------------------+

Filter Channel Truth Table (S2 & S3)

Output Frequency Scaling (S0 & S1)

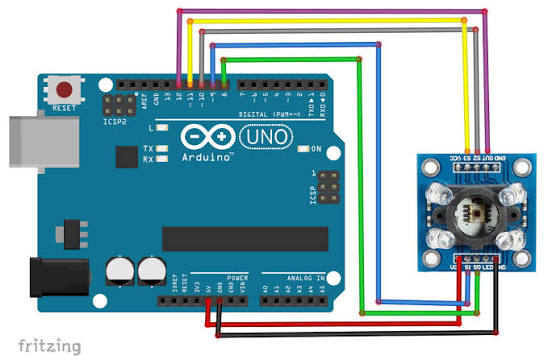

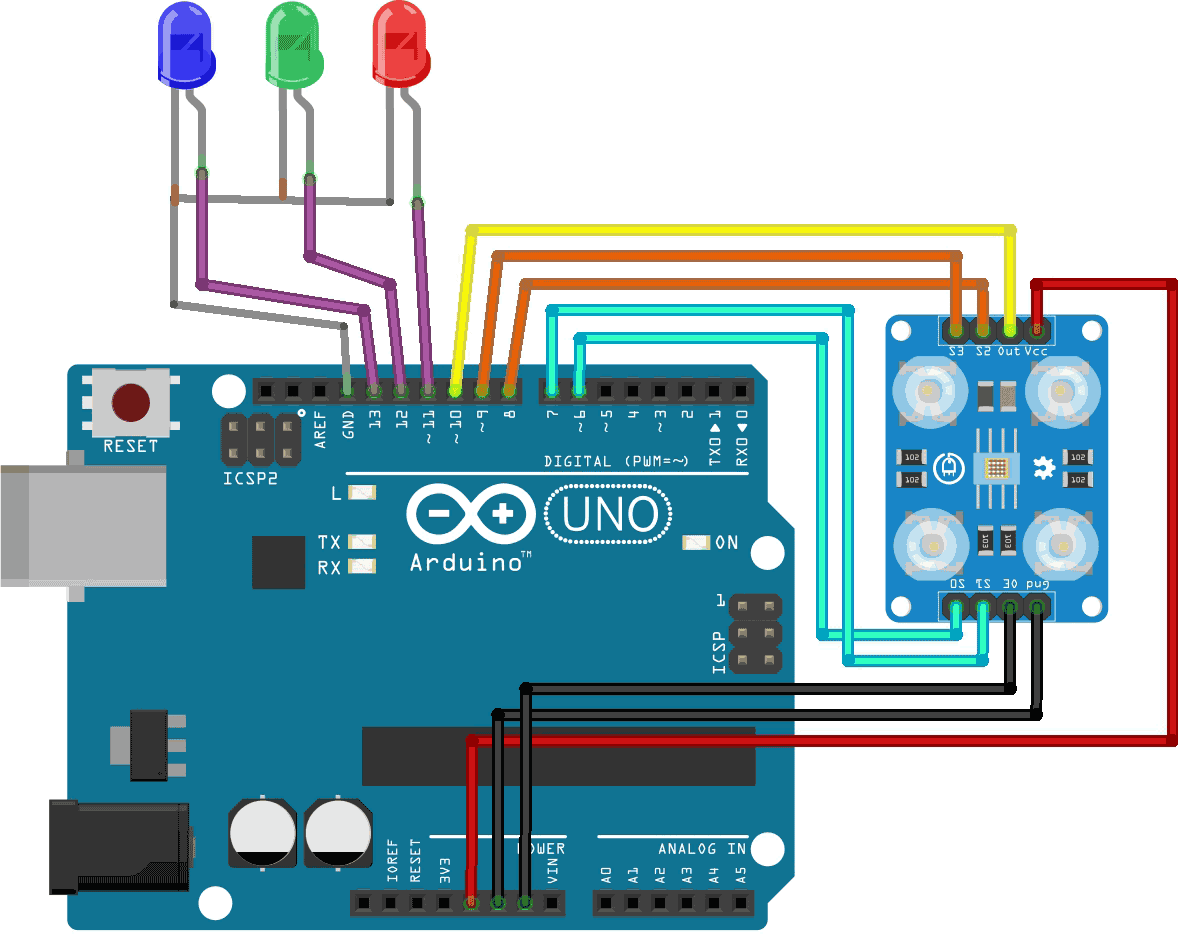

Arduino Interfacing Code

// GY-31 TCS3200 Color Sensor Arduino Interfacing
#define S0 4
#define S1 5
#define S2 6
#define S3 7
#define sensorOut 8

int redPulse = 0;
int greenPulse = 0;
int bluePulse = 0;

void setup() {
  pinMode(S0, OUTPUT);
  pinMode(S1, OUTPUT);
  pinMode(S2, OUTPUT);
  pinMode(S3, OUTPUT);
  pinMode(sensorOut, INPUT);

  // Set Frequency scaling to 20% for Arduino
  digitalWrite(S0, HIGH);
  digitalWrite(S1, LOW);

  Serial.begin(9600);
}

void loop() {
  // Read RED Channel
  digitalWrite(S2, LOW);
  digitalWrite(S3, LOW);
  redPulse = pulseIn(sensorOut, LOW);

  // Read GREEN Channel
  digitalWrite(S2, HIGH);
  digitalWrite(S3, HIGH);
  greenPulse = pulseIn(sensorOut, LOW);

  // Read BLUE Channel
  digitalWrite(S2, LOW);
  digitalWrite(S3, HIGH);
  bluePulse = pulseIn(sensorOut, LOW);

  // Display Frequency Readings
  Serial.print("Red: "); Serial.print(redPulse);
  Serial.print(" | Green: "); Serial.print(greenPulse);
  Serial.print(" | Blue: "); Serial.println(bluePulse);

  delay(300);
}

Key Features & Highlights

• Digital Frequency Output: Directly outputs a square wave proportional to color irradiance, bypassing noisy analog processing.

• 4-LED Illumination System: Onboard white LEDs illuminate objects to prevent environmental shadow interference.

• Programmable Frequency Output: Flexible scaling (100%, 20%, 2%) matches pulse counting speeds across different MCU clock frequencies.

• Dual Voltage Compatibility: Operates smoothly on 3.3V and 5V logic rails without requiring external level shifters.

• Breadboard-Friendly Header: Standard 2.54mm pitch breakout header for direct breadboard or DuPont cable wiring.

Common Applications

• Industrial automated sorting machines (sorting items by color).

• Line-following and maze-solving mobile robots.

• Color calibration, paint matching, and print inspection setups.

• Interactive RGB lighting and educational STEM projects.
