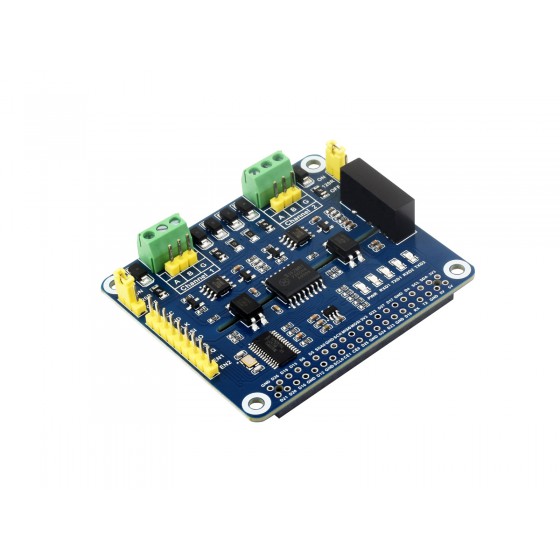

Waveshare 2-Channel Isolated RS485 HAT for Raspberry Pi-17221
₹1,529
Out of stock

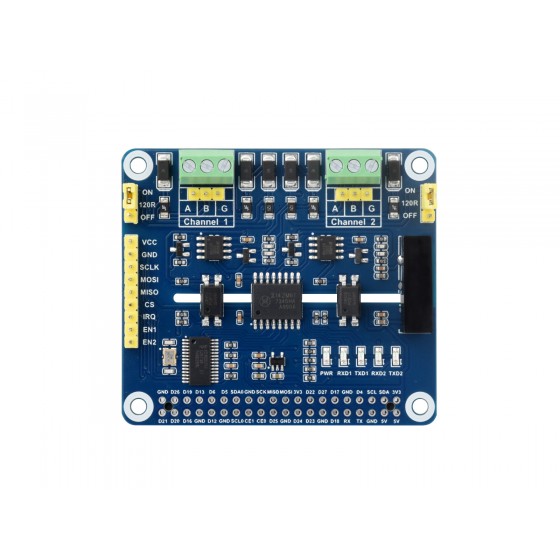

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Adopts SC16IS752+SP3485 dual chip combination, converts SPI to RS485, data rate up to 921600bps

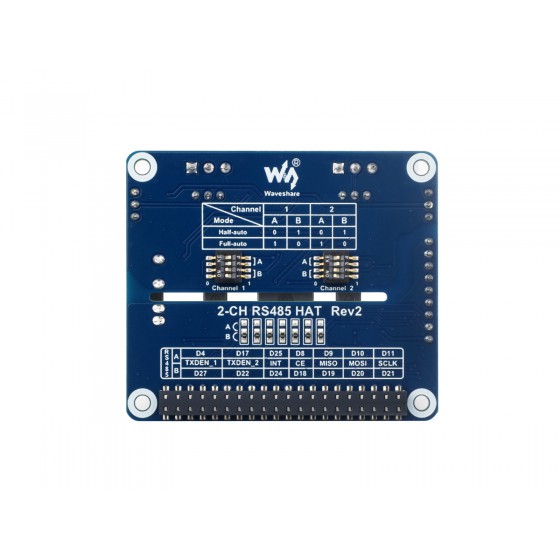

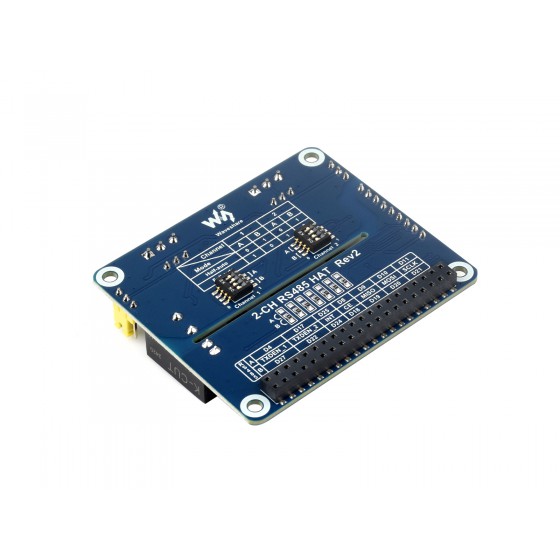

- Allows transceiving data manually or automatically, configured by DIP switch
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, and improves shock proof performance
- Onboard LEDs for indicating the power and transceiver status
- Breakout SPI control pins, for connecting with host control boards like Arduino
- Comes with online development resources and manual (examples in C and Python).
Description
T
Transform your Raspberry Pi into a rugged industrial automation controller with the Waveshare 2-Channel Isolated RS485 Expansion HAT. Operating industrial equipment, energy meters, and PLCs over long distances requires robust signal integrity and electrical isolation to prevent ground loops and high-voltage spikes from damaging your single-board computer.

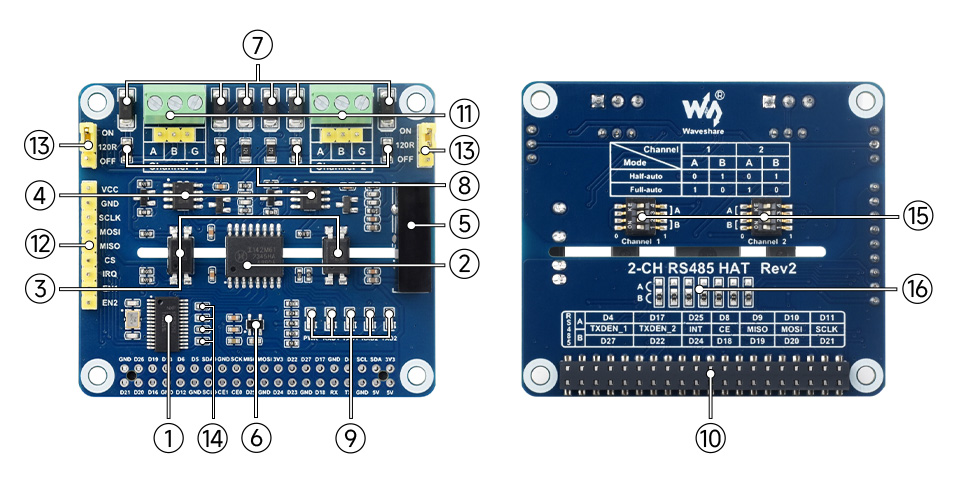

This expansion HAT uses an onboard SC16IS752 SPI-to-dual-UART controller to break out two independent RS485 channels using the Raspberry Pi’s SPI bus interface—saving your main hardware UART pins for other peripherals. Both channels feature integrated unibody power isolation and photocoupler signal isolation, guaranteeing complete electrical isolation between the Raspberry Pi and external field devices. Additionally, built-in TVS (Transient Voltage Suppressor) diodes, gas discharge tubes, and self-recovery fuses protect your system against lightning surges, ESD discharges, and overcurrent conditions.
Technical Specifications

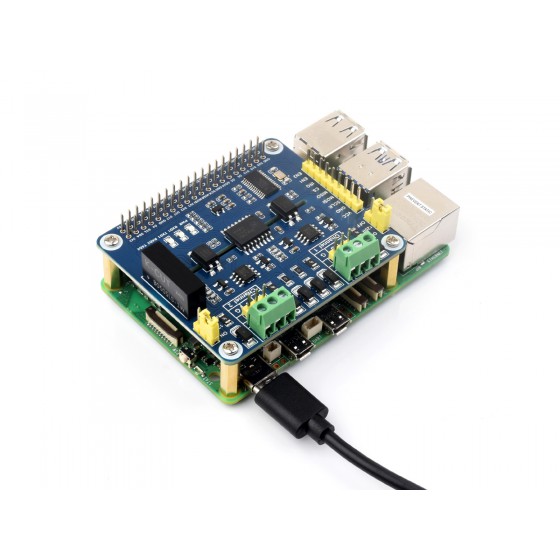

| Parameter | Specification |
| Brand | Waveshare |
| Expansion Controller | SC16IS752 (SPI-to-Dual UART Transceiver) |
| Transceiver IC | SP3485 / Analog Devices Isolated Transceivers |
| Communication Interface | SPI Bus (Uses Raspberry Pi SPI Interface) |
| Number of Channels | 2 Independent RS485 Ports |
| Data Rate | 300 bps to 921.6 Kbps |
| Operating Voltage | 3.3V / 5V DC (Powered via Raspberry Pi GPIO) |
| Isolation Type | Onboard Integrated Power Isolation & Photocoupler Signal Isolation |
| Protection Features | TVS Diodes, Gas Discharge Tubes, Resettable Fuses, ESD Protection |
| Terminal Connectors | 3.5mm Pitch Industrial Screw Terminal Blocks (A, B, GND per channel) |
| Terminal Resistors | Onboard 120$\Omega$ Matching Resistors (Enabled via Jumpers) |
| Compatibility | Raspberry Pi 5, 4B, 3B+, Zero Series, Jetson Nano |

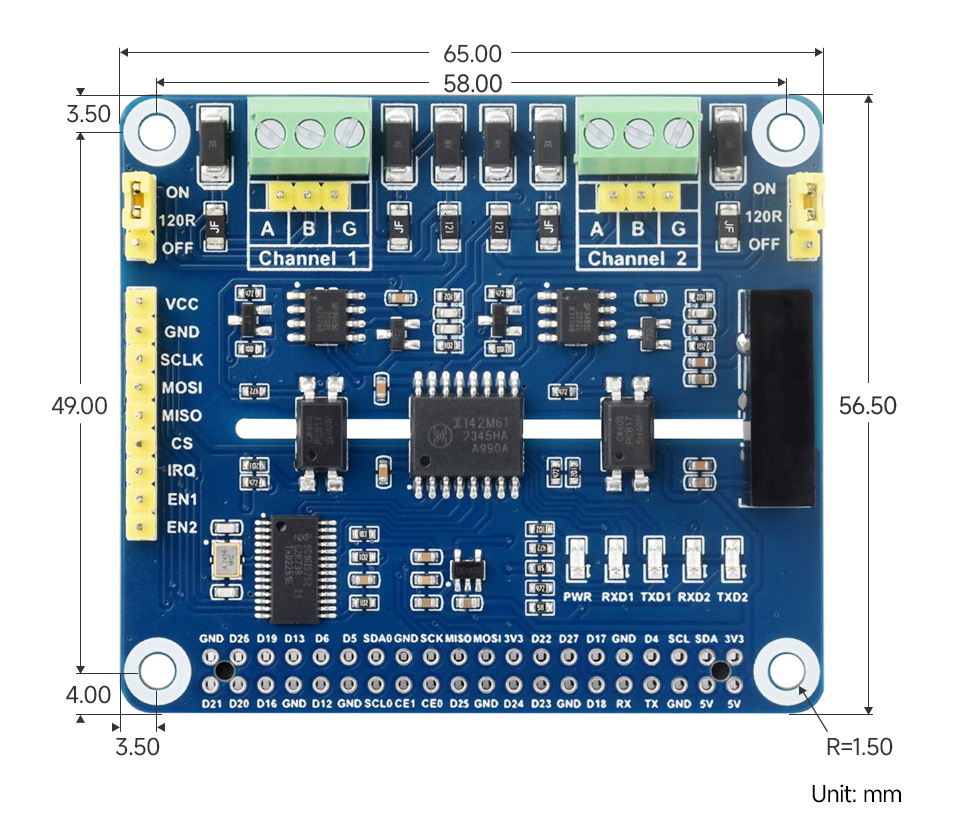

| Dimensions | Standard Raspberry Pi HAT Size (~65mm × 56mm) |
Key Features & Highlights
-
Dual Independent RS485 Channels: Connect to two separate RS485/Modbus field networks simultaneously from a single Raspberry Pi.
-
SPI-Based Architecture: Driven via SPI interface, eliminating the need to reconfigure or disable the Raspberry Pi’s onboard Bluetooth/UART pins.
-
Galvanic Power & Signal Isolation: High isolation voltage protects the host Raspberry Pi against electrical noise, high voltage transients, and ground potential differences.
-
Industrial Safety Protection: Onboard TVS (Transient Voltage Suppressor) suppresses surge voltage; gas discharge tubes safeguard against lightning and heavy industrial ESD.
-
Configurable 120$\Omega$ Terminal Resistors: Easily enable or disable terminal matching resistors via onboard jumpers for proper bus termination.
-
Breakout LEDs: Onboard status LEDs for Power (PWR), RX, and TX on each channel provide instant visual feedback for serial communication debugging.
What’s Included in the Box
-
1 × Waveshare 2-Channel Isolated RS485 Expansion HAT
-
1 × RPi Screws & Standoffs Pack (2×20 Standoffs & Screws)
Why Buy From Aryabot?
-
100% Genuine Products: Sourced directly from Waveshare to guarantee original, high-reliability industrial hardware.
-
Bench-Tested Quality: Thoroughly inspected for pin alignment and hardware component integrity prior to dispatch.
-
GST Invoice Available: Complete tax-compliant invoicing provided for B2B procurement, industrial clients, and research labs.
-
Pan-India Express Delivery: Swift order processing and dispatch directly from our Noida fulfillment warehouse.
Additional information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 7 × 6 × 3 cm |
