₹8,790

Out of stock

  1. Networking: Gigabit Ethernet RJ45 connector × 2 (Original Network port ETH0, and PCIE extended Network port ETH1) , mini PCIE connector, supports 4G module (USB protocol, can not support PCIE protocol) ,  Nano-SIM card slot supports standard Nano-SIM card for 4G/3G/2G Internet access.
  2. M.2: Dual NVME Solid State Drives slots (compatible with 2230, 2242, 2260, 2280).
  3. USB: USB 3.2 Gen1 (5Gbps) port× 2
SKU: A10083 Category: Brand:

Description

Introducing the Waveshare NAS Multi-functional Mini-Computer, a versatile and compact computing solution meticulously designed to harness the power of the Raspberry Pi Compute Module 4. This innovative device is engineered to empower enthusiasts, developers, and small-scale enterprises with a powerful, multi-purpose computing platform, making it ideal for a wide range of applications. At the core of this mini-computer lies the Raspberry Pi Compute Module 4, which boasts enhanced processing capabilities, improved memory, and enhanced I/O options. This integration allows you to leverage the full potential of the Raspberry Pi ecosystem while enjoying a compact and efficient form factor.

Note: Raspberry Pi Compute Module 4(NOT Included).

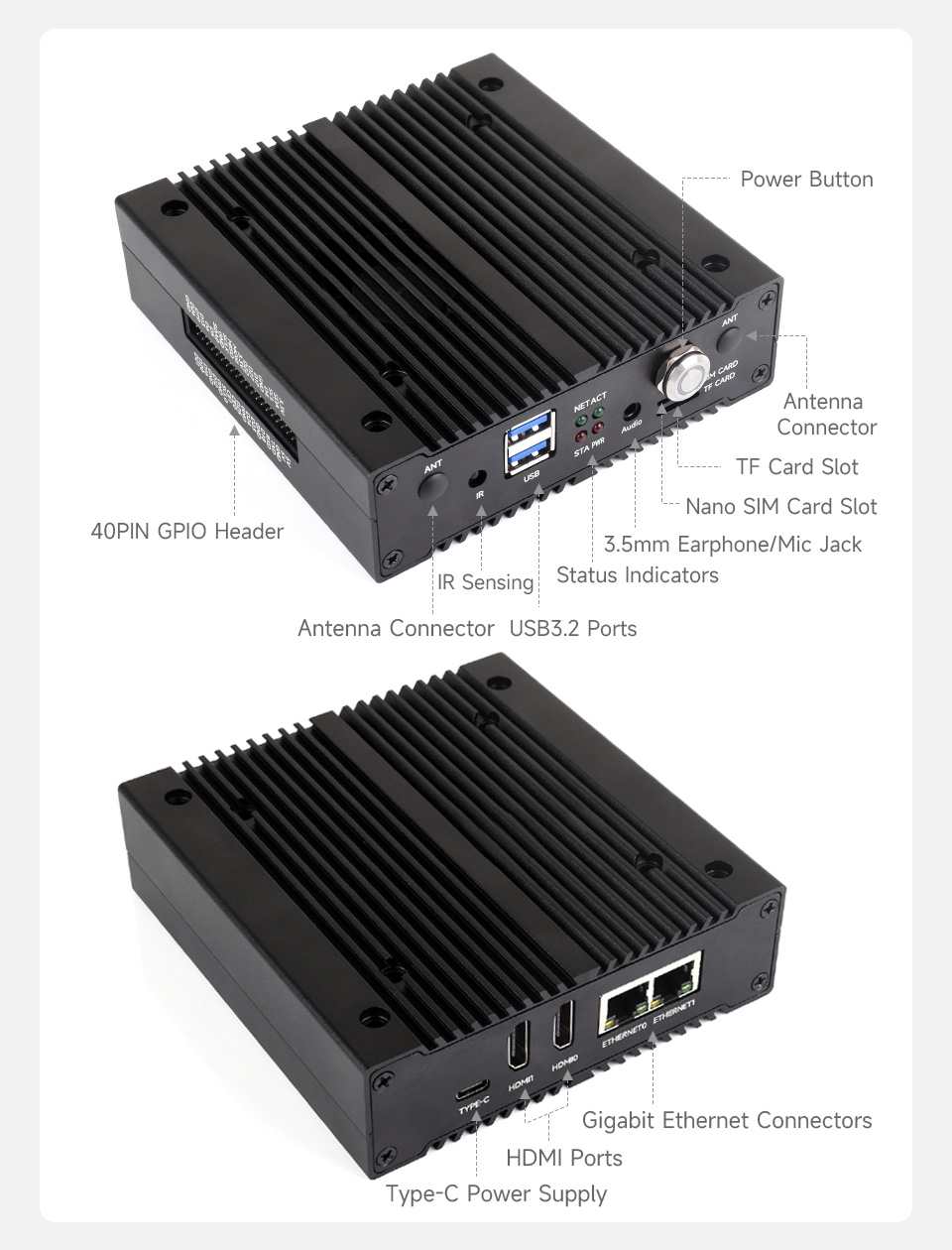

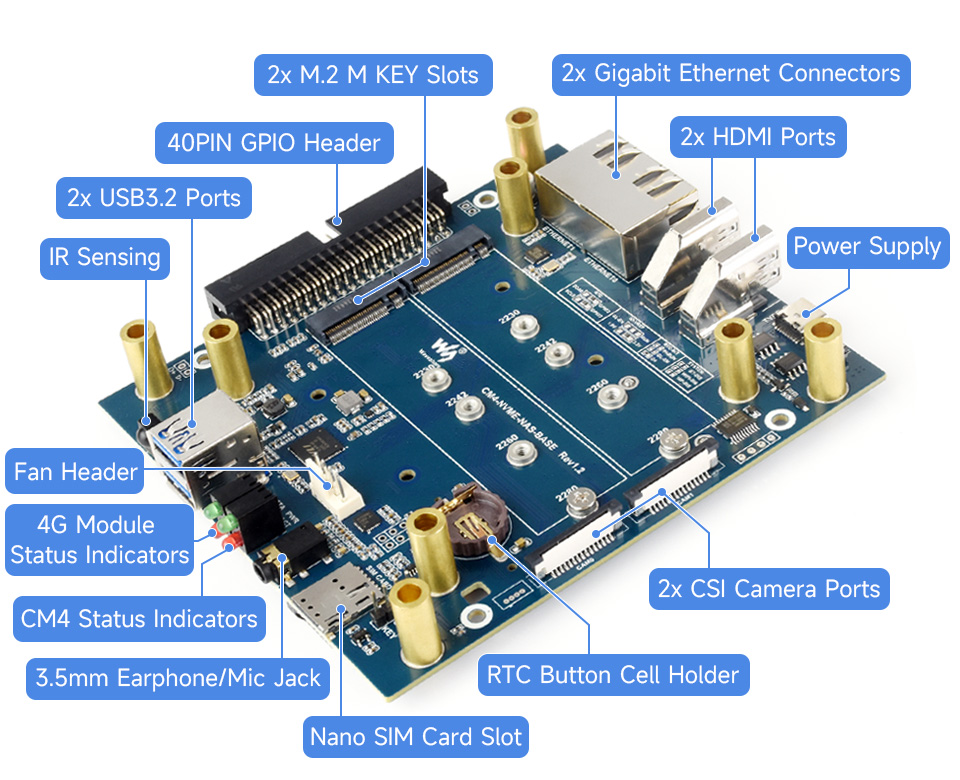

                                                        Onboard Rich Interfaces
CM4 NVME NAS BOX 08

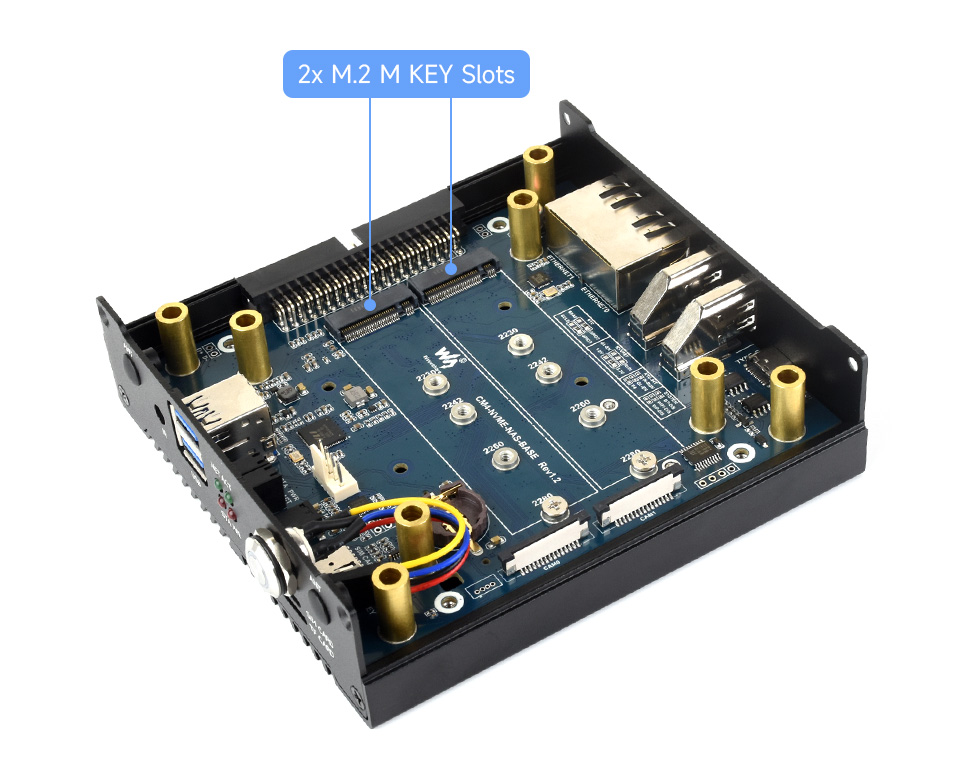

                                                   Dual Solid State Drives slots

                Onboard 2× M.2 M KEY slots, support all sizes of NVME solid state drives
                (2230, 2242, 2260, 2280)


CM4 NVME NAS BOX 06







Specifications:

CM4 socket Suitable for all variants of Compute Module 4
NETWORKING Gigabit Ethernet RJ45 connector × 2 (Original Network port ETH0, and PCIE extended Network port ETH1)
MINI PCIE connector, supports 4G module (USB protocol, can not support PCIE protocol)
Nano-SIM card slot, supports standard Nano-SIM card for 4G/3G/2G Internet access
M.2 Dual NVME Solid State Drives slots (compatible with 2230, 2242, 2260, 2280)
USB USB 3.2 Gen1 (5Gbps) port× 2
CSI camera MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector
HDMI HDMI × 2, supports 4K 30fps output
Audio 3.5mm earphone/mic jack
RTC Real-time clock with battery socket and ability to wake Compute Module 4
TF card slot TF card socket for Compute Module 4 Lite (without eMMC) variants
Power input Type-C (5V 4A)
Dimensions 128 × 122 × 36mm



Features At A Glance
  • All-in-one Mini-Computer, mainly designed for home, small home office, etc.
  • Provides a simple and easy-to-use solution, no expert knowledge of networking and storage systems required
  • Onboard 2× M.2 M KEY slots for installing NVME Solid State Drives
  • Onboard MINI PCIE connector for installing 4G module
  • 2× HDMI 4K output interfaces
  • Onboard USB3.2 ports, IR receiver, RTC, dual Gigabit Ethernet connectors, 3.5mm jack, etc.
    1. Networking: Gigabit Ethernet RJ45 connector × 2 (Original Network port ETH0, and PCIE extended Network port ETH1) , mini PCIE connector, supports 4G module (USB protocol, can not support PCIE protocol) ,  Nano-SIM card slot supports standard Nano-SIM card for 4G/3G/2G Internet access



    1. M.2: Dual NVME Solid State Drives slots (compatible with 2230, 2242, 2260, 2280)



  1. USB: USB 3.2 Gen1 (5Gbps) port× 2

Package Includes:
1 x Waveshare NAS Multi-functional Mini-Computer Designed for Raspberry Pi Compute Module 4

Additional information

Weight 0.646 kg
Dimensions 21 × 15 × 6 cm
