Description

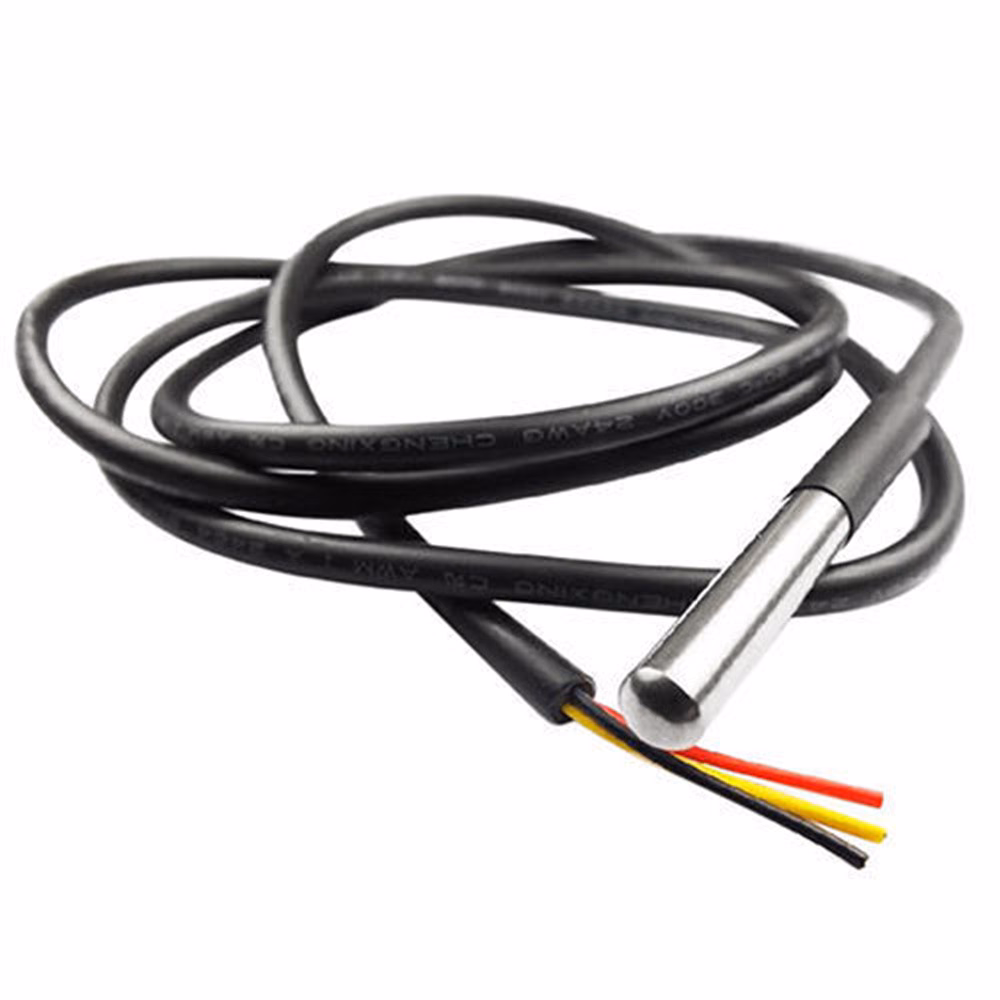

The DS18B20 Waterproof Digital Temperature Probe is designed for precise, non-corrosive liquid and environmental temperature monitoring. Unlike low-cost clones that suffer from frequent signal dropouts or calibration errors, this probe incorporates an Original DS18B20 Silicon Chip encapsulated within a durable, moisture-resistant stainless steel tube sealed with high-thermal-conductivity epoxy resin.

Utilizing Maxim/Dallas Semiconductor’s proprietary 1-Wire protocol, the sensor converts temperature readings directly into a digital signal (9 to 12-bit configurable resolution), eliminating signal degradation over long cable runs. The 1-meter flexible black cable is insulated with PVC, making it simple to deploy in remote, underwater, or outdoor sensing nodes.

---

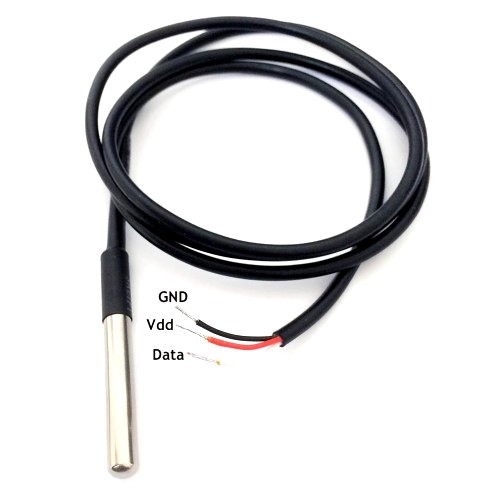

Wired connection

Red: VCC/VDD
Yellow/White: DATA
Black: GND

---

Technical Specifications

Parameter	Specification
Sensor IC	Original DS18B20 Digital Temperature Sensor
Operating Voltage	3.0V to 5.5V DC
Sensing Temperature Range	-55°C to +125°C (-67°F to +257°F)
Measurement Accuracy	±0.5°C Accuracy from -10°C to +85°C
Selectable ADC Resolution	9-bit to 12-bit (0.5°C to 0.0625°C increments)
Communication Interface	1-Wire Digital Bus (Requires 4.7kΩ pull-up resistor)

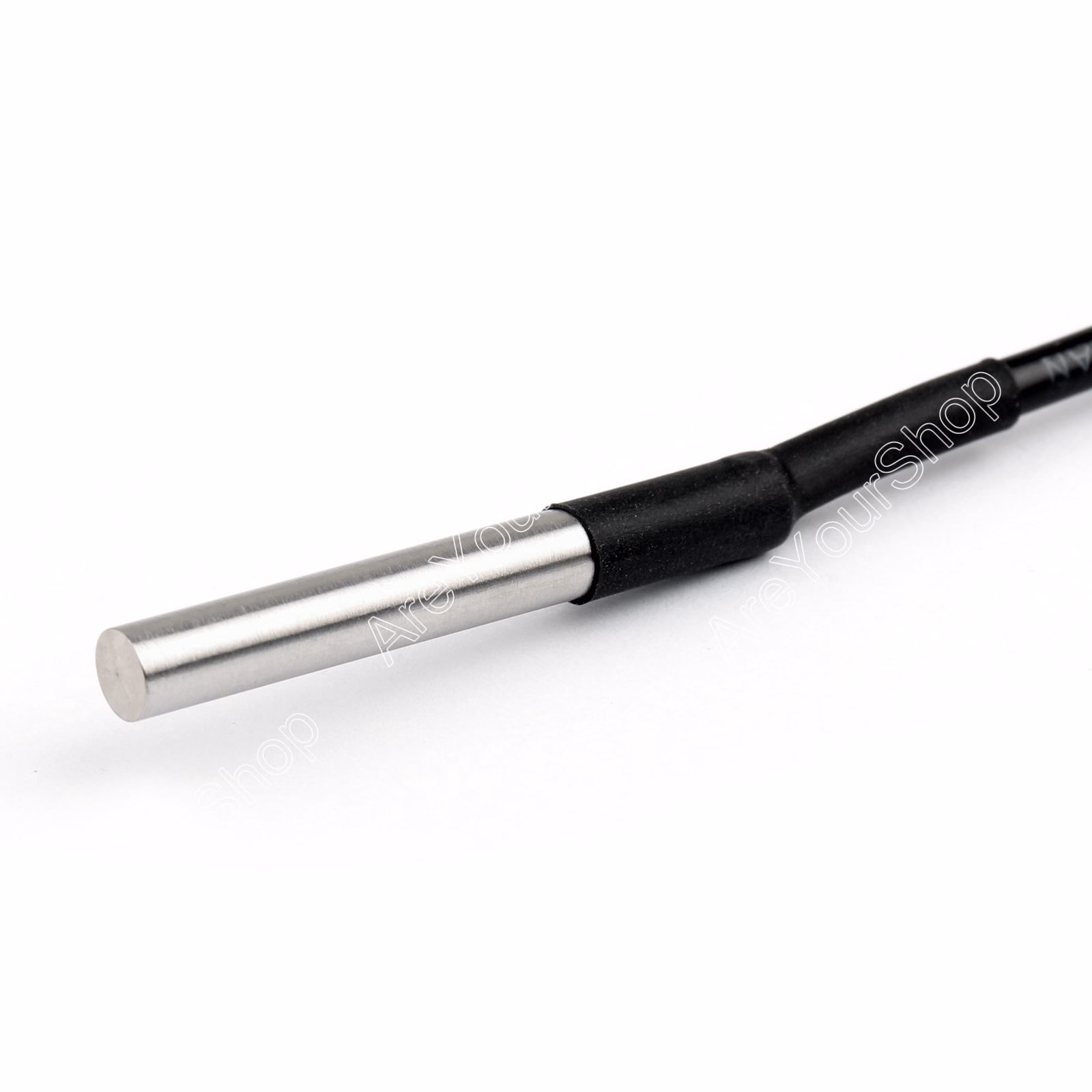

Probe Dimensions	Stainless Steel Tube (Diameter: 6 mm, Length: 50 mm)

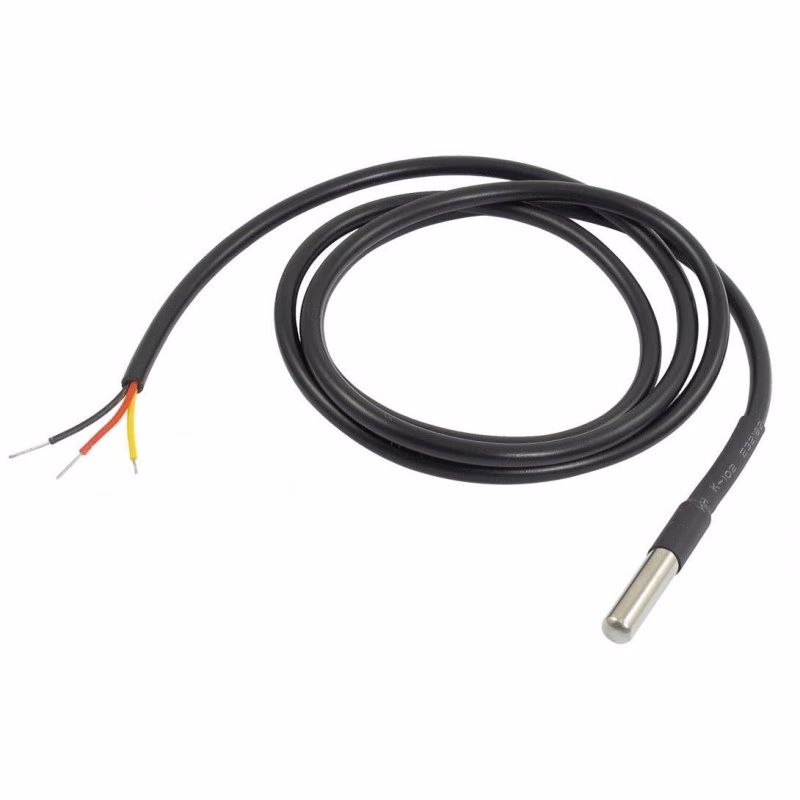

Cable Length & Jacket	1 Meter (100 cm), PVC Insulated Flexible Black Cable
Wiring Pinout	Red: VCC (3.0V–5.5V) | Black: GND | Yellow/White: DATA

---

Key Features & Highlights

• Genuine Original Chipset: Guarantees precise 1-Wire timing compliance, accurate factory calibration, and long-term reliability without bus crashes.

• Waterproof Stainless Steel Sheath: Rust-proof, moisture-proof, and anti-corrosive encapsulation suitable for submersion in water tanks, soil, or oil baths.

• Multi-Drop 1-Wire Bus Capability: Unique 64-bit ROM code burned into each chip allows dozens of sensors to be daisy-chained onto a single microcontroller GPIO pin.

• No External A/D Converter Needed: Directly outputs 9-to-12-bit digital data, eliminating analog signal noise and voltage drop issues over long cable distances.

Common Applications

• Aquarium, aquaculture, and hydroponic liquid temperature monitoring.

• Smart home automation, HVAC duct monitoring, and boiler control.

• Outdoor weather stations, agriculture soil testing, and compost temperature logging.

• Industrial process monitoring and cold-chain refrigeration systems.

What’s Included in the Box

• 1 × DS18B20 Waterproof Temperature Sensor Probe – Black Cable (1 Meter, Original Chip)

---
