Description

ESP32-WROOM-32 38Pin Development Board WiFi+Bluetooth Ultra-Low Power Consumption Dual Core Development Board 2.4GHz Dual-Mode WiFi + Bluetooth Dual Cores Microcontroller. The ESP32 is integrated with Antenna switches, RF Balun, power amplifiers, low-noise amplifiers, filters, and management modules, and the entire solution occupies the least area of PCB. 2.4 GHz Wi-Fi plus Bluetooth dual-mode chip, with TSMC Ultra-low power consumption 40nm technology, power dissipation performance, and RF performance is the best, safe and reliable, easy to extend to a variety of applications.

---

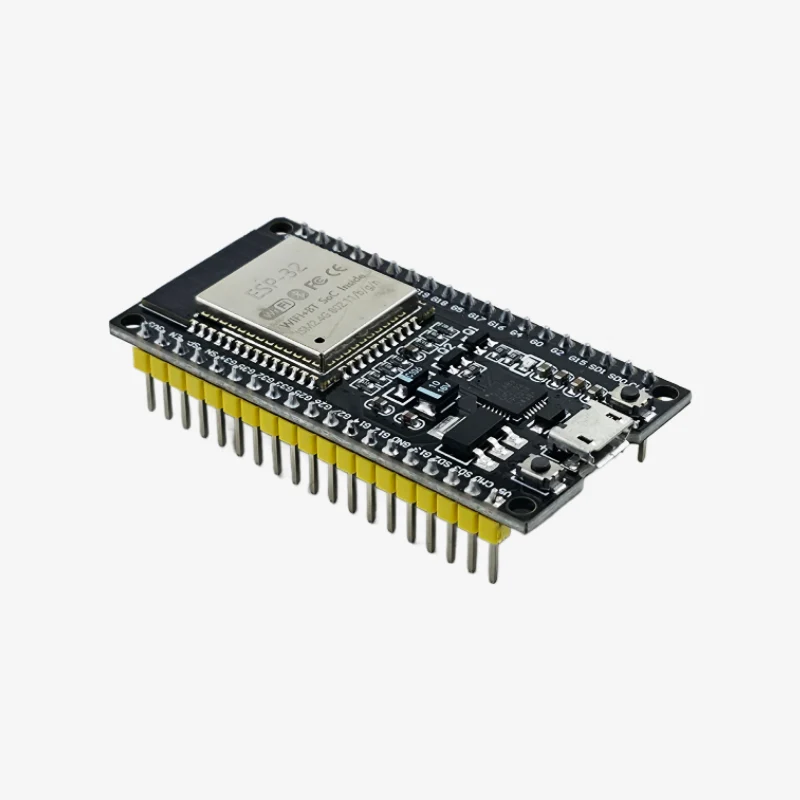

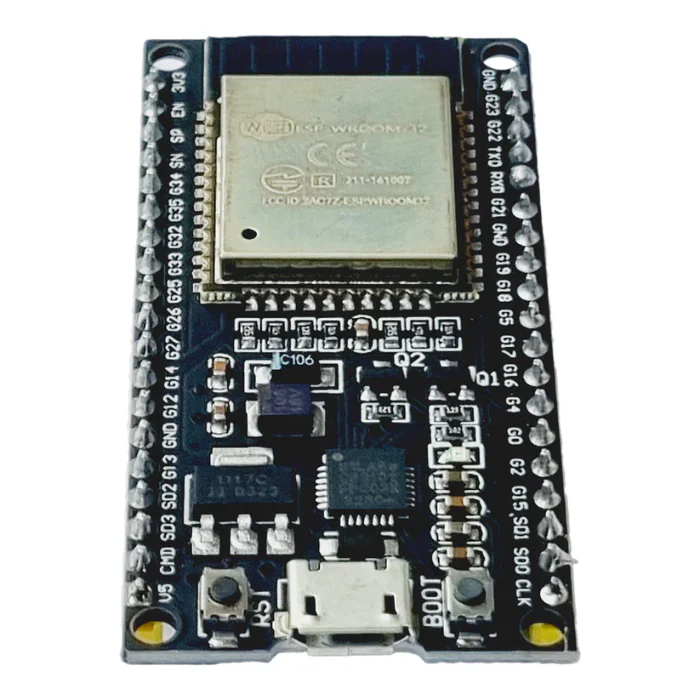

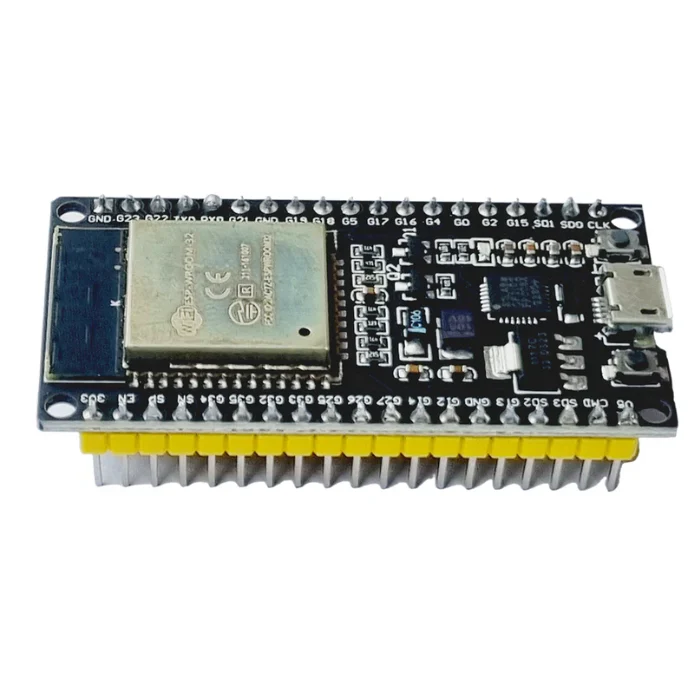

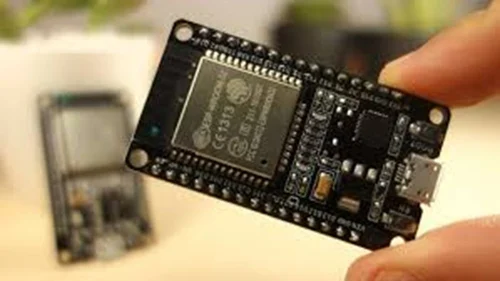

The ESP32-WROOM-32 38-Pin Development Board (NodeMCU-32S layout) is a high-performance, cost-effective development system designed for modern wireless and embedded systems. Powered by the official ESP32-D0WDQ6 / ESP32-D0WD-V3 system-on-chip, it delivers up to 600 DMIPS of processing horsepower alongside hardware-level security, low power management, and extensive peripheral expansion.

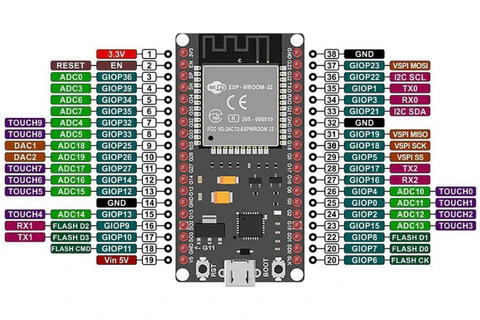

Featuring an onboard USB-to-Serial converter (CP2102 / CH340) and Micro-USB/Type-C interface, the board allows seamless plug-and-play code uploading directly from the Arduino IDE, ESP-IDF, MicroPython, or PlatformIO. The 38-pin expansion format breaks out every usable GPIO pin, offering dedicated channels for capacitive touch, 12-bit ADC inputs, DAC outputs, I2C, SPI, PWM, and hardware UARTs.

---

Technical Specifications

Parameter	Technical Detail
Microcontroller Chip	Espressif ESP32-D0WDQ6 / ESP32-D0WD-V3
Processor Speed	Tensilica Xtensa 32-bit LX6 Dual-Core @ up to 240 MHz
Wireless Connectivity	2.4 GHz Wi-Fi (802.11 b/g/n up to 150Mbps) + Bluetooth v4.2 & BLE
Internal Memory	520 KB SRAM + 448 KB ROM
External Memory	4 MB (32 Mbit) Quad SPI Flash
Operating Voltage	3.3V System Logic Level
Power Input Range	5V DC via USB Port or 5V to 12V DC via VIN Header Pin

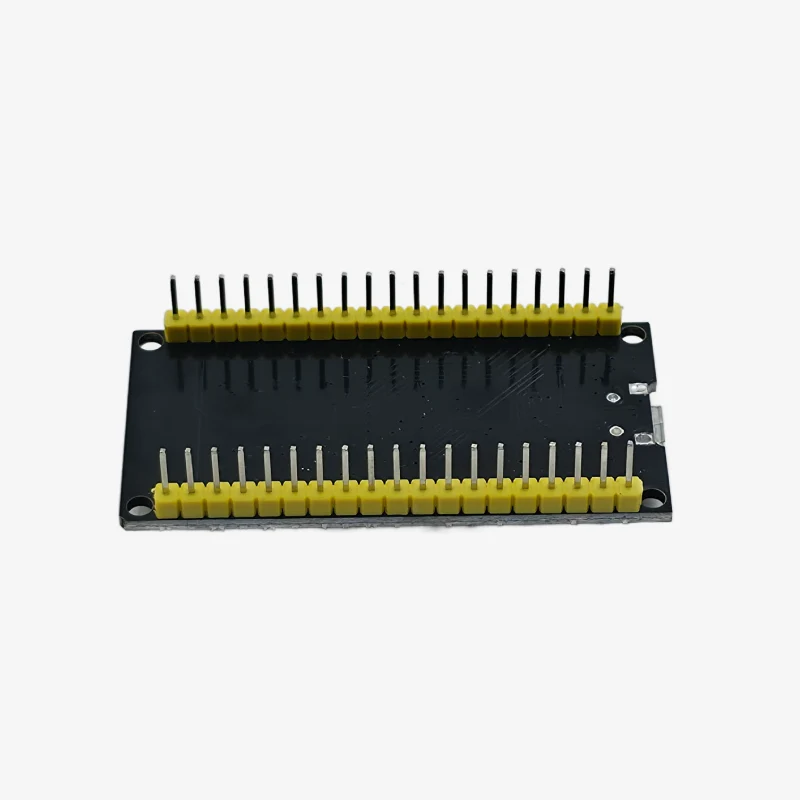

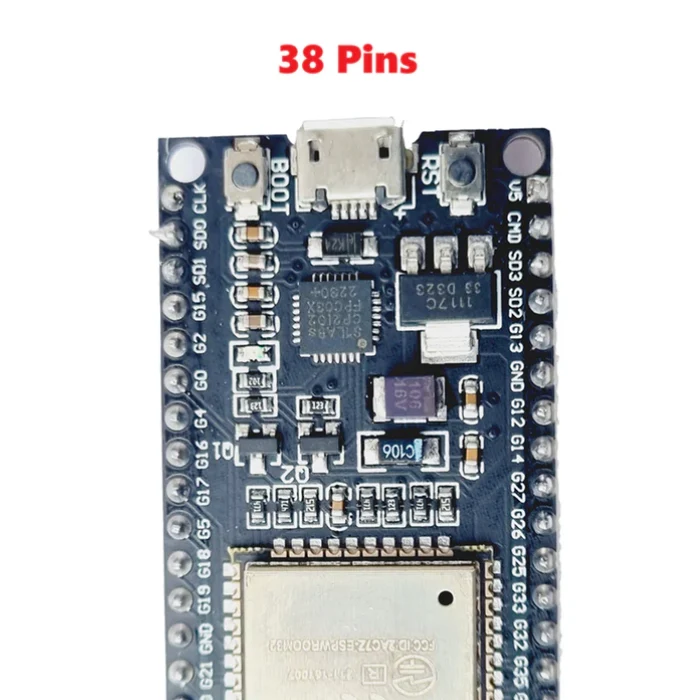

Pin Header Format	38-Pin Dual-In-Line Header Pitch (2.54 mm / 0.1″)
Peripherals	12-bit ADC (18 channels), 8-bit DAC (2 channels), 10× Touch Sensors, 3× UART, 3× SPI, 2× I2C, PWM
Ultra-Low Power Current	Deep Sleep Mode drawing as low as 5 µA

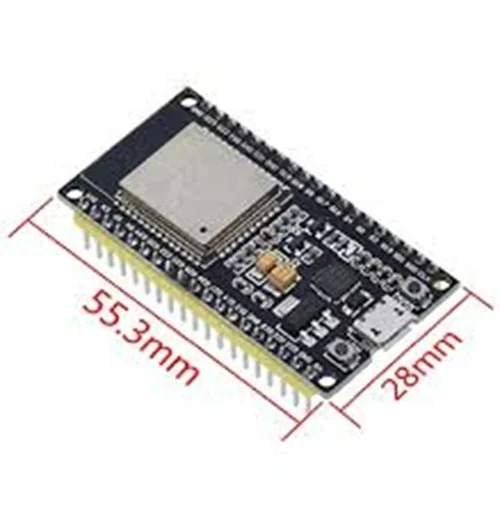

Board Dimensions	~55 mm × 28 mm

---

Key Features & Highlights

• High-Performance Dual-Core Architecture: Dedicated co-processors allow one core to handle wireless stack communication while the second core runs application logic without performance throttling.

• Dual Wireless Connectivity: Combines high-bandwidth 2.4 GHz Wi-Fi for local network connectivity with low-power Bluetooth 4.2 BLE for direct smartphone configuration.

• Integrated Hardware USB Converter: Features onboard automatic boot/reset circuitry for effortless firmware uploading without manual jumper manipulation.

• Ultra-Low Power Modes: Multiple power modes including Deep Sleep (~5 µA) make it ideal for solar-powered outdoor sensors and battery-operated IoT nodes.

• Rich Peripheral Multiplexing: Supports capacitive touch sensing, precise analog readings, motor PWM outputs, and hardware cryptographic acceleration (AES, SHA-2, RSA).

Common Applications

• Smart home automation hubs, wireless light switches, and climate controllers.

• Industrial IoT gateways, remote data logging nodes, and weather stations.

• Wi-Fi camera triggers, local web servers, and Bluetooth proximity tags.

• STEM robotics, automated agricultural monitoring, and wireless mesh networks.

What’s Included in the Box

• 1 × ESP32-WROOM-32 38-Pin Development Board (Pre-soldered Male Pin Headers)

---

Why Buy From Aryabot?

• 100% Genuine Hardware: Sourced directly through verified distribution partners to guarantee original Espressif silicon and reliable flash storage.

• Tested & Benchmarked: Quality-checked for USB serial enumeration, Wi-Fi RF power output, and GPIO continuity before dispatch.

• GST Invoice Provided: Tax-compliant B2B invoices generated for commercial deployments, institutional research labs, and academic orders.

• Pan-India Express Dispatch: Fast order processing and direct shipping from our Noida fulfillment warehouse.
