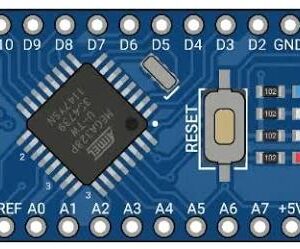

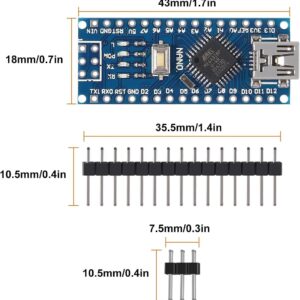

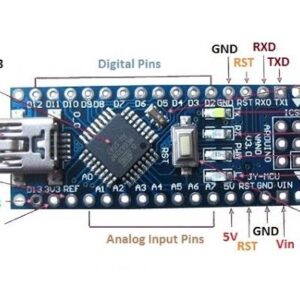

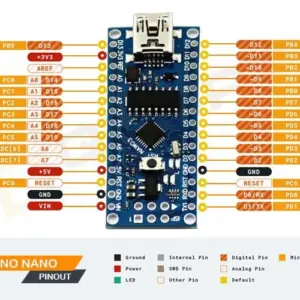

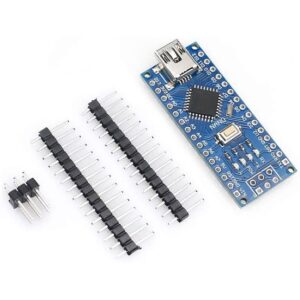

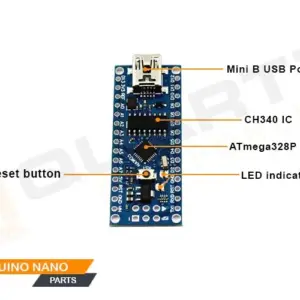

Operating Voltage (logic level): 5V 8 analog inputs ports: A0 ~ A7 Input Port: USB MINI Using Atmel Atmega328P-AU MCU Standard 0.1” spacing DIP (breadboard friendly).
Fully compatible with the PC. Moulded strain relief and PVC over moulding to ensure a lifetime of error-free data transmissions. Aluminum under mould shield helps meet FCC requirements on KMI/RFI interference. Foil and braid shield complies with fully rated cable specifications reducing EMI/FRI interference.
Full-speed USB support using Windows standard drivers Real-time execution Processors run at maximum speeds Built-in over-voltage/short circuit monitor Low voltage to 5V (1.8 to the 5V range) Read/write program and data memory of the microcontroller Program up to 512K byte flash.
2 connections for 5V ?hobby? servos connected to the Arduino?s high-resolution dedicated timer 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 25VDC. Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution) Up to 2 stepper motors (unipolar or…
Chip built-in 128KB Flash, 32KB SRAM 4 x general purpose 16-bit timer, 2 x basic 16-bit timer, 1 x advanced 16-bit timer Watchdog, RTC, Systick 3 x USART, 2 x I2C, 3 x SPI, 2 x I2S, 2 x CAN, 1 x USBFS (OTG) 2 x ADC (10 channel), 2 x DAC
32 bit ARM Cortex-M4 72 MHz CPU (M4 = DSP extensions) 256K Flash Memory, 64K RAM, 2K EEPROM 21 High-Resolution Analog Inputs (13 bits usable, 16-bit hardware) 1x 12 bit DAC Analog output 34 Digital I/O Pins (16 shared with analog) 12 PWM outputs 7 Timers for intervals/delays, separate from PWM USB with dedicated DMA memory transfers 3 UARTs (serial…
Description: The Arduino UNO R4 WiFi combines the processing power and exciting new peripherals of the RA4M1 microcontroller from Renesas with the wireless connectivity power of the ESP32-S3 from Espressif. On top of this, the UNO R4 WiFi offers an on-board 12x8 LED matrix, Qwiic connector, HID support, VRTC, and OFF pin, covering all potential needs makers will have for…
32 I/O pin all the leads. Classic ATmega16 minimum system, eliminating the hassle of soldering. Support chips: ATmega16/ATmega32 and chip which pin-compatible. Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply) DC-005 Power Block (supporting the transposon is 5.5*2.1mm). Reset: Power-on-reset and reset button. Power LED (D1) and the program run indicator…
