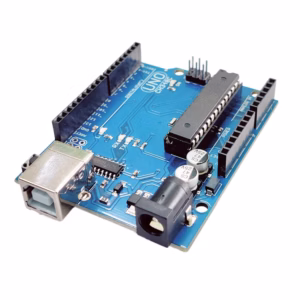

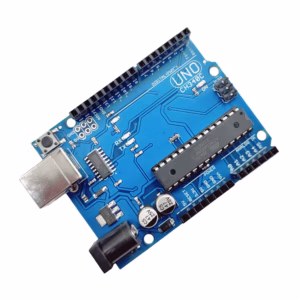

Uno R3 CH340G ATmega328p Development Board Compatible with Arduino uno
₹211
- Microcontroller ATmega328 (SMD) – Interface CH340G
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 5-20V
- Digital I / O Pins 14 (of which 6 provide PWM output)
- Analog Input Pins: 6
In stock
Description

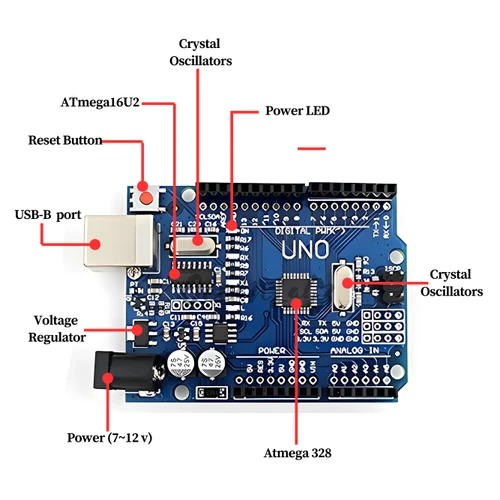

The UNO R3 CH340G Development Board is a budget-friendly, high-performance variant of the classic UNO R3 board layout. Built around the surface-mount (SMD) ATmega328P microcontroller, this board replaces the expensive USB interface IC with the widely supported CH340G USB-to-Serial chip. This modification delivers identical computational performance and full compatibility with the official Arduino IDE, PlatformIO, and Scratch at a fraction of the cost.
Operating on 5V DC logic, the board can be powered via a USB Type-B port or an external 7V–12V DC power supply plugged into the onboard 2.1mm barrel jack. A distinct feature of this CH340G SMD variant is the inclusion of extra solder pads next to each digital, analog, power, and I2C header row, allowing maker enthusiasts to solder wires directly or add male/female headers for custom sensor wiring.
Technical Specifications
| Parameter | Technical Detail |
| Microcontroller Core | ATmega328P-AU (Surface Mount / SMD Package) |
| USB-to-Serial IC | CH340G USB Bridge |
| Operating Logic Voltage | 5V DC |
| Recommended Input Voltage (DC Jack/Vin) | 7V to 12V DC |
| Input Voltage Range (Limits) | 6V to 20V DC |

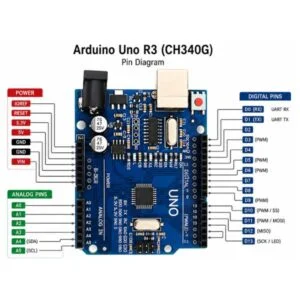

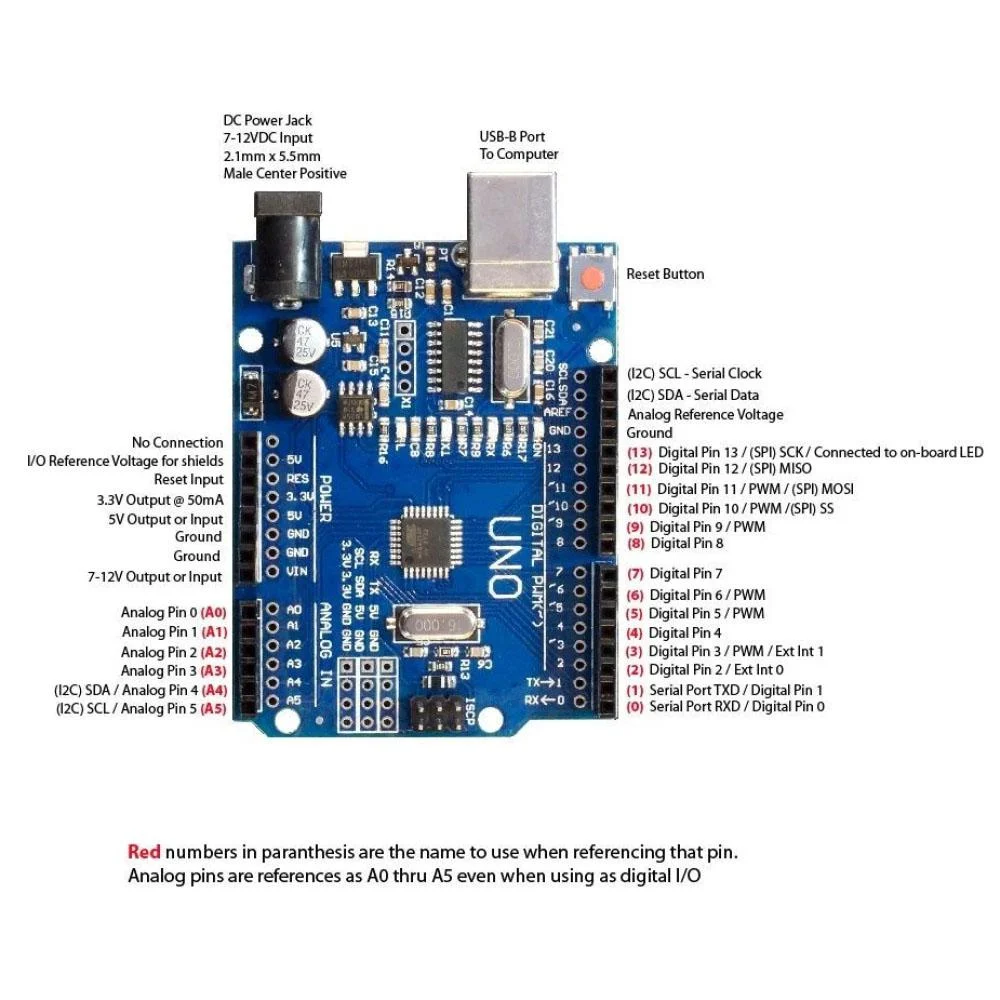

| Digital I/O Pins | 14 Pins (of which 6 provide hardware PWM output) |
| Analog Input Channels | 6 Channels (10-bit ADC, A0 to A5) + Extra A6/A7 Pads |
| DC Current per I/O Pin | 20 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 32 KB (ATmega328P, with 0.5 KB used by bootloader) |
| SRAM / EEPROM | 2 KB SRAM / 1 KB EEPROM |
| Clock Frequency | 16 MHz Crystal Oscillator |
| Connector Types | USB Type-B Female & 2.1mm Center-Positive DC Barrel Jack |

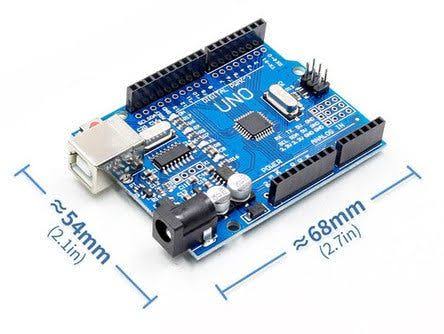

| Board Dimensions | ~68.6 mm × 53.4 mm |
Key Features & Highlights
-
Cost-Effective CH340G Design: Delivers full Arduino UNO functionality while drastically reducing hardware costs for large classroom and bulk deployment projects.
-
Bonus Auxiliary Pin Pads: Features pre-drilled through-hole pads parallel to all standard female headers for quick custom wiring or secondary header pin installation.
-
Additional Analog Channels: Breaks out extra analog channels (A6 and A7) directly on the PCB surface for expanded multi-sensor projects.
-
100% Shield Compatible: Standard R3 pin spacing ensures full mechanical and electrical alignment with all standard UNO motor driver shields, relay boards, and sensor shields.
-
Onboard Power Regulation: Features high-grade 5V and 3.3V linear regulators to stabilize external DC power inputs.
Common Applications
-
School STEM education, university robotics laboratories, and DIY electronics workshops.
-
Motor control, obstacle-avoiding mobile robots, and robotic arm automation.
-
Environmental monitoring stations (temperature, humidity, air quality loggers).
-
Home automation systems, automated lighting controllers, and security systems.
What’s Included in the Box
-
1 × UNO R3 Development Board (CH340G ATmega328P Version)
-
1 × Straight Male Pin Header Strip (15-pin row)
Why Buy From Aryabot?
-
100% Quality Hardware: Built on high-grade FR-4 glass-fiber PCBs with clean solder masks and gold-plated pin sockets.
-
Tested & Benchmarked: Pre-tested for CH340G driver enumeration, bootloader serial execution, and power rail outputs before dispatch.
-
GST Invoice Provided: Tax-compliant B2B invoices generated for commercial projects, educational institutions, and research labs.
-
Pan-India Express Dispatch: Fast processing and direct delivery from our Noida fulfillment warehouse.

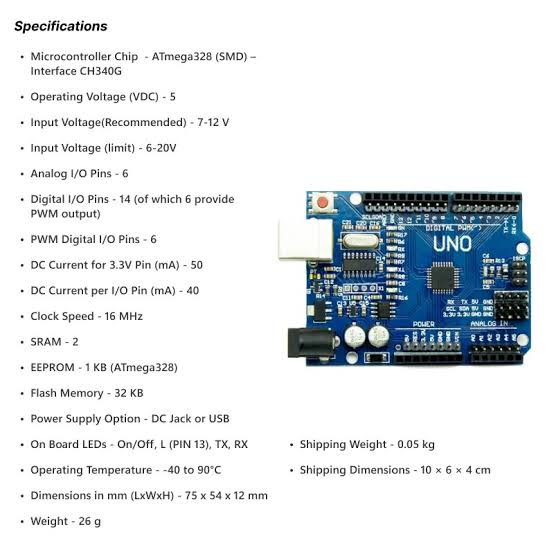

Additional information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 6 × 4 cm |
| Model type | Arduino Uno R3 |
| Microcontroller Chip | ATmega328 (SMD) – Interface CH340G |
| Operating Voltage (VDC) | 5 |
| Input Voltage(Recommended) | 7-12V |
| Input Voltage (limit) | 6-20V |
| Analog I/O Pins | 6 |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins | 6 |
| DC Current for 3.3V Pin (mA) | 50 |
| DC Current per I/O Pin (mA) | 40 |
| Clock Speed | 16 MHz |
| SRAM | 2 |
| EEPROM | 1 KB (ATmega328) |
| Flash Memory | 32 KB |
| Power Supply Option | DC Jack or USB |
| On Board LEDs | On/Off, L (PIN 13), TX, RX |
| Operating Temperature (°C): | -40 to 90 |
