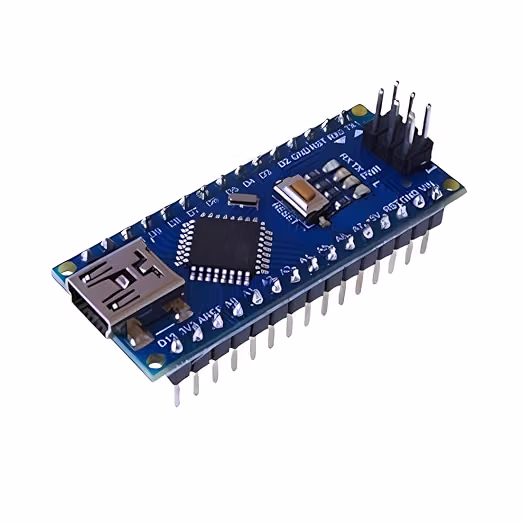

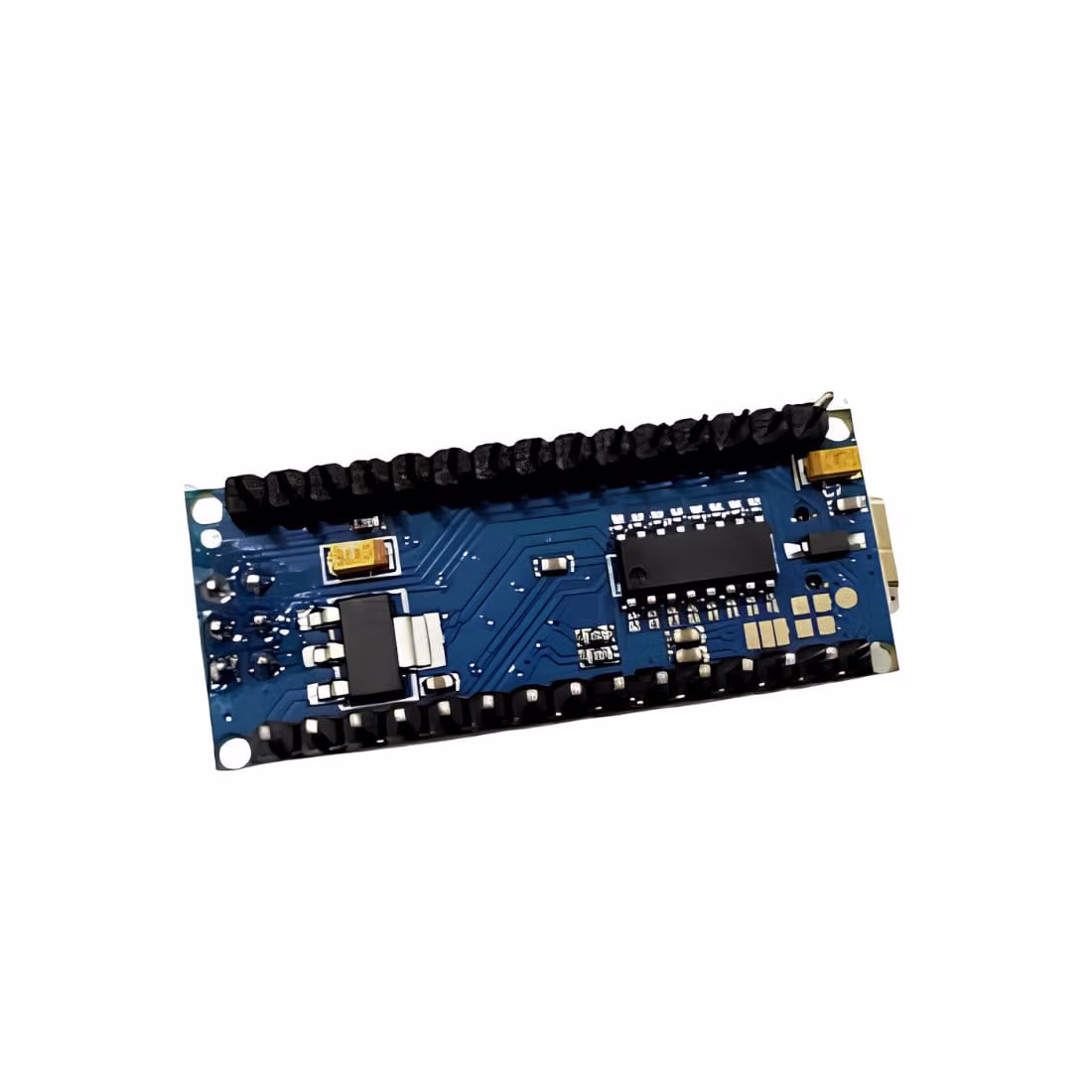

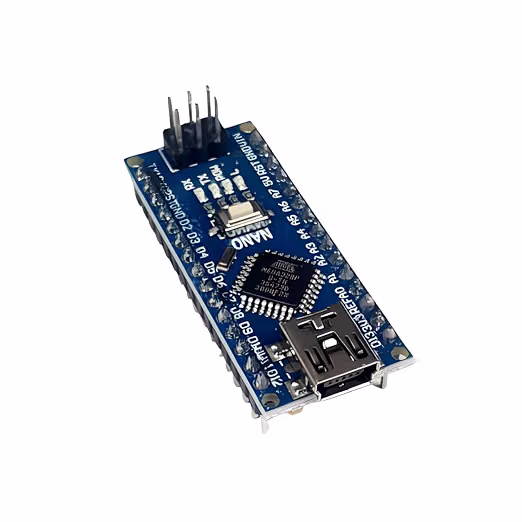

NANO V3.0 ATmega328P Development Board (Soldered)
₹269
- Operating Voltage (logic level): 5V
- 8 analog inputs ports: A0 ~ A7
- Input Port: USB MINI
- Using Atmel Atmega328P-AU MCU
- Standard 0.1” spacing DIP (breadboard friendly).
In stock
Description
The NANO V3.0 Development Board is a small, complete, and breadboard-friendly microcontroller board based on the ATmega328P 8-bit AVR processor. Designed for space-sensitive embedded projects, it provides nearly the exact same functional capability and peripheral count as the larger UNO R3 board, but in a significantly smaller form factor (~45mm × 18mm).

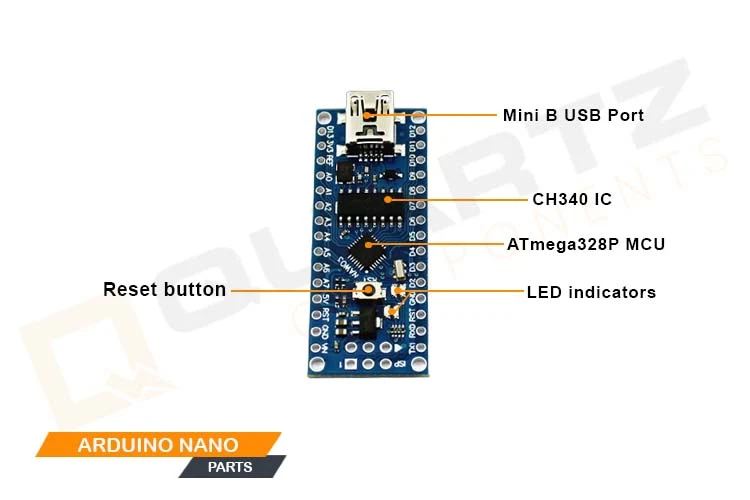

Equipped with the cost-effective CH340G USB-to-Serial bridge, the board interfaces easily with modern operating systems for smooth code uploading via the Arduino IDE, PlatformIO, or MicroPython. It exposes 8 analog input pins (A0 to A7)—providing two extra analog pins compared to the standard UNO R3—and features dual row male headers (2.54mm pitch) that plug directly into standard solderless breadboards or custom DIP sockets.
Technical Specifications
| Parameter | Technical Detail |
| Microcontroller IC | ATmega328P (8-bit AVR @ 16 MHz) |
| USB-to-Serial IC | CH340G USB Bridge |
| Operating Logic Voltage | 5V DC |
| Input Voltage Range (VIN Pin / DC Power) | 7V to 12V DC |

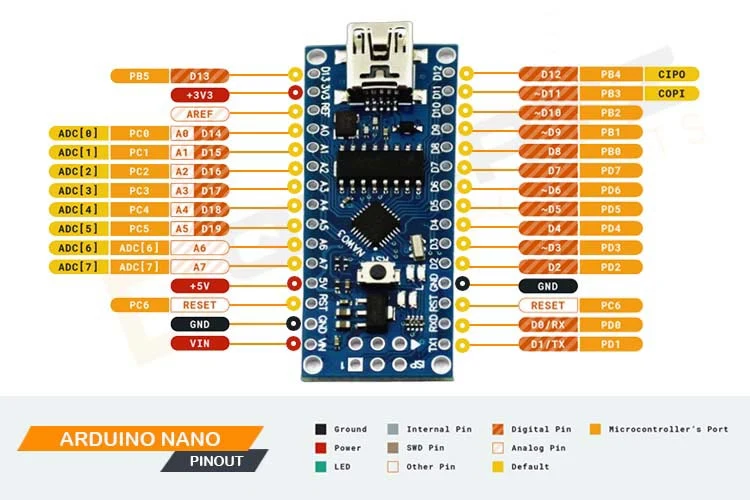

| Digital I/O Pins | 14 Pins (of which 6 provide hardware PWM output) |
| Analog Input Channels | 8 Channels (10-bit ADC, A0 through A7) |
| DC Current per I/O Pin | 40 mA |
| Flash Memory | 32 KB (ATmega328P, with 2 KB used by bootloader) |
| SRAM / EEPROM | 2 KB SRAM / 1 KB EEPROM |
| Clock Frequency | 16 MHz Crystal Oscillator |
| USB Connector Options | USB Mini-B or USB Type-C |
| Board Dimensions | ~45 mm × 18 mm |
Key Features & Highlights
-
Ultra-Compact Breadboard-Friendly Layout: Dual-in-line header spacing (2.54mm pitch) drops straight into standard breadboards with open pin rows on either side.
-
Expanded Analog Channels: Offers 8 analog input pins (A0–A7), giving you two additional analog channels compared to standard UNO R3 boards.
-
Onboard Power Management: Built-in voltage regulator safely handles 7V–12V power input via the
VINpin while outputting clean 5V logic. -
CH340G Economy USB Bridge: Highly reliable USB-to-Serial conversion compatible with Windows, macOS, and Linux.
-

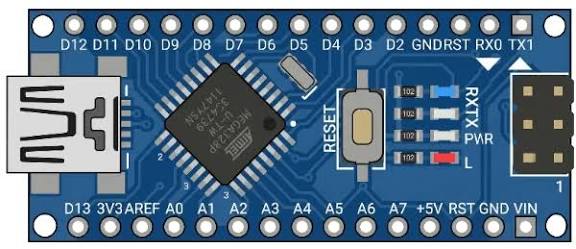

Integrated Hardware Protection: Includes auto-reset circuitry and power status, serial TX/RX, and pin 13 user LEDs.
Common Applications
-
Wearable technology, custom gaming controllers, and smart fitness bands.
-
Compact drone telemetry units, quadcopter flight logs, and RC model control.
-
Small-scale robotics, line-following cars, and micro-servo drivers.
-
Educational STEM kits, breadboard prototyping, and embedded sensor nodes.
What’s Included in the Box
-
1 × NANO V3.0 Development Board (ATmega328P CH340G Version)
-
2 × 15-pin Male Header Strips
-
1 × 6-pin ICSP Male Header Strip
Why Buy From Aryabot?
-
100% Quality Hardware: Built on high-grade glass-fiber FR-4 PCBs with clean solder masks and gold-plated trace contacts.
-
Tested & Benchmarked: Quality-checked for CH340G USB enumeration, bootloader sketch flashing, and power rail voltage outputs prior to dispatch.
-
GST Invoice Provided: Tax-compliant B2B invoices generated for educational institutions, corporate research labs, and academic orders.
-
Pan-India Express Dispatch: Fast order processing and reliable direct delivery from our Noida fulfillment warehouse.
* Product Images are shown for illustrative purposes only and may differ from actual product.
Additional information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 6 × 5 × 3 cm |
