Description

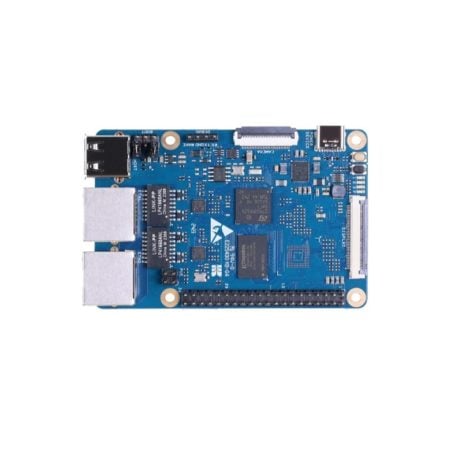

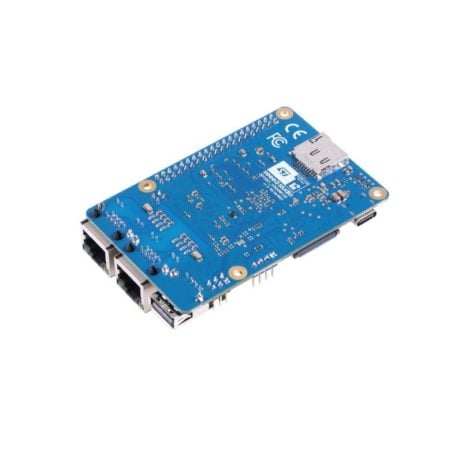

This compact STM32 single-board computer is an impressive piece of technology that packs a powerful punch. It features a 32-bit Arm Cortex-A7 STM32 MPU that is housed in an 8.5cm x 5.6cm board, making it a convenient and space-saving option for users. Additionally, it supports Yocto and Buildroot operating systems, offering flexibility to users who require different software options.
This board is designed for industrial control applications which can provide line redundancy by allowing for a backup input on two network ports, each connected to a different network operator. This ensures data stability and security in the event of a network failure or outage.
Application

Networked Monitoring Device
Home Security System
Portable Media Player
Smart Vending Machine

Features:

Compact STM32 Single Board Computer: Equip a powerful 32-bit Arm Cortex-A7 STM32 MPU in an 8.5cm x 5.6cm board, supporting Yocto and Buildroot Operating System
Versatile Connectivity:?Offer two 10/100M Ethernet ports, ETH0 supports WoL function, 1x USB Type-A, 1x CSI 30p FPC Connector, 1x LCD 40p FPC Connector, and 40-pin GPIO for fast data transfer
Expandable Storage:?Provide Kingston 4Gb DRAM and an additional TF card holder for up to 32GB
Flexible Power Supply:?Support PoE through Ethernet and power supply through Type-C
Line redundancy in the field of industrial field control:?Offer 2 network ports input backup, 2 lines connected to different operators, ensure data stability and security
Processor: 32-bit Arm Cortex-A7 STM32 MPU
Operating System: Yocto, Buildroot
Connectivity: 2x 10/100M Ethernet ports, ETH0 supports WoL function,

1x USB Type-A,
1x CSI 30p FPC Connector,
1x LCD 40p FPC Connector,
40-pin RPI-compatible GPIO

Storage: Kingston: 4Gb DRAM, additional TF card holder for up to 32GB.
Power Supply: PoE through Ethernet, power supply through Type-C

?

?

Package Includes:
1 x ODYSSEY ?? STM32MP135D, Cortex-A7 STM32, Yocto/Buildroot OS, Ethernet ports with WoL, USB Type-A, CSI, LCD, 4Gb DRAM, TF card holder, PoE
