Official Raspberry Pi 500+ PC 16GB RAM 256GB SSD (SC1237)
₹24,998
- Powered by Raspberry Pi 5 performance for faster processing and smooth multitasking.
- Built-in mechanical RGB keyboard (US layout) for an enhanced typing experience.
- 16GB LPDDR4X RAM for high-speed performance and heavy multitasking.
- 256GB SSD preloaded with Raspberry Pi OS for instant setup and ample storage.

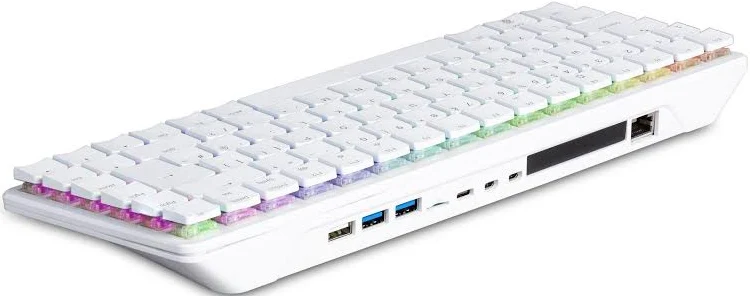

- Dual USB 3.0 ports and HDMI connectivity for seamless peripherals and display support.
- Compact, all-in-one premium desktop PC for coding, learning, media, and productivity.
Out of stock
Description
T

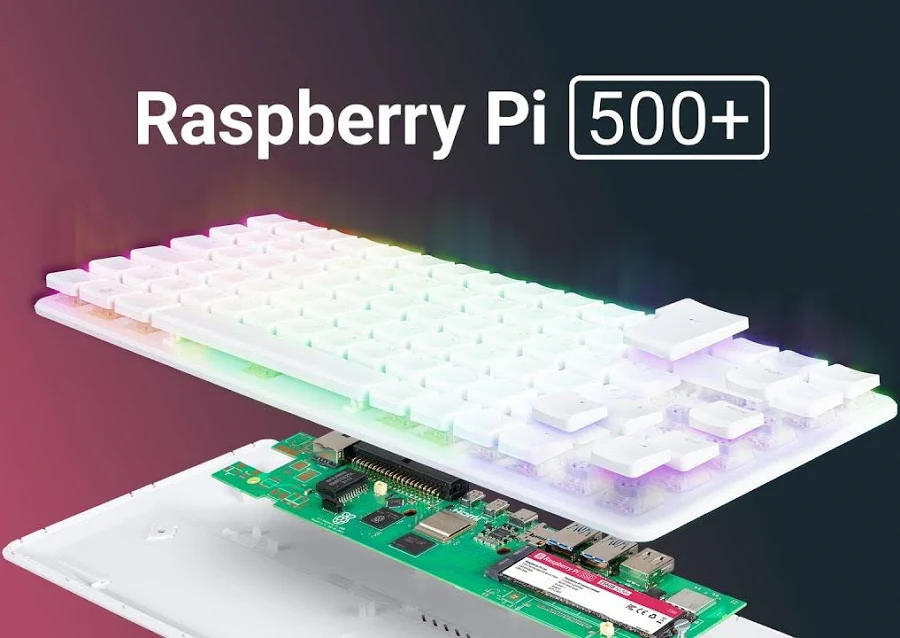

Reimagine compact computing with the flagship Official Raspberry Pi 500+ (SC1237 – US Layout). Blending high-performance single-board architecture with custom peripheral design, the Pi 500+ integrates a complete computer directly inside a premium low-profile mechanical keyboard chassis.
Powered by the Broadcom BCM2712 quad-core ARM Cortex-A76 processor @ 2.4GHz and the custom RP1 I/O controller, the Pi 500+ is built to handle heavy development workloads, media streaming, and multi-threaded desktop software. The internal custom aluminum one-piece heatsink ensures passive thermal dissipation to sustain peak speeds without throttling. Equipped with 16GB LPDDR4X RAM and an internal 256GB M.2 NVMe SSD, it provides near-instantaneous boot cycles, ultra-fast file transfers, and zero memory bottlenecks.

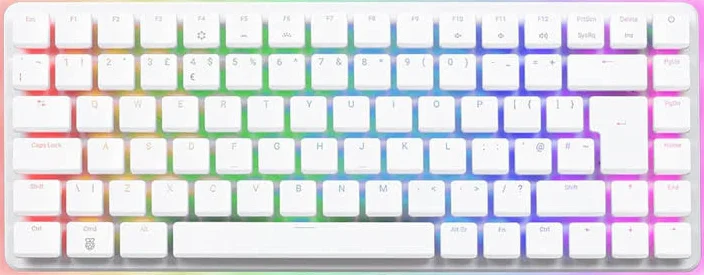

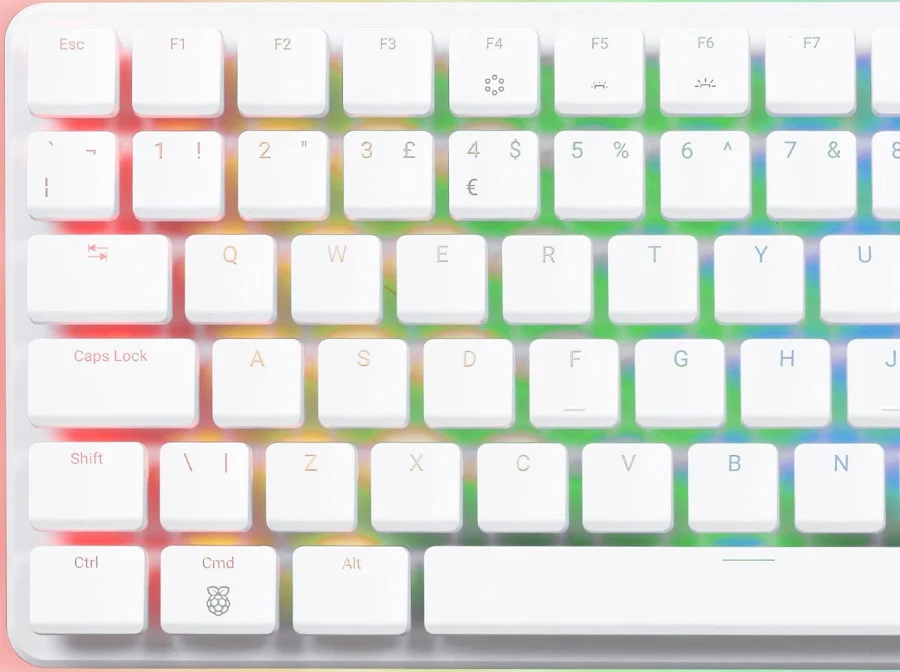

The integrated US-layout keyboard features tactile, clicky Gateron KS-33 Blue mechanical switches with interchangeable low-profile keycaps. Beneath the switches sit individually addressable RGB LEDs customizable with lighting presets or custom software patterns.
Technical Specifications
| Parameter | Specification |
| Model Code / Part Number | SC1237 (US Keyboard Layout – Unit Only) |
| Processor | 2.4GHz Quad-Core 64-bit ARM Cortex-A76 (Broadcom BCM2712) |
| I/O Controller | Raspberry Pi RP1 I/O Controller |
| System Memory (RAM) | 16GB LPDDR4X-4267 SDRAM |
| Internal Storage | Pre-installed 256GB Raspberry Pi NVMe M.2 SSD (Swappable up to 2280 form factor) |
| Keyboard Switches | Low-Profile Gateron KS-33 Blue Mechanical Switches (Clicky Actuation) |
| Keyboard Lighting | Per-Key Programmable RGB Backlighting with preset pattern cycling |
| Cooling Architecture | Built-in Heavy-Duty Aluminum One-Piece Heatsink |
| Wireless Connectivity | Dual-Band (2.4GHz / 5.0GHz) 802.11ac Wi-Fi & Bluetooth 5.0 / BLE |
| Ethernet Networking | 1 × Gigabit Ethernet RJ-45 Port |
| USB Ports | 2 × USB 3.0 (5Gbps simultaneous operation) + 1 × USB 2.0 Port |
| Video Output | 2 × Micro-HDMI Ports (Supports up to Dual 4K @ 60Hz displays) |
| GPIO Header | Horizontal 40-Pin GPIO Header accessible at rear panel |
| Power Input Requirements | 5V / 5A DC Power Input via USB-C (Supports Power Delivery) |

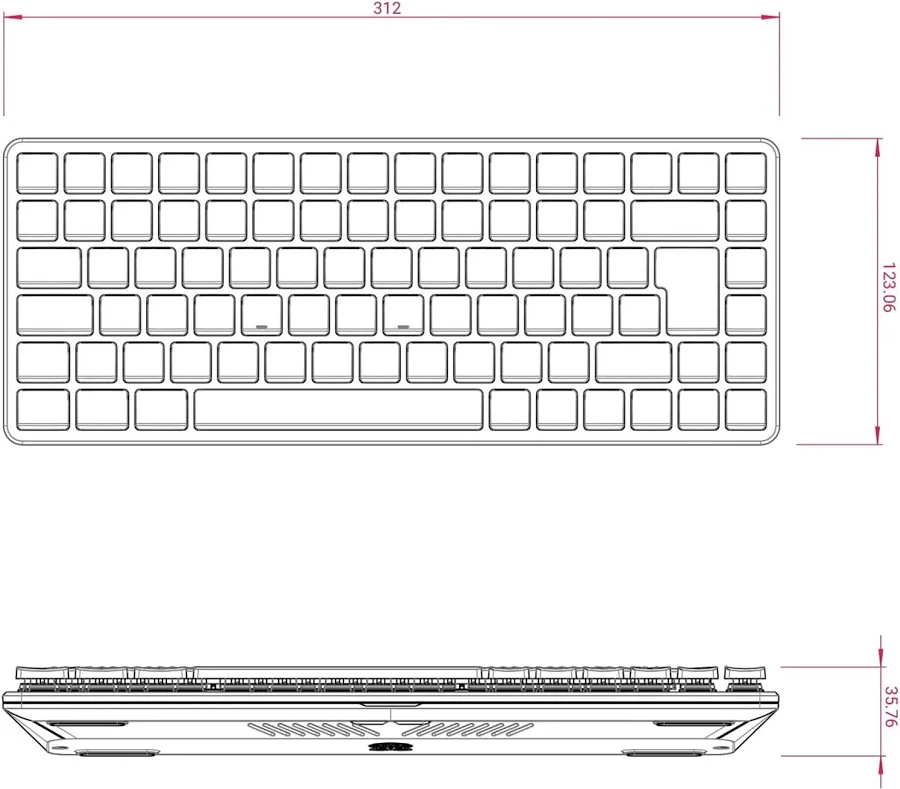

| Chassis Dimensions / Weight | ~337mm × 156mm × 42mm | Weight: ~623g |
Key Features & Highlights
-
Integrated Mechanical Typing Experience: Built using Gateron KS-33 Blue low-profile mechanical switches for tactile feedback during programming sessions.
-
Maximum Memory & Speed: Ships with 16GB RAM for heavy multitasking and a 256GB PCIe NVMe SSD for fast storage read/write performance.
-

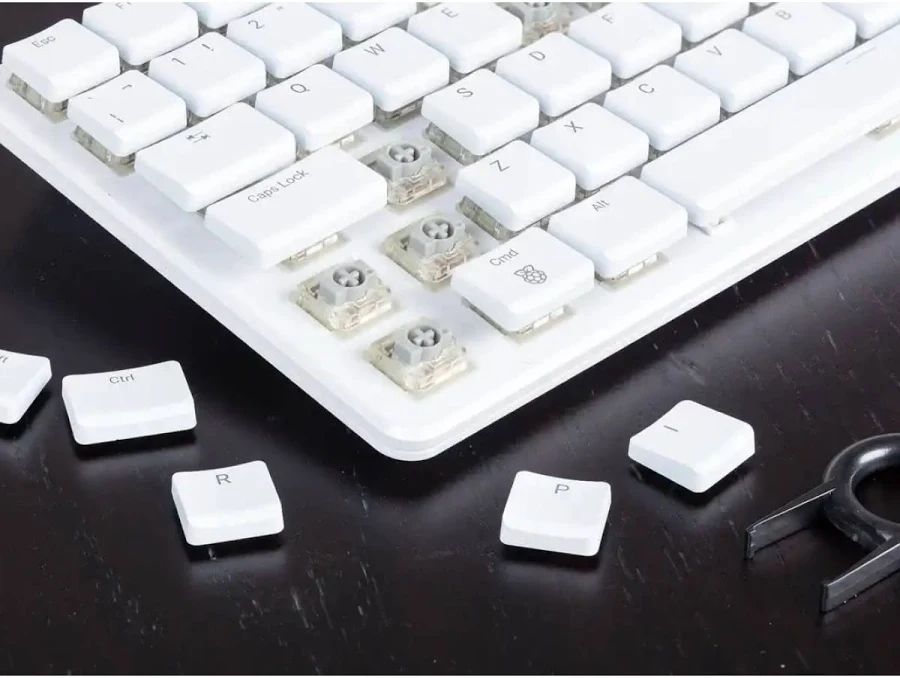

User-Swappable Storage & Keycaps: Includes tools to open the rear housing for M.2 NVMe SSD upgrades, as well as a keycap puller for custom keycap sets.
-

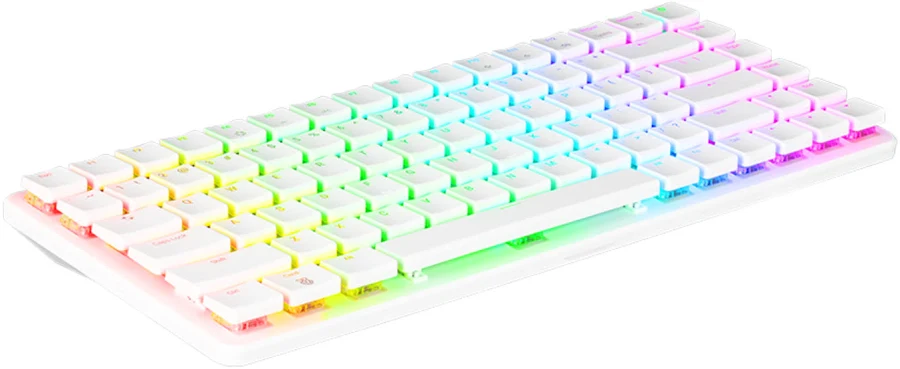

Customizable RGB Lighting: Individually addressable LEDs under each key switch add dynamic lighting effects to your workspace.
-
Dual 4K Monitor Support: Dual micro-HDMI display outputs drive multi-screen setups up to 4K resolution at 60Hz.
-
Standard 40-Pin GPIO Expansion: Rear-mounted horizontal GPIO header provides full compatibility with electronics sensors, HATs, and prototyping hardware.
What’s Included in the Box
-
1 × Official Raspberry Pi 500+ PC Unit (US Layout – SC1237)
-
1 × Keycap Puller Tool
-
1 × Enclosure Opening Tool (for internal SSD access)
Why Buy From Aryabot?
-
100% Original Hardware: Sourced directly through official Raspberry Pi distribution channels to guarantee authentic products.
-
Quality Assured: Bench-tested for key actuation, NVMe SSD mounting, and port functionality prior to dispatch.
-
GST Invoice Available: Full tax-compliant invoices provided for commercial deployments, R&D labs, and university procurement.
-
Pan-India Express Delivery: Fast order processing and dispatch directly from our Noida fulfillment warehouse.
Additional information
| Weight | 0.65 kg |
|---|---|
| Dimensions | 18 × 35 × 6 cm |
