Description

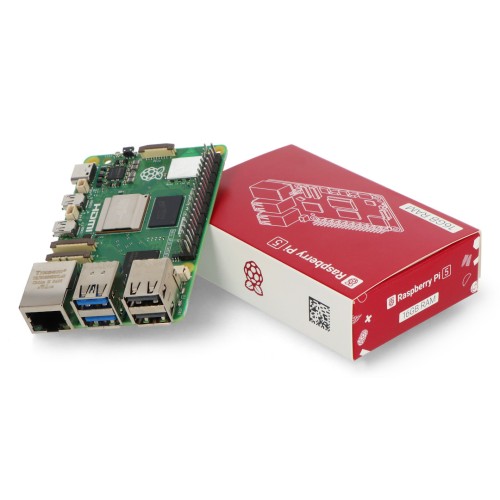

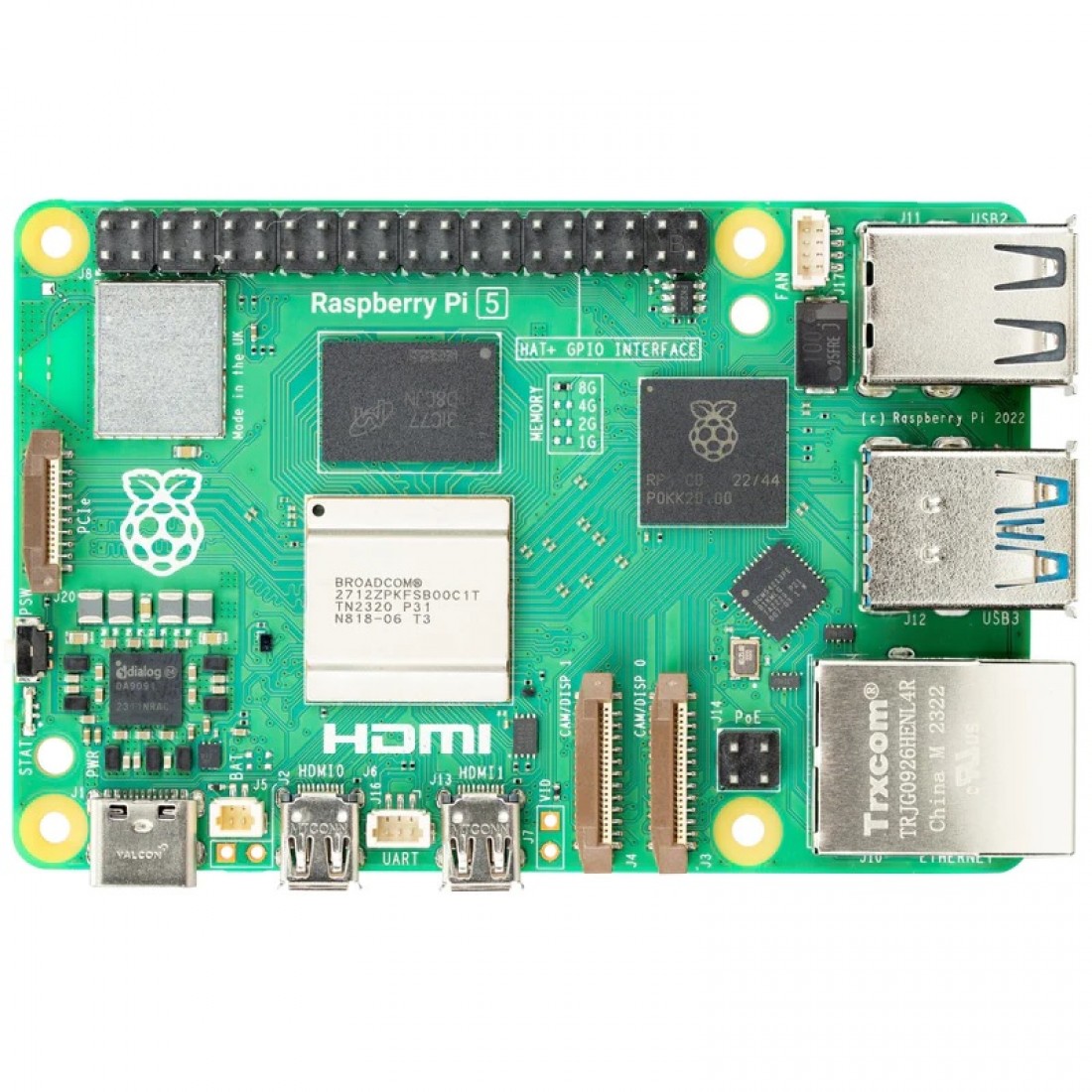

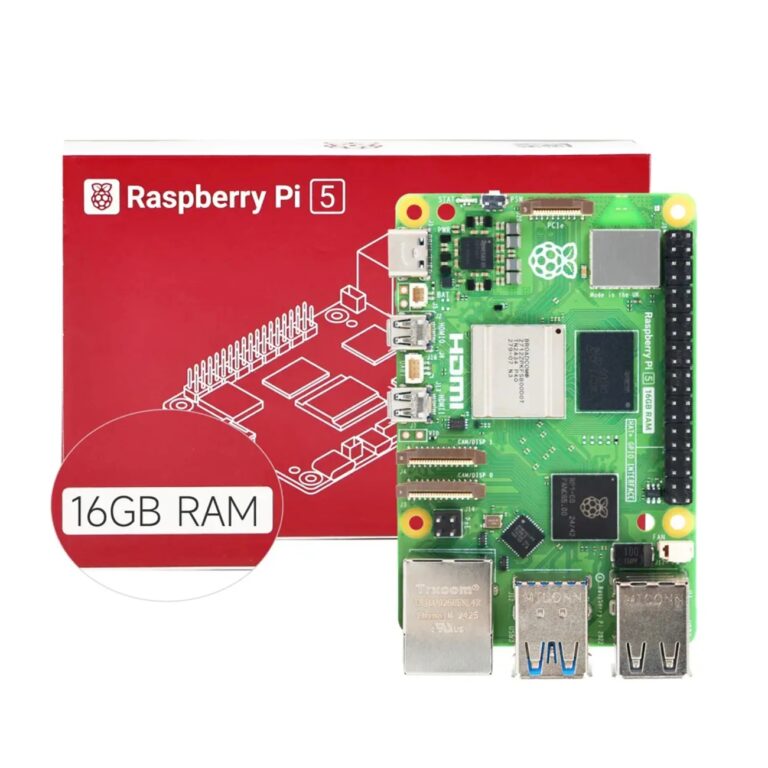

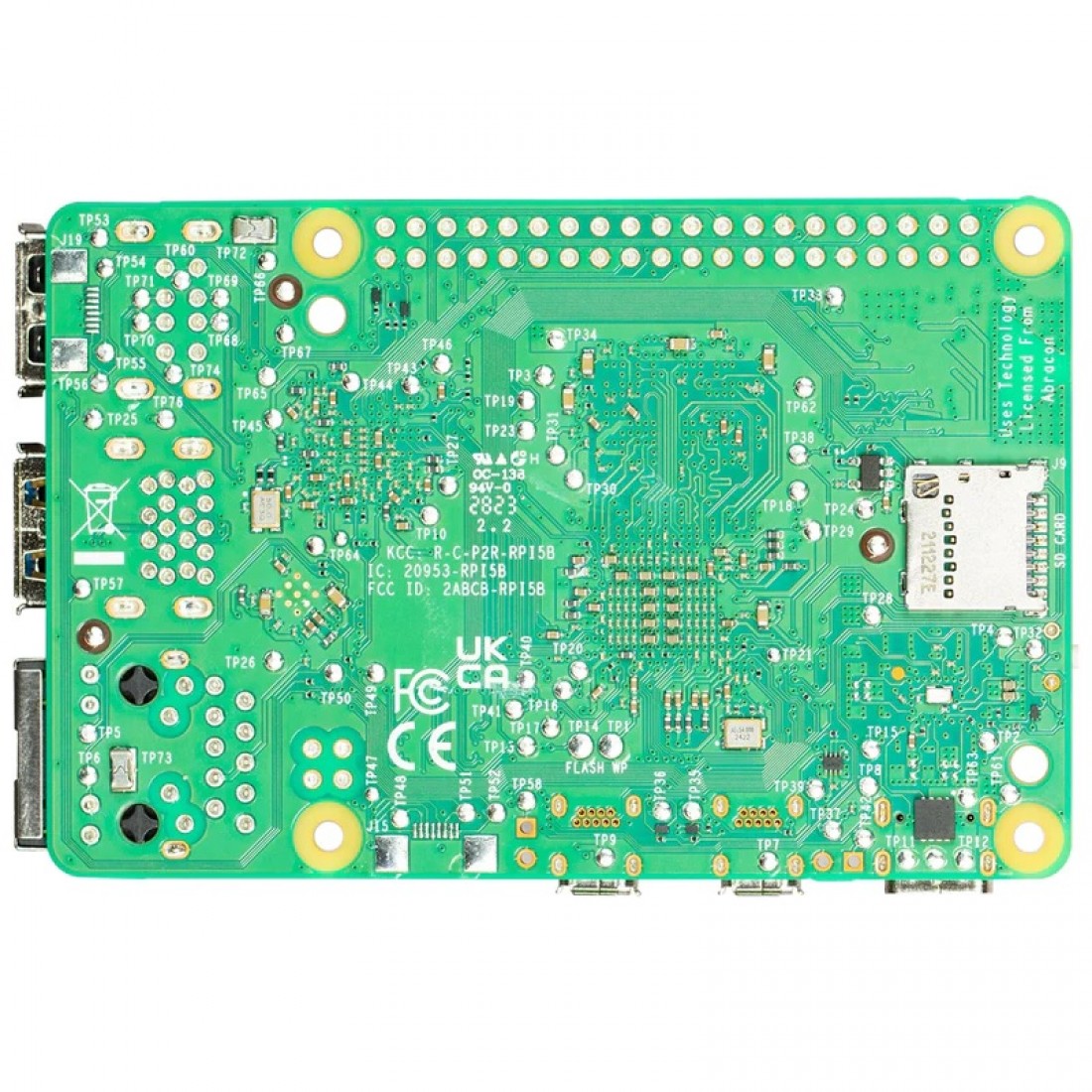

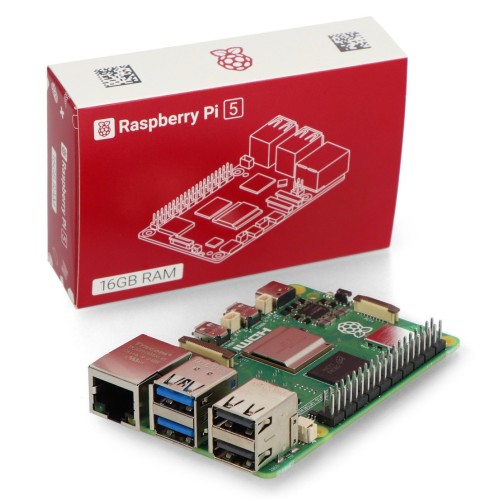

Raspberry Pi 5 16GB RAM – The Ultimate Single-Board Computer for Next-Gen Innovation

Take your electronics projects and computing power to a whole new level with the flagship Raspberry Pi 5 16gb. Featuring a massive 2 to 3x increase in CPU performance compared to previous generations, alongside a groundbreaking leap in graphics capability, this powerhouse is engineered specifically for engineers, developers, tech enthusiasts, and advanced STEM students.

Whether you are designing autonomous Robotics, deploying edge IoT solutions, or prototyping complex industrial systems, the Raspberry Pi 5 16gb variant provides the maximum memory headroom and processing speed required for seamless multitasking, heavy code compilation, and advanced computing.

Why choose the 16GB RAM variant? The Raspberry Pi 5 16gb ensures effortless handling of large language models (LLMs), machine learning datasets, multiple virtual machines, and completely fluid 4K dual-display desktop environments.

Features

• 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU 😎
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® output (HDR + HEVC decoder)
• LPDDR4X-4267 SDRAM (1GB, 2GB, 4GB, 8GB and 16GB options)
• Dual-band 802.11ac Wi-Fi® + Bluetooth 5.0 / BLE
• microSD card slot (high-speed SDR104 mode)
• PCIe 2.0 x1 interface for fast peripherals (requires adapter) 🤯
• 4 × USB ports (2 x 3.0 @ 5Gbps & 2 x 2.0)
• Gigabit Ethernet (PoE+ requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display ports 😲
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin GPIO header
• Real-time clock (RTC), powered from external battery

Oh, and did we mention it has a power button? That’s right, folks! For the first time ever, you can turn off your Raspberry Pi without having to dive under the desk and wrestle with your power strip. Welcome to the future, where convenience is literally at the push of a button!

Next level performance

Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz coupled with the up to 16GB LPDDR4 RAM, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU;

That’s performance that you’ll really notice when you’re on the desktop, playing games, compiling your kernel for the umpteenth time trying to get Sound Blaster support working with Pulse Audio or just crunching some numbers for the LLM that powers your your automated cat GIF scraping bot – meow! 🐱

Shift those bits!

Raspberry Pi 5 has a whole host of upgrades that make I/O really haul butt. The SD card implementation now supports high-speed SDR104 mode doubling peak throughput – we’re seeing 85+MB/s sequential read speeds in early tests!

The new RP1 “southbridge” chip (designed in-house at Raspberry Pi) supercharges the I/O capabilities delivering twice the USB bandwidth and two four-lane MIPI transceivers allowing higher resolution camera and display accessories.

And in a first for Pi we also have a user accessible single-lane PCIe 2.0 interface which can be used to interface all sorts of lovely hardware that previously your Raspberry Pi could only dream of talking to. Gosh.

4K display support, dual micro-HDMI

There are dual micro-HDMI ports that support up to 4Kp60, to use your Raspberry Pi 5 with much larger displays with crisp, sharp, high resolution. Use the H.265 4Kp60 hardware decoding to watch 4K movies in your favourite media centre distro.

If you need a micro-HDMI cable to plug your Pi 5 into a display we’ve got you covered!

Bluetooth 5.0 and wireless LAN

The new chipset supports Bluetooth 5.0 and also dual-band 802.11ac wireless LAN, like the previous generation Raspberry Pi, for quick wireless networking with less interference and better reception.
