Sale!

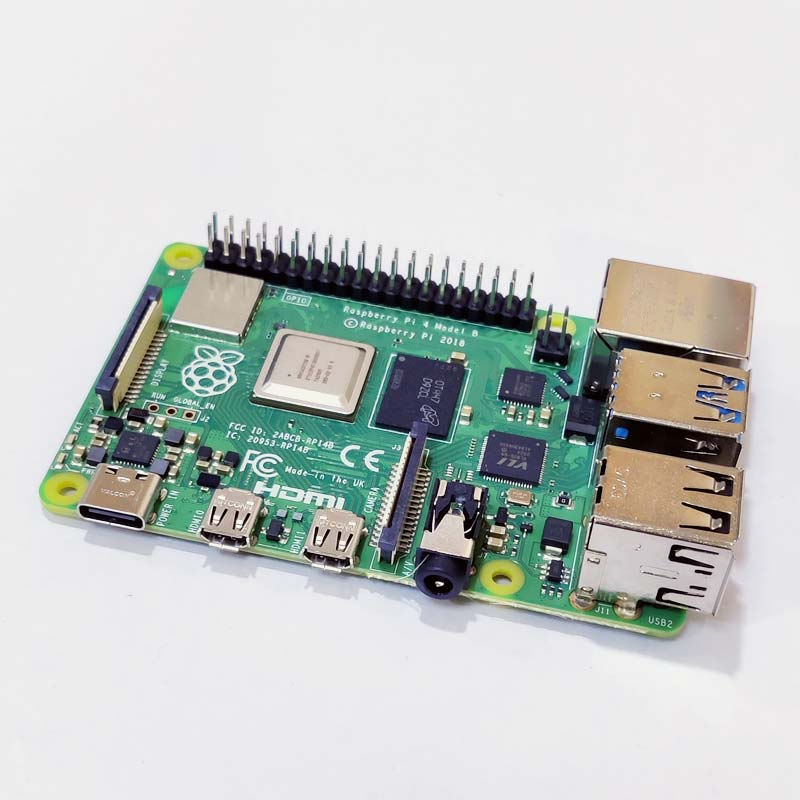

Raspberry Pi 4 Model B 8GB RAM SC0195

Original price was: ₹7,788.Current price is: ₹7,189.

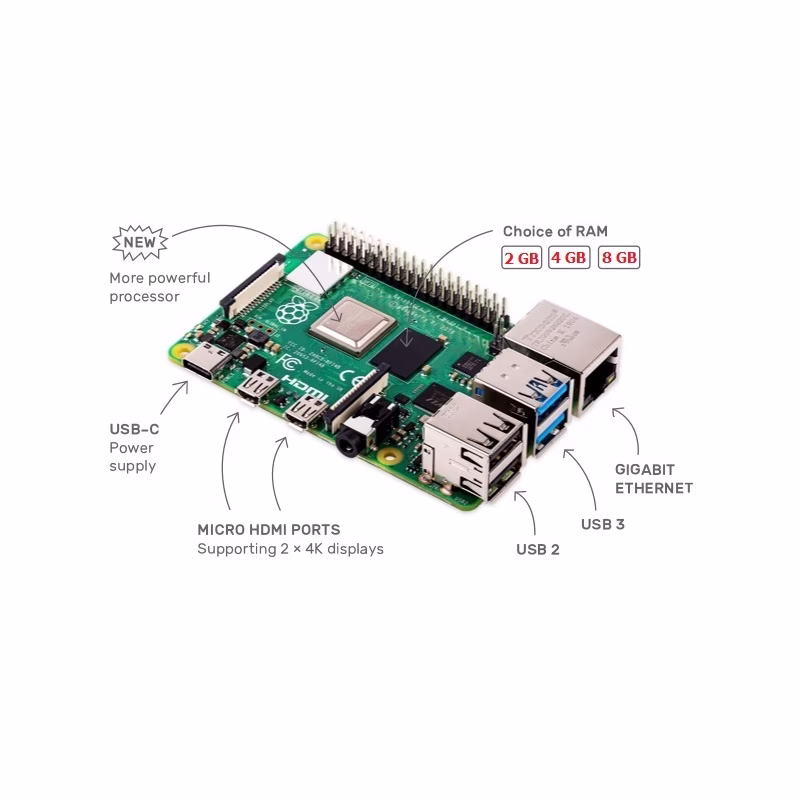

  • High-performance 64-bit quad-core processor
  • Dual-display support at resolutions up to 4K via a pair of micro-HDMI ports
  • Hardware video decode at up to 4Kp60
  • Dual-band 2.4/5.0 GHz wireless LAN
  • Bluetooth 5.0
  • Gigabit Ethernet
  • USB 3.0
207
179
614

Description

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.

This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 8GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market

Raspberry Pi 4 Specifications

Specifications:
Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8)
64-bit SoC @ 1.5GHz
Memory: 1GB, 2GB, 4GB or 8GB LPDDR4
(depending on model) with on-die ECC
Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
LAN, Bluetooth 5.0, BLE
Gigabit Ethernet
2 × USB 3.0 ports
2 × USB 2.0 ports.
GPIO: Standard 40-pin GPIO header
(fully backwards-compatible with previous boards)
Video & sound: 2 × micro HDMI ports (up to 4Kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
Multimedia: H.265 (4Kp60 decode);
H.264 (1080p60 decode, 1080p30 encode);
OpenGL ES, 3.0 graphics
SD card support: Micro SD card slot for loading operating system
and data storage
Input power: 5V DC via USB-C connector (minimum 3A1)
5V DC via GPIO header (minimum 3A1)
Power over Ethernet (PoE)–enabled
(requires separate PoE HAT)
Environment: Operating temperature 0–50ºC
Compliance: For a full list of local and regional product approvals, please visit
https://www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md
Production lifetime: The Raspberry Pi 4 Model B will remain in production until at least January 2026.



Physical Specifications:

Note: all dimensions in mm
WARNINGS
• This product should only be connected to an external power supply rated at 5V/3A DC or 5.1V/ 3A DC
minimum
. Any external power supply used with the Raspberry Pi 4 Model B shall comply with relevant
regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment and, if used inside a case, the case
should not be covered.
• This product should be placed on a stable, flat, non-conductive surface in use and should not be
contacted by conductive items.
• The connection of incompatible devices to the GPIO connection may affect compliance and result in
damage to the unit and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use
and be marked accordingly to ensure that safety and performance requirements are met. These
articles include but are not limited to keyboards, monitors and mice when used in conjunction with
the Raspberry Pi.
• Where peripherals are connected that do not include the cable or connector, the cable or connector
must offer adequate insulation and operation in order that the relevant performance and safety
requirements are met.

SAFETY INSTRUCTIONS:
To avoid malfunction or damage to this product please observe the following:
• Do not expose to water, moisture or place on a conductive surface whilst in operation.
• Do not expose it to heat from any source; Raspberry Pi 4 Model B is designed for reliable operation
at normal ambient room temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board
and connectors.
• Avoid handling the printed circuit board whilst it is powered and only handle by the edges to minimise the
risk of electrostatic discharge damage.
1 A good quality 2.5A power supply can be used if downstream USB peripherals consume less than
500mA in total.

Please click here for our vast collection of Raspberry Pi Accessories.



Additional information

Weight 0.052 kg
Dimensions 10 × 8 × 4 cm
RAM

4GB

Display port

2 x Micro HDMI

SOC

Broadcom BCM2711

Storage

MicroSD card Slot

Graphics

Videocore VI

gtin

5056561803319
