Description

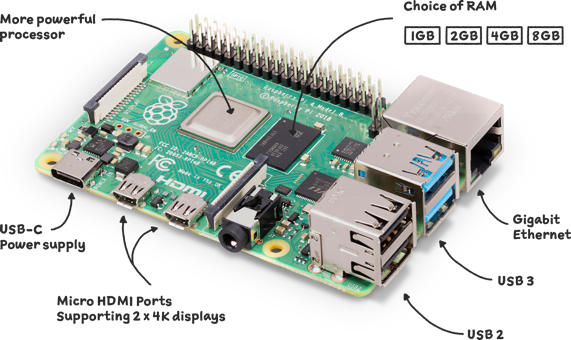

Take your embedded engineering and IoT builds to the next level with the Raspberry Pi 4 Model-B (1GB RAM). Built to deliver desktop-class performance while maintaining the classic compact credit-card form factor, the Pi 4 Model-B offers a massive leap in processing speed, multimedia capabilities, and I/O throughput compared to previous-generation boards.

Driven by a Broadcom BCM2711 Quad-Core Cortex-A72 processor, the 1GB variant provides the ideal power-to-cost ratio for projects that do not require heavy desktop multitasking—such as dedicated network servers (Pi-hole, Home Assistant), remote telemetry gateways, smart digital signage, or custom robotics controllers. It features dual micro-HDMI ports capable of driving two 4K resolution displays simultaneously, hardware video decoding up to 4K60, and high-speed USB 3.0 connectivity.

Specifications:

Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8)
64-bit SoC @ 1.5GHz
Memory: 1GB, 2GB, 4GB or 8GB LPDDR4
(depending on model) with on-die ECC
Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
LAN, Bluetooth 5.0, BLE
Gigabit Ethernet
2 × USB 3.0 ports
2 × USB 2.0 ports.
GPIO: Standard 40-pin GPIO header
(fully backwards-compatible with previous boards)
Video & sound: 2 × micro HDMI ports (up to 4Kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
Multimedia: H.265 (4Kp60 decode);
H.264 (1080p60 decode, 1080p30 encode);
OpenGL ES, 3.0 graphics
SD card support: Micro SD card slot for loading operating system
and data storage
Input power: 5V DC via USB-C connector (minimum 3A1)
5V DC via GPIO header (minimum 3A1)
Power over Ethernet (PoE)–enabled
(requires separate PoE HAT)
Environment: Operating temperature 0–50ºC

Key Features & Highlights

• High-Speed Cortex-A72 Core: 64-bit quad-core performance provides fast execution times for Python scripts, C++ applications, and server processes.

• Dual 4K Display Support: Dual micro-HDMI ports allow you to connect up to two 4K resolution monitors for rich visual interfaces or digital signage.

• Fast USB 3.0 & Gigabit Networking: USB 3.0 ports offer up to 10× faster transfer rates for external SSDs/flash drives, while unthrottled Gigabit Ethernet ensures lightning-fast network communication.

• Modern USB-C Power: Uses a robust USB-C power interface capable of supplying higher current to attached USB peripherals.

• Full Backwards Compatibility: Retains standard 40-pin GPIO layout, ensuring seamlessly compatible connections with existing HATs, sensors, and expansion boards.

Why Buy From Aryabot?

• 100% Genuine Raspberry Pi Hardware: Sourced through official distribution channels to guarantee authentic, high-grade silicon.

• Bench-Tested Quality: Inspected for physical board condition and component alignment prior to dispatch.

• GST Invoice Available: Full tax-compliant invoices provided for B2B procurement, university labs, and corporate projects.

• Pan-India Express Delivery: Fast processing and dispatch directly from our Noida fulfillment facility.

Package Includes:

1 x Official Raspberry Pi 4 Model B with 1GB RAM (SC0192) Single Board Computer.
