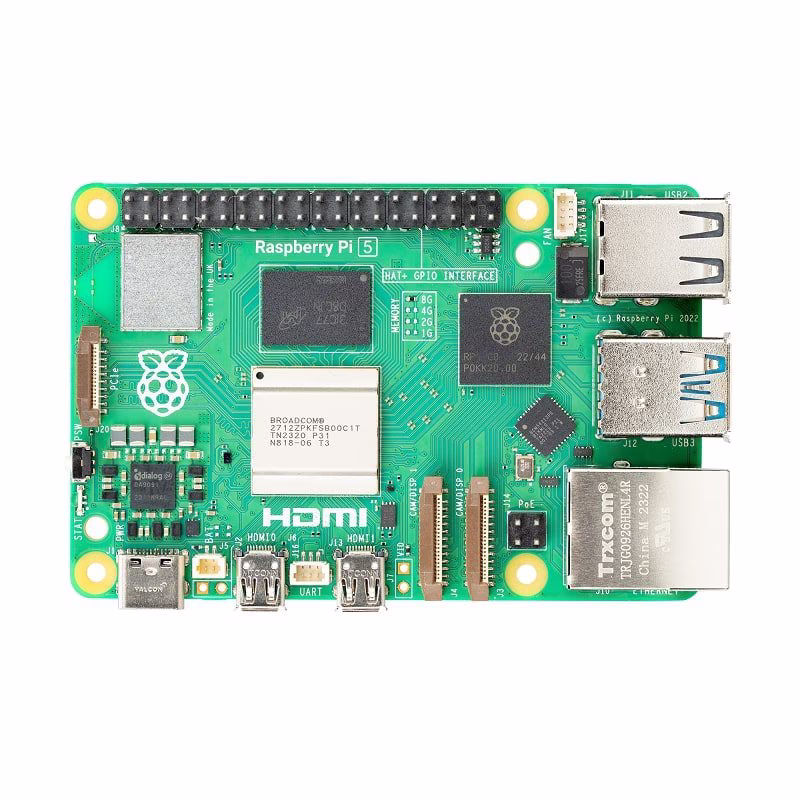

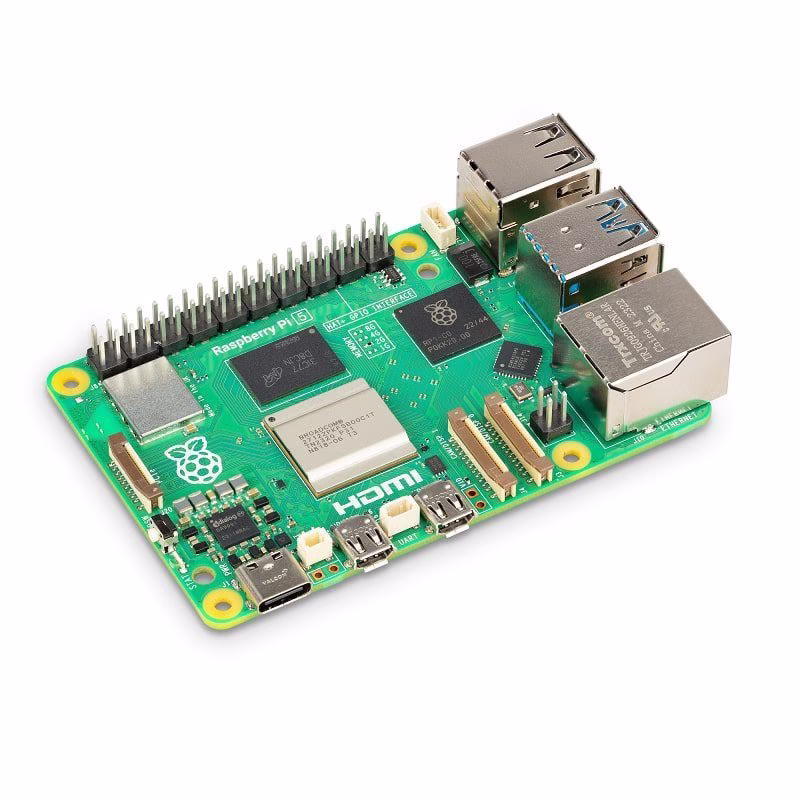

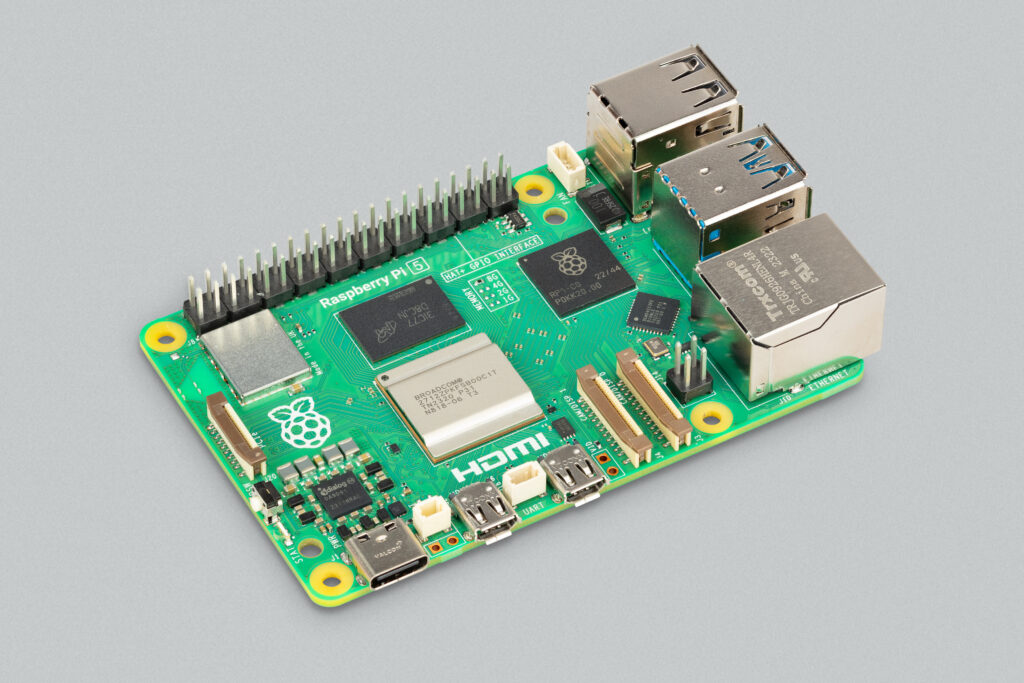

Raspberry Pi 5 Single Board Computer – 2.4GHz Quad-Core 2GB LPDDR4X RAM

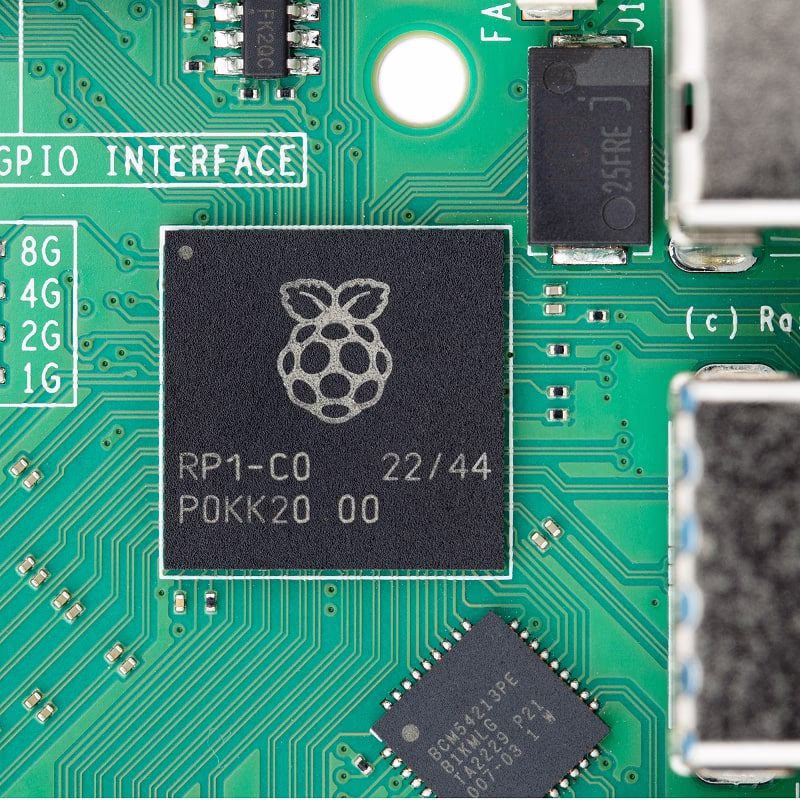

Accelerate your next-generation computing deployments with the Raspberry Pi 5 2GB RAM. As a major evolution in the single-board computing landscape, this board delivers a 2× to 3× increase in CPU performance compared to the older Raspberry Pi 4. Built with the innovative RP1 “southbridge” I/O controller designed in-house by Raspberry Pi silicon engineers, this model breaks legacy bottlenecks to drastically boost peripheral data transmission rates across your hardware projects.

Available at Aryabot.in, your trusted Indian engineering supplier for reliable prototyping gear, the Raspberry Pi 5 Model 2GB RAM provides a highly economical sweet spot for dedicated tasks. If you are building targeted edge gateways, compact Linux terminals, local database loggers, or robotics nodes that demand raw processing power without needing the expansive memory overhead of the 4GB or 8GB models, this 2GB variant offers maximum computing value.

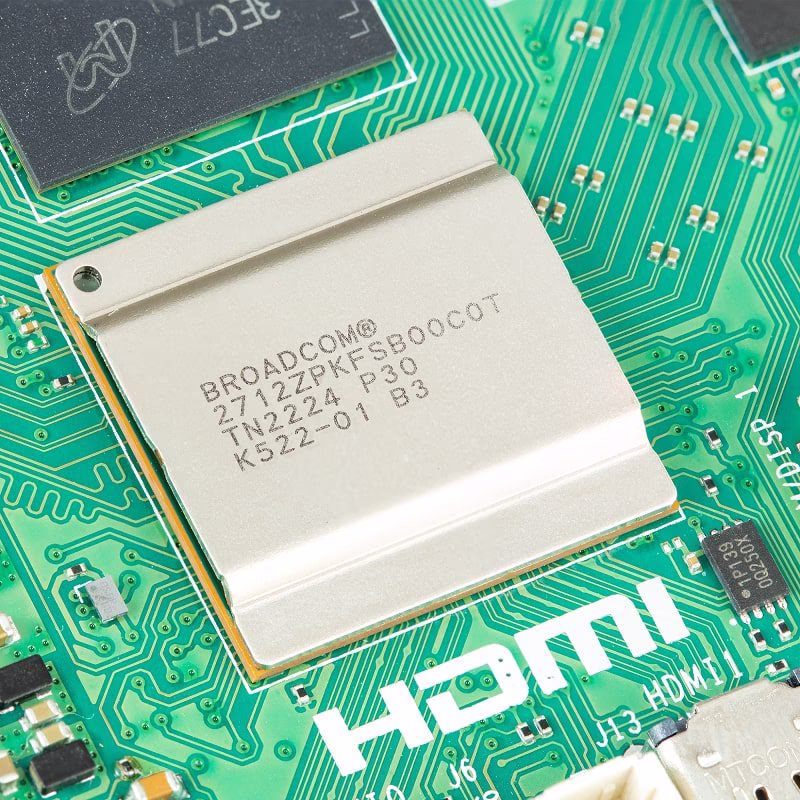

⚡ A Quantum Performance Leap: At its core sits the Broadcom BCM2712 64-bit Arm Cortex-A76 processor running at a blazing 2.4GHz. This architecture introduces hardware cryptographic extensions, private L2 caches per core, and a massive shared L3 cache structure to execute intensive scripts with absolute fluidity.

Technical Specifications & Features

The Raspberry Pi 5 Computer (2GB) introduces a rearchitected board layout designed for high-bandwidth physical expansion.

Feature	Specification
Processor Architecture	Broadcom BCM2712 64-bit SoC, Quad-Core Arm Cortex-A76
Core Clock Velocity	2.4 GHz continuous processing capability
System Memory	2GB LPDDR4X-4267 SDRAM (High-bandwidth configuration)
Graphics Engine	800MHz VideoCore VII GPU (Supports OpenGL ES 3.1, Vulkan 1.2)
Video Processing	Dual 4Kp60 HDMI outputs with HDR; 4Kp60 HEVC decoder
Expansion Bus	PCIe 2.0 x1 interface via dedicated FPC connector for NVMe SSDs
Camera & Display I/O	2× 4-lane MIPI transceivers (Interchangeable CSI Camera / DSI Display)
Wired & Wireless Linkage	Gigabit Ethernet (PoE+ ready), Dual-Band Wi-Fi, Bluetooth 5.0 / BLE
Physical Interface Features	On-board physical Power Button, dedicated Fan header, RTC battery connector
Power Requirements	5V / 5A DC power input via USB-C with Power Delivery (PD) support

Key Architectural Advancements for Developers

🚀 Native High-Speed PCIe 2.0 Expansion Interface

Say goodbye to the throughput limitations of the USB bus. The Raspberry Pi 5 features a dedicated single-lane PCI Express 2.0 interface. By connecting an external M.2 HAT, you can link high-performance NVMe solid-state drives directly to the CPU. This enables lightning-fast operating system boot speeds and rapid read/write data pipelines.

🔌 Intelligent Power Management & On-Board Power Button

For the first time on a flagship board, user convenience and power management are integrated directly onto the PCB. A physical momentary power button allows for clean system shutdowns and quick boots without pulling out the power cable. The on-board PMIC supports advanced USB Power Delivery, adjusting peripheral current allowances dynamically based on your power supply capacity.

📹 Interchangeable Dual 4-Lane MIPI Transceivers

Legacy models forced strict separation between camera (CSI) and display (DSI) ribbons. The rearchitected RP1 layout utilizes two universal, higher-density 4-lane MIPI ports. You can now connect two cameras simultaneously, two displays simultaneously, or one of each, expanding your options for advanced stereoscopic vision or dual-screen interactive panel builds.

Best Applications for the 2GB Configuration

• Dedicated Industrial IoT Gateways: Process heavy local scripts and manage complex network traffic layers while maintaining a low hardware cost profile.

• Headless Network App Nodes: Perfect for running Pi-hole network filters, lightweight Docker containers, MQTT data brokers, or print servers.

• Smart Home & Automation Cores: Manage sensor states, run local automation routines, and toggle relays continuously without consuming high standby power.

• Targeted Autonomous Robotics: Run motor controllers and process spatial telemetry from cameras or LiDAR modules within a highly responsive processing framework.

Procure Authentic, Vetted Hardware from Aryabot.in

Avoid unvetted components, clone alternatives, or inconsistent power chips that threaten project safety. Aryabot.in is committed to delivering pristine, factory-packaged single-board computers directly to Indian engineering teams, commercial development cells, and research labs.

• 100% Genuine Silicon Boards: Order with absolute reassurance. We distribute original, factory-sealed Raspberry Pi 5 2GB RAM modules obtained directly from Raspberry Pi

• Comprehensive Kit Integration: Upgrade your development setup instantly by combining your board with high-speed SanDisk Ultra MicroSD 64GB Cards or professional active cooling blocks under the Official Raspberry Pi 5 2GB Starter Kit.

• Fast Pan-India Logistics: Every order is packed securely in anti-static shields and rigid corrugated boxes to ensure safe, flawless arrival at your laboratory desk.

---



Useful Links:

• Datasheet
• Mechanical Drawing
• Raspberry Pi Imager



---

Package Includes:

1 x Raspberry Pi 5 Model 2GB
