Official Raspberry Pi Debug Probe
₹1,415
Out of stock
All-in-one USB-to-serial debug and UART bridge
Both interfaces use a 3-pin debug connector
Open-source Raspberry Pi Picoprobe software
Three different types of debug cables to cover the vast use cases
plug and play debugging of Raspberry Pi Pico and other microcontrollers- and microprocessor-based platforms.
Description
Take the complexity out of embedded firmware development with the Official Raspberry Pi Debug Probe. Standard computers often lack direct SWD pins or hardware UART serial interfaces needed to inspect microcontroller code. This all-in-one USB probe bridges that gap, offering real-time breakpoint debugging, register inspection, and serial console output across Windows, macOS, and Linux workstations.

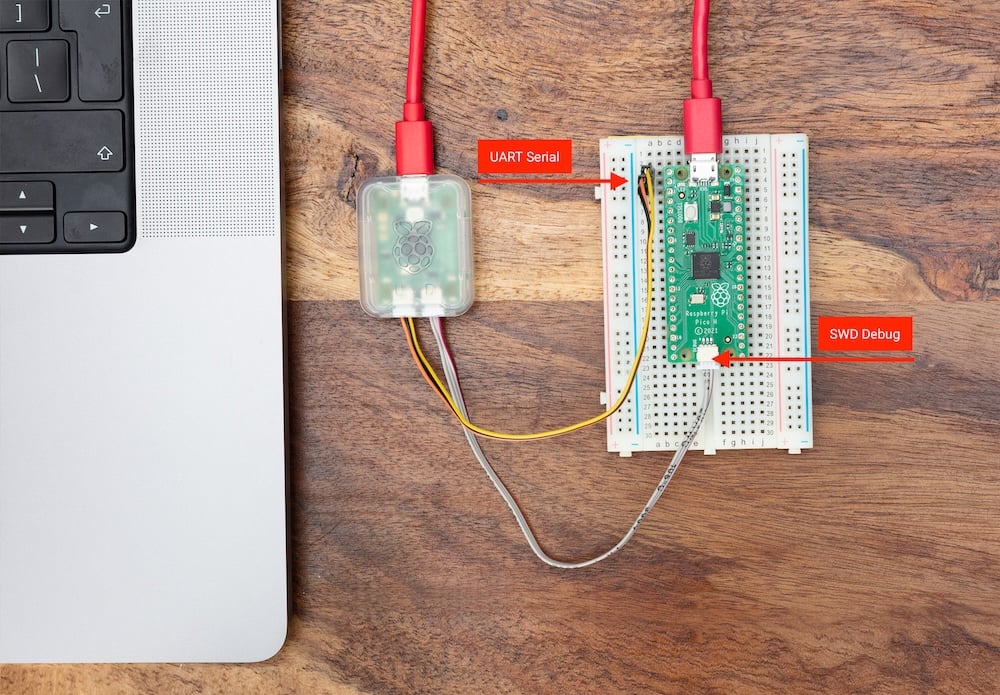

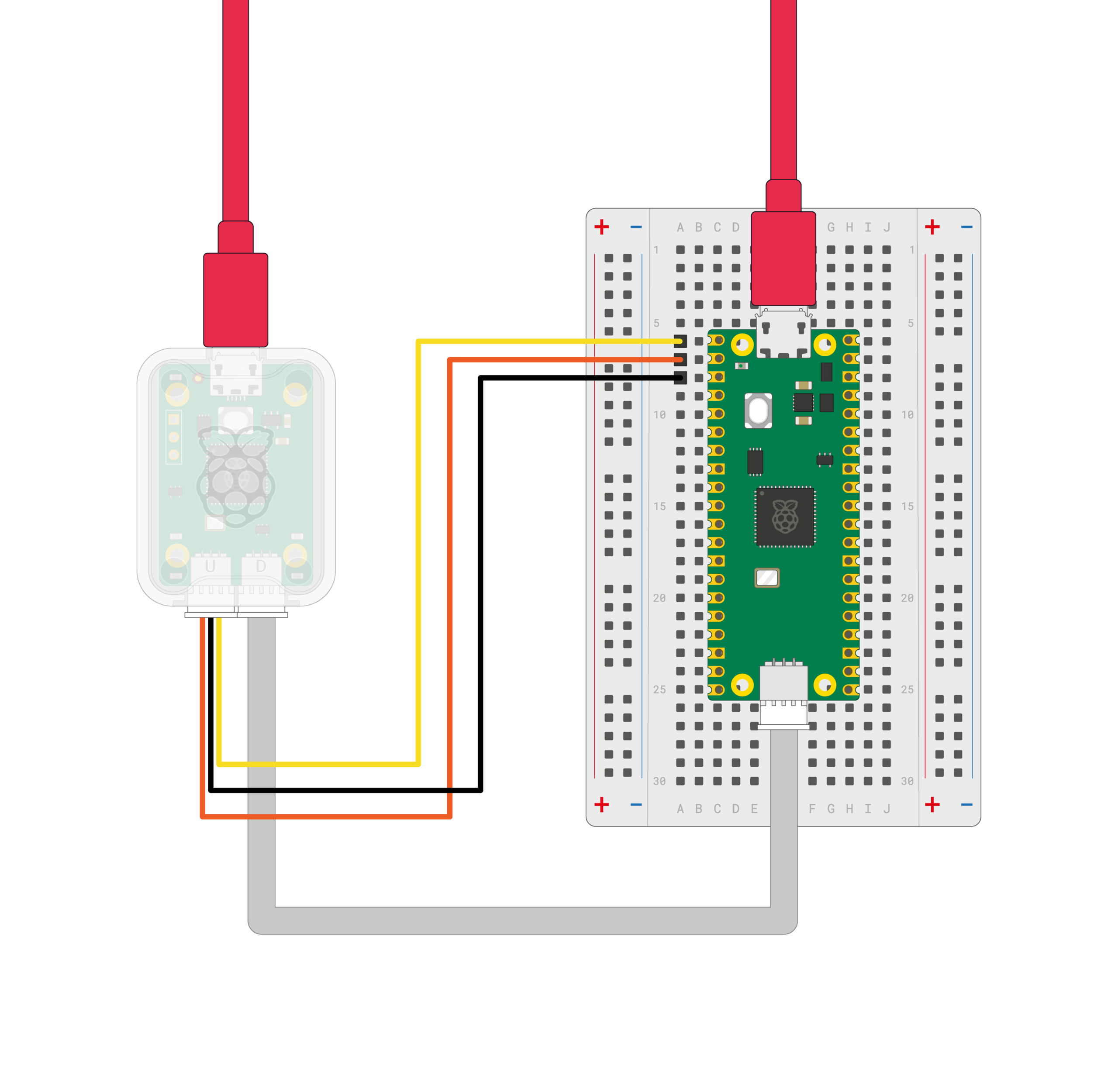

Running open-source Picoprobe firmware, the probe breaks out into two 3-pin JST-SH connectors following the official Raspberry Pi 3-pin Debug Connector Specification. One port handles Serial Wire Debug (SWD) communications for hardware-level step debugging via OpenOCD, while the other functions as a dedicated 3.3V UART bridge for serial logging. Beyond RP2040 and Raspberry Pi Pico targets, its standard CMSIS-DAP protocol compliance makes it compatible with a wide array of 3.3V ARM-based microcontrollers.
Technical Specifications
| Parameter | Specification |

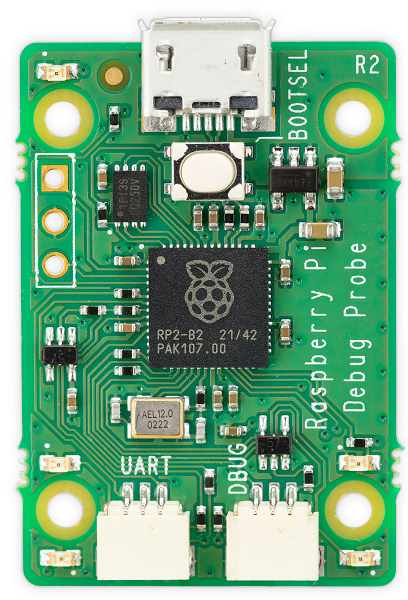

| Processor Chipset | Raspberry Pi RP2040 Dual-Core ARM Cortex-M0+ |
| Debug Protocols | USB-to-SWD (Arm Serial Wire Debug) + USB-to-UART Serial Bridge |
| Interface Standard | CMSIS-DAP Compliant (Works with OpenOCD, VS Code & GDB) |
| Nominal Logic Voltage | 3.3V I/O |

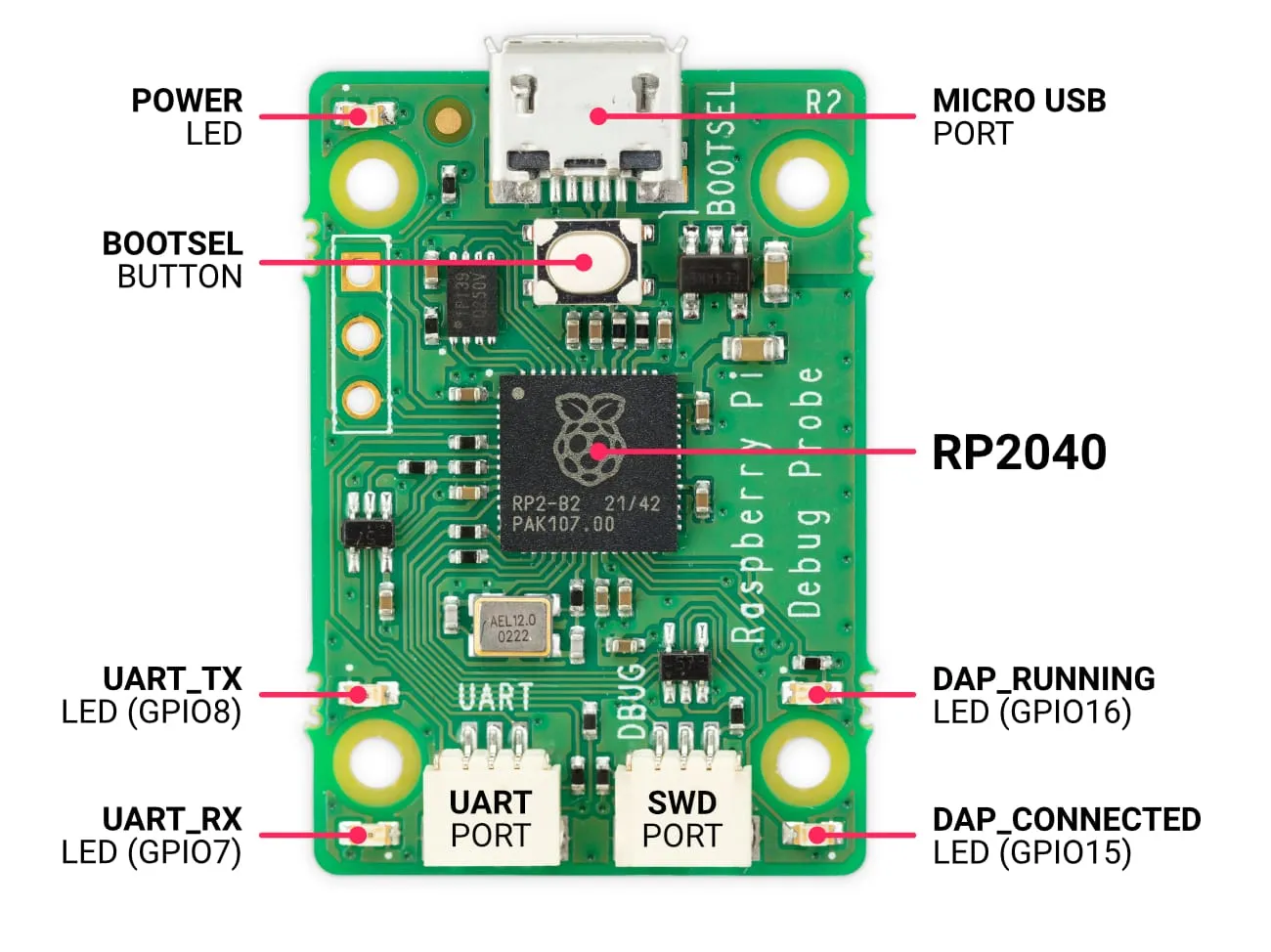

| Connectors | Micro-USB Port + 2 × 3-Pin JST-SH Ports (SWD & UART) |
| Firmware | Raspberry Pi Picoprobe Open-Source Software (Upgradable over USB) |
| Operating Temperature | -20°C to +70°C |
| Host System Support | Windows, macOS, Linux |
| Form Factor / Dimensions | Ultra-Compact Plastic Case (~22mm × 32mm) |
Key Features & Highlights
-
Dual-Interface Debugging: Combines processor-level SWD hardware debugging and a USB-to-UART serial terminal adapter in one compact tool.
- Universal CMSIS-DAP Standard: Supported natively by OpenOCD, VS Code Cortex-Debug, and GDB toolchains.
- Complete Solderless Cable Kit: Includes three distinct 3-pin debug cables to connect seamlessly to JST connectors, standard 0.1″ male pins, or female headers.

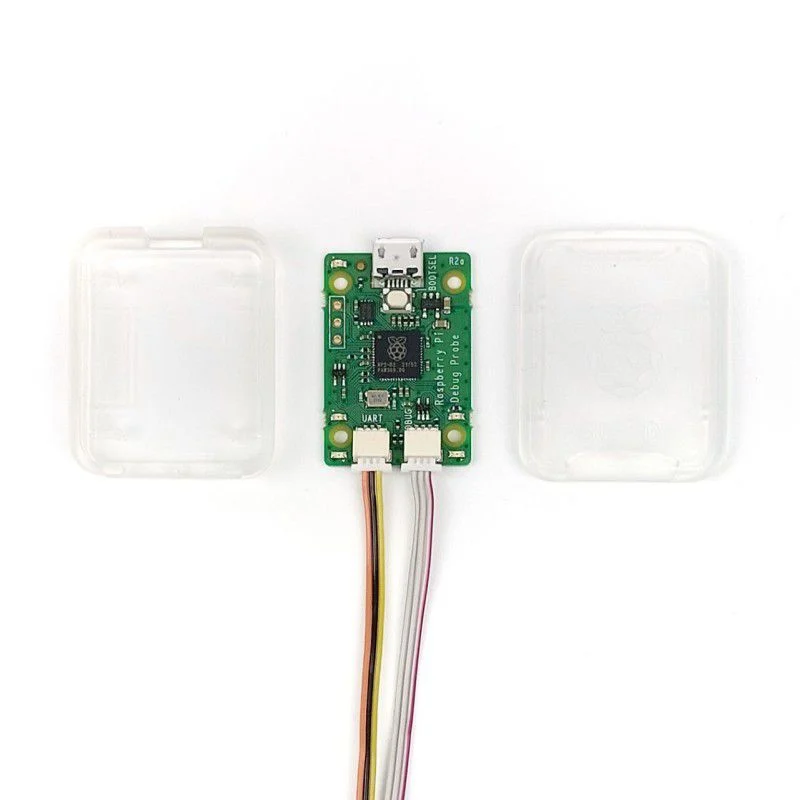

- Protective Enclosure: Ships inside a clear custom plastic housing to guard against benchtop shorts and static discharge.
- Simple Firmware Upgrades: Features the standard RP2040 drag-and-drop UF2 bootloader for effortless Picoprobe firmware updates.

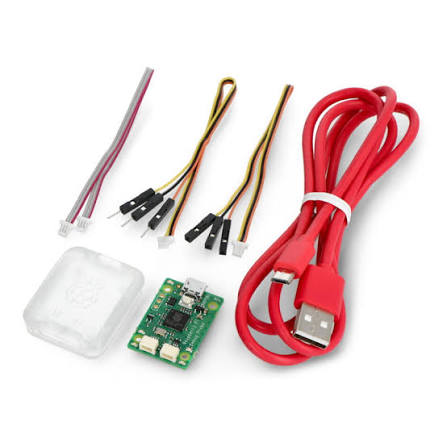

What’s Included in the Box
- 1 × Official Raspberry Pi Debug Probe Board in Clear Protective Case
- 1 × USB Cable (Micro-USB to USB-A)
- 1 × 3-Pin JST-SH to 3-Pin JST-SH Cable
- 1 × 3-Pin JST-SH to 0.1″ Female Header Cable
- 1 × 3-Pin JST-SH to 0.1″ Male Header Cable
Why Buy From Aryabot?
-
100% Original Hardware: Sourced directly through official Raspberry Pi distribution channels to guarantee authentic products.
-
Quality Assured: Bench-tested for pin alignment and connector integrity prior to dispatch.
-
GST Invoice Available: Full tax-compliant invoices provided for schools, university robotics labs, and corporate procurement.
-
Pan-India Express Delivery: Prompt order processing and dispatch directly from our Noida fulfillment facility.
Additional information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 6 × 5 × 3 cm |
