Raspberry Pi Touch Display 2 (7-Inch Capacitive Touchscreen)
₹6,596
Out of stock
- 7” diagonal display size
- 85-degree viewing angle
- 24-bit RGB
- 720 x 1280-pixel resolution
- True multi-touch capacitive panel with five-finger touch
Description
High-Resolution Capacitive Touch for Every Application
The Raspberry Pi Touch Display 2 family brings high pixel density, vibrant colors, and responsive multi-touch input across three distinct sizes to suit every embedded project footprint:
-
5-Inch Display: Ultra-compact form factor designed for handheld tools, compact smart home controllers, and space-constrained robotics.
-
7-Inch Display: The classic desktop workstation and embedded terminal size, delivering balanced visibility and compact dimensions.
-
10-Inch Display: Large, high-resolution panel ideal for industrial HMIs, media dashboards, digital signage, and multi-window multitasking.
Display Variant Comparison Matrix
| Feature | 5-Inch Touch Display 2 | 7-Inch Touch Display 2 | 10-Inch Touch Display 2 |
| Screen Size | 5.0 Inches (Diagonal) | 7.0 Inches (Diagonal) | 10.0 Inches (Diagonal) |
| Resolution | 720 × 1280 pixels | 720 × 1280 pixels | 1200 × 1920 pixels |
| Touch Type | 5-Point Capacitive Multi-Touch | 5-Point Capacitive Multi-Touch | 5-Point Capacitive Multi-Touch |
| Interface | MIPI DSI | MIPI DSI | MIPI DSI |
| Viewing Angle | Wide Viewing Angle | Wide Viewing Angle | IPS-Class Wide Viewing Angle |
| Best For | Handheld devices, portable rigs | General projects, smart hubs | Industrial HMIs, dashboards, media |
Technical Specifications
| Specification | Details |
| Touch Technology | 5-point capacitive multi-touch |
| Interface Port | MIPI DSI (Display Serial Interface) |
| Power Supply | Powered directly through MIPI DSI interface / GPIO header |
| OS Support | Native plug-and-play support in Raspberry Pi OS (Bookworm and later) |

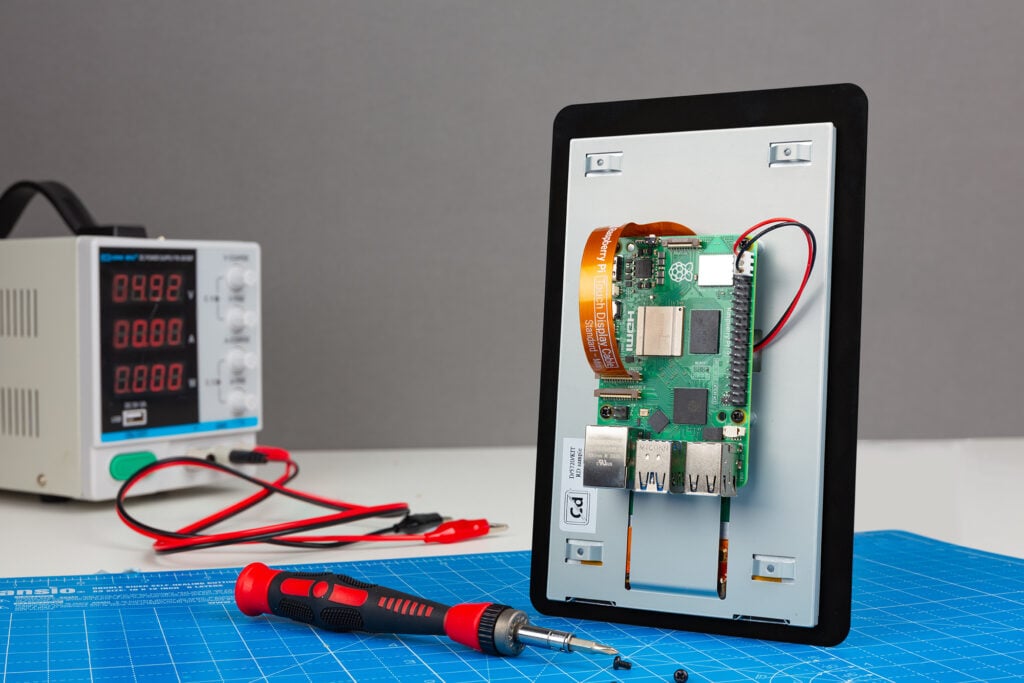

| Mounting | Rear brass standoffs for mounting Raspberry Pi boards directly behind screen |
| Operating Temperature | 0°C to +50°C |
| Box Contents | Touch Display 2 panel, 15-pin DSI ribbon cable, jumper wires, mounting screws |
Board Compatibility Guide
| Board Model | Direct Connection | Cable Requirement |
| Raspberry Pi 5 | Compatible | Requires Mini-to-Standard MIPI DSI Cable (22-pin to 15-pin) |
| Raspberry Pi 4 Model B | Compatible | Uses standard 15-pin DSI ribbon cable (Included in box) |
| Raspberry Pi 3 Model B+ / 3B | Compatible | Uses standard 15-pin DSI ribbon cable (Included in box) |
| Raspberry Pi Zero 2 W / Zero W | Compatible | Requires Mini-to-Standard MIPI DSI Cable |
⚡ Recommended Accessories & Compatibility Notes
-
Raspberry Pi 5 Mini-MIPI Adapter Cable: The Pi 5 uses compact 22-pin MIPI ports. Connecting any Touch Display 2 to a Raspberry Pi 5 requires a 22-pin to 15-pin MIPI DSI adapter cable.
-
Official Raspberry Pi Power Supply: Ensures stable power delivery to both your Raspberry Pi board and the touch panel under full backlight brightness and touch interactions.
-
High-Speed MicroSD Card (32GB / 64GB): Pre-loaded with Raspberry Pi OS for instant touch-driver auto-detection.
📚 Official Documentation & Technical Resources
-
Official Raspberry Pi Touch Display Documentation – Complete setup and display configuration guides.
-
Additional information
| Screen Size | 7 inch |
|---|---|
| Video port | MIPI-DSI |
