Waveshare 7 Inch Capacitive HDMI Touch Screen LCD (C)

₹6,136

In stock

  • (GST Bill) Enter your GST number at checkout
  • Free shipping on eligible prepaid orders
  • Secure payments via Razorpay and Paytm
  • Dispatch in 24 Hours from Noida warehouse!
  • Hardware resolution:1024 x 600
  • Frequency: 60Hz
  • Vcc: 4.7-5v
  • Total Current: 400mA
  • Close Backlight current: 120mA
  • Backlight Brightness: 300cd/m2
  • Audio Frequency: 44.1Khz
  • Size : 165mm x 122mm
SKU: EL1638 Category: Brand:

Description

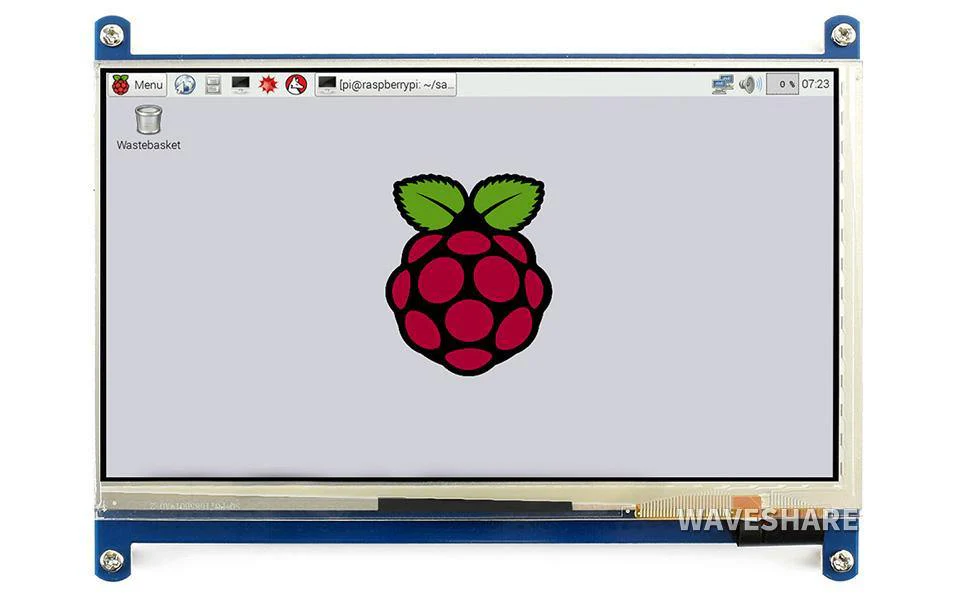

Upgrade the user interface of your embedded projects with the Waveshare 7inch Capacitive Touch Screen LCD (C), 1024×600, for Raspberry Pi. This versatile, medium-sized display panel serves as a plug-and-play desktop monitor alternative for single-board computers. By pairing an upgraded wide-view IPS matrix with an electrostatic capacitive touch overlay, it delivers a rich, highly responsive control surface that far outperforms cheap resistive panels.
The module interfaces using standard HDMI and USB cables, which keeps your board’s 40-pin GPIO array completely unburdened and free for external sensors, relays, and actuators.

Key Features & Specifications

  • Smooth Capacitive Control Matrix: Features a responsive 5-point multi-touch array protected behind a durable glass layer, allowing you to easily pinch-to-zoom, swipe, and scroll through custom interfaces.

  • Wide-Angle IPS Visualization: Enjoy crisp color rendering and consistent brightness from almost any position thanks to the advanced 170° viewing angle performance.
  • Dedicated Power Saving: Includes an onboard manual toggle switch to disable or enable the LED backlighting instantly, cutting down operational power draw during battery-operated or field-testing phases.
  • Driver-Free Implementation: Natively recognized as a standard HID input device when hooked up to modern Raspberry Pi OS, Windows, or Ubuntu architectures, making deployment exceptionally straightforward.
Parameter Technical Specification
Brand / Model Variant Waveshare 7inch HDMI LCD (C)
Native Screen Resolution 1024 × 600 Pixels
Display Panel Architecture Wide-Angle IPS Matrix
Touch Tracking Type Electrostatic 5-Point Capacitive
Video Signal Link Standard HDMI Connection
Touch Data Interface Standard Micro-USB / HID Protocol
Viewing Angle Coverage 170° Degrees Omnidirectional

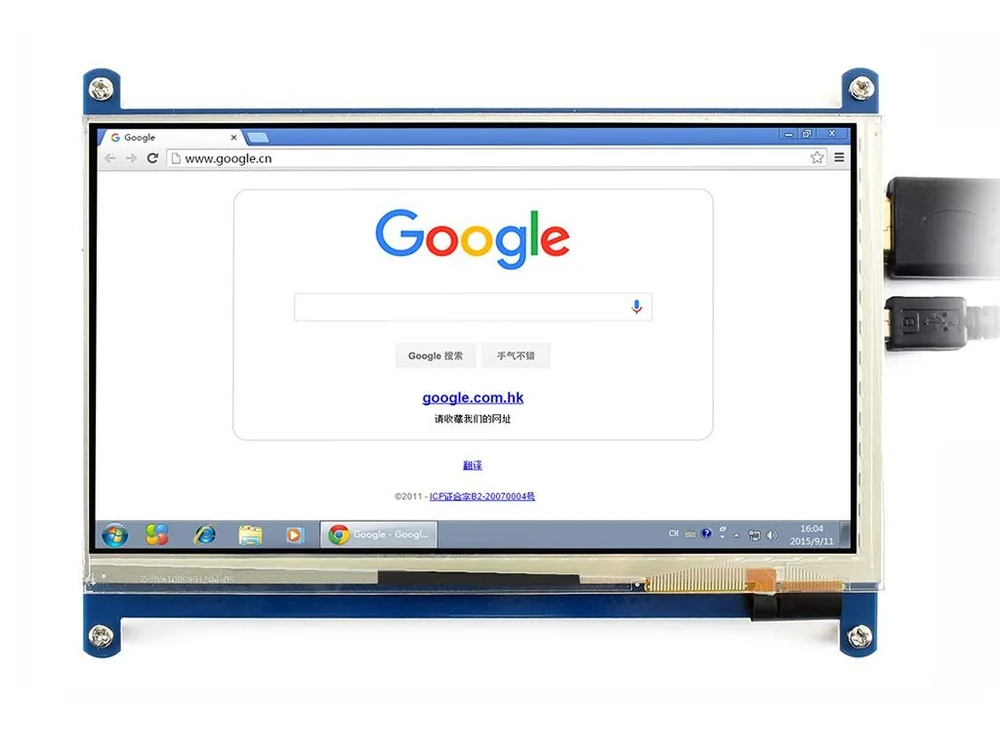

System Compatibility Raspberry Pi OS, Ubuntu, Kali, Retropie, Windows 11/10/8.1/7

Why Buy From Aryabot?

When sourcing interactive electronics, lower-grade counterfeit clone screens frequently feature poor viewing angles, lagging touch grids, or severe color washing.

  • 100% Genuine Waveshare Source: As an Authorized Raspberry Pi Reseller, Aryabot strictly prohibits lookalikes. We guarantee authentic Waveshare manufacturing lots that utilize true high-conductivity touch silicons and long-lasting LED backlighting units.

  • Tested Board Tolerances: Every display unit matches strict electronic and physical sizing checks, ensuring your screen interface communicates clean signals without drawing unstable power from your main development board.

  • Fast Dispatch from Noida Logistics Center: Shipped straight out of our centrally located Noida facility in Uttar Pradesh, we provide fast nationwide tracking and delivery windows along with fully compliant corporate GST tax invoices.

Common Applications

  • Interactive Smart-Home Dashboards: Ideal for building premium wall-mounted central panels to oversee multi-room lighting, climate tracking grids, and local home security systems.

  • All-In-One Compact Workstations: Instantly pairs with a desktop keyboard and mouse to convert a bare development board into a compact portable computing terminal.

  • Industrial Monitoring Consoles: Acts as a direct human-machine interface (HMI) screen on shop floors, allowing engineers to handle telemetry scripts and troubleshoot equipment on site.

  • Custom Medical & IoT Test Instruments: Highly suited for integration into mobile diagnostics equipment, field sensors, or bespoke electronic prototypes that require precise touch entry.

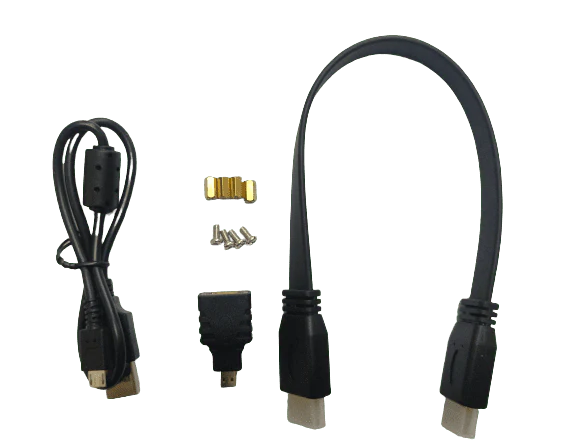

  Package Includes:

  • 1 x Waveshare 7inch HDMI LCD (C) Module
  • 1 x High-Quality HDMI Connection Cable
  • 1 x HDMI-to-Micro-HDMI Mechanical Adapter
  • 1 x USB Type-A to Micro-B Data Touch Cable
  • 1 x Specialized Raspberry Pi Mounting Screws & Standoff Pack (4-Piece Set).

Additional information

Weight 0.075 kg
Dimensions 16.5 × 3 × 12.5 cm
