Description

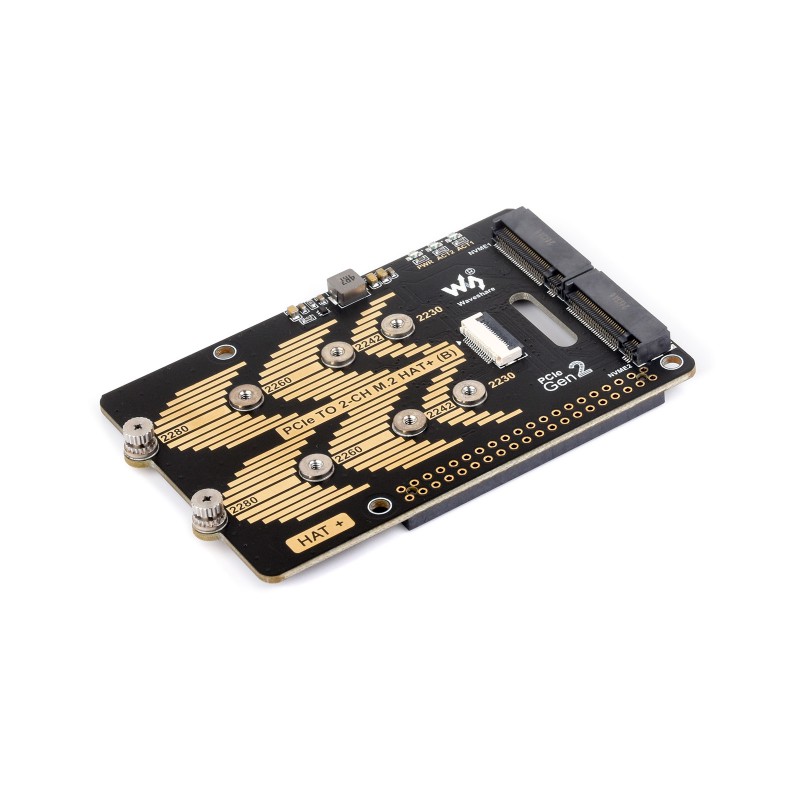

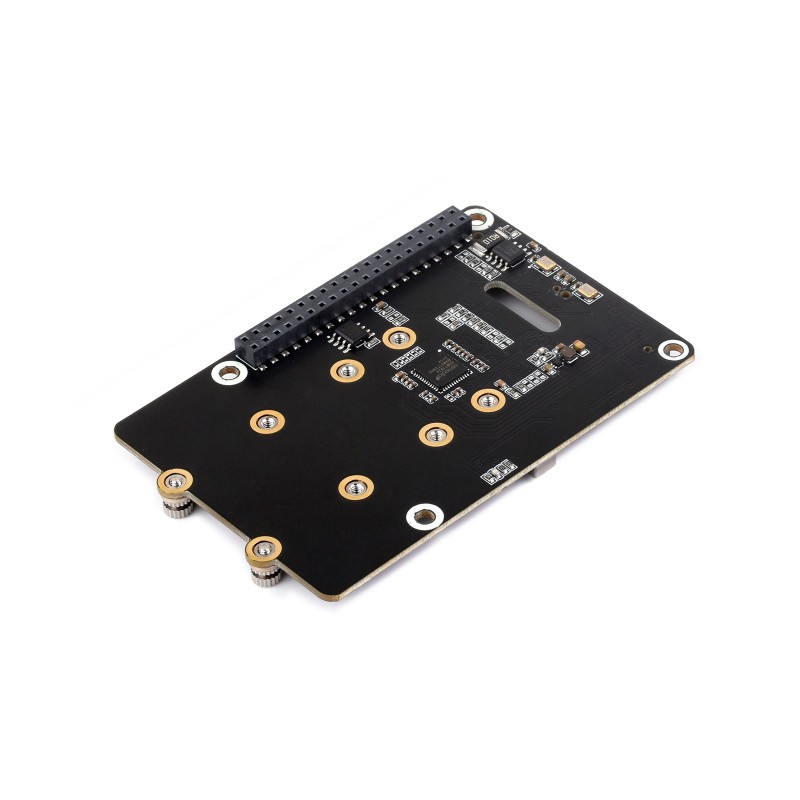

The PCIe To 2-Ch M.2 HAT+ (B) is an advanced dual-slot storage expansion board built specifically for the Raspberry Pi 5 single-board computer. Designed according to official Raspberry Pi HAT+ guidelines, it incorporates automatic EEPROM recognition for seamless operating system detection.

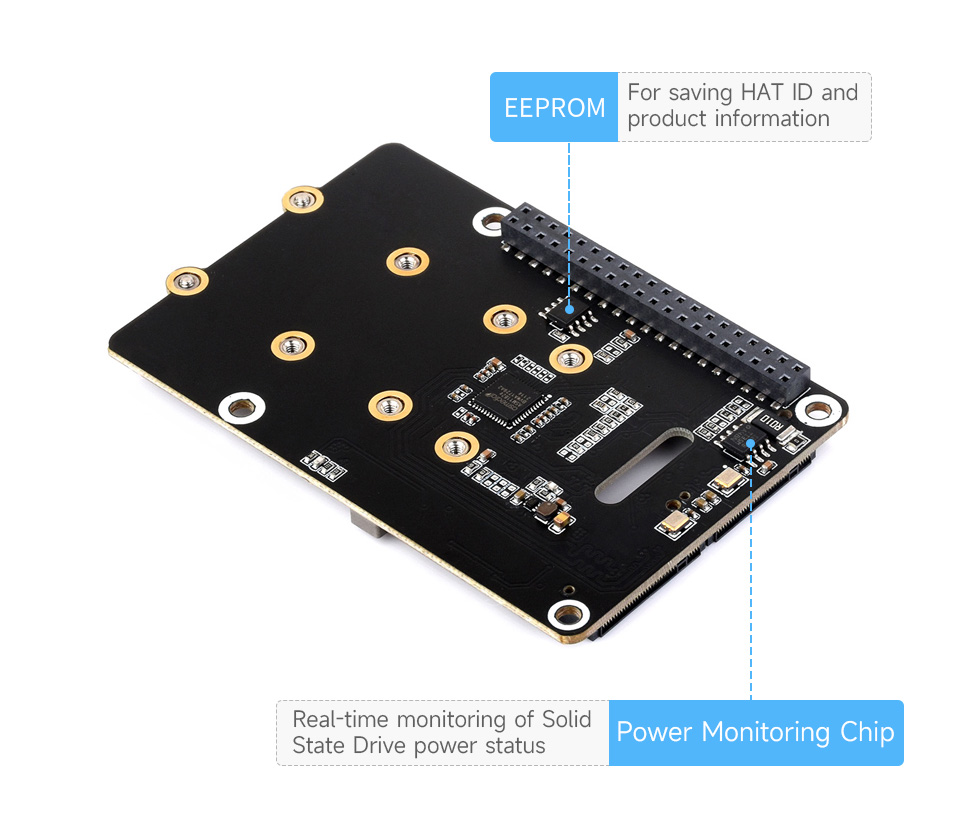

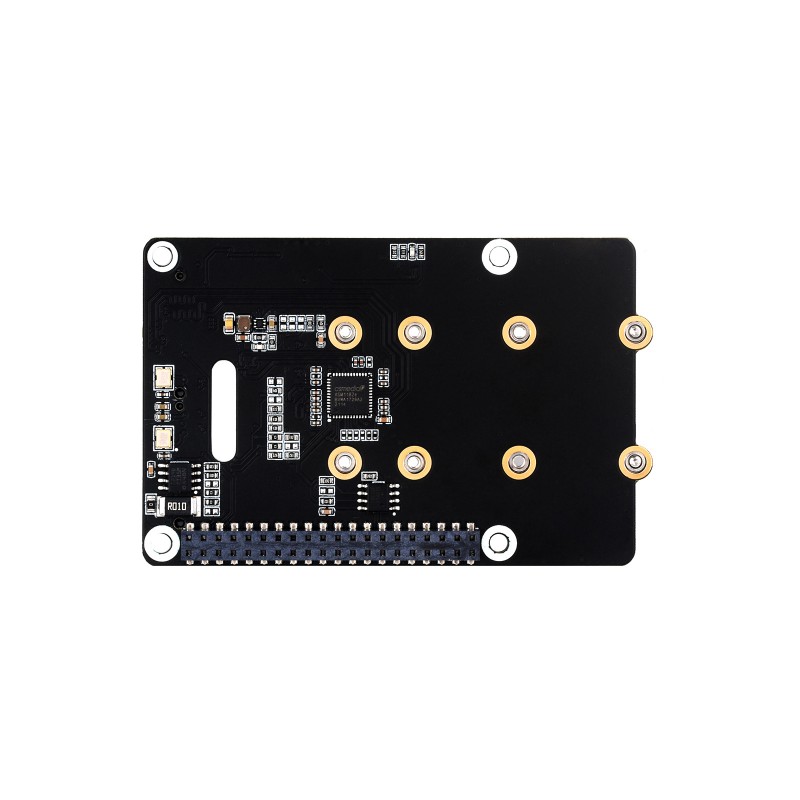

By leveraging an onboard packet switch chip, the HAT+ (B) manages concurrent communications for two M.2 Key-M NVMe solid-state drives (supporting 2230 and 2242 form factors). Equipped with an embedded power monitoring IC and real-time status LEDs (PWR and ACT), it ensures stable power distribution and visual feedback during high-throughput I/O processes—making it ideal for home servers, local data loggers, and edge computing nodes.

Technical Specifications

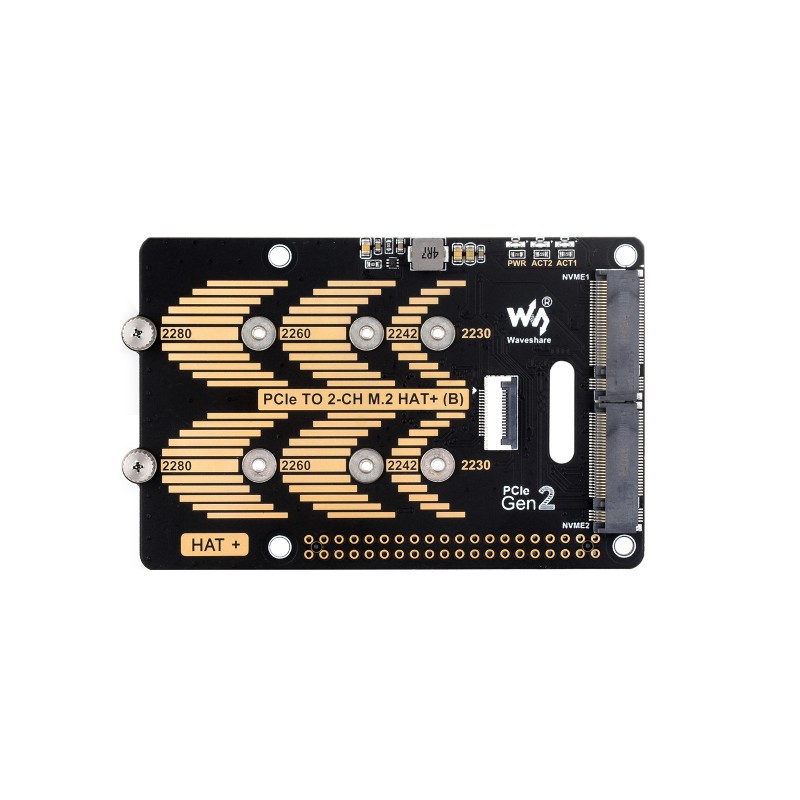

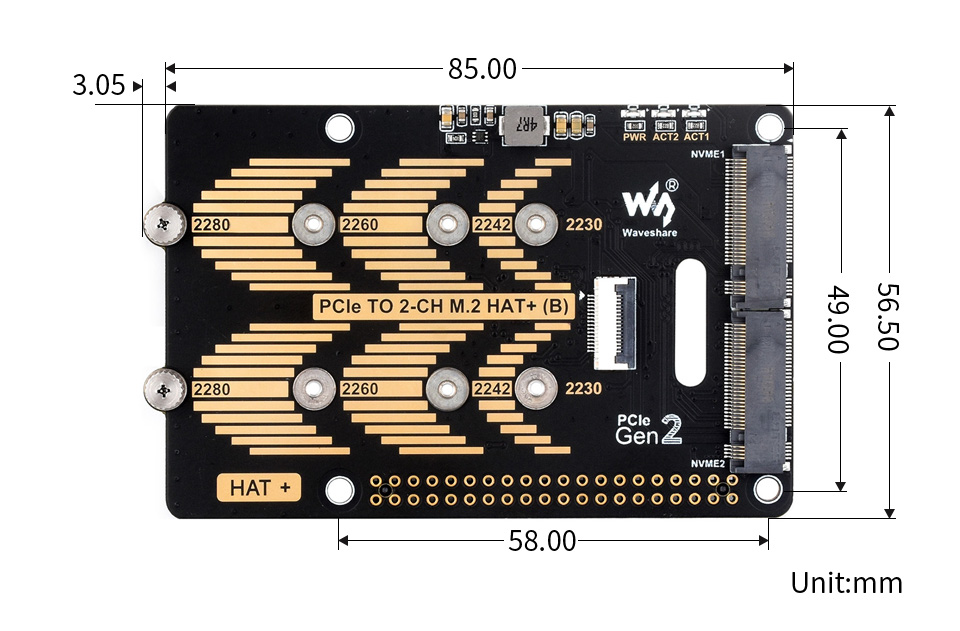

Board Pinout & Dual-Slot Layout

                  [ 16-Pin PCIe FPC Cable Connector ]
  +------------------------------------------------------------------+

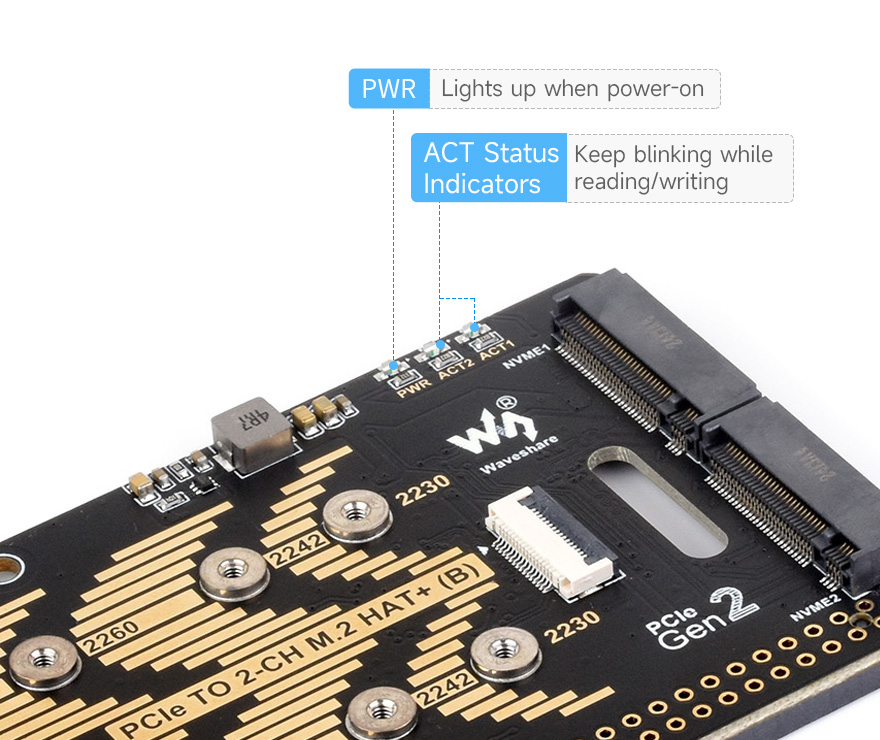

  | [ PWR LED ] [ ACT LED ]    [ EEPROM / Power Monitor IC ]         |
  |                                                                  |
  | [ M.2 SLOT 1: 2230 / 2242 NVMe SSD ]                             |
  |                                                                  |
  | [ M.2 SLOT 2: 2230 / 2242 NVMe SSD ]                             |
  |                                                                  |
  +------------------------------------------------------------------+
                  [ Standard Raspberry Pi 5 Header Cutout ]

Software & EEPROM Configuration (config.txt)

To enable PCIe Gen 3.0 performance and boot directly from NVMe media on Raspberry Pi OS:

1. Enable PCIe Bus & Gen3 Speed:

   Open /boot/firmware/config.txt and append:

   Plaintext

   dtparam=pciex1
   dtparam=pciex1_no_max_autoprofile


2. Configure Boot Order:

   Run sudo rpi-eeprom-config --edit and update:

   Plaintext

   BOOT_ORDER=0xf416


Key Features & Highlights

• Official HAT+ Standard Compliance: Automatic hardware recognition by Raspberry Pi OS via onboard EEPROM logic.

• Dual M.2 NVMe SSD Capacity: Mount two high-speed NVMe drives at once to build mirrored backups or expand storage pools.

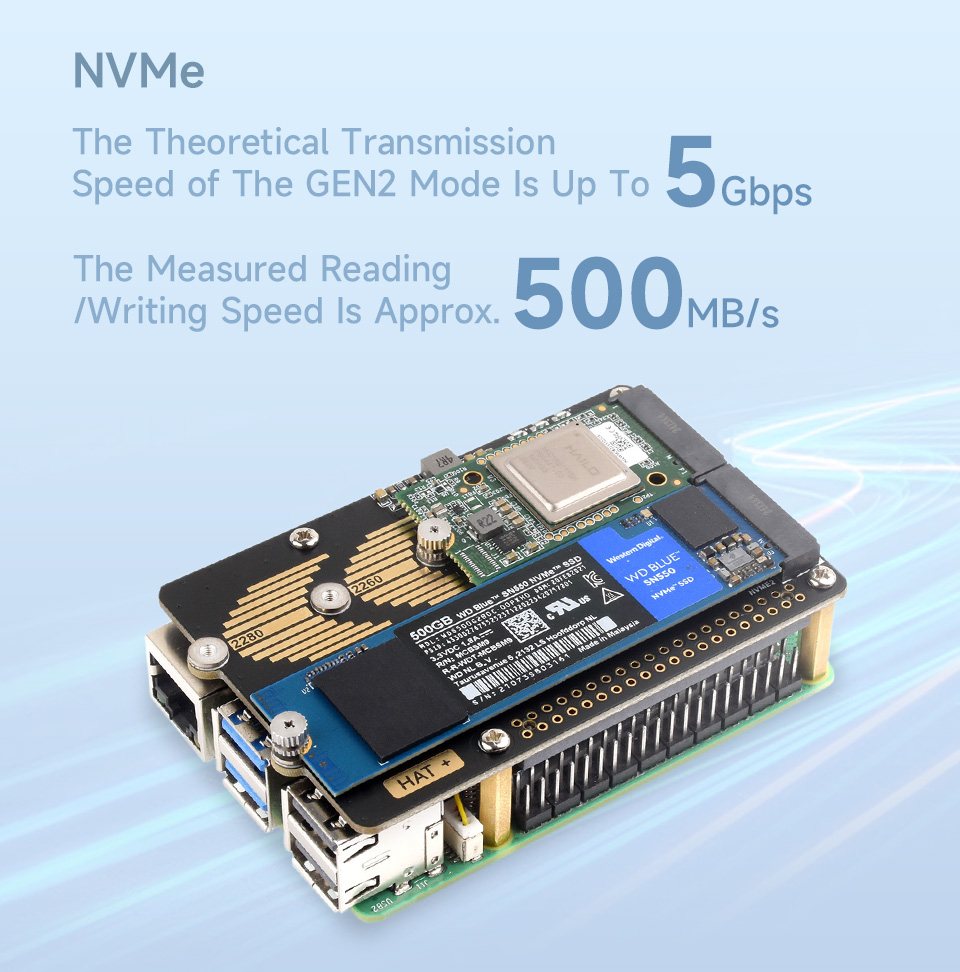

• PCIe Gen2 / Gen3 Speed Capability: Transfers data up to 8 Gbps, eliminating MicroSD card performance bottlenecks.

• Integrated Power Monitoring: Protects connected drives from voltage dips and current spikes during high-draw operations.

• 2230 / 2242 Form Factor Support: Comes with precision mounting standoffs for compact M.2 SSD modules.

Common Applications

• Network-Attached Storage (NAS) builds and local RAID backup arrays.

• Fast boot OS drive and secondary data drive for desktop-style Raspberry Pi 5 setups.

• Edge AI machine-learning nodes requiring large dataset access.

• High-volume IoT data loggers and smart home media servers.

What’s Included in the Box

• 1 × PCIe To 2-Ch M.2 HAT+ (B) Adapter Board

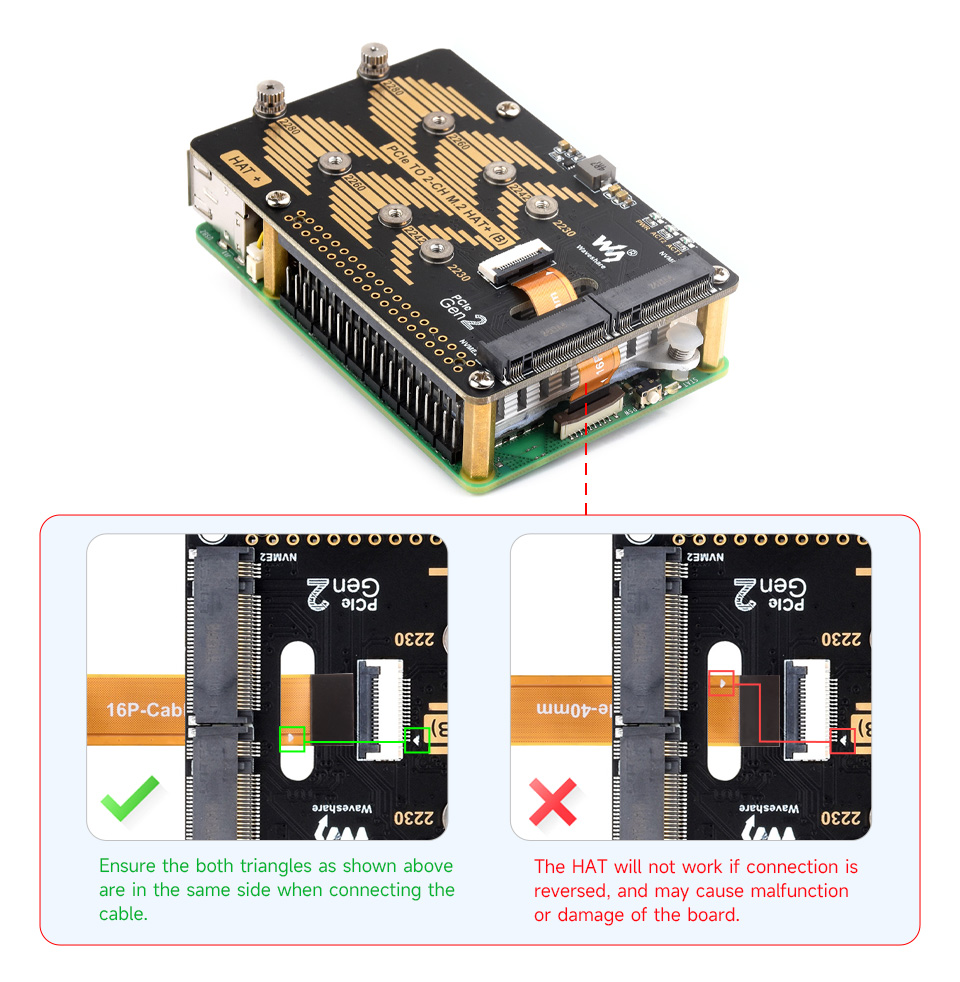

• 1 × 16-Pin FPC Cable (~40mm length)

• 1 × 2×20 GPIO Stacking Header

• 1 × Screws, Standoffs, and Copper Pillars Fixing Pack
