Description

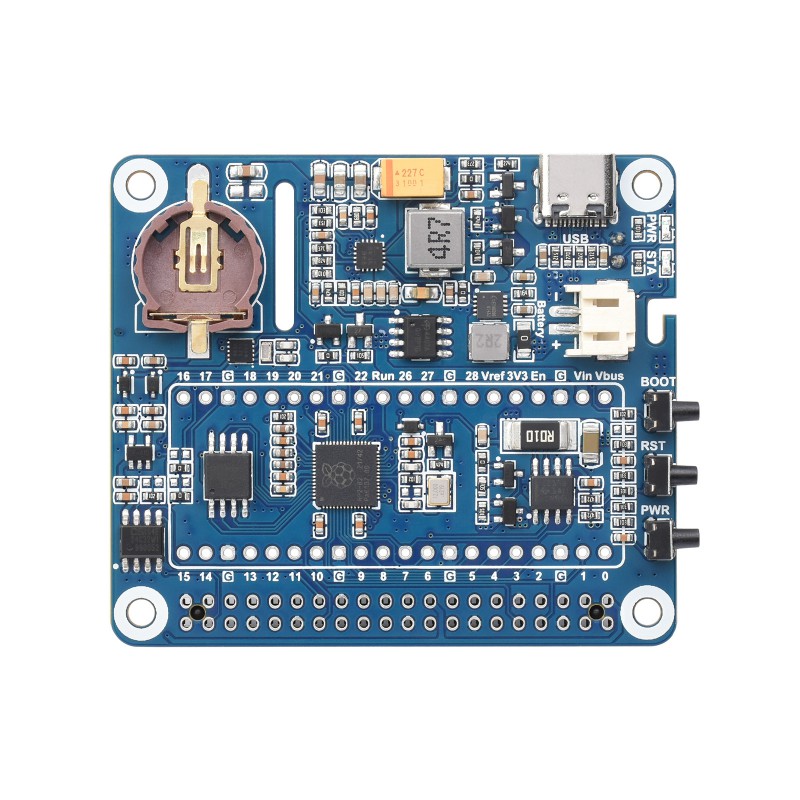

Prevent unexpected brownouts, manage remote power cycles, and implement smart battery backup with the Waveshare Power Management HAT (B). Designed for field-deployed Raspberry Pi nodes, time-lapse photography rigs, and edge computing gateways, this management board combines flexible power regulation with automated control functions

At the heart of the board sits the RP2040 dual-core ARM Cortex-M0+ microcontroller, which handles automated timing routines, software-driven safe shutdowns, and power source switching. The onboard ETA6096 high-efficiency lithium battery charger and MP28167-A buck-boost converter deliver fast load transient response, allowing seamless continuous operation while switching between USB power and connected 3.7V lithium batteries. With an integrated PCF85063 RTC chip and an INA219 current sensor, the Raspberry Pi can monitor its own operating voltage and power consumption in real time.

---

Technical Specifications

Parameter	Specification
Main Controller	Raspberry Pi RP2040 Microcontroller (Dual-Core ARM Cortex-M0+ @ 133MHz)
Supported Host Boards	Compatible with standard 40-Pin GPIO Raspberry Pi series boards

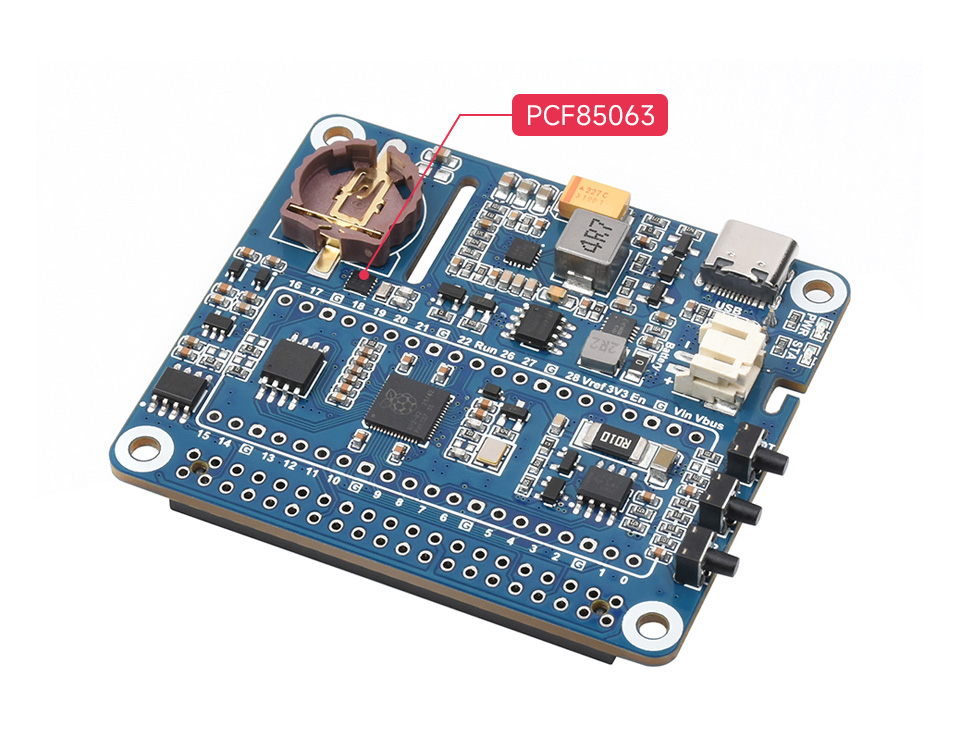

Real-Time Clock (RTC)	PCF85063 RTC chip with CR1220 coin cell backup holder
Power Management Converter	MP28167-A Buck-Boost DC Chip
Battery Charger Interface	PH2.0 2-Pin connector for 3.7V / 4.2V Lithium batteries (ETA6096 IC)
Input Power Voltage	USB Type-C (5V) / PH2.0 Battery Interface (3.3V – 4.2V)
Power & Current Monitoring	Onboard INA219 Zero-Drift Bi-directional Current/Voltage Monitor
Communication Interface	UART + GPIO (Default baud rate 115200 bps, configurable)

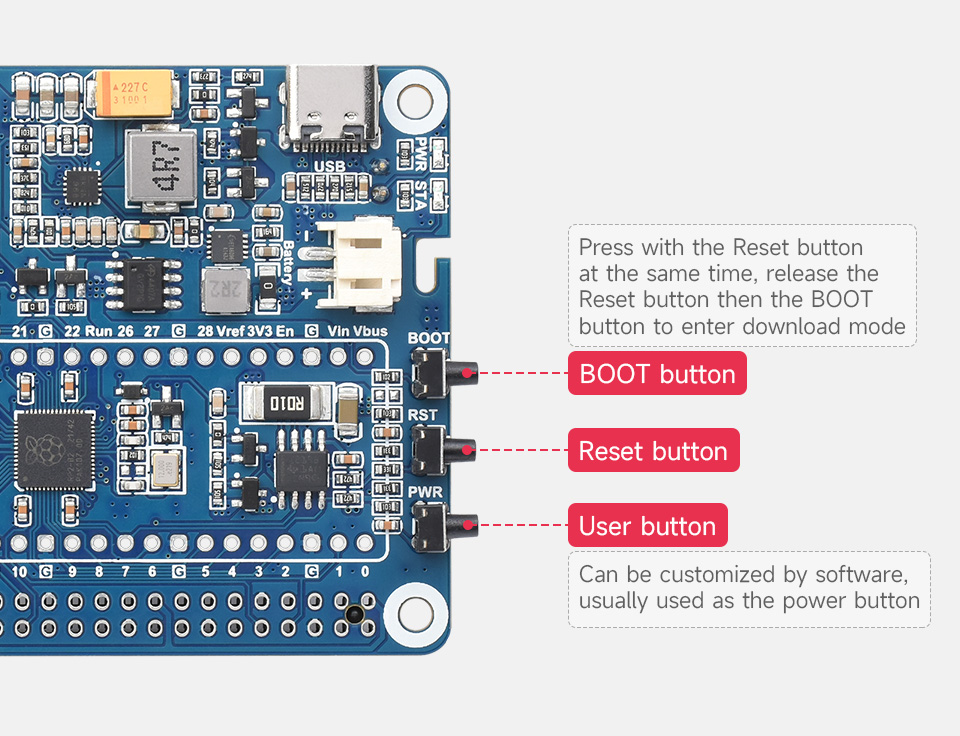

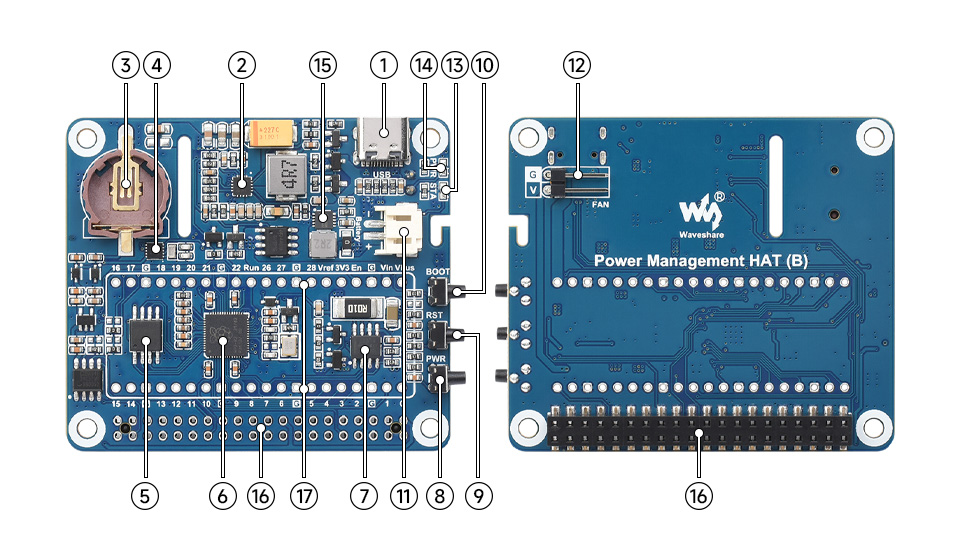

User Controls & Headers	Programmable PWR Button, RP2040 Reset & BOOT buttons, Fan Header

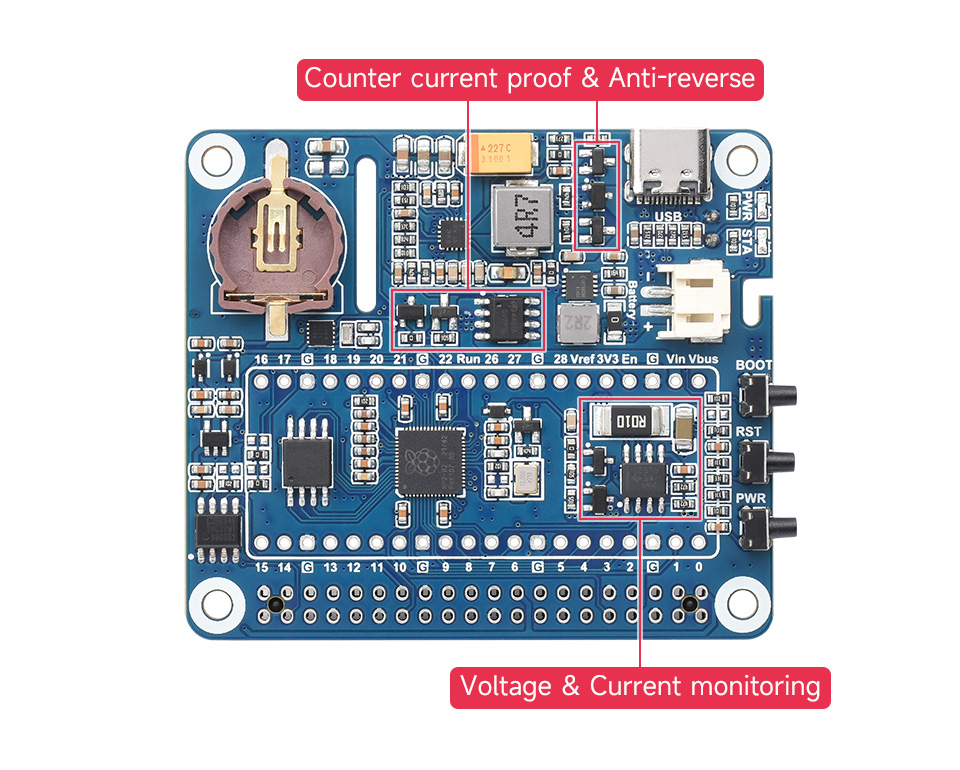

Protection Circuitry	Anti-reverse power supply connection, counter-current proofing, overcurrent surge protection

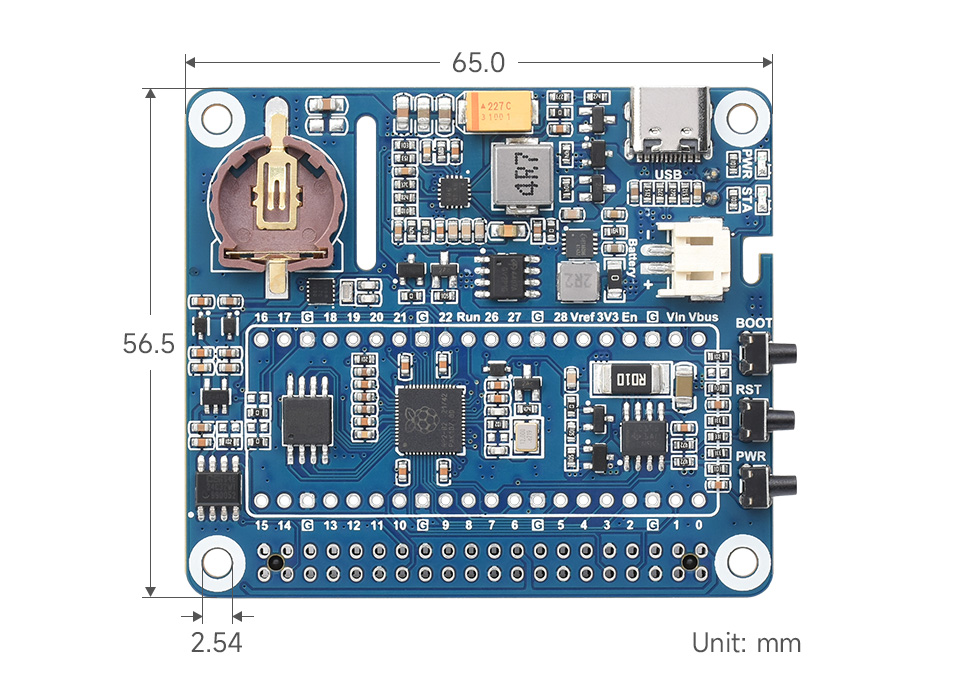

Board Dimensions	56.5 mm × 65.0 mm

---

---

Key Features & Highlights

• Automated RP2040 Smart Control: Program custom power-on/off schedules, timed sleep cycles, and low-voltage auto-shutdowns using the RP2040 MCU.

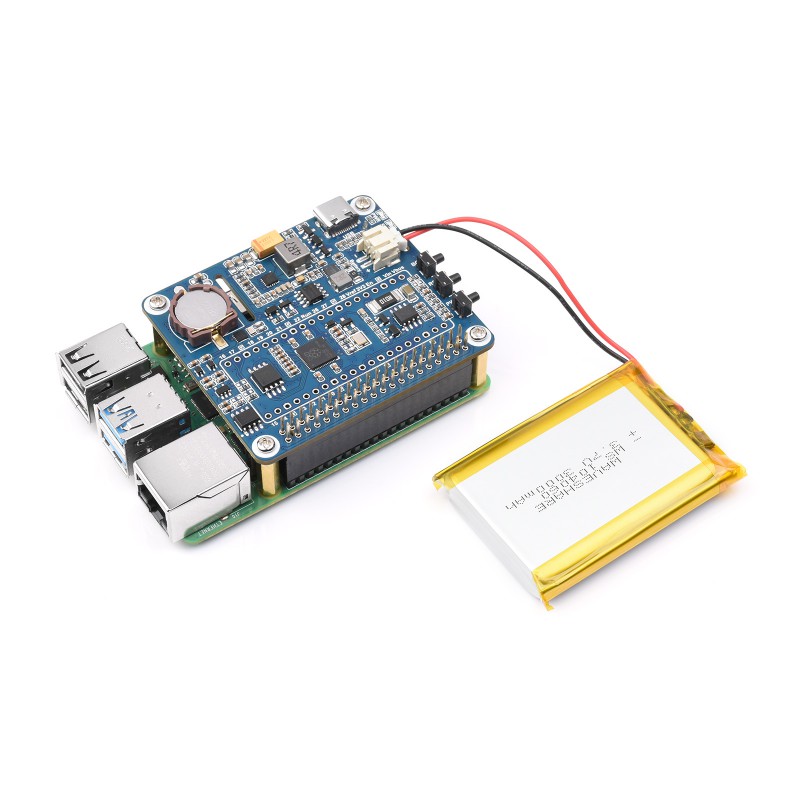

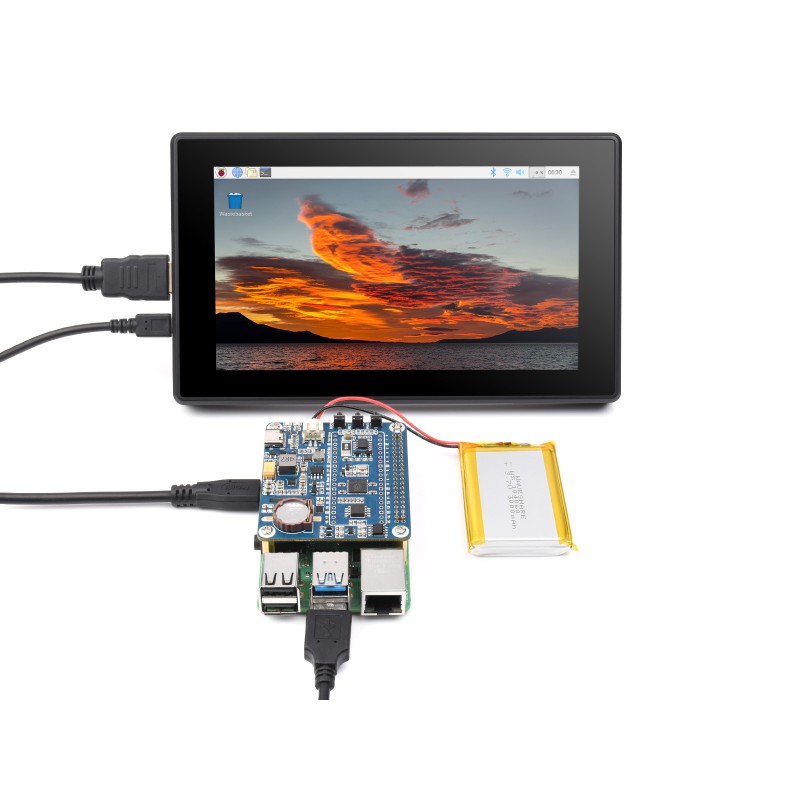

• Simultaneous Charge & Discharge: Operates as an Uninterruptible Power Supply (UPS) pipeline, powering the host Raspberry Pi while safely charging the backup lithium battery.
• Accurate Timekeeping (RTC): Maintains exact date/time sync offline, essential for time-stamping environmental data and triggering scheduled wake-up routines.
• Real-time Bus Diagnostics: Uses the INA219 sensor to transmit current and voltage measurements directly to the Pi host over I2C/UART.
• Safe Shutdown Hardware Button: Includes a multi-function power button for executing clean OS shutdowns or forced power cycles.

---

---

Common Applications

• Off-grid solar-powered sensor nodes and remote data loggers.

• Time-lapse camera setups requiring periodic system power wake-ups.

• Embedded industrial gateways needing clean, battery-backed power protection.

• Portable robotics projects requiring battery monitoring and regulated power output.

---

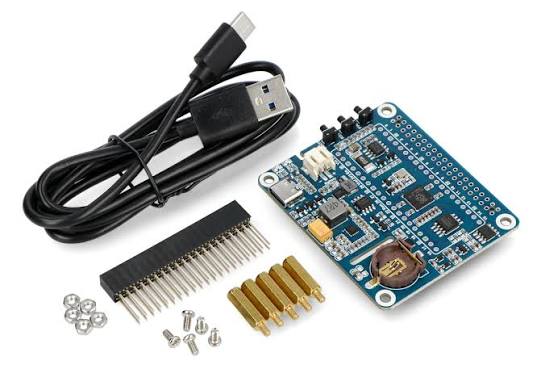

What’s Included in the Box

1 × Waveshare Power Management HAT (B) Board

1 × 2×20 Pin Female GPIO Header

1 × USB Type-A to Type-C Cable

1 × Brass Standoff & Screw Pack

---
