Waveshare SIM7600G-H M.2 4G HAT for Raspberry Pi- 21707

₹9,191

Out of stock

  • Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
  • GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station
  • USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 4G communication

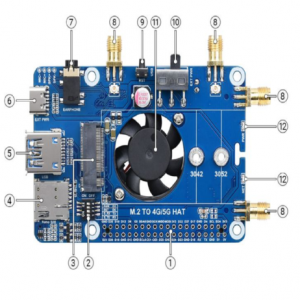

  • Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
  • Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
  • Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status

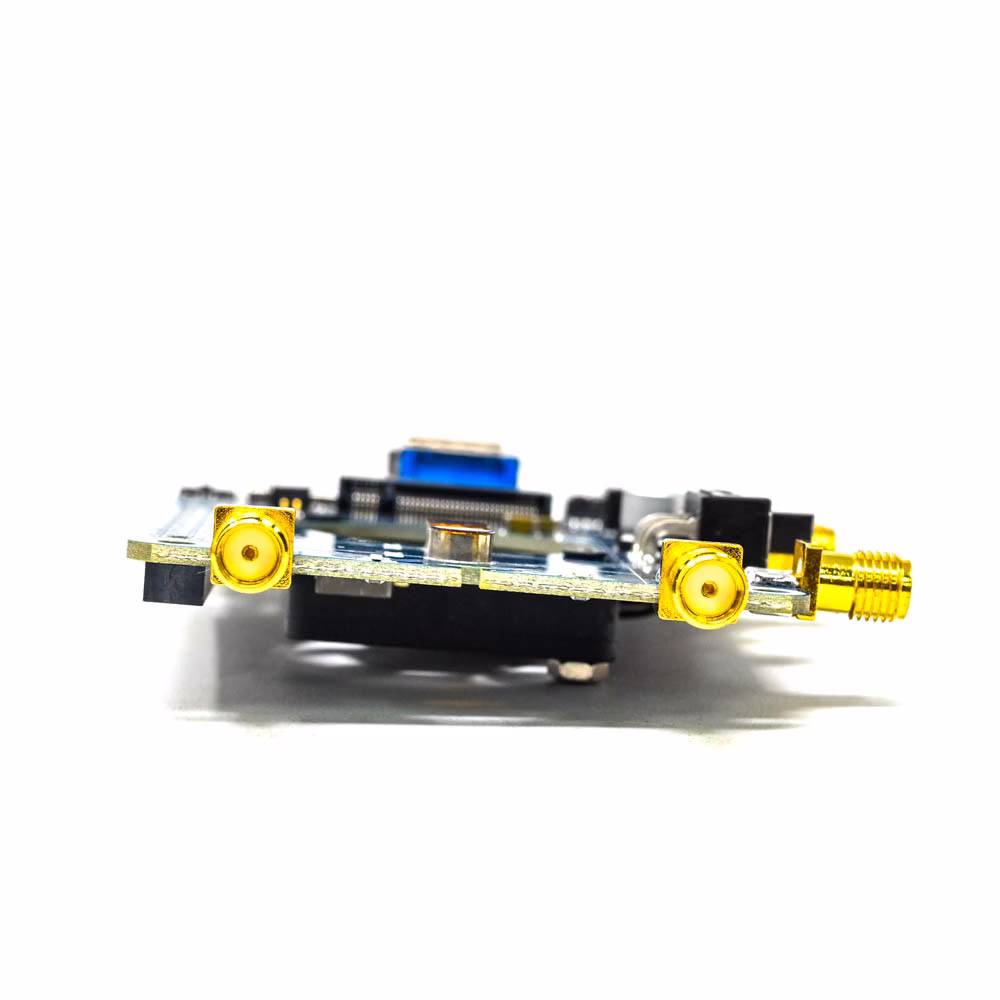

  • Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
  • Onboard audio jack and audio decoder, allows audio operation like making phone call
  • High efficiency power supply circuit, up to 3A output current
SKU: A10130 Category: Brand:

Description

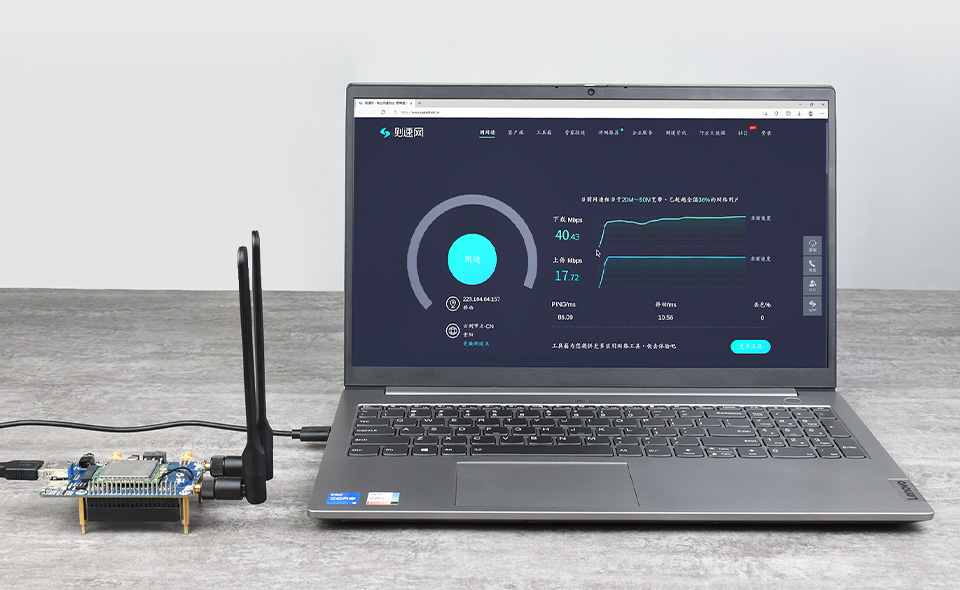

Equip your Raspberry Pi with high-speed, global cellular communication and high-precision positioning using the Waveshare SIM7600G-H M.2 4G HAT. Powered by the SIMCom SIM7600G-H M.2 LTE Cat-4 module, this HAT supports worldwide frequency bands, delivering up to 150 Mbps download and 50 Mbps upload speeds.

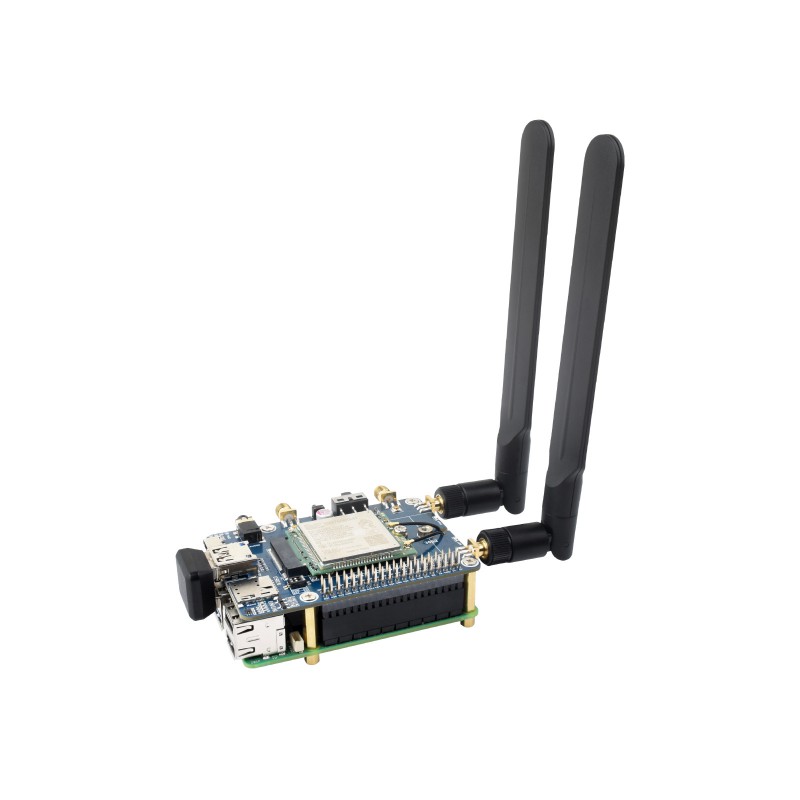

Designed as a standard Raspberry Pi 40-PIN GPIO extension header, it is fully compatible with Raspberry Pi 5, 4B, 3B+, Zero series, and Jetson Nano boards. Beyond high-speed 4G data, the SIM7600G-H HAT enables voice phone calls, SMS messaging, and multi-protocol network communication (TCP/UDP/FTP/HTTP/MQTT). Its built-in high-accuracy GNSS receiver supports major satellite positioning systems, making it the ultimate solution for fleet tracking, smart agricultural gateways, industrial IoT, and remote environmental monitoring.

Technical Specifications

Frequency band
LTE Cat-4 LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD: B34, B38, B39, B40, B41
3G UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
2G GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
GNSS
Satellite systems GPS, Beidou, GLONASS, GALILEO, QZSS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS and Audio
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature Supports echo cancellation
Supports noise reduction

Key Features & Highlights

  • Global Band LTE Cat-4 Connectivity: Supports 4G, 3G, and 2G networks worldwide with automatic band selection and high-speed data throughput.

  • Integrated GNSS Positioning: Embedded satellite positioning subsystem provides real-time location data over GPS, GLONASS, BeiDou, and GALILEO.

  • Dial-up / Network Protocols: Supports PPP, NDIS, RNDIS, ECM, MBIM dial-up modes, as well as TCP, UDP, FTP, HTTP, MQTT, and LWM2M protocols.

  • Voice Calls & SMS Support: Features an onboard audio jack and audio codec chip for telephone calls, alongside full AT command control for sending and receiving SMS.

  • Flexible Power & Control: Includes onboard USB-to-UART converter (CP2102) for serial debugging, power switches, and LED status indicators for NET, STA, and PWR.

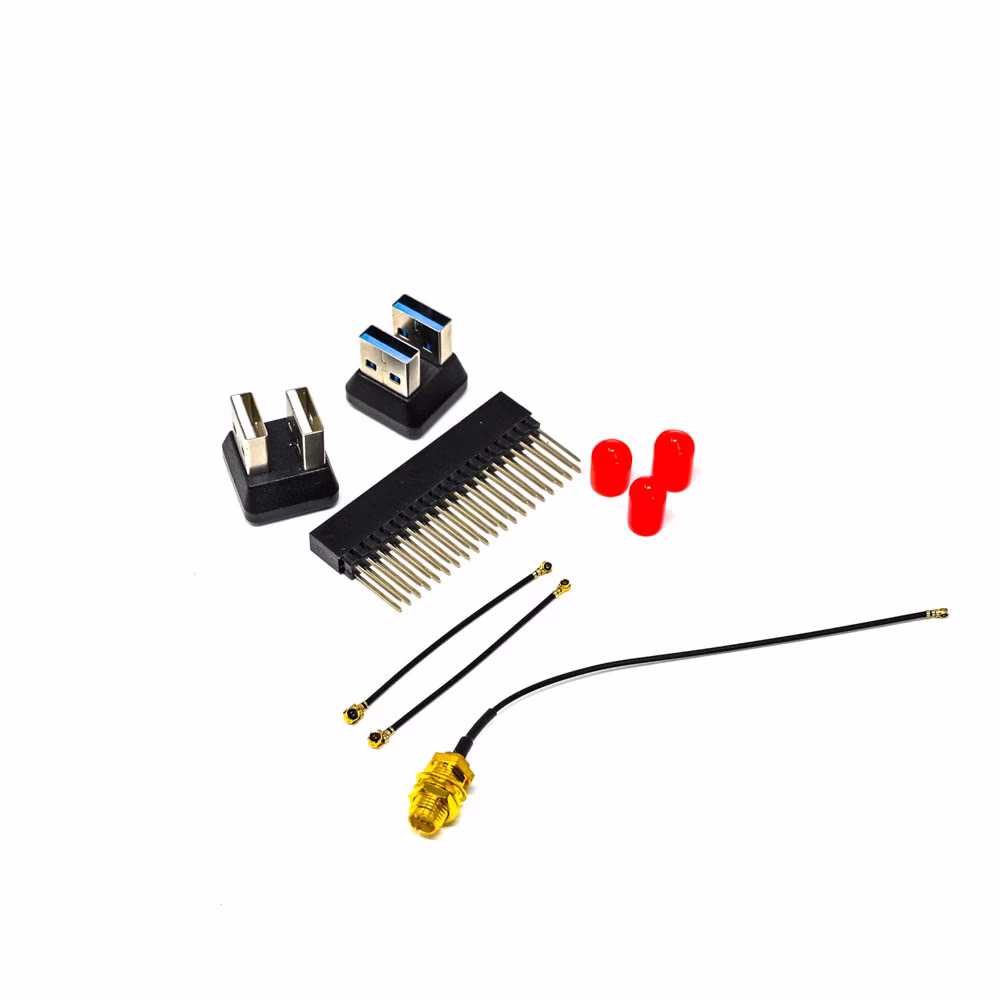

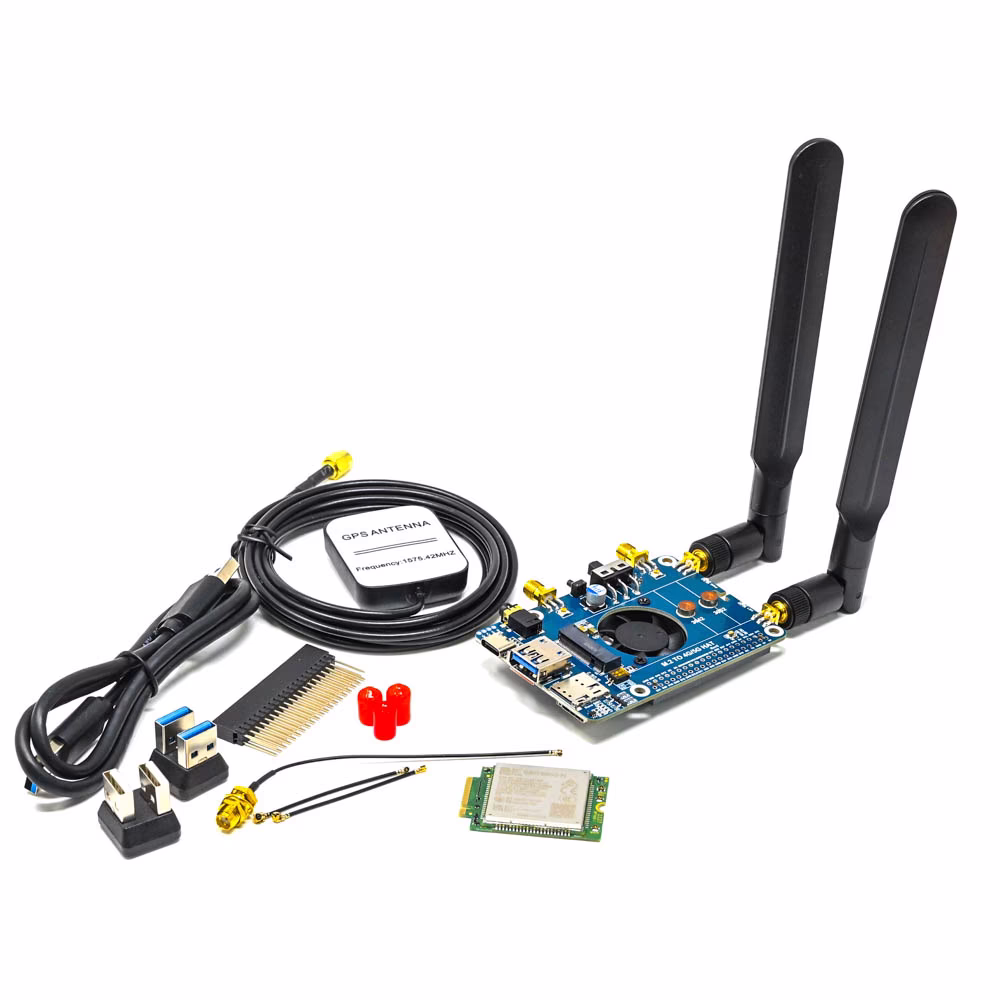

What’s Included in the Box

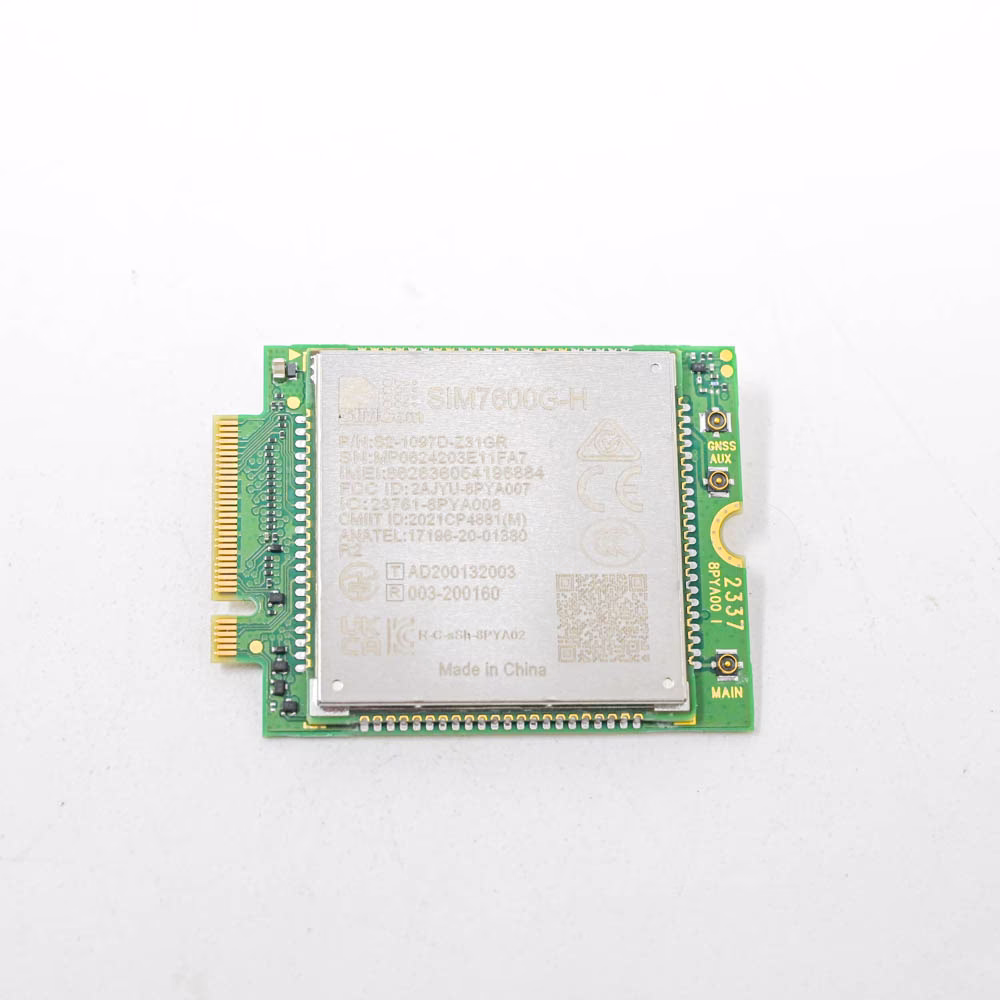

  • 1 × Waveshare SIM7600G-H M.2 Module

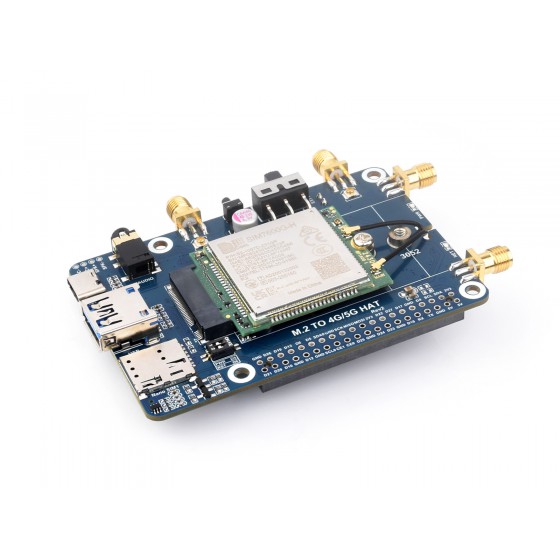

  • 1 × SIM7600G-H M.2 4G HAT Baseboard

  • 2 × LTE / 4G External Antennas

  • 1 × GPS / GNSS External Antenna

  • 2 × USB Cable (Type-A to Micro-B / Type-C)

  • 1 × RPi Screws & Standoffs Pack

  • 1 × 2×20 PIN Female Header

Why Buy From Aryabot?

  • 100% Genuine Components: Sourced directly from Waveshare to guarantee authentic, high-quality hardware for your development needs.

  • Bench-Tested Quality: Inspected for pin alignment and hardware integrity prior to dispatch.

  • GST Invoice Available: Full tax-compliant invoices provided for enterprise procurement, universities, and research labs.

  • Pan-India Express Delivery: Prompt order processing and dispatch directly from our Noida fulfillment center.

Additional information

Weight 0.05 kg
Dimensions 10 × 7 × 3 cm
