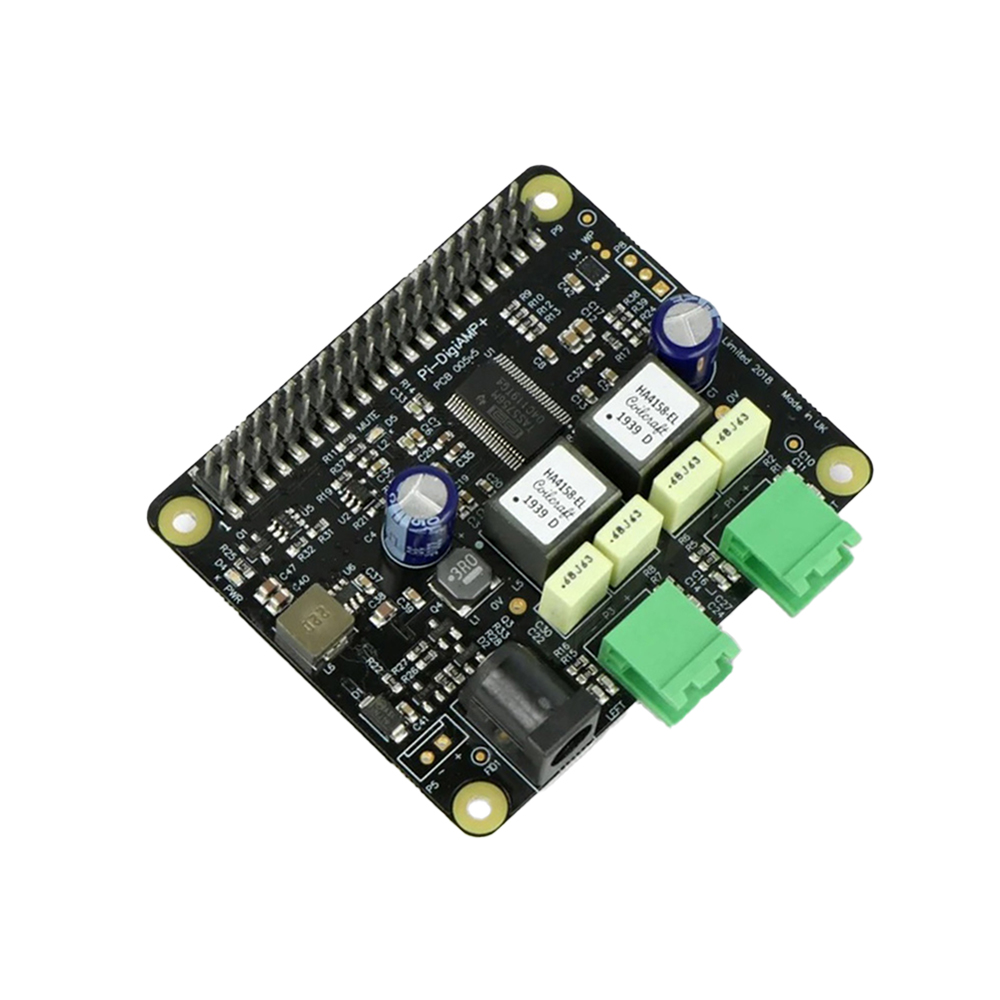

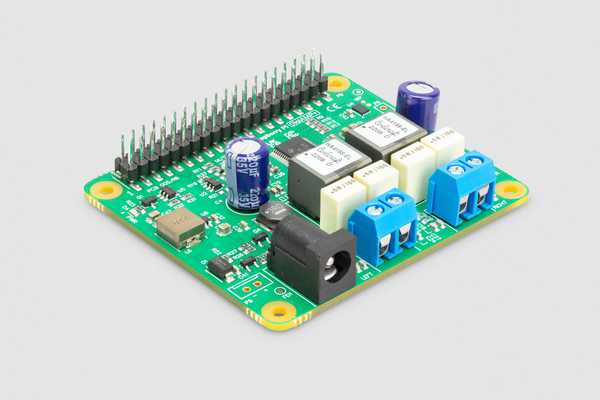

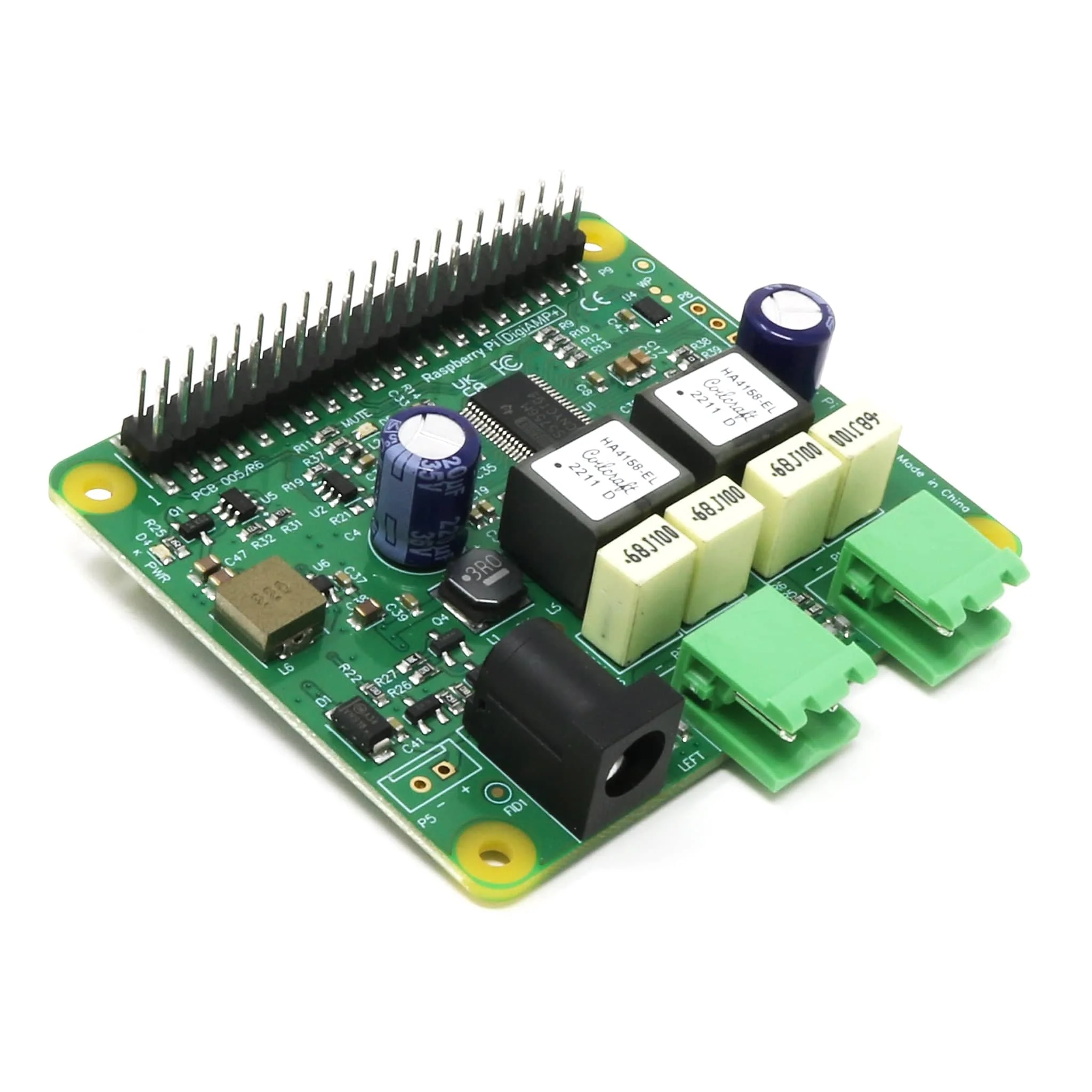

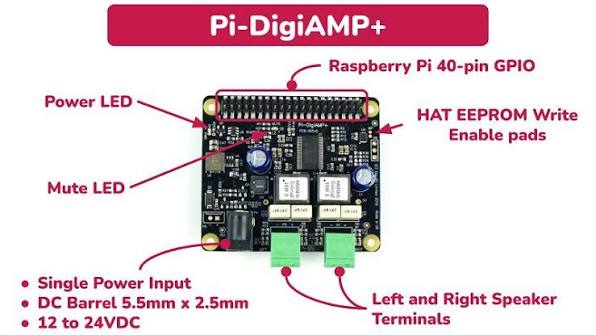

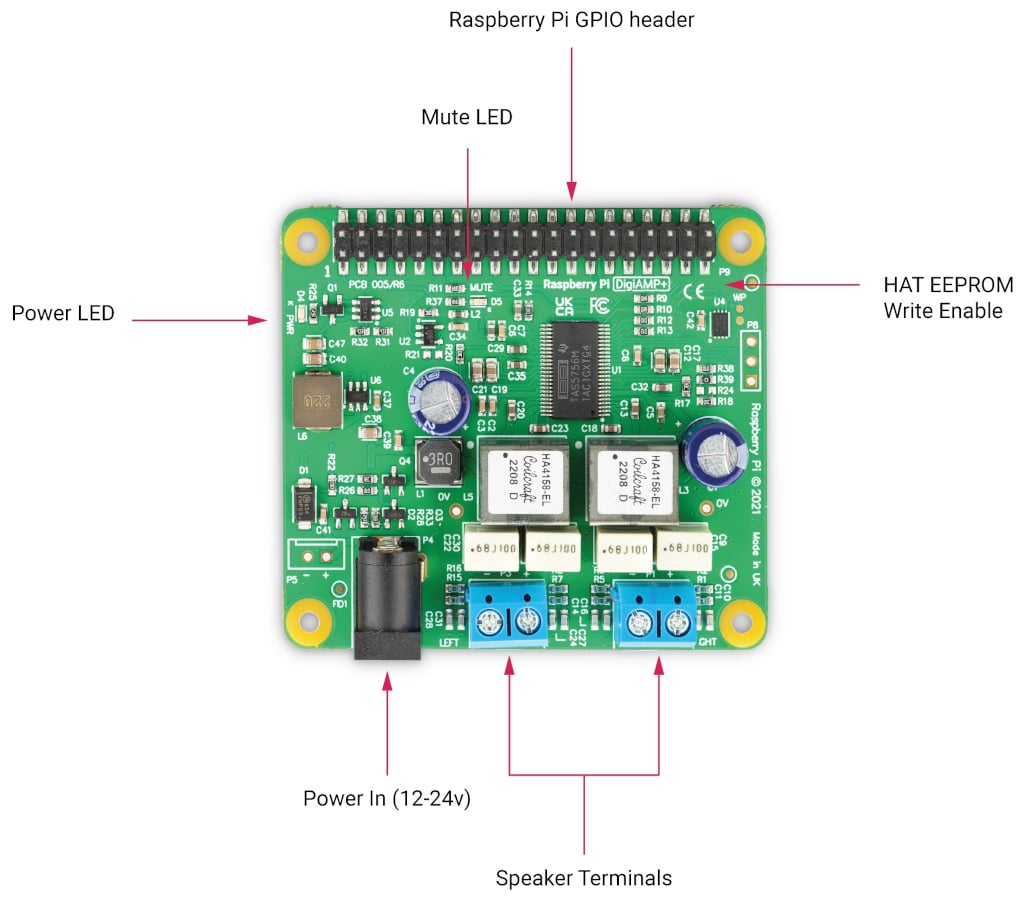

Raspberry Pi IQaudio DigAMP+ Audio HAT (SC2076)
₹2,949
Out of stock
HAT compliant accessory; EEPROM, mounting holes
Full-HD audio ?? up to 24-bit/192kHz playback
Up to 2x35w of crystal clear amplification
No soldering required to your Raspberry Pi
Sound card ?? access to gpio yes.
Description
Transform your single-board computer into an audiophile-grade media streamer, jukebox, or smart speaker system with the Raspberry Pi IQaudio DigAMP+. Designed to plug directly onto the Raspberry Pi’s 40-pin GPIO header, this high-performance audio HAT accepts uncompressed digital I2S audio streams and amplifies them into high-efficiency, crystal-clear stereo sound.
At the core of the board is the high-efficiency TI TAS5756M Digital Input Power Stage IC, supporting hardware volume control and up to 192kHz sample rates. The board includes onboard terminal block connectors for direct wiring to left and right passive speakers. Operating from an external 12V to 24V DC power input, the DigAMP+ uses an onboard switching regulator to safely deliver 5V power down to the host Raspberry Pi, simplifying wiring for clean, single-cable installations.
Technical Specifications
| Parameter | Specification |
| Product Brand / Model | Raspberry Pi Official / IQaudio DigAMP+ |
| Amplifier Chipset | Texas Instruments TAS5756M Class-D Digital Input Amplifier |
| Audio Resolution & Sampling | Up to 24-bit / 192kHz High-Resolution Audio |
| Power Output | 2 × 35W (into 4Ω speakers @ 24V DC input) | 2 × 20W (into 8Ω speakers) |
| Speaker Impedance Range | 4 Ω to 8 Ω Passive Speakers |
| Input Interface | Standard I2S Digital Audio via 40-pin Raspberry Pi GPIO Header |
| External Power Input | 12V – 24V DC via 5.5mm/2.1mm Barrel Jack or Screw Terminals |
| Host Back-Powering | Supplies 5V / 2.5A to host Raspberry Pi via GPIO header |
| Audio Output Connectors | Screw Terminal Blocks (Left +, Left -, Right +, Right -) |
| Software Compatibility | Native support in Raspbian/Raspberry Pi OS, Volumio, Moode Audio, RuneAudio, OSMC |
Key Features & Highlights
-
High-Power Class-D Output: Drives passive bookshelf, ceiling, or desktop speakers with up to 2×35W peak stereo power.
-
Direct Digital I2S Bus Integration: Bypasses noisy onboard analog circuitry for ultra-low distortion, high signal-to-noise ratio (SNR), and zero ground-loop noise.
-
Single Power Source Setup: Powering the DigAMP+ with an external 12V–24V DC supply automatically powers the attached Raspberry Pi safely.
-
Hardware Volume Control: Full software volume management integrated directly into standard Linux ALSA mixers.
-
HAT Standard Compliant: Includes EEPROM for automatic driver loading and configuration on modern Linux kernels.
Common Applications
-
Custom Volumio / Moode high-resolution multi-room audio streaming nodes.
-
Retro jukeboxes, arcade cabinets, and standalone smart speakers.
-
Commercial background music players for retail stores, cafes, and offices.
-
Smart home voice assistants with integrated high-power audio playback.
What’s Included in the Box
-
1 × Raspberry Pi IQaudio DigAMP+ Expansion Board
-
1 × Pack of Brass Standoffs, Screws, and Nuts for HAT mounting
Why Buy From Aryabot?
-
100% Genuine Hardware: Sourced through official Raspberry Pi distribution channels to ensure original component authenticity and performance.
-
Quality Assured: Bench-tested for I2S communication, power regulation, and audio output integrity prior to dispatch.
-
GST Invoice Available: Full tax-compliant invoices generated for commercial deployments, enterprise R&D, and institutional buyers.
-
Pan-India Express Delivery: Fast order processing and direct dispatch from our Noida fulfillment warehouse.
Additional information
| Weight | 0.058 kg |
|---|---|
| Dimensions | 14 × 11 × 2 cm |
