Pixhawk 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot
The Pixhawk 2.4.8 Drone Flight Controller PX4 advanced 32-bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system Bus interface (UART, I2C, SPI, CAN) Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control Provide automatic and manual mode Provide redundant power input and fault transfer function.

It Supports 8 RC channel with 4 serial port. Various user interfaces are available for programing, reviewing logs, even some apps for smartphones & tablets. It detects and configures all its peripherals automatically.

The benefits of the Pixhawk system include a Unix/Linux-like programming environment, completely new autopilot functions. Sophisticated scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes.

check out : Mini OSD Module For 2.6 APM PIX Pixhawk Flight Control Board



Processor:
32bit STM32F427 Cortex M4 core with FPU
168MHz
256KB RAM
2 MB Flash
32 bit STM32STMF100 failsafe co-processor
Sensor:
ST Micro L3GD20H 16 bit gyroscope
ST Micro LSM303D 14 bit accelerometer/magnetometer
Invensense MPU 6000 3-axis accelerometer/gyroscope
MEAS MS5611 barometer

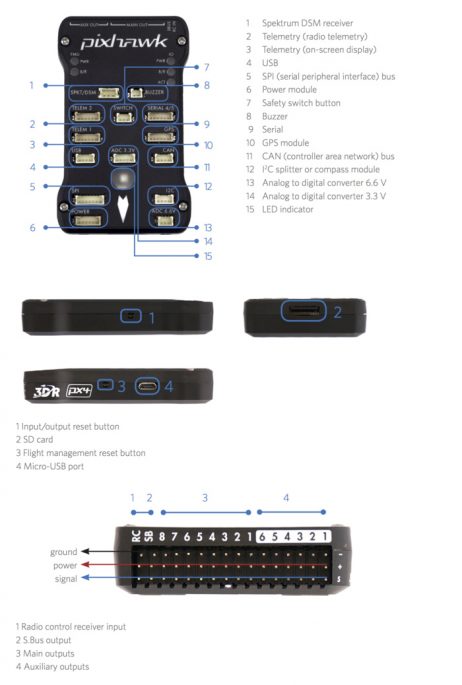

Interfaces:
5x UART (serial ports), one high-power capable, 2x with HW flow control.
2x CAN (one with an internal 3.3V transceiver, one on expansion connector).
Spektrum DSM / DSM2 / DSM-X Satellite compatible input.
Futaba S.BUS compatible input and output.
PPM sum signal input.
RSSI (PWM or voltage) input.
I2C.
SPI.
3.3 and 6.6V ADC inputs.
Internal micro USB port and external micro USB port extension.
Package Includes:
1 x Pixhawk 2.4.8 32 Bit Autopilot PX4 Drone Flight Controller.
3 x Connecting Cables.
1 x Buzzer Module.
Specifications:
Model
PIX 2.4.8 32 Bit

Input Voltage (V)
7V

Firmware
Mission Planner

Sensors
3-Axis Gyrometer, Accelerometer, High-performance Barometer, Magnetometer

Processor
32bit STM32F427 Cortex M4 core with FPU
The 32-bit STM32F103 failsafe Co-processor

Micro-SD Card Slot
Yes

Dimensions (mm) LxWxH
82 x 50 x 16

Weight (gm)
40
