Description

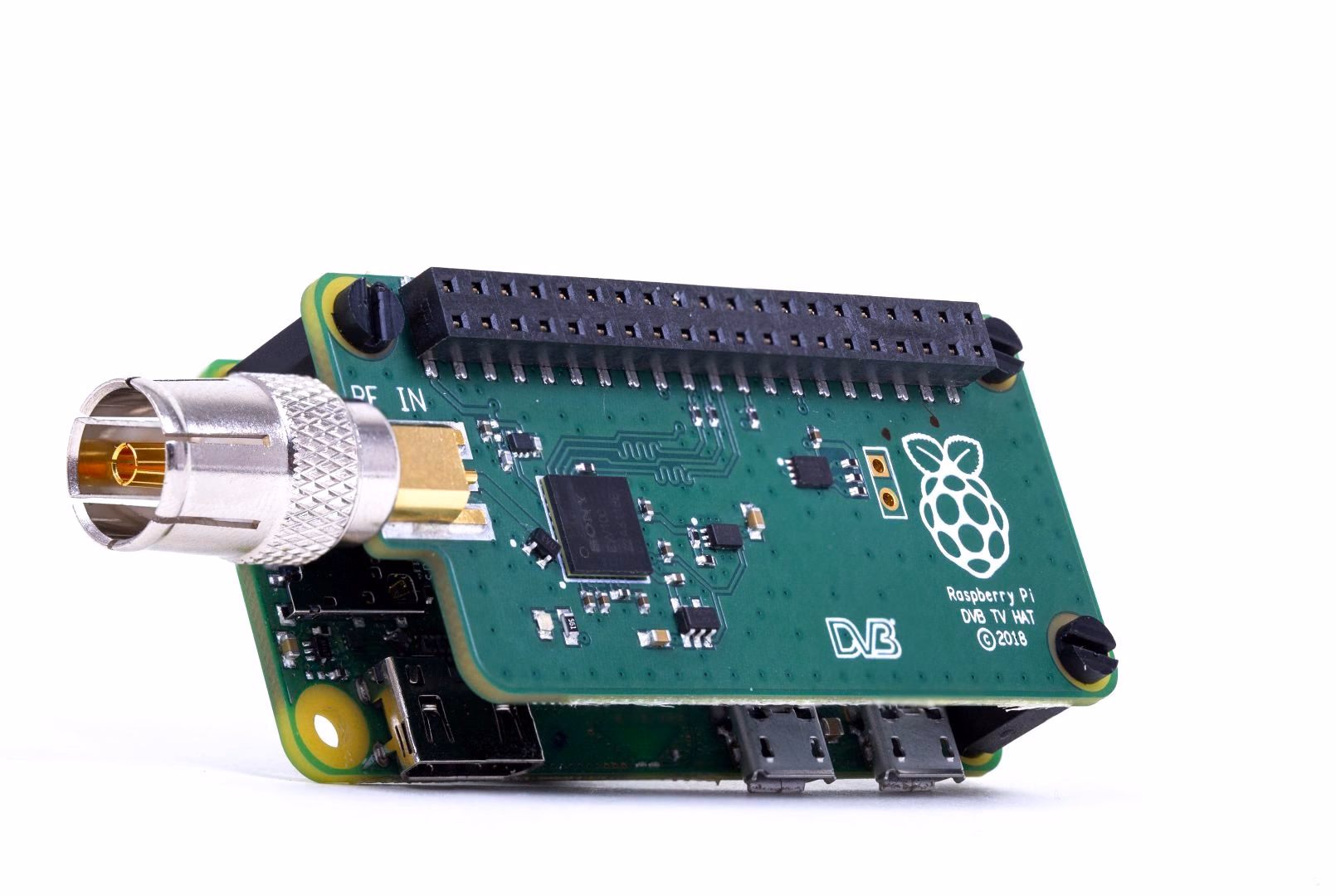

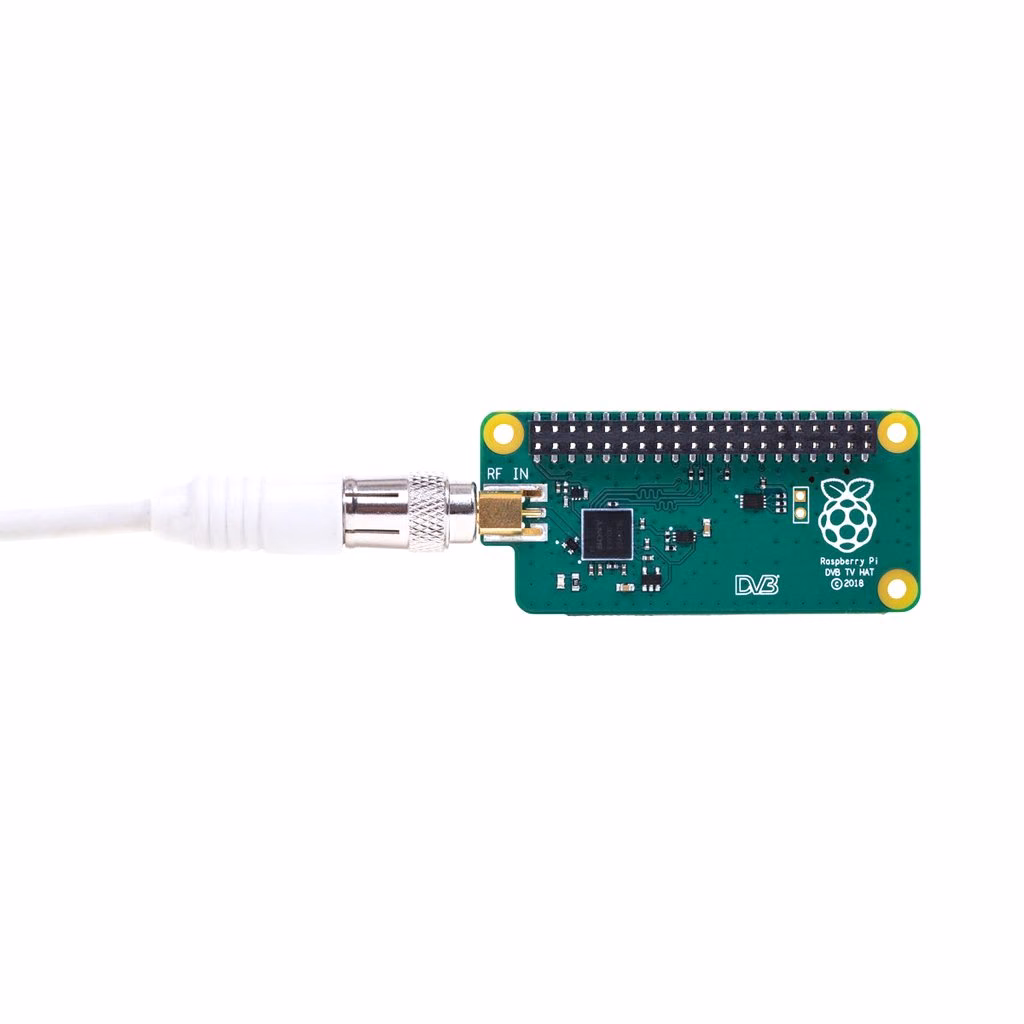

The Raspberry Pi TV HAT allows you to receive digital terrestrial TV broadcast systems which include DVB-T and DVB-T2 on a Raspberry Pi.

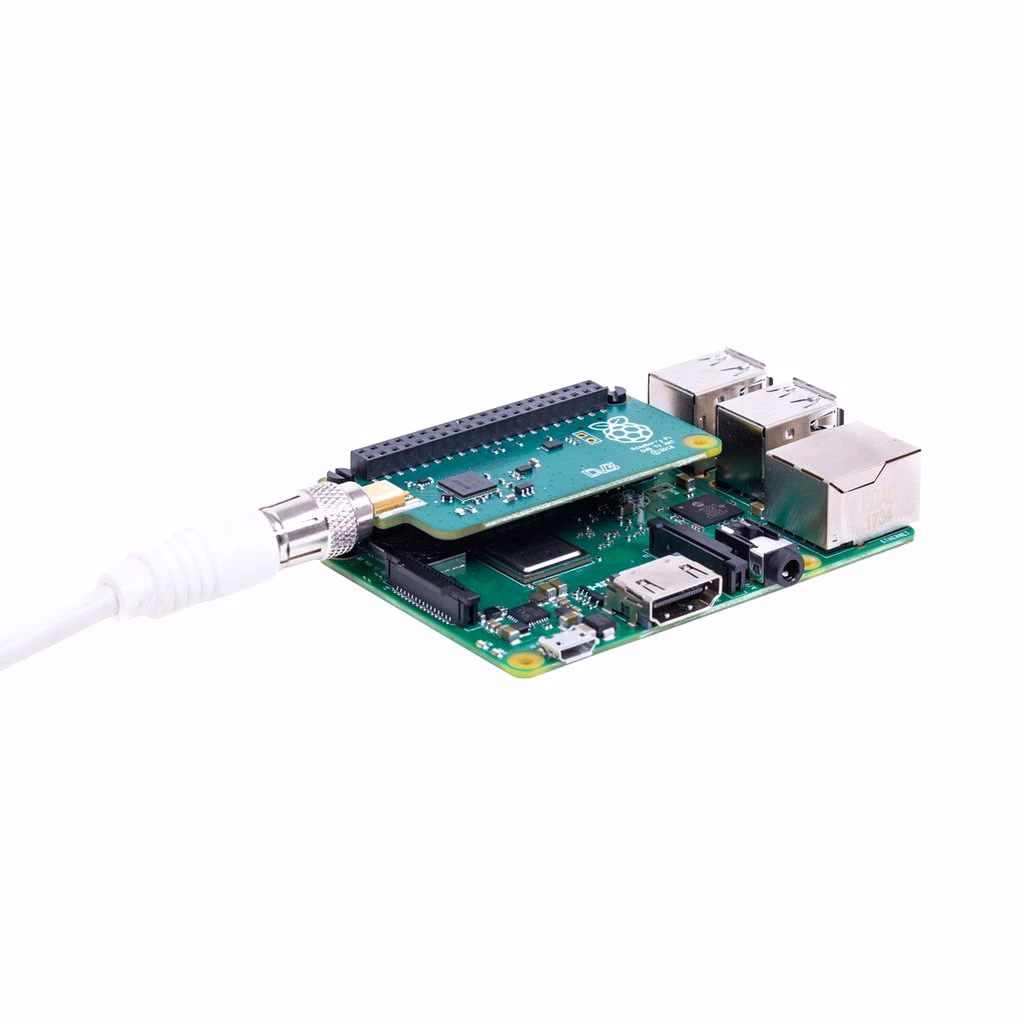

With the board, you can receive and view TV on a Raspberry Pi or create a TV server that allows you to stream received TV over a network to other devices. The TV HAT can be used on all Raspberry Pi boards when running as a backend (server for other devices on the network). Performance, when receiving and viewing TV on a Pi, can vary and it is recommended to use a Raspberry Pi 2, 3 or 3+ to do this.

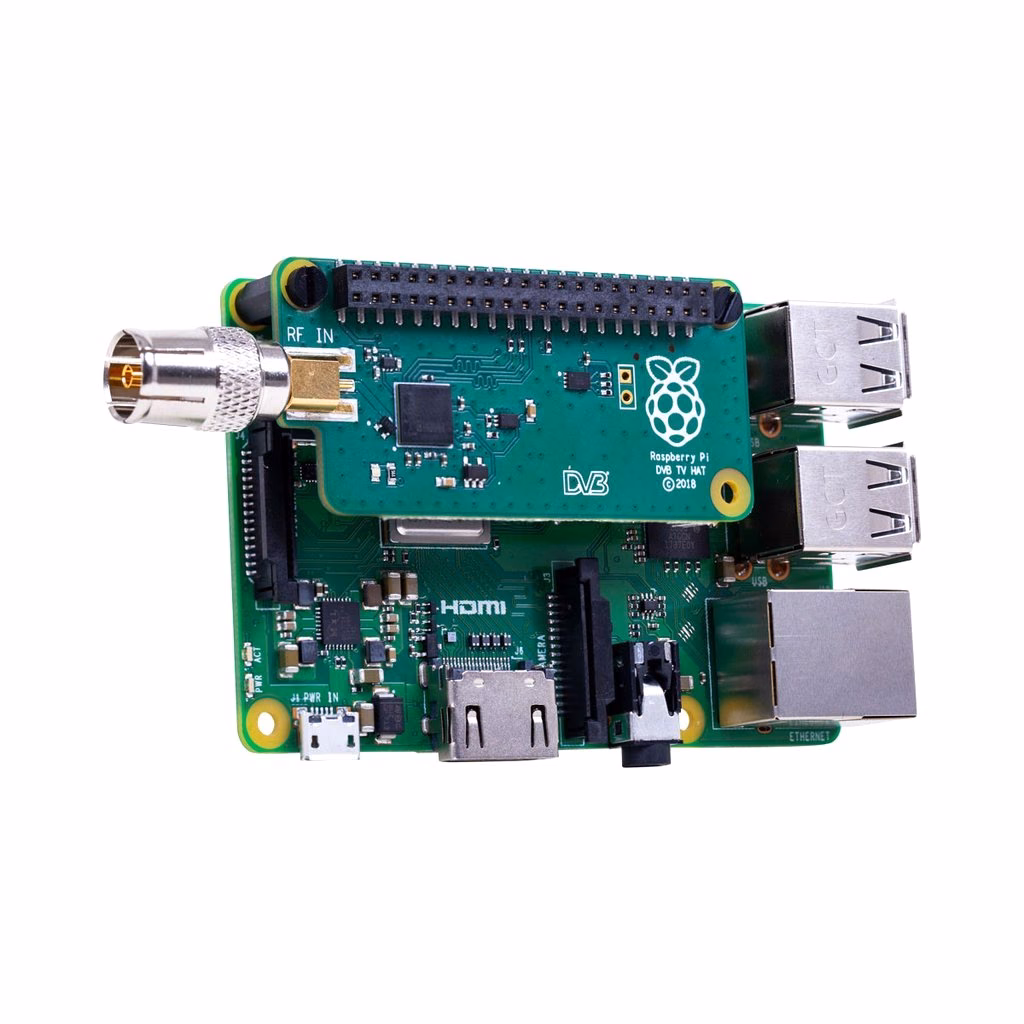

The board comes with a set of mechanical spacers, a 40-way header and an Aerial adaptor. The Raspberry Pi TV HAT is a DVB-T2 Digital TV receiver add-on for the Raspberry Pi, compatible with the  Raspberry Pi 3 Model B+  or Raspberry Pi Zero W  (and older Raspberry Pi 2 & 3 models)

The TV HAT can be used on all Raspberry Pi boards when running as a backend (server for other devices on the network), however, when receiving and viewing TV directly on a Raspberry Pi it is recommended to use a Raspberry Pi 3 Model B+  (or older Raspberry Pi Model 3) to do this.

The TV HAT features a Sony CXD2880 TV tuner supporting DVB-T and the second generation DVB-T2 TV standards.

Software:

The software we recommend for decoding TV streams and viewing content is TVHeadend. Instructions for setting guide to Getting started with the TV HAT.

Media player support

• Kodi
• OMXplayer
• LibreELEC

---

Related Links:

More detailed information on Raspberry Pi hardware

Raspberry Pi TV HAT product brief

Raspberry Pi TV HAT mechanical drawing

Download the latest version of Raspbian here.

---

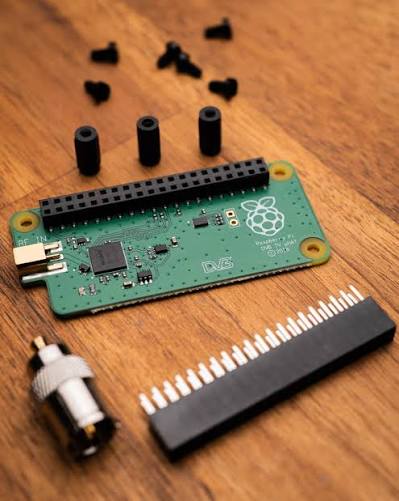

Package Includes:

1 x Raspberry Pi TV HAT
1 x Set of mechanical spacers
1 x 40-way GPIO header

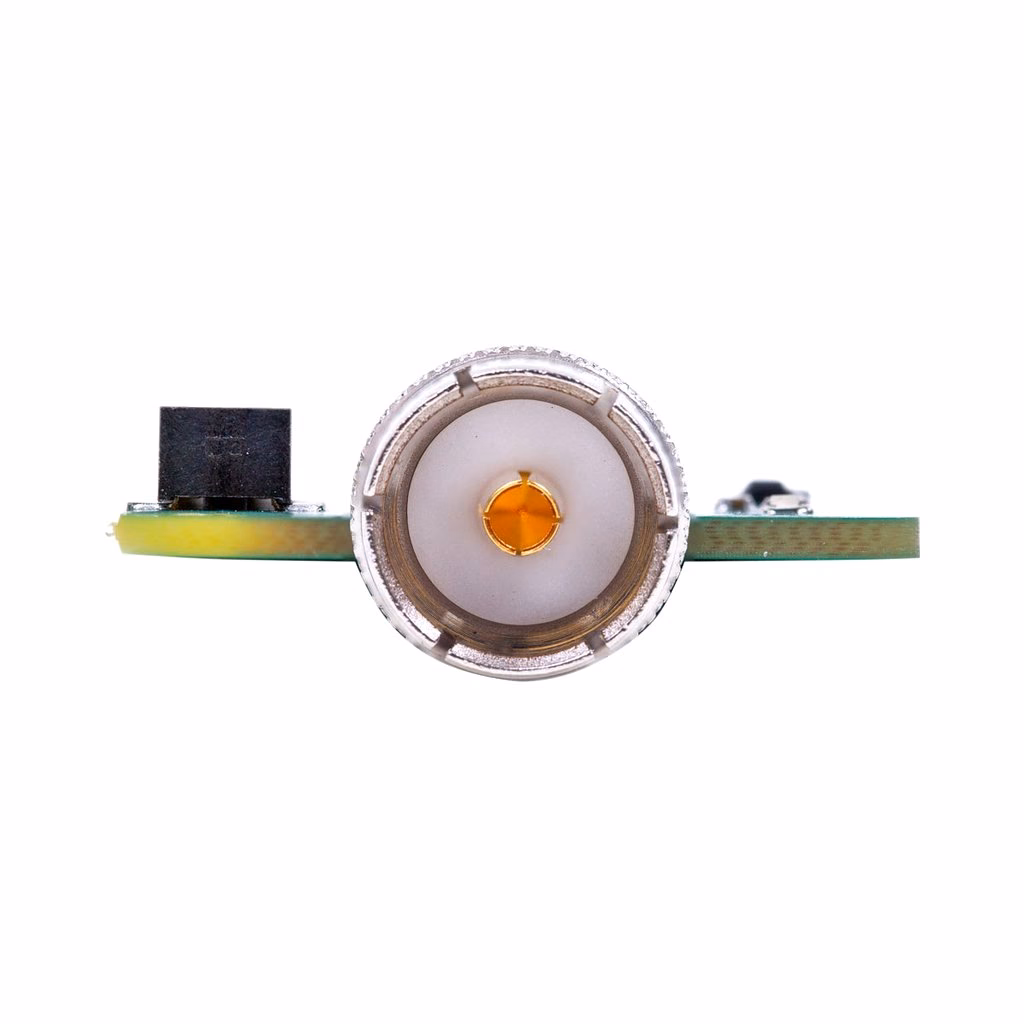

1 x Aerial adaptor.

Please Note. DVTD Antenna is not included in Package
