Description

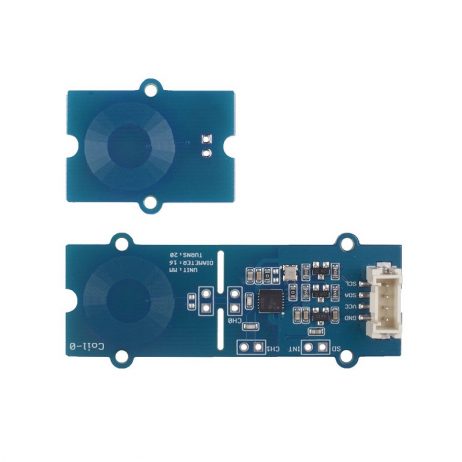

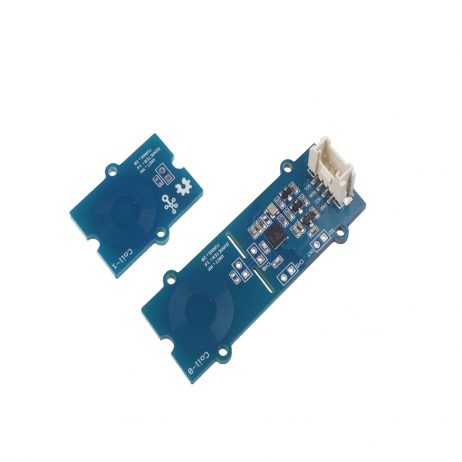

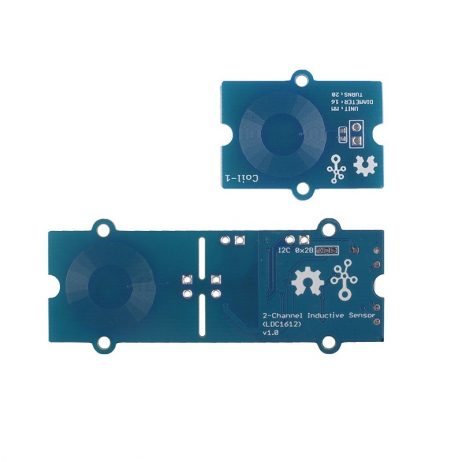

The Grove ?? 2-Channel Inductive Sensor is based on Texas Instruments(TI) LDC1612, a 28-bit inductance to digital converter(LDC) for inductive sensing solutions. With multiple channels and support for remote sensing, the LDC1612 enables the performance and reliability benefits of inductive sensing to be realized at minimal cost and power. Inductance is an effect caused by the magnetic field of a current-carrying conductor acting back on the conductor. So by sensing the inductance, this sensor can detect the proximity of conductors especially metal nearby.
Getting Started with SeeedStudio Grove 2 Channel Inductive Sensor (LDC1612)
Pinout:

?
?

Features:?

2?Channels With Matched Sensor Drive
Easy-to-Use: Minimal Configuration Required
Multiple Channels?Support Environmental and Aging Compensation
Remote Sensor Position of >20 cm Supports Operation In Harsh Environments

Application:

Knobs in consumer, appliances, and automotive
Linear and rotational encoders
Buttons in home electronics, wearables, manufacturing, and automotive
Keypads in manufacturing and appliances
Slider buttons in consumer products
Metal detection in industrial and automotive
POS and EPOS
Flowmeters in consumer and appliances

Package Includes :

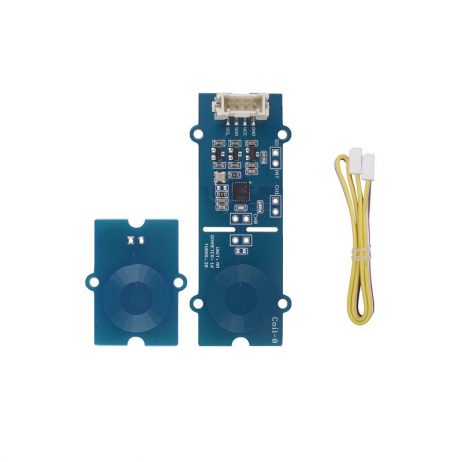

1 x SeeedStudio Grove 2 Channel Inductive Sensor (LDC1612)
