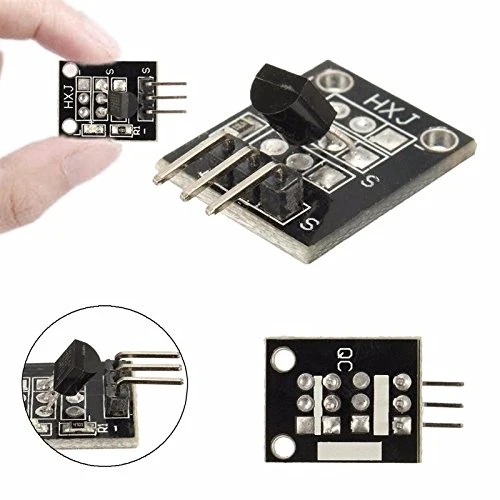

DS18B20 Digital Temperature Sensor Module
₹85
- Digital signal output
- 18B20 Temperature Sensor Chip
- Resolution adjustment ranges from 9-12 bytes.
- Send data via a pin
- Temperature measurement ranges: -55°C to +125°C, be accurate to 0.5°C.
In stock
Description

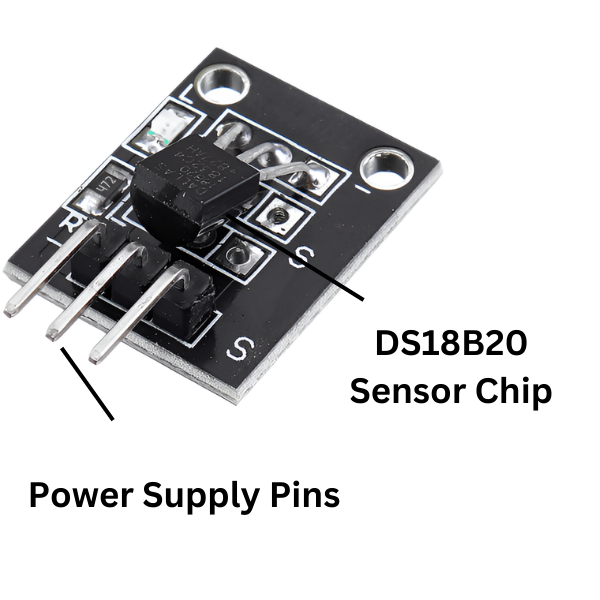

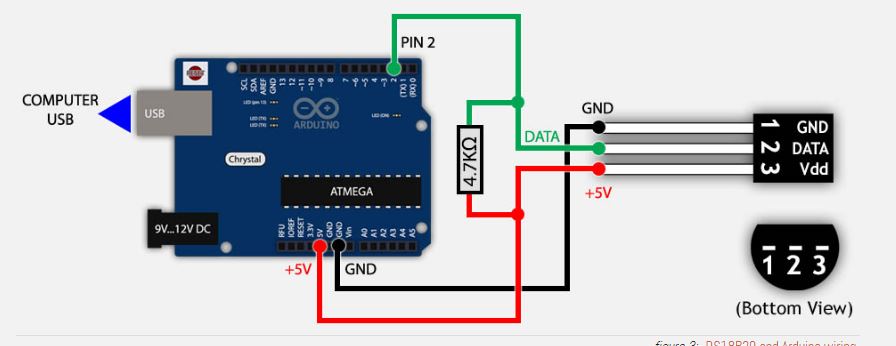

The DS18B20 Temperature Sensor Module makes integrating digital temperature measurement into your electronics projects simple and hassle-free. Unlike standalone TO-92 ICs that require manual breadboard wiring and an external pull-up resistor, this breakout module comes pre-assembled with a 4.7kΩ pull-up resistor, a power indicator LED, and standard 3-pin headers (VCC, GND, DATA).

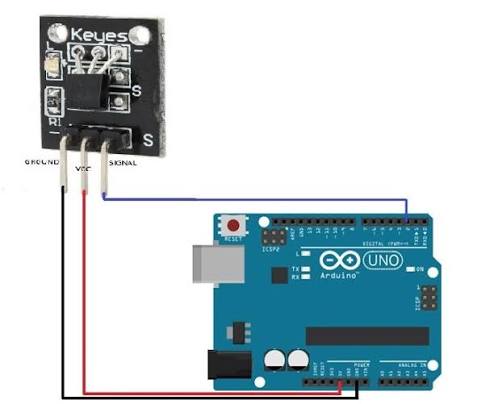

Utilizing Dallas/Maxim’s proprietary 1-Wire protocol, the module communicates with microcontrollers using only a single digital GPIO pin. It converts temperature readings directly into a digital output (9 to 12-bit configurable resolution), making it immune to analog voltage noise over signal lines.
Technical Specifications
| Parameter | Specification |
| Sensor Chip | DS18B20 Digital Temperature Sensor IC |
| Operating Voltage | 3.0V to 5.5V DC |
| Temperature Range | -55°C to +125°C (-67°F to +257°F) |
| Measurement Accuracy | ±0.5°C Accuracy (from -10°C to +85°C) |
| Configurable Resolution | 9-bit to 12-bit (0.5°C to 0.0625°C increments) |
| Communication Interface | 1-Wire Digital Bus |
| Onboard Components | 4.7kΩ Pull-Up Resistor & Power LED Indicator |

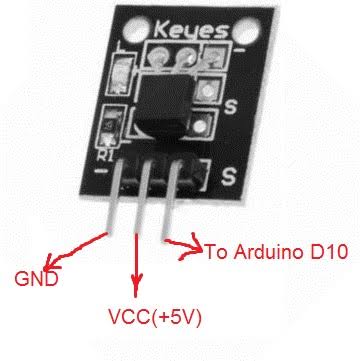

| Pinout / Header Interface | 3-Pin Header (VCC, GND, DAT / OUT) |
| Board Dimensions | 21 mm × 15 mm |
Key Features & Highlights
-
Plug-and-Play Breakout: Built-in 4.7kΩ pull-up resistor eliminates extra components when wiring to microcontrollers.
-
1-Wire Serial Interface: Requires only one digital I/O pin for data communication, saving precious microcontroller pins.
-
Multi-Point Distributed Sensing: Multiple DS18B20 modules can share a single 1-Wire bus line using unique built-in 64-bit ROM addresses.
-
Onboard Power LED: Provides instant visual status that the module is powered correctly.
-
Wide Operating Voltage (3.0V–5.5V): Native compatibility with 3.3V boards (ESP8266/ESP32, Raspberry Pi) and 5V boards (Arduino Uno/Nano/Mega).
Common Applications
-
Environmental monitoring stations and smart home thermostats.
-
HVAC duct temperature logging and thermal management systems.
-
Cold-chain storage monitoring and refrigerator alarms.
-
STEM education, physics lab experiments, and IoT weather nodes.
What’s Included in the Box
-
1 × DS18B20 Digital Temperature Sensor Module Board
Why Buy From Aryabot?
-
100% Quality Hardware: Sourced through trusted suppliers to ensure proper component soldering and stable 1-Wire bus performance.
-
Tested & Benchmarked: Quality-checked for pin continuity, thermal response, and LED power indication before dispatch.
-
GST Invoice Provided: Tax-compliant B2B invoices generated for commercial projects, research institutions, and startups.
-
Pan-India Express Dispatch: Fast processing and reliable delivery direct from our Noida fulfillment hub.
