PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor

₹429

In stock

  • (GST Bill) Enter your GST number at checkout
  • Free shipping on eligible prepaid orders
  • Secure payments via Razorpay and Paytm
  • Dispatch in 24 Hours from Noida warehouse!
  1. Power supply voltage: DC5 ± 2V
  2. Sensitivity: 0.5V / (0.1mg / m3)
  3. The minimum detection level of particles: 0.8 m
  4. Clean air voltage: 0.9V typ.
  5. Low consumption current (Icc: MAX. 20 mA)
  6. The presence of dust can be detected by the photometry of only one pulse
  7. Enable to distinguish smoke from house dust
SKU: SE1456 Category:

Description

The GP2Y1010AU0F PM2.5 Optical Dust Sensor is a tiny, highly sensitive air quality monitoring module designed to detect airborne dust, pollen, allergen particles, and smoke in real time. Built around a diagonal optical chamber containing an Infrared LED and a Phototransistor detector, the sensor utilizes light scattering to convert particulate matter concentration into an analog voltage output.

When fine particles pass through the central air passage hole, the IR light scatters toward the phototransistor photodetector. The resulting signal pulse height corresponds directly to the particulate concentration. Due to its capability to distinguish fine smoke particles from coarse house dust, this sensor is widely used in commercial air purifiers, HVAC filtration controllers, and smart indoor environmental safety nodes.

Technical Specifications

Parameter Specification
Sensor Model / Type Sharp GP2Y1010AU0F Optical Dust Sensor
Operating Voltage 4.5V to 5.5V DC (5.0V Typical)
Operating Current 11 mA Typical (20 mA Maximum)
Detection Principle Infrared Light Scattering (150° angle phototransistor)
Detectable Particle Types PM2.5, House Dust, Cigarette Smoke, Pollen
Dust Density Range Up to 500 µg/m³ (0.5 mg/m³)
Sensor Sensitivity 0.5 V per 100 µg/m³
Output Type Analog Voltage Signal (Proportional to particle density)
Operating Temperature -10°C to +65°C
Module Dimensions 46 mm × 30 mm × 17.6 mm

Key Features & Highlights

  • High Sensitivity to PM2.5: Effectively detects micro-particles, fine house dust, and cigarette smoke for accurate air quality index (AQI) calculations.

  • Low Current Consumption: Draws only ~11mA in typical operation, making it suitable for continuous indoor air monitoring nodes.

  • Proportional Analog Output: Converts particulate density into a clear 0V to ~3.5V analog output curve for straightforward microcontroller ADC reading.

  • Built-in Optical Chamber: Sealed internal chamber minimizes ambient external light interference for consistent readings.

  • Distinguishes Smoke vs. Dust: Responds effectively to light-scattering pulse signatures created by fine smoke vs. larger dust grains.

Common Applications

  • Smart home air purifiers, automated air refreshers, and HVAC system monitoring.

  • Environmental IoT weather nodes and indoor Air Quality Index (AQI) monitors.

  • Fire/smoke hazard warning triggers and lab particle density detectors.

  • Educational STEM experiments and robotics air filtration projects.

What’s Included in the Box

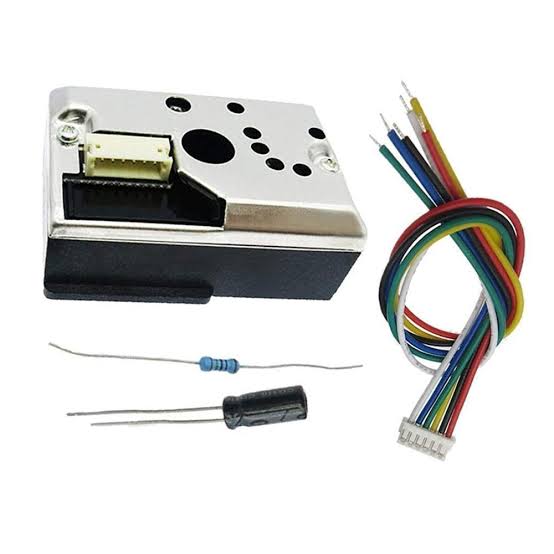

  • 1 × GP2Y1010AU0F Optical Dust Sensor Module

  • 1 × 6-Pin Connecting Wire Cable Harness (1.5mm pitch)

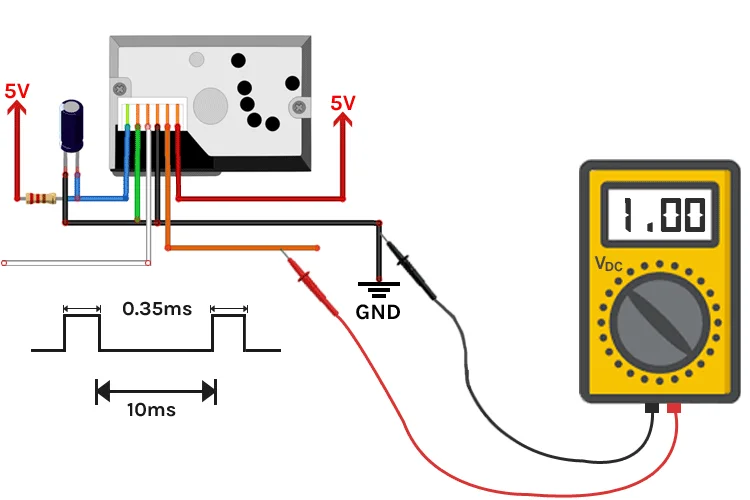

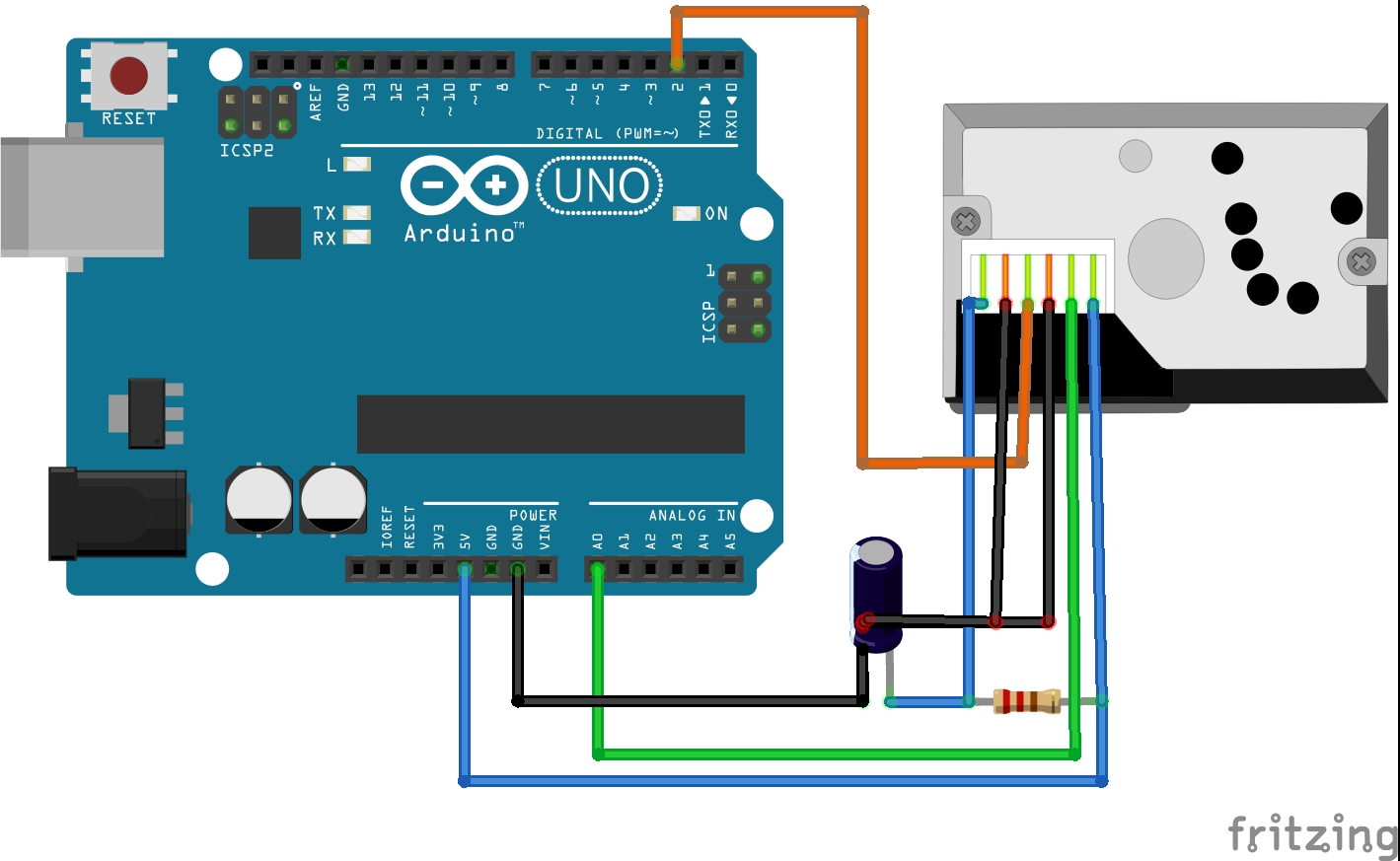

  • 1 × 150Ω Resistor & 220µF Capacitor (Required for IR LED pulse drive circuit)

Why Buy From Aryabot?

  • 100% Quality Hardware: Sourced through verified supply partners to ensure accurate phototransistor calibration and optical alignment.

  • Tested & Benchmarked: Quality-checked for pin continuity, IR LED pulse response, and analog output scaling prior to dispatch.

  • GST Invoice Provided: Tax-compliant B2B invoices generated for commercial projects, institutional research labs, and academic orders.

  • Pan-India Express Dispatch: Fast order processing and direct shipping from our Noida distribution warehouse.
