Description

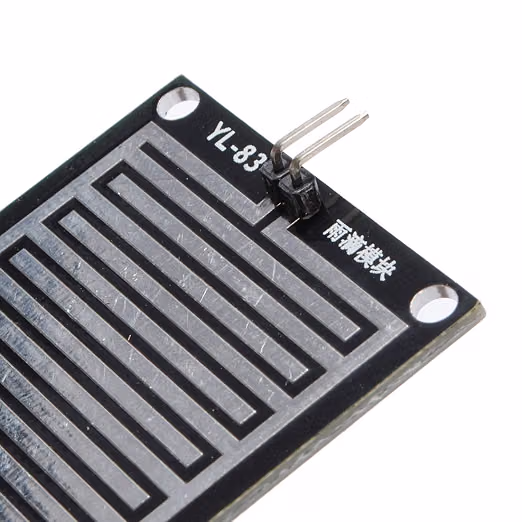

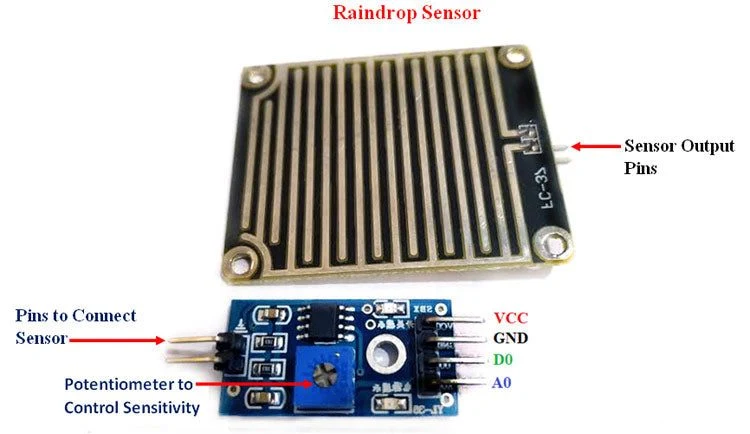

The Raindrops Detection Sensor Module is an easy-to-use weather detection tool designed to detect water droplets, rain intensity, and moisture accumulation. The kit consists of two distinct components: a large rain sensing board that collects droplets and a separate LM393 control board that processes the signals.

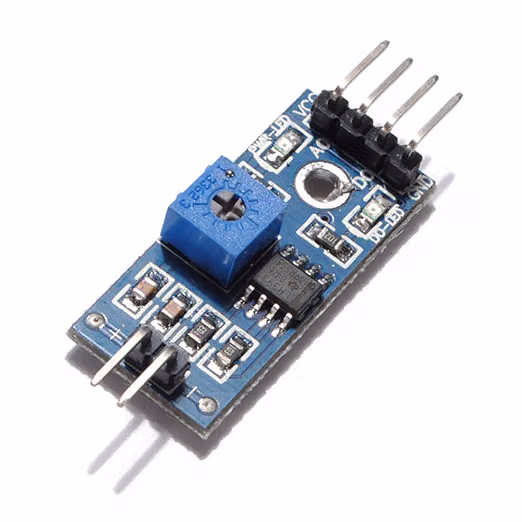

When rain falls onto the sensing board, the electrical conductivity increases, reducing resistance between the traces. The onboard LM393 high-precision comparator converts this resistance shift into a clean Digital Output (HIGH/LOW) via an adjustable potentiometer for threshold detection. Additionally, it provides a real-time Analog Output corresponding to the exact amount of water covering the board surface, allowing microcontrollers to measure rain severity.

Technical Specifications

Key Features & Highlights

• Dual Signal Output: Delivers both digital trigger signals for simple ON/OFF automation and analog voltage outputs for measuring rain density.

• Anti-Oxidation Sensing Plate: Advanced nickel-plating process prevents surface oxidation, corrosion, and wear caused by outdoor exposure.

• Adjustable Sensitivity: Features an onboard potentiometer to adjust the moisture threshold required to trigger the digital output.

• Wide Voltage Compatibility: Works natively with 3.3V microcontrollers (ESP32, Raspberry Pi) and 5V microcontrollers (Arduino Uno, Mega, Nano).

• Pre-Drilled Mounting Holes: Sensing board and control module include pre-drilled holes for easy mechanical installation on outdoor mounting brackets.

Common Applications

• Automatic rain-sensing car windshield wiper systems.

• Smart home automation for automatically closing motorized windows, skylights, and clothes drying racks during rain.

• Smart agriculture and automated greenhouse irrigation shutdown systems.

• Outdoor IoT weather stations and rainfall logging nodes.

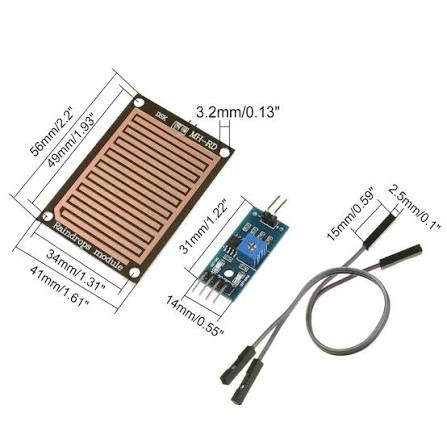

What’s Included in the Box

• 1 × Raindrop Sensing Board

• 1 × LM393 Control Module Board

• 1 × 2-Pin Connecting Cable (Connecting Sensing Board to Control Board)
