Description

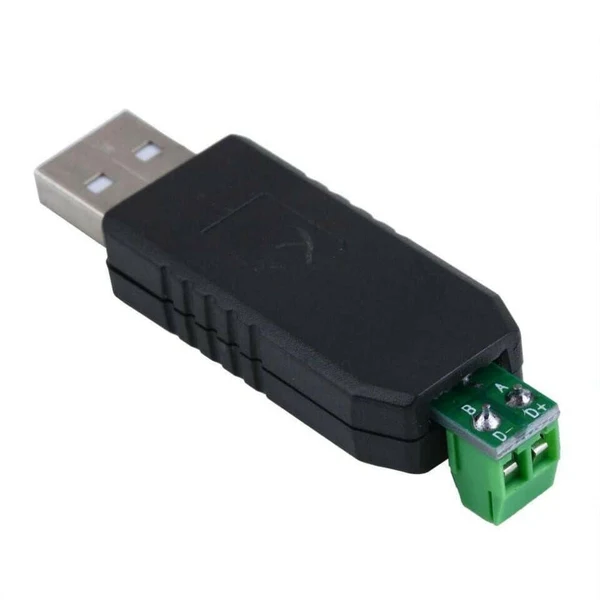

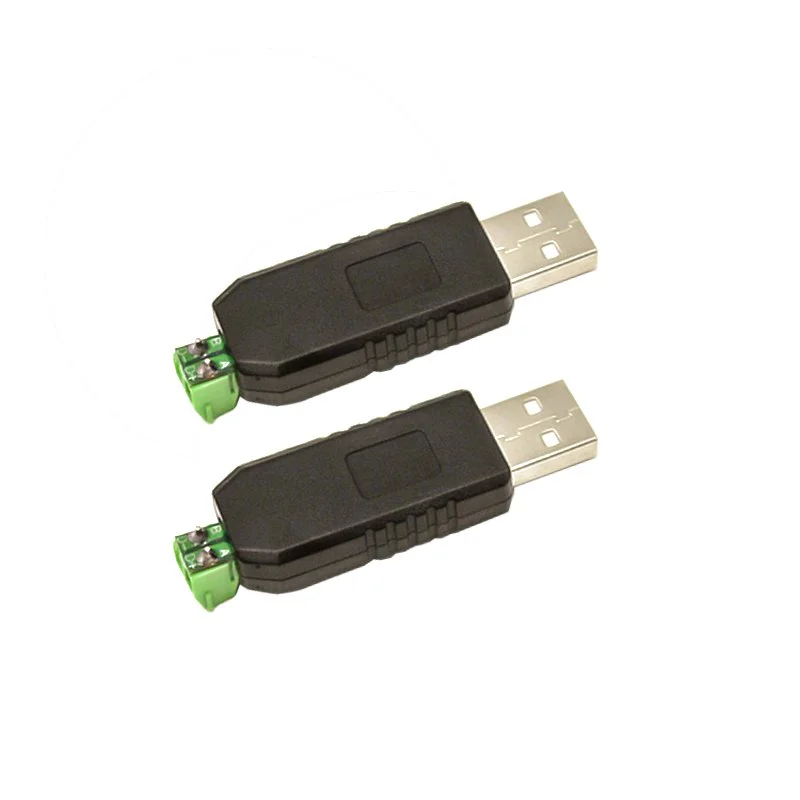

The USB to RS485 Converter Adapter module support WIN7 XP Vista Linux Mac OS  provides an easy to use RS485 interface by means of a Virtual Com Port on the user’s system.

There are no command structures, whatever is sent to the Virtual Comm Port is automatically converted to RS485 and vice versa. The module is completely self-powered from the USB bus.

Controlling / Communicating with RS-485 devices from your PC has never been easier! This device is plug-and-play. It shows up as a serial/com port and is accessible from applications or hyper-terminal.

This converter provides half-duplex RS-485 communication. The Baud rate range is 75 bps to 115200 bps, maximum up to 6 Mbps. No need of external power supply for operation.

Applications :

1. All kinds with RS485 port device parameter settings, data communication
2. LED display of communication data
3. Machine PLC data reading and writing
4. Monitoring data read and write, and PTZ control
5. Centralized control of household electrical appliances
6. Access Control System card

---



Technical Specifications

Parameter	Specification
Product Type	Industrial USB to RS485 Bidirectional Converter
Host Interface	USB Type-A (USB 2.0 / 1.1)

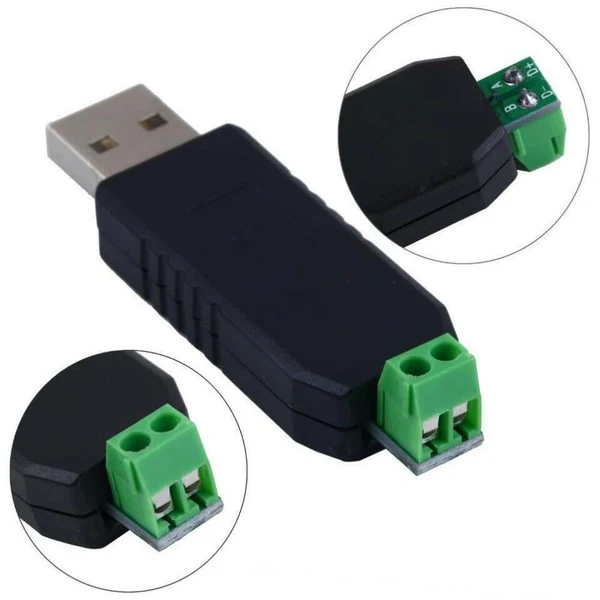

Device Interface	RS485 Screw Terminal (A+, B-, GND)
Baud Rate	300 bps to 921,600 bps (Up to 3 Mbps depending on model)
Operating Voltage	5V DC (Powered directly via USB)
Circuit Protection	600W Surge/Lightning protection, 15KV ESD, 200mA Resettable Fuse
RS485 Terminal Resistor	Built-in 120Ω balancing resistor
Transmission Distance	RS485: ~1.2 km
Supported OS	Windows 11 / 10 / 8.1 / 8 / 7 / Vista / XP, macOS, Linux, Android
Operating Temperature	-15°C to 70°C



---

Key Features

• Cross-Platform Compatibility: Full driver support across Windows (11/10/8.1/8/7/Vista/XP), Linux, macOS, Android, and WinCE.

• Original Industrial FT232 / CH343 Chipset: Ensures high-speed transmission, stability, low latency, and broad system driver recognition.

• Automatic Data Direction Control: Onboard hardware circuit automatically manages RS485 transmit/receive switching without requiring external flow control signals.

• Multi-Layer Embedded Protection: Equipped with TVS (Transient Voltage Suppressor) diodes for surge/lightning protection, self-recovery fuses for over-current protection, and 15KV ESD static protection.

• Long Transmission Distance: Supports RS485 communication distances up to 1.2 km (at low baud rates) and up to 32 node points in point-to-multipoint networks.

• Real-Time LED Status Indicators: Onboard LEDs for PWR (Power), TXD (Transmit), and RXD (Receive) make connection diagnostic and troubleshooting effortless.

---

Package Includes

• 1× Industrial USB to RS485 Converter Adapter

• 1× Screwdriver (for terminal block wiring).
