Main Controller? Rp2040 Communication Interface Uart + Gpio Communication Baud Rate 115200bps By Default (Configurable) Power Supply Interface USB Port Or Ph2.0 Connector USB Power Input Voltage 5v
Model: Waveshare HRB8825 Stepper Motor HAT Supports: Raspberry Pi series boards, Jetson Nano Motor controller: HR8825 Motor drive voltage: 8.2V-28V Motor drive current: 2.5A Logic voltage: 3.3V
7inch IPS display with capacitive touch panel, hardware resolution is 1024 x 600 Capacitive touch, supports up to 5-points touch Toughened glass capacitive touch panel, 6H hardness DSI interface, refresh rate up to 60Hz.
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards High-quality relays, loads up to 5A 250V AC or 5A 30V DC Photo coupling isolation, prevent interference from high voltage circuit Onboard LEDs for indicating relays status
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Adopts SC16IS752+SP3485 dual chip combination, converts SPI to RS485, data rate up to 921600bps Allows transceiving data manually or automatically, configured by DIP switch Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic Onboard resettable fuse and protection…

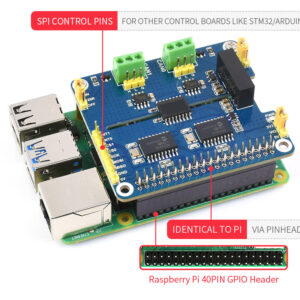

Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal Onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference Onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection Onboard voltage translator,…
