FT232RL USB to TTL Serial Adapter Module
₹142
In stock

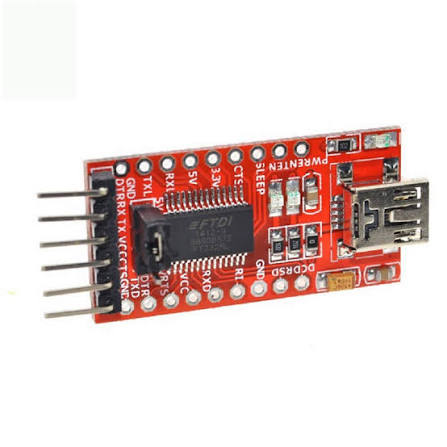

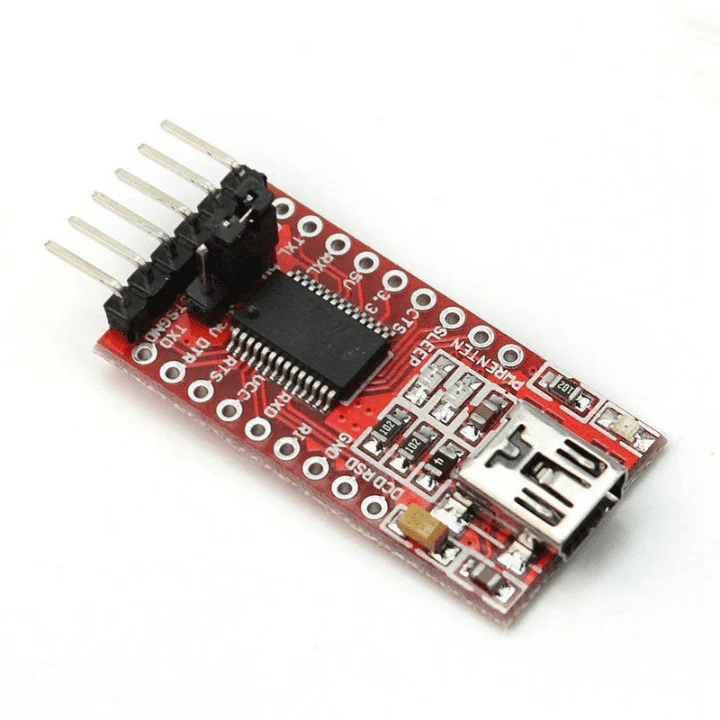

The FT232RL USB to TTL Serial Adapter Module is a high-performance USB-to-UART interface board designed for programming microcontrollers, flashing firmware, and serial debugging. Built around the industry-standard FTDI FT232RL chip, it features selectable 3.3V and 5V logic levels, integrated RX/TX status LEDs, and a DTR pin for seamless automatic reset programming with Arduino Pro Mini, ESP8266, and STM32.
Description
Connect your microcontrollers directly to your computer’s USB port with the FT232RL USB to TTL Serial Adapter Module. Whether you are flashing firmware to an Arduino Pro Mini, configuring ESP8266/ESP32 Wi-Fi modules, reading serial telemetry, or debugging embedded code, this module provides rock-solid, high-speed serial communication.
Built using the reliable FTDI FT232RL IC, this module features an onboard jumper allowing you to switch instantly between 3.3V and 5.5V logic levels, making it safe for both 5V standard microcontrollers and sensitive 3.3V low-power chips. It includes standard pinouts—including the essential DTR pin—which enables automatic reset and hassle-free code uploading without manually pressing the reset button on target development boards.
Technical Specifications
| Parameter | Specification |
| Main Chipset | FTDI FT232RL USB to Serial UART IC |
| USB Interface | Mini-USB / USB-A Connector Port |
| Operating Voltage ($V_{CC}$) | Selectable 3.3V or 5V DC via Jumper Header |
| Logic Level ($V_{IO}$) | Selectable 3.3V or 5V TTL Serial Levels |
| Pin Footprint (6-Pin Header) | DTR, RXD, TXD, VCC, CTS, GND |
| Overcurrent Protection | Onboard 500mA Self-Restoring Fuse (PPR) |
| Status Indicators | RXD LED, TXD LED, Power LED |
| Baud Rates Supported | 300 bps to 3 Mbps |
| OS Compatibility | Windows, macOS, Linux, Android (FTDI VCP Drivers) |

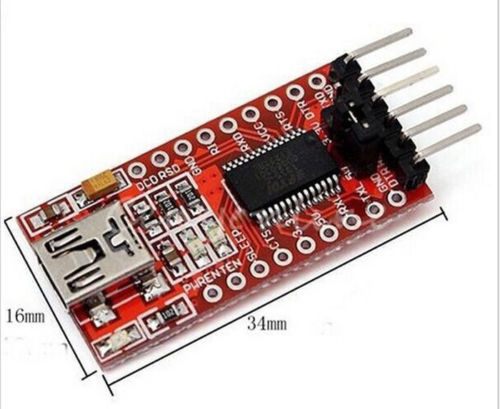

| Module Dimensions | ~36mm × 18mm |
| Compatibility | Arduino Pro Mini, ESP8266, ESP32, STM32, Raspberry Pi Serial Console, Routers |

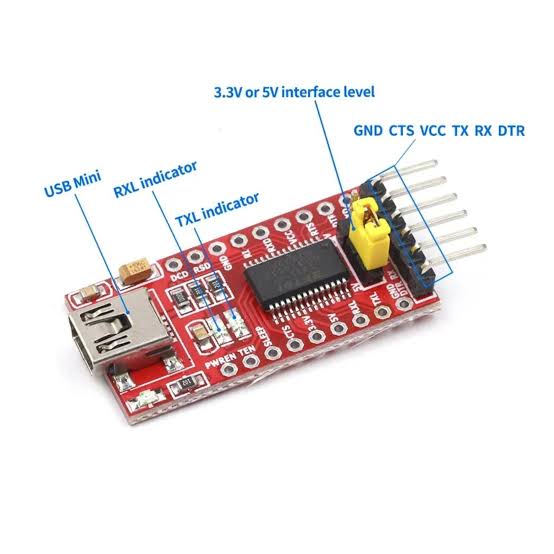

Pinout Configuration
-
DTR: Data Terminal Ready (Triggers auto-reset during Arduino code upload)
-
RXD: Receive Data (Connects to target TX pin)
-
TXD: Transmit Data (Connects to target RX pin)
-
VCC: Power Supply Output (3.3V or 5V based on jumper selection)
-
CTS: Clear To Send (Hardware flow control line)
-
GND: Ground
Key Features & Highlights
-
Genuine FT232RL Chipset: Industry-standard FTDI technology ensures stable drivers, high baud rate accuracy, and wide OS support.
-
Dual Voltage Flexibility: Onboard jumper lets you toggle VCC and logic levels between 3.3V and 5.5V to protect low-voltage MCUs.
-
Auto-Reset Uploading: DTR pin breaks out directly to enable automatic sketch uploading on boards like the Arduino Pro Mini.
-
Integrated RX/TX LEDs: Visual indicator LEDs flash during serial data transmission for instant visual debugging.
-
Built-in Circuit Protection: Features an onboard 500mA resettable fuse to protect your host computer’s USB port from accidental short circuits.
What’s Included in the Box
-
1 × FT232RL USB to TTL Serial Adapter Module
Why Buy From Aryabot?
-
100% Genuine Components: Direct sourcing guarantees authentic, high-performance ICs and adapter modules for your workbench.
-
Bench-Tested Quality: Every module is verified for USB recognition and pin continuity prior to dispatch.
-
GST Invoice Available: Tax-compliant invoices provided for corporate buyers, engineering colleges, and research labs.
-
Pan-India Express Delivery: Prompt order processing and dispatch directly from our Noida fulfillment warehouse.
Additional information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 4 × 2.5 × 1.5 cm |
