Low-noise analog signal path Device bandwidth is set via the new FILTER pin 5 µs output rise time in response to step input current Small footprint, low-profile SOIC8 package 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8 Supply Voltage: 4.5V~5.5V DC Measure Current Range: 30A Sensitivity: 100mV/A
A probe by new original installation import DS18B20 temperature sensor chip. Stainless steel tube encapsulation waterproof moistureproof prevents rust. Stainless steel shell (6 * 45 mm), lead length 100 mm (shielding wire) use stability; 3.0 V-5.5 V power supply; Temperature range wide: -55 ℃ ~ + 125 ℃; Without the external components, the unique single bus.
Operating Voltage: 3-5.5V Supply Current: ≥ 20mA Optimal Sensing Distance: 3mm Working voltage of 5V, the output of the black line low, white line of high output Uses Infrared Light to Detect Anti-Interference Ability Sensors to adopt TCRT5000 High Sensitivity, Stable Performance Exquisite workmanship, with the indicator Has a fixed bolt hole for easy installation
The Mercury switch module and digital 13 interfaces come with LED to build a simple circuit, the production of tilt lights with the digital 13 interfaces comes with the LED, the mercury tilt switch sensor access to digital 3 interfaces, when the mercury tilt switch sensor has a button signal, LED light, and vice versa.
The knock sensor, detects the knocks and the taps. It can work like a switch. The sensor sends data momentarily to the board. To keep the LED on, the button state change codes should be used. So the sensor will work as a switch.
Clean, good waveform driving ability, more than 15mA. Working voltage 3.3V-5 Output format: digital switching output (0 and 1) AÂ fixed bolt holes for easy installation
Main chip: LM393 Working voltage: for DC 5V Single-channel signal output Low-level output signal used for human body touch sensor alarm Adjustable sensitivity Pin Connector to board: 4 Pins
Operating Voltage: 3.3V-5V Features wide range voltage comparator LM393 Adjustable sensitivity Signal output indicator with the retaining bolt hole, convenient installation Output form digital switch output (0 and 1 high and low level) The output effective signal is low level When there is sound, outputs low level and the signal light
The use of plug-in full-color LED. RGB trichromatic limiting resistor to prevent burnout. Through the PWM adjusting, three primary colors can be mixed to obtain different colors. With a variety of single-chip interface. The working voltage: 5V. LED drive mode: common cathode driver
For beginners who are interested in Arduino A complete set of Arduino’s most common and useful electronic components Infrared sensor receiving module Laser sensor module Temperature and humidity sensor module Infrared sensor module 5v relay module Obstacle avoidance sensor module.

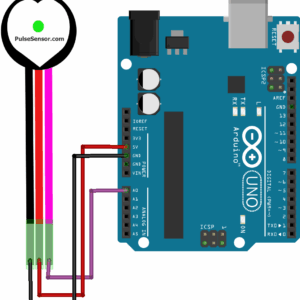

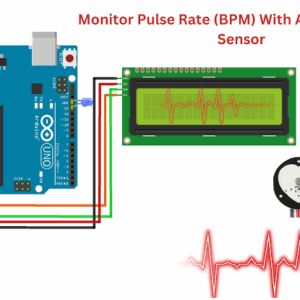

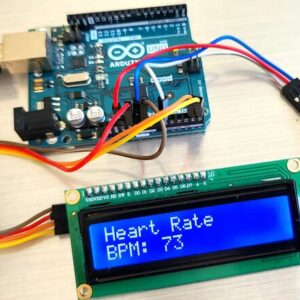

A Color-Coded Cable, with a standard male header connectors. Plug it straight into an Arduino or a Breadboard. No soldering is required. The Pulse Sensor has 3 holes around the outside edge which make it easy to sew it into almost anything. Visualization software (made in Processing) to instantly see the output of the sensor and for troubleshooting.
